Sida 1/2
The optional Ethernet cradle allows you to transfer (download and upload) system data
and file data between the IT-600 and a computer over a USB or LAN connection. You
can also use the Ethernet cradle to charge the battery pack installed in the IT-600.
Ethernet Cradle (HA-D62IO) Instruction
After reading this instruction, keep it in a safe place for future reference.
• This instruction provides a basic guide to using the Ethernet cradle.
• For information on safety precautions, refer to the IT-600 User’s Guide.
E
Right
To p
Front

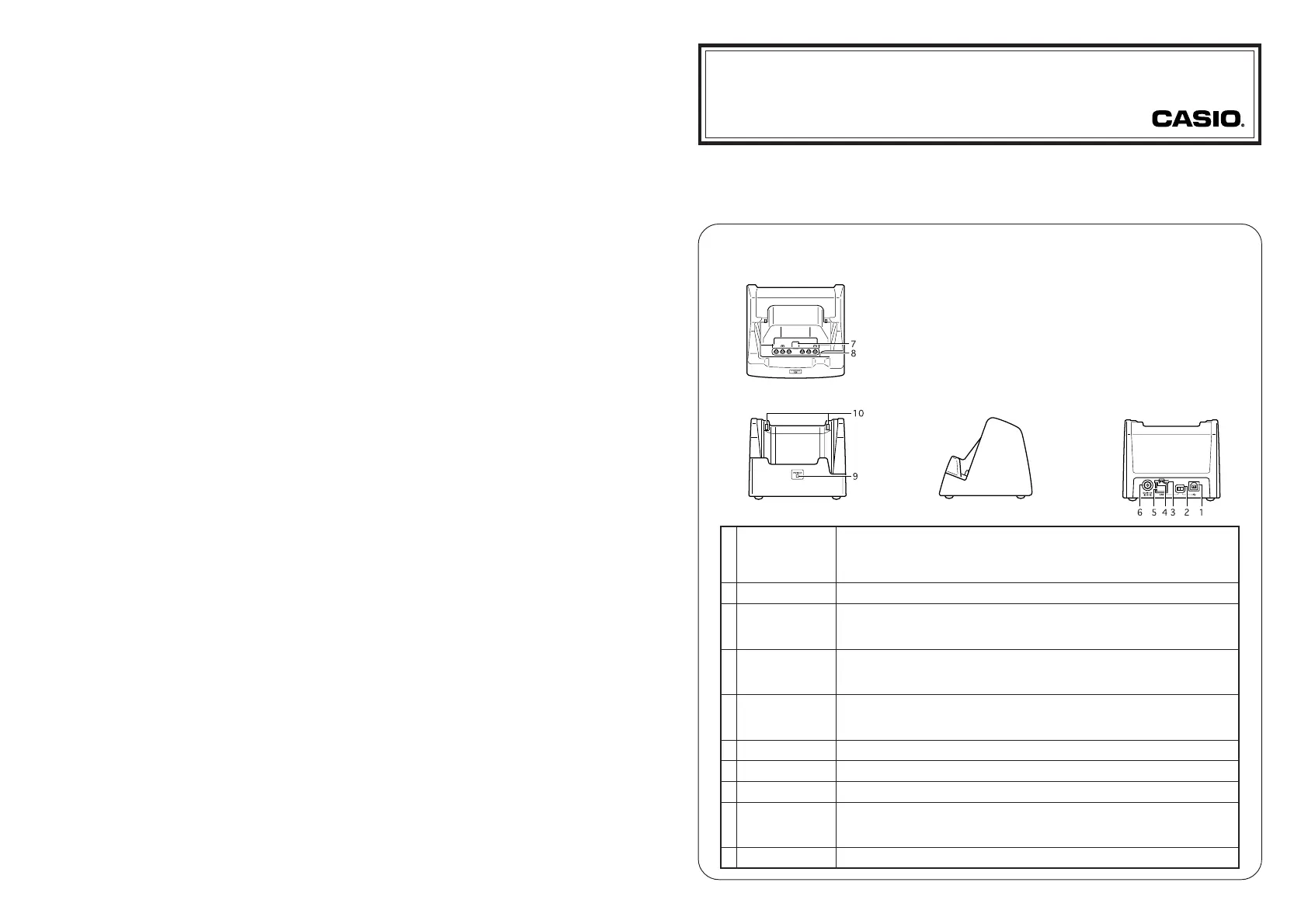

General Guide
Back
Ethernet Cradle (HA-D62IO) Specifications
1. LAN Specifications
Communications protocol: IEEE 802.3
Media type: 10base-T/100base-TX auto-switched
2. USB
Protocol: USB Ver1.1 Standard
Transfer Rate: 12Mbps (max.)
3. Charging
Charging System: Fixed-voltage (with current limiter)
Charge Period: Approximately 4 hours (battery pack)
Approximately 7 hours (large-capacity battery pack)
4. Power Supply
Power Requirement: AC adaptor (AD-S42120AE)
Power Consumption: 12V DC approximately 1.6A
Output to Handheld Terminal:
5V DC 2.5A (max.)
5. AC Adaptor
Model: AD-S42120AE
Input: 100V to 240V AC 50/60Hz 1.3-0.7A
Output: 12V DC 3.5A
6. Dimensions and Weight
Dimensions: Approximately 110(W) × 106(D) × 93(H) mm
(4
5
⁄
16
"W × 4
3
⁄
16
"D × 3
11
⁄
16
"H)
Weight: Approximately 310g (10.9oz)
7. Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 30% to 80% RH (non-condensation)
Printed on recycled paper.
PN410405-001 Printed in Malaysia
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
MO0606-A
This port is used to transfer system data and file data (download, upload) by
connecting the Ethernet cradle to a PC using a USB cable (DT-380USB). A
dedicated driver must be installed in the PC before connecting the Ethernet cradle to
the PC.
This switch is used to switch between a USB connection and a LAN connection.
This LED shows the status of the LAN connection.
Off: LAN cable not connected correctly.
Lit green: LAN cable connected correctly.
This LED shows the LAN operation status.
Off: No communication.
Blinking green: Communication in progress.
This port is used for connecting the cradle to a computer or hub over a LAN cable
so that system data and file data can be transferred (uploaded or downloaded).
Special driver software must be installed in the IT-600.
Use this jack to connect the AC adaptor (optional) to supply power to the Ethernet cradle.
This switch detects when the IT-600 is seated correctly in the Ethernet cradle.
Power is supplied to the IT-600 via these contacts.
This LED indicates the power status and the mounting status of the IT-600.
Off: IT-600 is not installed. Or, the AC adaptor is not connected.
Green: Ethernet cradle turned on, IT-600 correctly set in the cradle.
Use these hooks to lock the IT-600 into the Ethernet cradle.
1 USB Port
2 Selector Switch
3 LAN Connection
Status LED
4 LAN
Communication
Status LED
5 LAN Port
6AC Adaptor Jack
7
Terminal Detect Switch
8
Ethernet Cradle Contacts
9Power Indicator
LED
10 Mount Hooks
