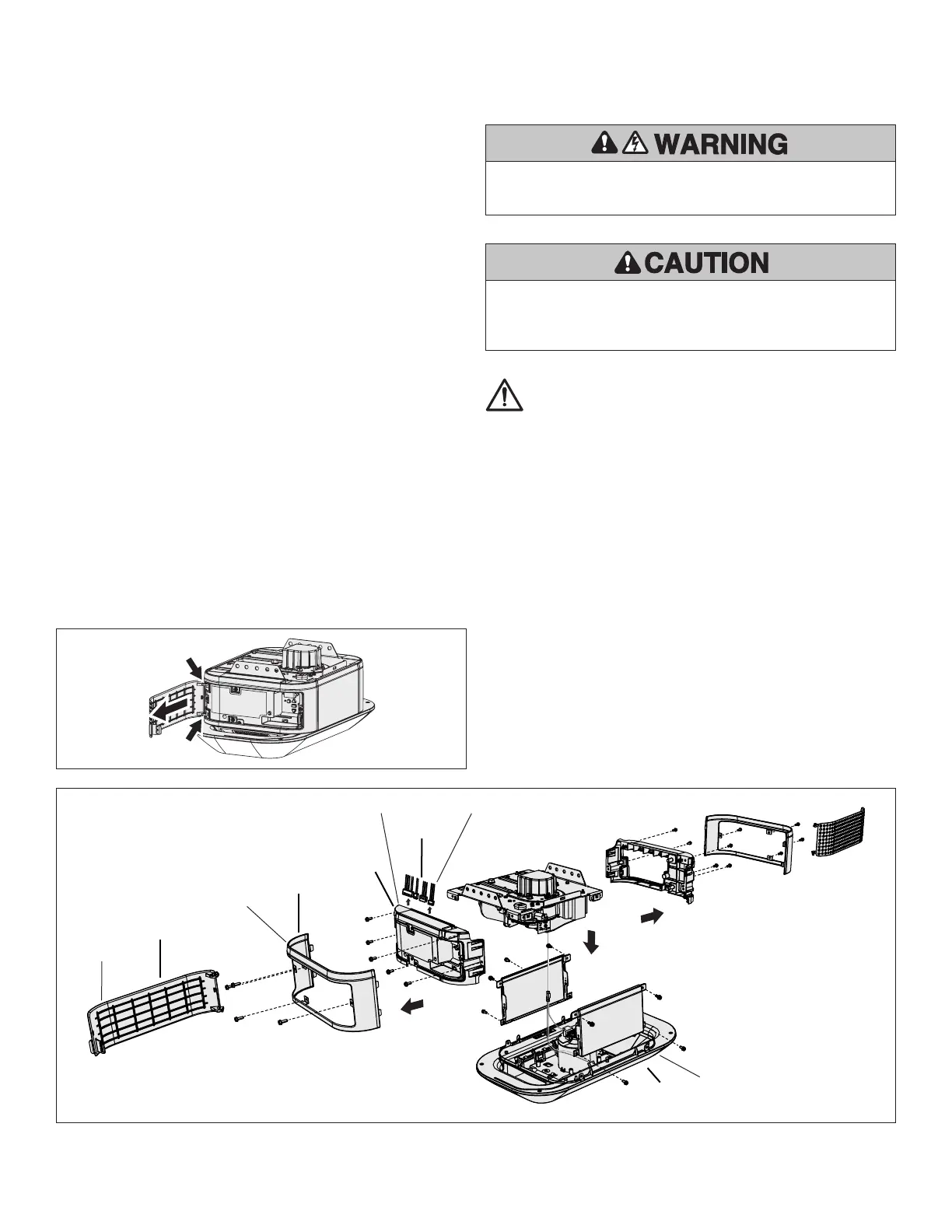

Main Enclosure Replacement

Repair parts 041-0190-000, 041-0191-000, and 041-0207-000

Instructions

You will need:

• 1/4" magnetic nut driver

• Long-nosed pliers

• 5/16" long-shafted magnetic nut driver and socket

• Flathead screwdriver

The images throughout this manual are for reference only and your

product may look different.

1. Unplug garage door opener and unplug battery (if necessary)

2. Remove the plastic doors from both sides and place in a safe spot

(Figure A)

3. Remove the end panel covers from both sides and place in a safe spot

(Figure B, Item B)

4. Take 4 or 6 screws out of sides depending on model

5. Remove Integrated LED Light Module (Figure B, Item E)

6. Unplug Integrated LED Light Module (and camera if necessary) and

place in a safe spot

7. Remove 4 screws from logic board side end panel (non-pointy screws)

(Figure B, Item C)

8. Partially remove end panel

9. Disconnect logic board wire connectors (Figure B, Item D)

10. Completely remove end panel and place in a safe spot

11. Remove 4 screws from the other end panel and place in a safe spot

12. Remove nal 2 screws from chassis to detach the main enclosure cover

you are replacing

To prevent damage to the receiver/logic board, DO NOT touch printed

circuit board of replacement receiver/logic board during installation.

ALWAYS wear protective gloves and eye protection when changing

the battery or working around the battery compartment.

To prevent possible SERIOUS INJURY or DEATH:

• Disconnect ALL electric and battery power BEFORE performing

ANY service or maintenance.

WARNING: This product can expose you to chemicals including

lead, which are known to the State of California to cause cancer

or birth defects or other reproductive harm. For more information

go to www.P65Warnings.ca.gov.

13. Replace main enclosure cover

14. Replace end panels to both sides using 4 screws on each side (non-

pointy screws)

15. Plug in Integrated LED Light Module (and camera if necessary)

16. Reattach module using 4 or 6 screws removed in step 4

17. Reattach end panel covers with 4 screws on each side (pointy screws)

18. Reattach plastic doors

19. Plug in garage door opener and battery (if necessary)

Control Door Panel

End Panel Cover

End Panel Logic Board Wire Connectors

LED Light Module

Figure B

Figure A

114-5583-000
