Installing flat panels on

the MPL15 wall mount

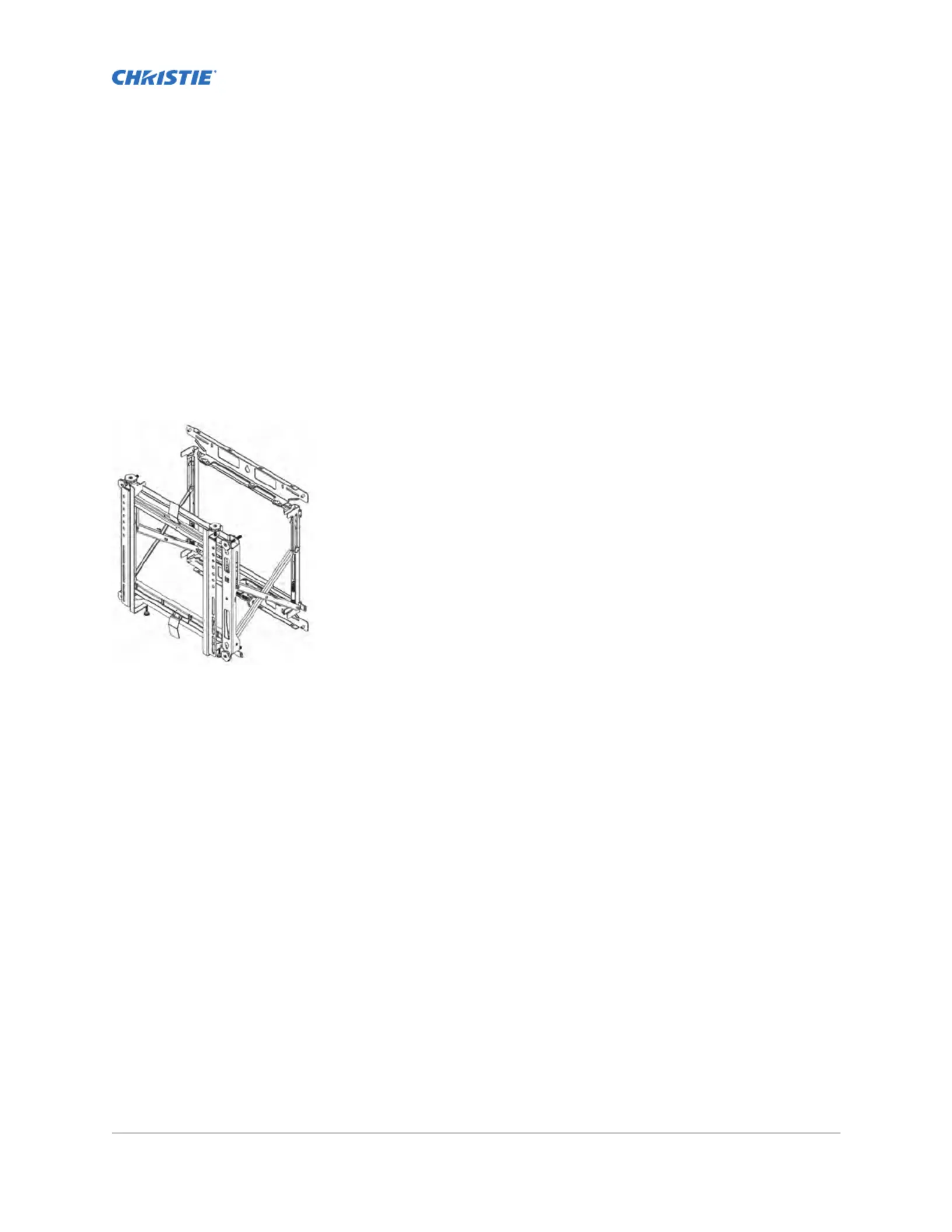

The MPL15

(DS-VW775) is a full-service video wall mount that can accommodate tiled LCD panels with

up to a 400 x 400 mm VESA pattern in portrait and landscape orientation.

The modular mount system features a pull-out mechanism that provides rear screen access, and the

ability to adjust the X, Y, and Z axis alignment, and is designed for home and public use. The

maximum load for the mount is 57 kg (125 lb).

Features

Use the w

all mounts to hang and adjust the flat panels, and to access the rear of the panels.

• Modular mount for large video wall display configurations.

• Spring-loaded mechanisms secure displays.

• Pop-out mechanism provides quick service access.

Installing Flat Panels on the MPL15 Wall Mount Instruction Sheet 1

020-102543-04 R

ev. 1 (08-2018)

Safety warnings and cautions

o prevent personal injury and to protect the device from damage, read and follow these safety

precautions.

Warning! If not a

voided, the following could result in death or serious injury.

• The supporting structure must safely support the combined load of the product, all attached

hardware, and components following all local safety standards and regulations.

• A minimum of two people or appropriately rated lift equipment is required to safely lift, install,

or move the product.

• Always handle the display panel from the sides or handles.

• Christie products must be installed and serviced by Christie qualified technicians.

• Before drilling holes locate electrical, gas, and water lines.

• Only install the product on recommended surfaces.

Caution! If not a

voided, the following could result in minor or moderate injury.

• PINCH HAZARD! Keep fingers away when operating the mount.

• Do not over-tighten hardware.

• This product is intended for indoor use only.

• Do not exceed the maximum load capacity of the product.

• Always provide proper ventilation for the product to prevent overheating.

• Before installation, inspect all components for cracks, deformations, corrosion, and missing or

damaged parts that could reduce their installation strength.

Types of installations

Learn the supported surfaces for installing the w

all mounts.

Wall construction Hardware required

Plywood Included

Installing flat panels on the MPL15 wall mount

Installing Flat Panels on the MPL15 Wall Mount Instruction Sheet 2

020-102543-04 R

ev. 1 (08-2018)

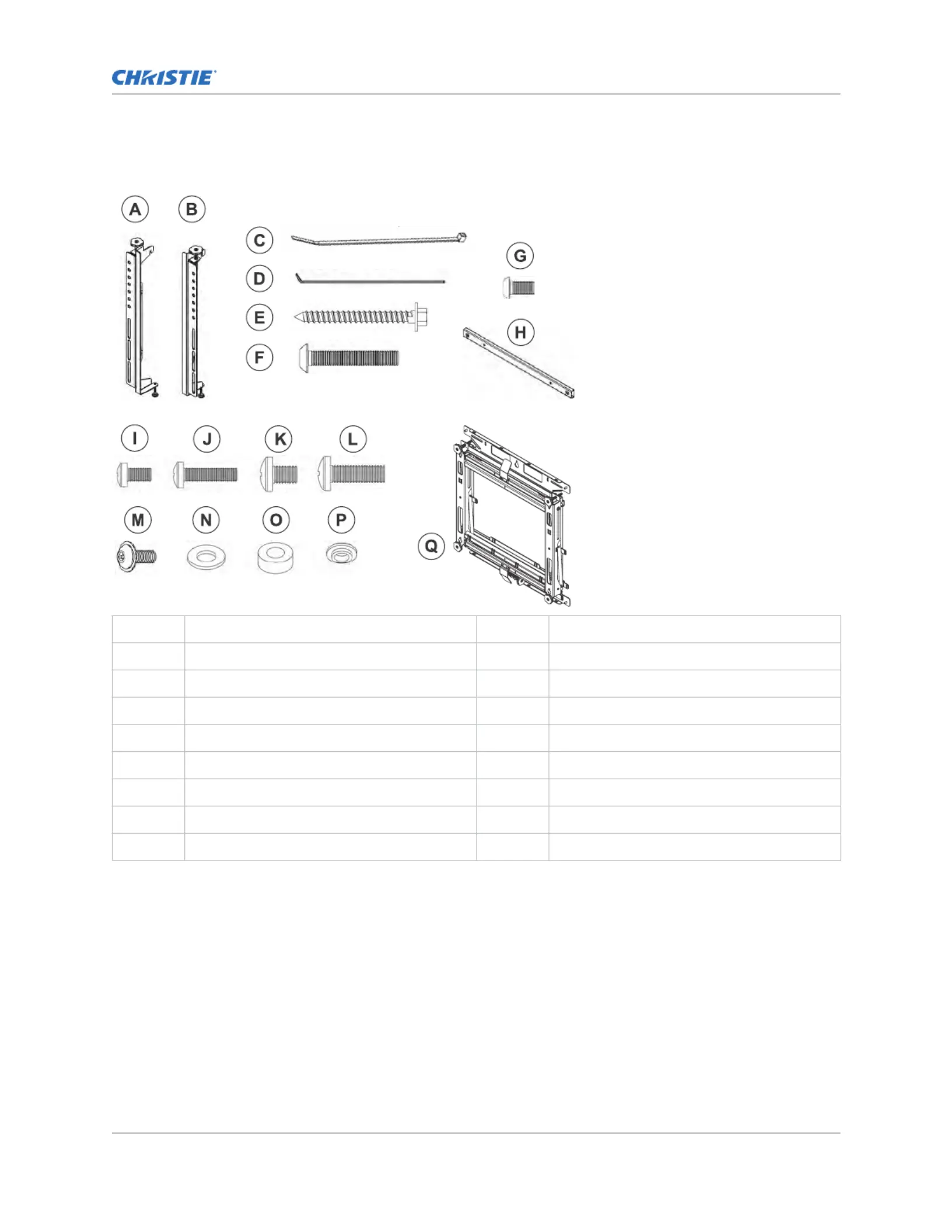

Required parts

Learn the parts necessary for installing the w

all mounts.

A Left adapter bracket (Qty. 1) J M6 x 25 mm Phillips screw (Qty. 4)

B Right adapter bracket (Qty. 1) K M8 x 12 mm Phillips screw (Qty. 4)

C Cable tie (Qty. 6) L M8 x 25 mm Phillips screw (Qty. 4)

D 4mm Allen wrench (Qty. 1) M M4 x 10 mm socket pin screw (Qty. 2)

E #14 x 2.5" wood screw (Qty. 5) N M6/M8 (5/16 SAE) washer (Qty. 8)

F M5 x 30 mm socket pin screw (Qty.2) O Spacer (Qty. 8)

G M8 x 15mm hex screw (Qty. 4) P Nylon shoulder washer (Qty. 4)

H VESA extenders (Qty.2) Q Wall plate (Qty. 1)

I M6 x 12 mm Phillips screw (Qty. 4)

Required tools

Ensure the appropriate tools are a

vailable during the installation.

• Phillips

#2 screwdriver

• 4mm pin hex wrench

• Pencil

• Drill

• 3/8" socket

• Socket wrench

Installing flat panels on the MPL15 wall mount

Installing Flat Panels on the MPL15 Wall Mount Instruction Sheet 3

020-102543-04 R

ev. 1 (08-2018)

Produktspecifikationer

Varumärke:	Christie
Kategori:	plattskärmsfäste
Modell:	MPL15
Vikt:	10780 g
Maximal skärmstorlek:	60 "
Minsta skärmstorlek:	46 "
Maxvikt:	- kg
Justerbart djup:	Ja
Produktens färg:	Svart
Vikt inkl. förpackning:	13050 g
Monteringssätt:	Vägg
Höjdjustering:	Ja
Antal displayer som stöds:	1
Monteringsgränssnitt kompatibilitet (min):	200 x 200 mm
Monteringsgränssnitt kompatibilitet (max):	400 x 400 mm
