Thank you for purchasing our CSV-1565 Product.

After unpacking the product, please make sure you have all the items provided and checked for any

damages. In case of any missing/damaged parts please inform your supplier immediately.

You should have :

• CSV-1565 Docking Station

• PowerSupply Input: 100/240VAC. Output: 100Watt

• 2x USB Type C cable: 1x connection to Host 27cm / 0.886ft, 1x RED cable USB type C for charging to PowerSupply 1 m / 3.28 ft

• QR code for download Quick Install Guide

Please make sure your Host System has the latest drivers updates installed.

On our website www.Club-3d.com you can ﬁnd whether you need drivers under the product code : CSV-1565 Downloads on our

website.

• Designed for DP 1.4 Alternate Mode supported Type-C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc).

• Supports Output through MST up to 3 displays

• Your Host System has the latest drivers updates installed

• Your Host System supports DisplayPort Alt Mode

• Follow the QIG installation step

1. Please connect the black USB type-C cable clicked onto the Dock and connect, the angled connector, to the Dock at that side of

the Dock, connect the other side of that cable to the USB Gen1 Type-C port of your NoteBook/Host system.

2. Connect your preferred Display(s) to the designated connector(s) and power on your Display unit(s) , peripherals, ethernet

and/or sound devices

3. Connect the RED USB Type-C cable in the Power Charger into the USB Type-C connector and the other side to the Marked

‘RED’ USB Type-C connector on the Dock.

4. Now Plug the Power Charger in a wall socket and switch the Dock ON, the BLUE indicator should be lit !

No need to connect your Host system to the Power Charger, our Dock will Dynamically Charge your Host system(provided your

host system needs max.85Watt).

Warning Safe Usage: Only to be used at altitude 2000 meters/6562 feet and below.

You’re ready to start working and enjoy the full beneﬁts of our Dock.

For any Questions please check our forum section on our website www.club-3d.com

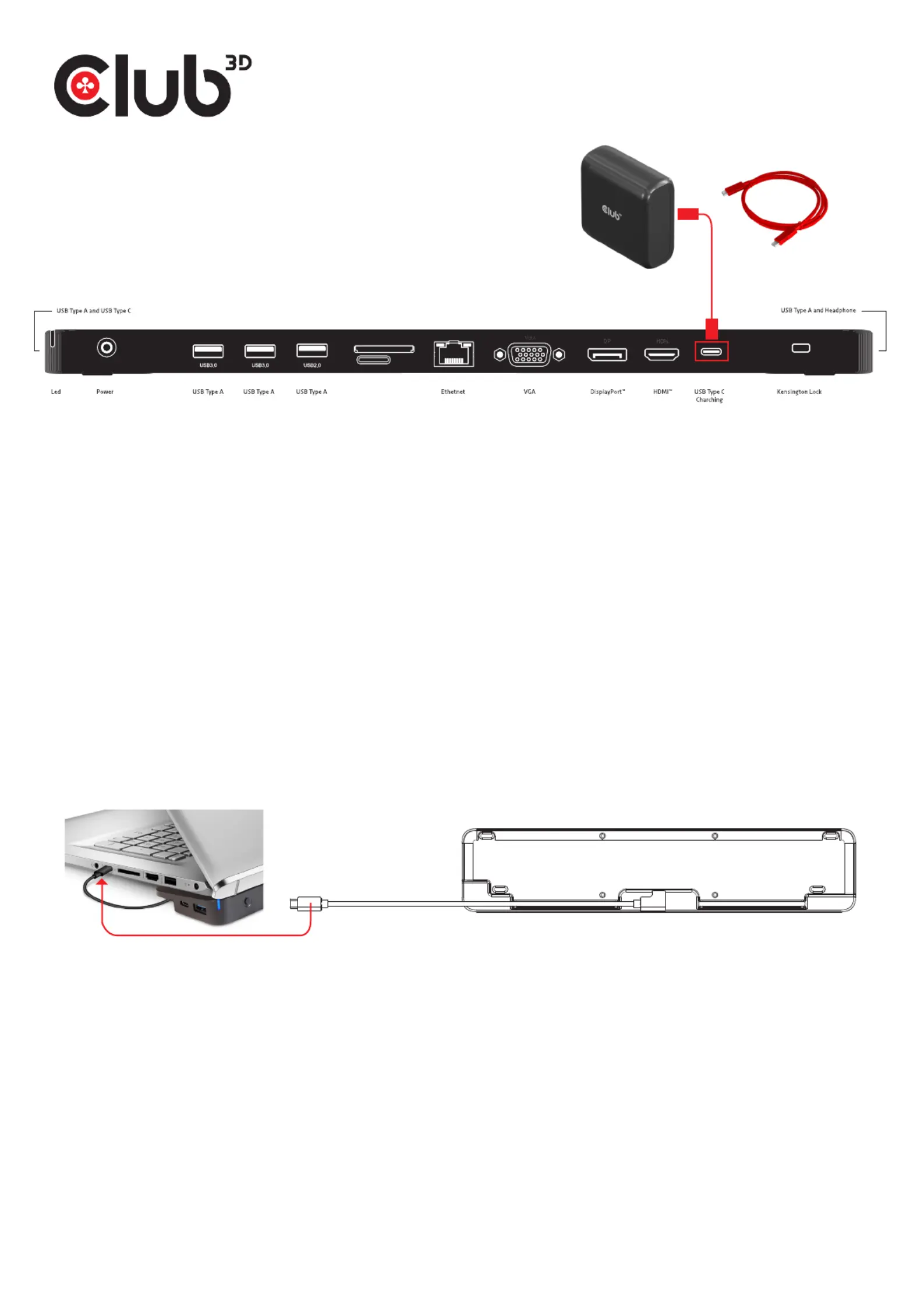

C S V -1 5 6 5 Q U I C K I N S TA L L AT I O N G U I D E

RED cable

USB type C for charging

Cable USB type C

Disclaimer: While w e ende avour to provide the m ost a ccurate, up-to-date in formation available, the c ontent on t his do cument may be ou t of da te or include omissions, inaccurac ies o r other err ors.

Products might obtain a certiﬁc ation dur ing their lifetime. This doesn’t ch ange or alter th e produc t speciﬁc ations a nd/or perf ormance i n any wa y. Club 3 D will p rovide t he update d informa tion on

their we bsite ww w.club-3d.c om at he r discre tion. The refore C lub 3D does not accept a ny right s claimed on the content of t his docum ent. Plea se refe r to a full overview of our Le gacy Term s and

Conditions o n www.club-3d.co m. All other brand names are trademarks or registered tr ademarks and a re the property o f their respecti ve owners. All cont ent is subject to cha nge without pr ior notice.

CSV-1565 QIG Apr.2023
