Sida 1/17

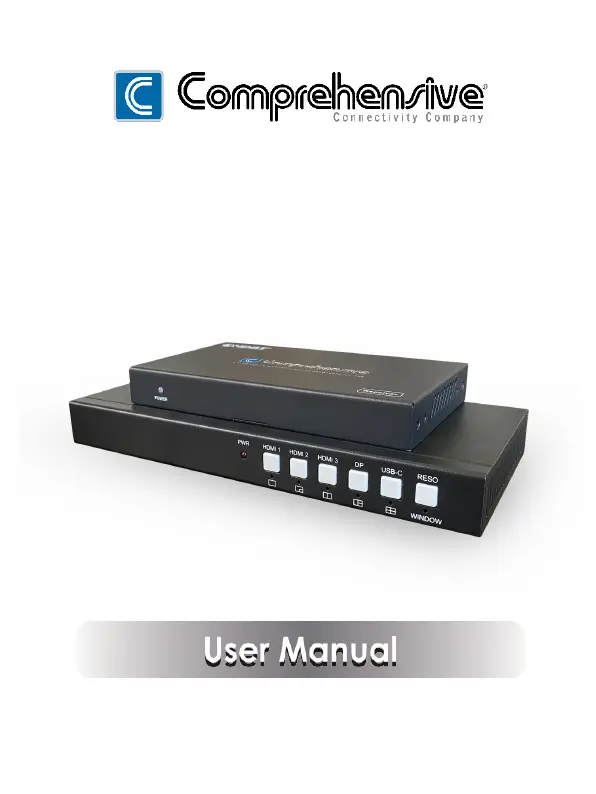

CSW-PS512MV
Pro AV/IT 5x2 Seamless Presentation Switcher
with Multi-Viewer & HDBT Extension up to 230ft
VER 1.0
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this
manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction. ..............................................................................................
1
2. Features. ....................................................................................................
1
3. Package Contents. ..................................................................................
1
4. Specifications. ...........................................................................................
2
5. Operation Controls and Functions. ........................................................
3
5.1. Switcher Panels. ..............................................................................
3
5.2. Receiver Panels. ..............................................................................
5
6. EDID Modes. ..............................................................................................
6
7. Video and Audio Output. ........................................................................
6
8. Multi-view. .................................................................................................
7
9. RS232 Commands. ...................................................................................
7
10. Application Example. ............................................................................
15
1/15
1. Introduction
The CSW-PS512MV 5x2 Seamless Presentation Switcher provides
3×HDMI, 1×DP and 1×USB-C (AV only) inputs, 1×HDMI and 1×HDBaseT
mirrored outputs with PIP/PAP/Tri/Quad-View Multi-View functionality. It
supports single screen seamless switching with no freezing, black or snow
screen. One 3.5mm audio de-embedding jacket can output analogue stereo
audio. User can use Front Buttons or RS232 commands to control the
switcher.
2. Features
☆ 5x2 presentation switcher with PIP/PAP/Tri/Quad-view
☆ True seamless switching, no freezing, black or snow screen
☆ Auto switching to active AV signal
☆ HDMI 2.0b, HDCP 2. 2, DP1.4 up to 4K60@4:4:4
☆ 3×HDMI, 1×DisplayPort and 1×USB-C inputs
☆ 1×HDMI, 1×Mirrored HDBaseT 70M/POC output
☆ Full screen/PIP/PAP/Tri/Quad-view 5 configurable display modes
☆ Up to 14 output resolutions selectable
☆ 3.5mm analog audio de-embedding
☆ EDID management
☆ Buttons, RS-232 control and 3
rd
party control support
3. Package Contents
① 1 × CSW-PS512MV 5×2 Seamless Presentation Switcher
② 1 × HDBaseT 70m Receiver
③ 1 × 24V/1A Power Adapter
④ 2 × 3-way Female Captive Screw Connector
⑤ 1 × User Manual
