Ten-Foot Rail Extension Kit
Model CMXZDCG4710
®

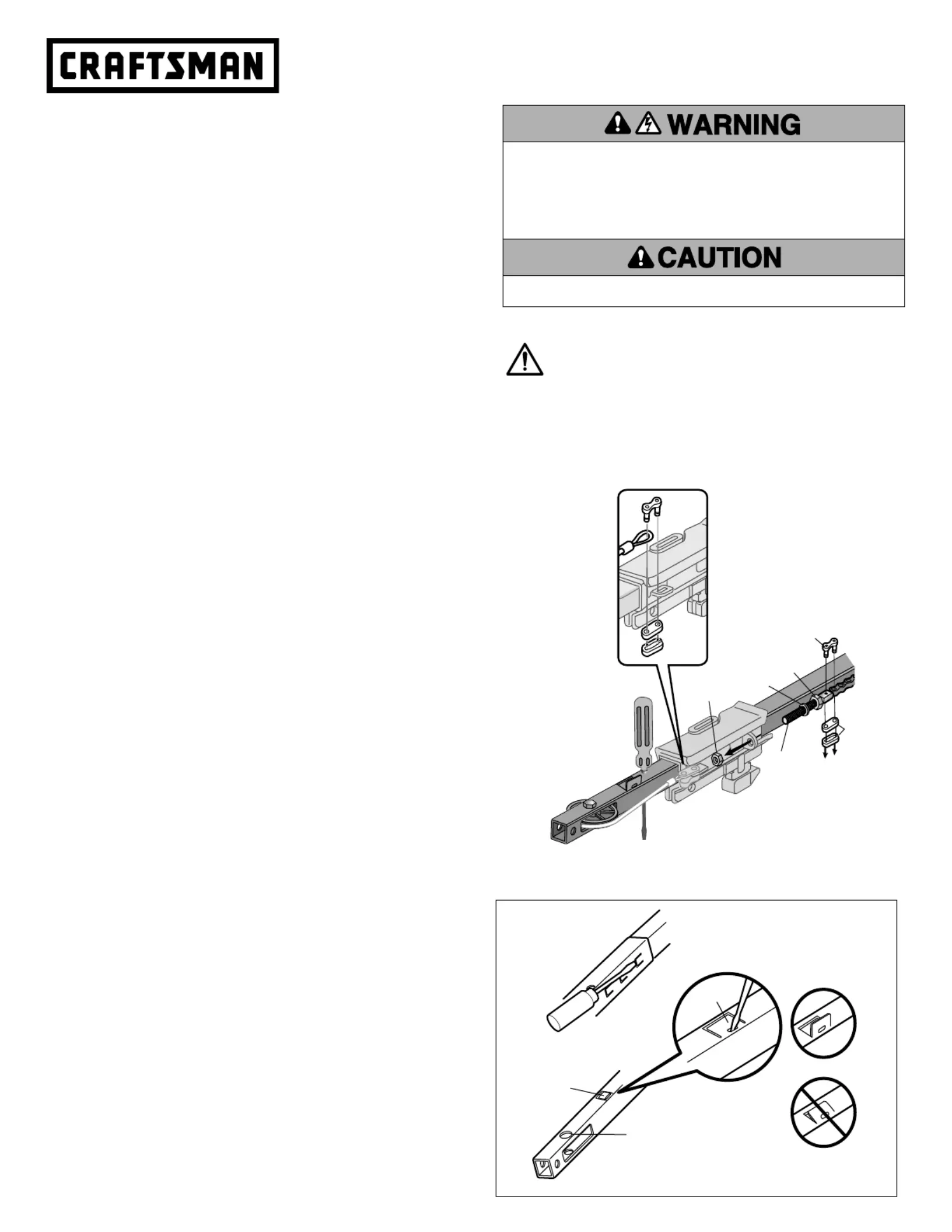

Figure 1
Figure 2
To remove rail pry both
end tabs of front
rail slightly outward
Idler Bolt hole
(KEEP LARGER
ONE ON TOP)
NEW
FRONT RAIL
CORRECT
INCORRECT
Rail Tab
Rail Tab
Threaded
Shaft
Outer
Nut
Front Rail
Section
(TO DOOR)
Inner
Nut
Lock
Washer
Master
Link
Master
Link
The garage door MUST be in the fully closed position during installation.
REFER TO GARAGE DOOR OPENER MANUAL FOR DETAILED INSTALLATION,
ADJUSTMENTS, AND SAFETY INFORMATION.
To prevent possible SERIOUS INJURY or DEATH:
• Disconnect ALL electric and battery power BEFORE performing ANY service
or maintenance.
BEFORE YOU BEGIN:
• The trolley must be in down (closed door) position during assembly and
installation. If you have a completely installed garage door opener,the rail/
opener assembly must be taken down. The UP and DOWN travel must be
readjusted after installation.
• Opener hanging brackets will require repositioning and the addition of an extra
bracket for stability due to increased rail length.
• This for installation.may require two people
IF THIS IS A NEW INSTALLATION:
Use the front (header), chain/cable assembly, and longer emergency release rope in
this kit in place of those packaged with your garage door opener. Add the enclosed
center rail as the second rail section, creating a five piece rail assembly. Complete
the assembly, installation, and adjustment of the opener according to the garage
door opener manual. Ensure that an additional hanging bracket is added for stability,
as detailed below.
IF THIS IS AN EXISTING INSTALLATION, CONTINUE AS FOLLOWS:
1. Disconnect power to opener.
2. Pull down on the emergency release handle, then disconnect the trolley from the
door arm.
3. Disconnect the rail/opener assembly from the header bracket and hanging
brackets, and place it on the floor.
4. Remove the outer nut from the trolley shaft and set aside.(Figure 1)
5. Disconnect the two master link assemblies from the trolley and (Figure 1)
discard.
6. Remove idler pulley assembly and set aside.
7. Remove the chain/cable assembly and discard.
8. Push the trolley back toward the opener. Disconnect the front rail and second rail
sections by using a screwdriver tip to pry up the outer tab on each side of the rail
(Figure 2), then slide it off the existing rail assembly. Discard the front and
second rails.
9. Align the new front and center rails with the existing rail assembly, keeping the
cut out “window” at the front (header) end. Be sure to keep rails right side up:
the idler pulley bolt hole above the window is larger on top of the rail than on the
bottom. Slide the new center rail onto the assembly, then add the front rail. Tabs
along the side will lock into place.
10. As a temporary stop, insert a screwdriver into the hole 10" (25 cm) from the front
end of the rail . Slide the trolley assembly to this point.(Figure 1)
11. Locate the rail tab. Use a flathead screwdriver and lift the rail tab until the tab
is vertical (90°) .(Figure 2)
12. Refer to your garage door opener manual to complete the assembly,

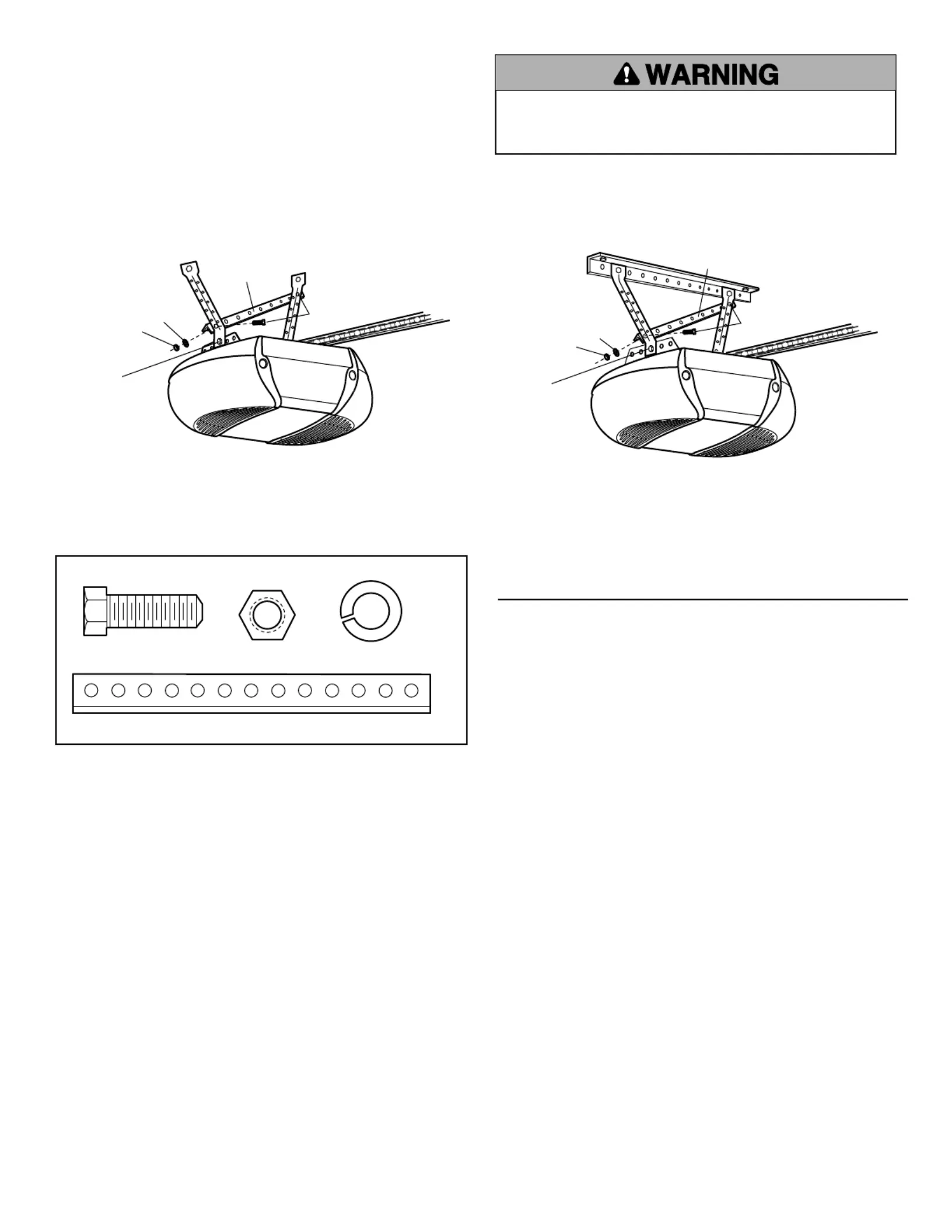

re-installation and adjustment of your opener. NOTE: Before hanging the opener,
an additional hanging bracket is necessary for stability. See Adding An
Additional Hanging Bracket on reverse side. (Replace the old emergency release
rope with the new, longer replacement rope.)
13. Reconnect power.
14. Make adjustments and test the safety reversal system according to your garage
door opener manual.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause cancer or
birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
