Threaded

Shaft

Outer

Nut

Front Rail

Section

Inner

Nut

Lock

Washer

Master

Link

Master

Link

Master

Link

Master

Link

Idler Pulley

Trolley

Eight-Foot Rail Extension Kit

Model CMXZDCG478

BEFORE YOU BEGIN:

• The trolley must be in down (closed door) position during assembly and

installation. If you have a completely installed garage door opener, the rail/opener

assembly must be taken down. The UP and DOWN travel must be readjusted after

installation.

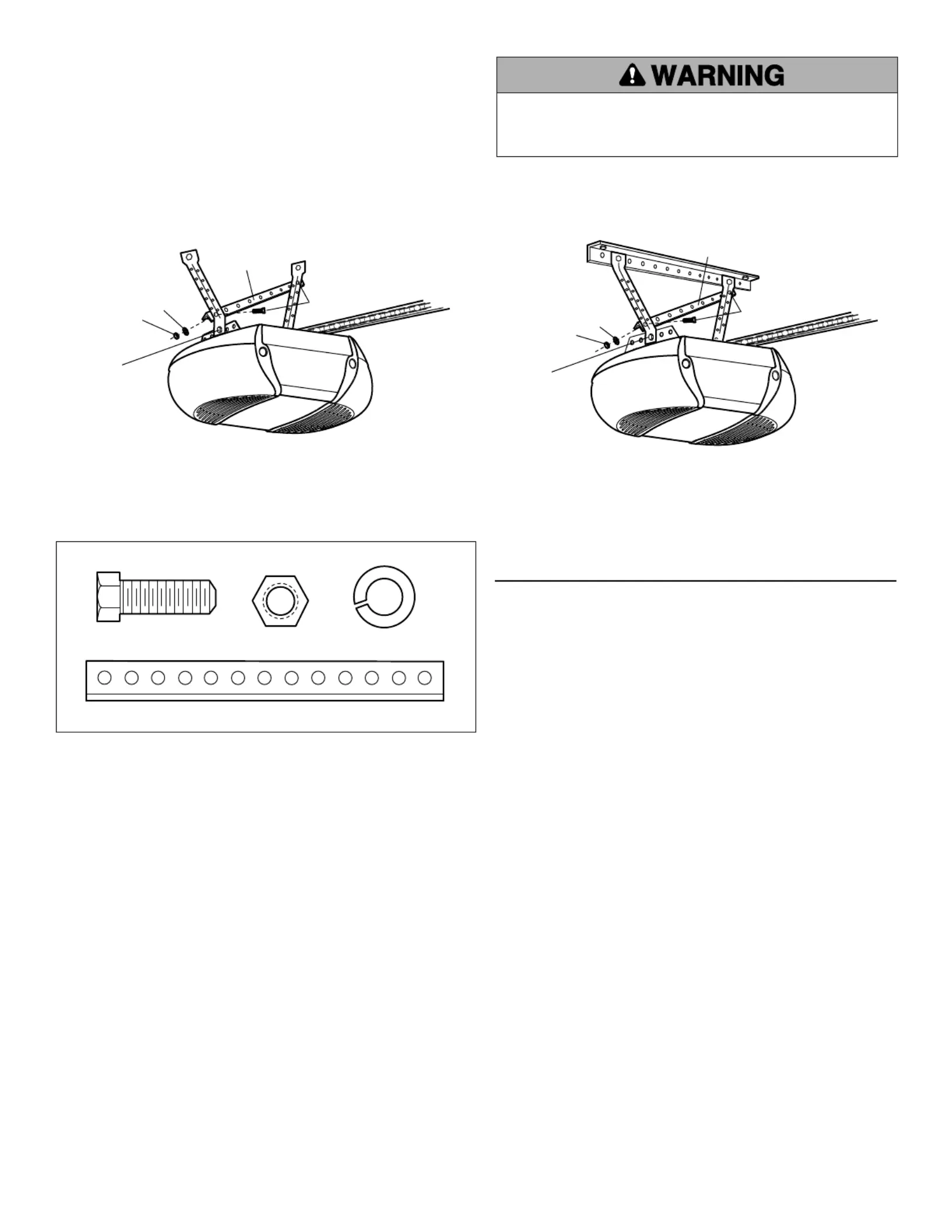

• Opener hanging brackets will require repositioning and the addition of an extra

bracket for stability due to increased rail length.

• This for installation.may require two people

IF THIS IS A NEW INSTALLATION:

Use the front (header) rail section, chain/cable assembly, and longer emergency

release rope in this kit in place of those packaged with the garage door opener.

Complete the assembly, installation, and adjustment of the opener according to the

garage door opener manual. Ensure that an additional hanging bracket is added for

stability, as detailed below.

IF THIS IS AN EXISTING INSTALLATION, CONTINUE AS FOLLOWS:

1. Pull down on the emergency release handle, then disconnect the trolley from the

door arm.

2. Disconnect the rail/opener assembly from the header bracket and hanging

brackets, and place it on the floor.

3. Remove the outer nut from the trolley shaft and set aside.(Figure 1)

4. Disconnect the two master link assemblies from the trolley and (Figure 1)

discard.

5. Remove idler pulley assembly and set aside.

6. Remove the chain/cable assembly and discard.

7. Push the trolley back toward the opener. Disconnect the front rail section by

using a screwdriver tip to pry up the outer tab on each

side of the rail, then slide it off the center rail. Discard the front rail .(Figure 2)

8. Align the new front rail with the existing rail assembly, keeping the cut out

“window” at the front (header) end. Be sure to keep it right side up: the idler

pulley bolt hole above the window is larger on top of the rail than on the bottom.

Slide the front rail onto the assembly; tabs along the side will lock into place.

9. As a temporary stop, insert a screwdriver into the hole 10" (25 cm) from the front

end of the rail . Slide the trolley assembly to this point. (Figure 1)

10. Locate the rail tab. Use a flathead screwdriver and lift the rail tab until the tab

is vertical (90°) (Figure 2).

11. Refer to your garage door opener manual to complete the assembly,

re-installation and adjustment of your opener. NOTE: Before hanging the opener,

an additional hanging bracket is necessary for stability. See Adding An

Additional Hanging Bracket on reverse side. (Replace the old emergency release

rope with the new, longer replacement rope.)

12. Reconnect power.

13. Make adjustments and test the safety reversal system according to your garage

door opener manual.

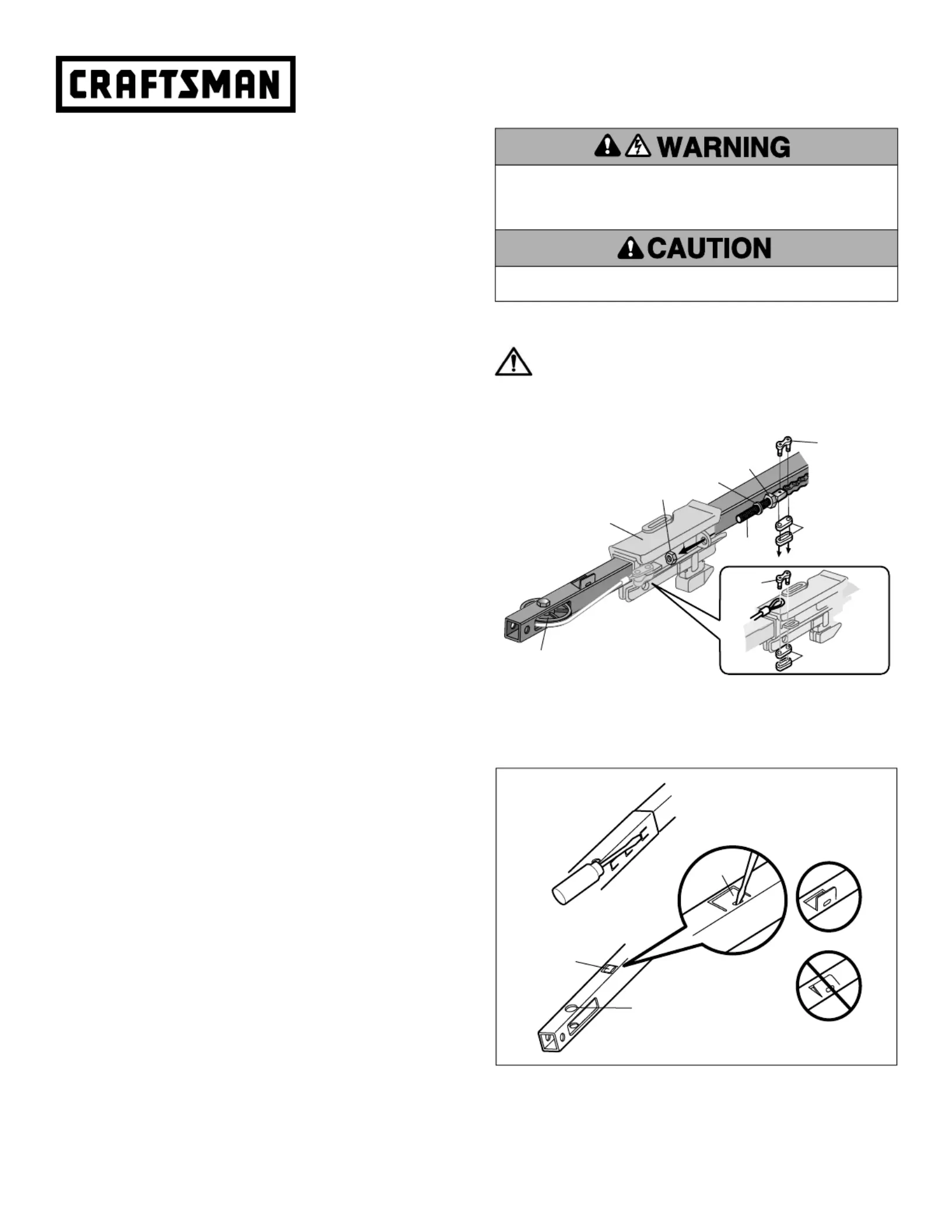

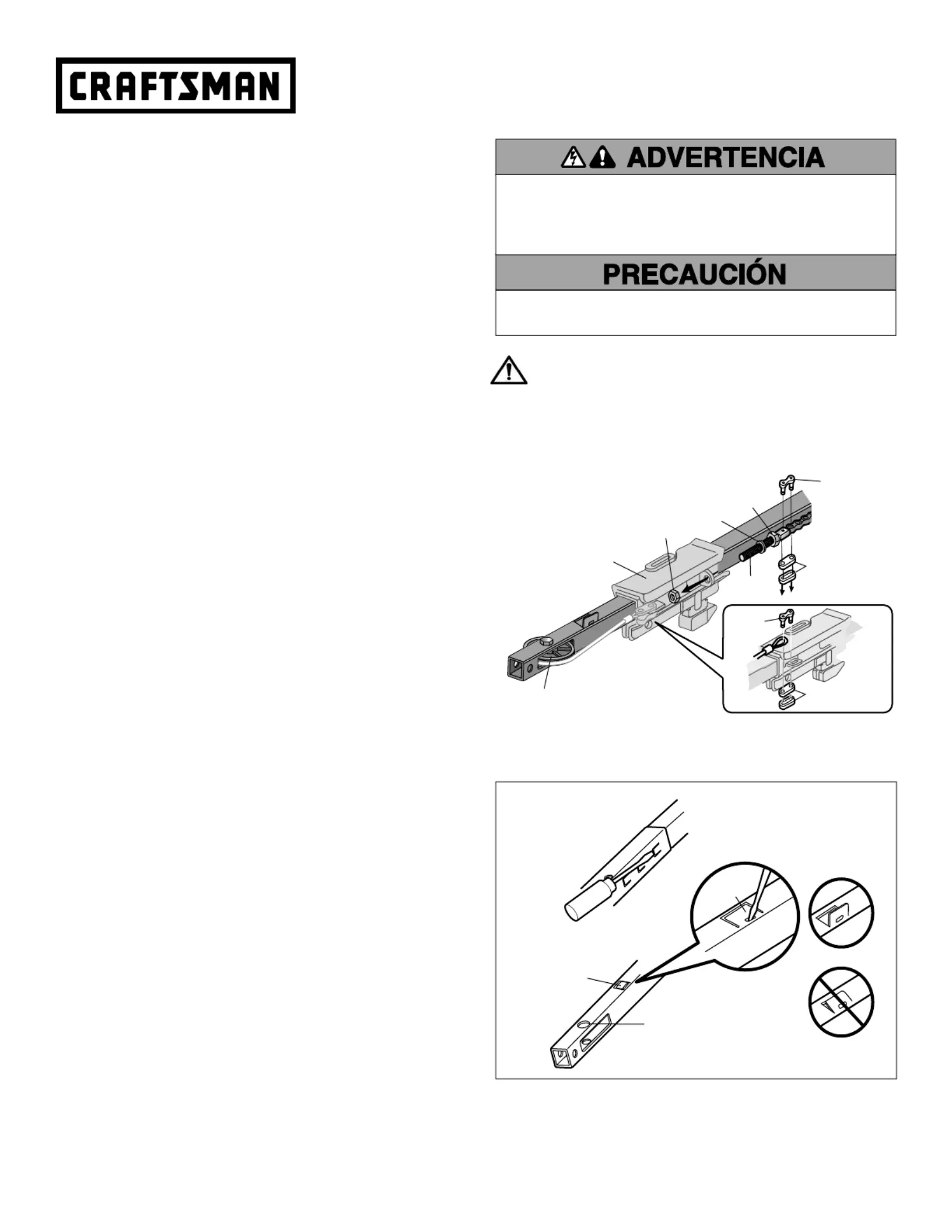

Figure 1

Figure 2

To remove rail pry both

end tabs of front

rail slightly outward

Idler Bolt hole

(KEEP LARGER

ONE ON TOP)

NEW

FRONT RAIL

CORRECT

INCORRECT

Rail Tab

WARNING: This product can expose you to chemicals including

lead, which are known to the State of California to cause cancer or

birth defects or other reproductive harm. For more information go to

www.P65Warnings.ca.gov.

To prevent possible SERIOUS INJURY or DEATH:

• Disconnect ALL electric and battery power BEFORE performing ANY service

or maintenance.

The garage door MUST be in the fully closed position during installation.
