LVDS 1 Cable (to vehicle) Microphone
ACPBM-77Y
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0913221 of 17

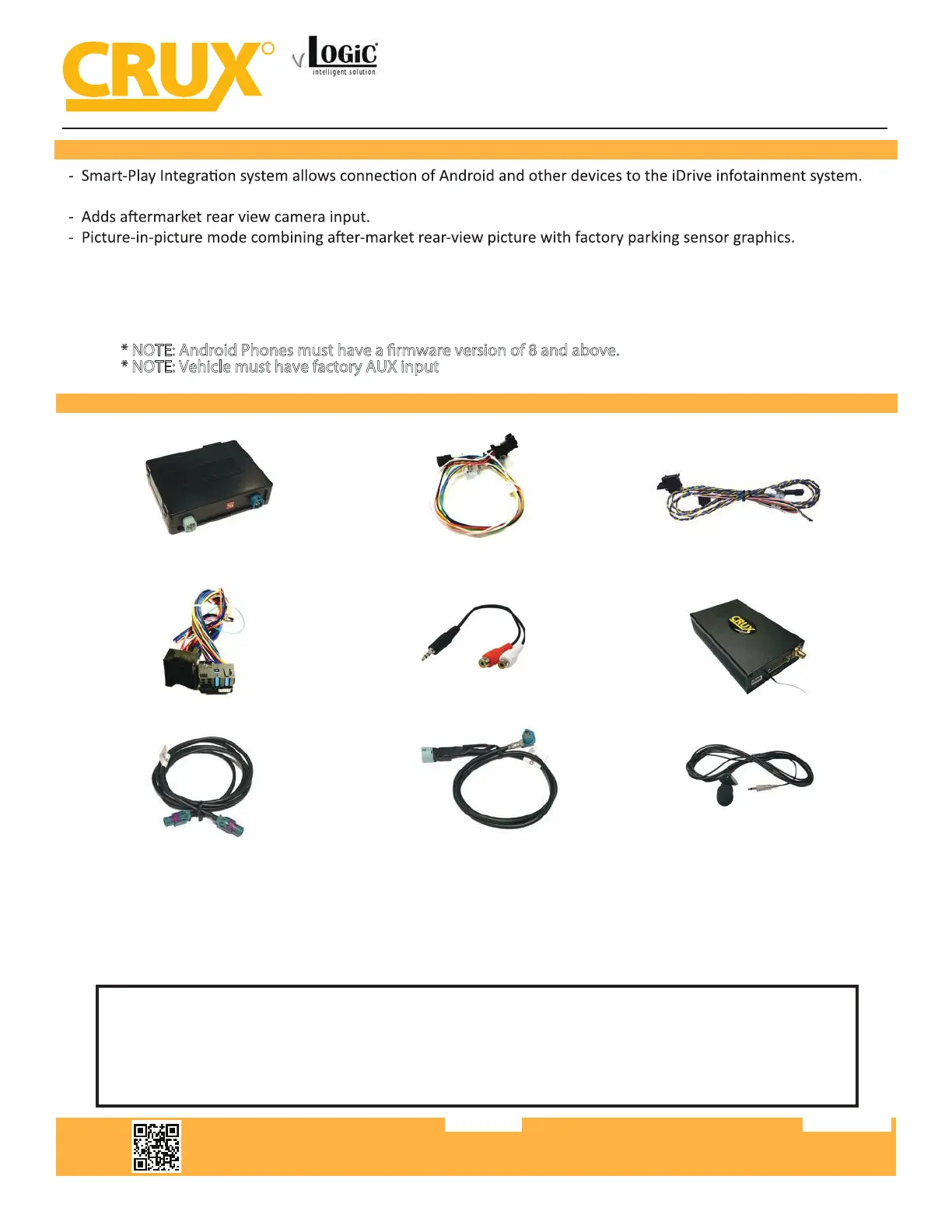

- Control Apps using smartphone’s voice control feature or the factory iDrive Knob.
- Built-in on-screen display and setup.
- 1 trigger output (+12V max. 1A) for the camera power.
- Smartphone Mirroring
- Integrate wireless CarPlay/Android Auto
PRODUCT FEATURES:
PARTS INCLUDED:
ACPBM-77Y Module Power/CAN Harness 1 (E-Series) Power/CAN Harness 2 (F-series)
ACPBM-77Y Vehicle Harness 3.5mm to RCA Adapter Smart-Play Interface Module
NOTE:
This kit has two seperate POWER/CAN harnesses. Only use the harness that’s designed for your
vehicle.
POWER/CAN 1 - E-Series Trims
POWER/CAN 2 - F-Series Trims
LVDS 2 Cable (to radio)
* NOTE: Vehicle must have factory AUX input
* NOTE: Android Phones must have a rmware version of 8 and above.

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0913222 of 17
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
ACPBM-77Y
L SVD
IN LVDS
OUT
1 2 3
O N
ACPBM-77Y Module
PO R CANWE /
FRONT
CAM
REAR
CAM
FW
UPDATE
UART
P V OOWER/ IDE
Back of Headunit
ACPBM-77Y
Vehicle Harness
CAN LOW (Blue)
CAN HIGH (Yellow)
Factory Harness
+12V Switching
Output 1 (Pink Wire)
Power/CAN
Harness
Vehicle Auxiliary
Input (AUX input)
Female RCA to
3.5mm jack
Male L & R RCA
Outputs (Audio)
AUX
iDrive Knob
Retention Cable
Smar ho n C etp e abl
Wir s Adapte rele s
Smar i C etl nk abl
OR
USB puIn t
Micr h eop on
Smart-Play Module
Pink factory
LVDS Cable
CRUX LVDS 1
Cable
CRUX LVDS 2
Cable
Fiber-Optic
Cable
Smart-Play Inte ation with Rear-View Camera Input forgr
E & F Series BMW Vehicles with CIC Infotainment Systems
Refer to P. 16 for the CAN com
vehicles, if needed.
Refer to P. 16 for the CAN com
vehicles, if needed.

ACPBM-77Y
Smart-Play Inte ation with Rear-View Camera Input forgr
E & F Series BMW Vehicles with CIC Infotainment Systems
R
INTERFACING SOLUTIONS
Setting the DIP switches of the Interface Box.
DIPs 1 and 2 on the back of the interface-box is used to set the monitor size.
After each change of the DIP switch settings you have to execute a power reset of the interface box!
DIP SWITCH SETTINGS:
LED‘s of the interface-box
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.091322
3 of 17
OSD Menu
NOTE: Must be in factory infotainment menu to trigger full OSD menu
OSD SETTINGS:
To ensure that Smart-Play works, make sure
NOTE: Must have solid BLUE, GREEN, RED, LEDs for part to work..
FRONTCAM ( FVC) = SmartPhone
To retain the factory Back-Up Camera:
REARCAM (RVC) = OEM
REARCAM (RVC) = ON
Y
