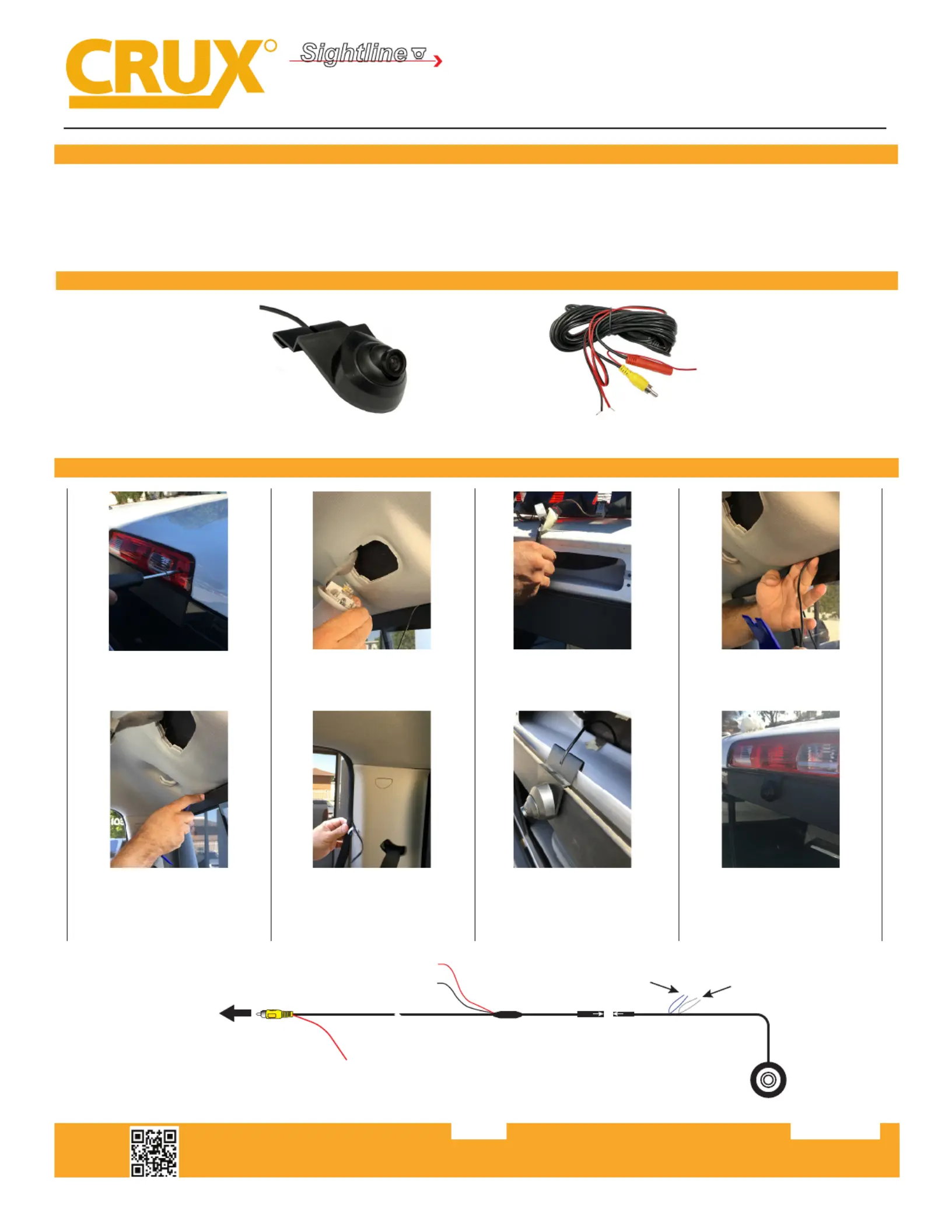

CDR-03C
Third Brake Light Mount Cargo Camera for
RAM Trucks 2014 - 2017
- Mounts under the OEM third brake light for an OEM look.
- Adjustable swivel head camera for opmal view of your truck bed.
- HD CMOS camera for clear vision day and night.
- Terminates to a video RCA for universal applicaon.
PRODUCT FEATURES:
PARTS INCLUDED:
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
INSTALLATION INSTRUCTIONS:
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.060719
1. Remove third brake light lens
assembly.
2. Remove the dome light assembly. 3. Fish the CDR-03C camera cable
under the headliner and towards
inside the cabin.
4. Pull the camera cable and connect
to the 4-pin barrel connector of the
extension cable.
5. Run the cable along the headliner.
Use a plasc pry tool to tuck it in
neatly.
6. Connue running the cable along
the C pillar, under the door sill,
towards the radio.
7. Hook on the CDR-03C camera on
the third brake light cavity.
8. Reinstall the third brake light
assembly and make the video and
power connecons at the RVC
interface or aermarket radio.
1
Third brake light mount cargo camera 20” extension cable
WHITE Wire
Parking Guideline
Regulator
Extension Coax Cable
GROUND
RED Wire (A)*
Camera
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
BLUE Wire
Flip Image Horizontally
*Red wire A is an extension of Red wire B. Use one that suits the installaon and insulate the one that is not
being used.
