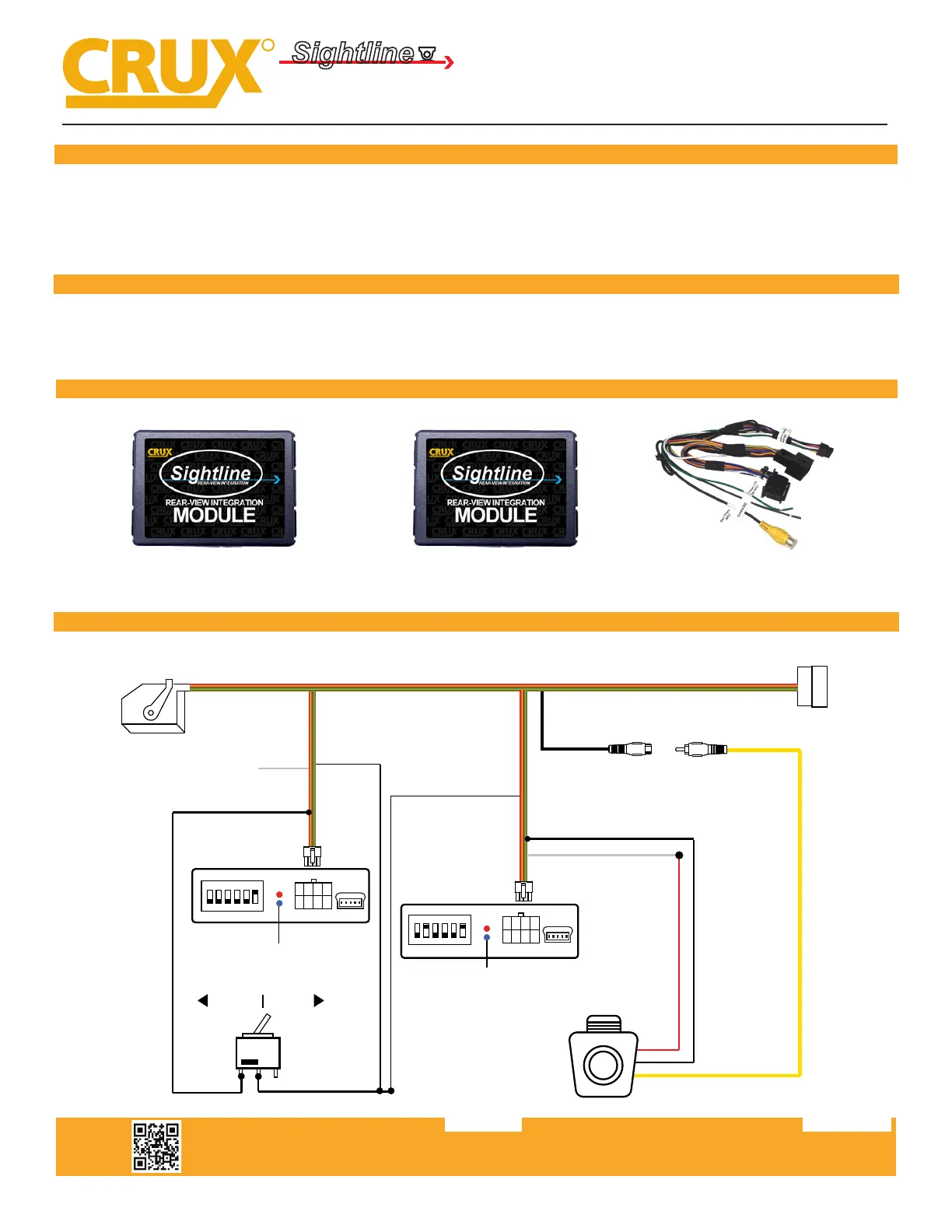

C-125 ModuleC-500 ModuleRVCFD-79 Harness
RVCFD-79
Rear View Integration Interface for
Select Ford and Lincoln Vehicles with 8” MyFord Touch System
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0825201 of 8
- Automacally switches to Rear-view when car is in Reverse mode.
- Acvates the 8” MyFord Touch Screen for enabling Video features.
- Plug and Play installaon
PRODUCT FEATURES:
PARTS INCLUDED:
IMPORTANT INSTALLATION NOTES:
Unplug the RVCFD-79 two modules before performing a vehicle system reash. Repeat the coding
process aer ashing the vehicle system.
IMPORTANT INSTALLATION NOTES:
54-PIN
(female plug)
TO FACTORY
DISPLAY
------------------
------------------
------------------
54-PIN
(male plug)
8-PIN
(male plug)
WHITE/ NOT USED
4 5 6
ON
1 2 3
4 5 6
ON
1 2 3
C-500
INTERFACE
C-125
INTERFACE
WHITE / REVERSE
12V OUTPUT
CAMERA
NOT INCLUDED
TAP GROUND
ON BLACK WIRE OF
8-PIN CONNECTOR
YELLOW/ VIDEO SIGNAL
STATUS LEDs
STATUS LEDs
8-PIN
(male plug)
CAMERA INPUT
BLACK WIRE / TAP HERE
TOGGLE SWITCH
(Optional)
ENABLEDISABLE
GREEN/ VIM
GREEN / VIM
RED WIRE / TAP HERE
