RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN 11 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Supports Non-Bose and Bose amplified systems.
- Provides Vehicle Speed Sensor (VSS), Parking Brake and Reverse Outputs.
- Retains factory OnStar
®
- Retains chime functions.
-EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:

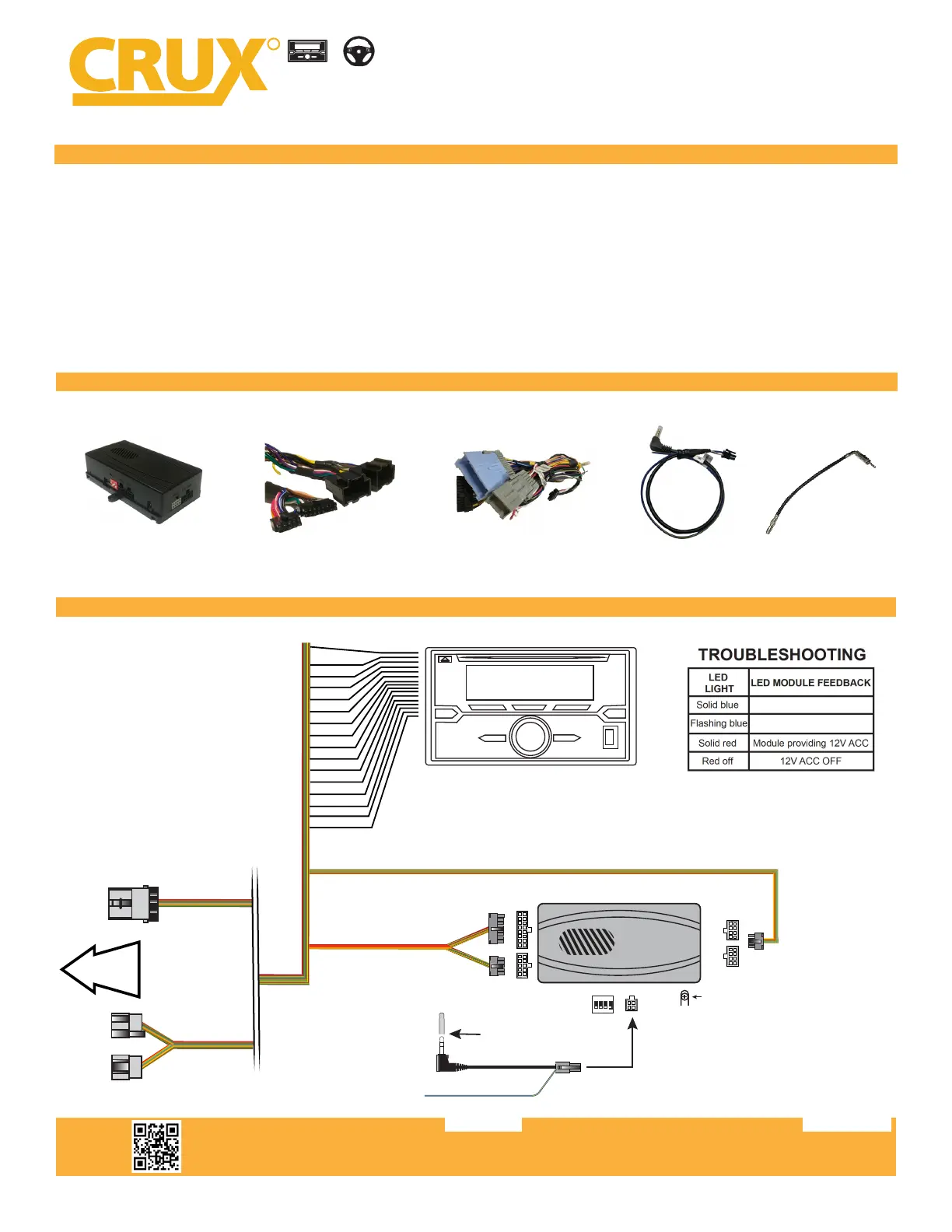

INSTALLATION DIAGRAM:
SOOGM-16B MODULESOOGM-16B 14 & 16 PIN HARNESSSOOGM-16B 24 PIN HARNESSSWC CABLES
16 & 14-Pin Connector Harness
SOOGM-16B
Radio Replacement Interface with Steering Wheel Control Retention
for Select GM LAN 11-Bit Vehicles 2006-2012
AFTERMARKET
RADIO
Reverse GearPurple/White
Parking Brake Yellow/Black
Illumination (+) Orange
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Vehicle Speed OutputRed/Black
Amplifier Turn-onBlue/White
24-Pin
Connector
8-Pin
Connector
BOSENON
BOSE
10-Pin
Connector
SWC DIP SWC
1 2 3 4
ON
Chime Volume
Adjustment
4-Pin
Connector
Cap or insulate if
not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
JVC/Kenwood (Blue / Yellow)
To aftermarket
radio SWC wire or
3.5mm port
LAN Bus not recognized
LAN Bus recognized
24-Pin Connector Harness
Select
Appropriate
Harness
ANTENNA ADAPTER
TO FACTORY
HARNESS
