How to Install
Glass Sets
1. 93pcs Clear glass 7 3/4”
2. 8 pcs Clear glass 9”
3. 12pcs Clear glass 11”
Crystorama.com
ADD-319- -CLAG

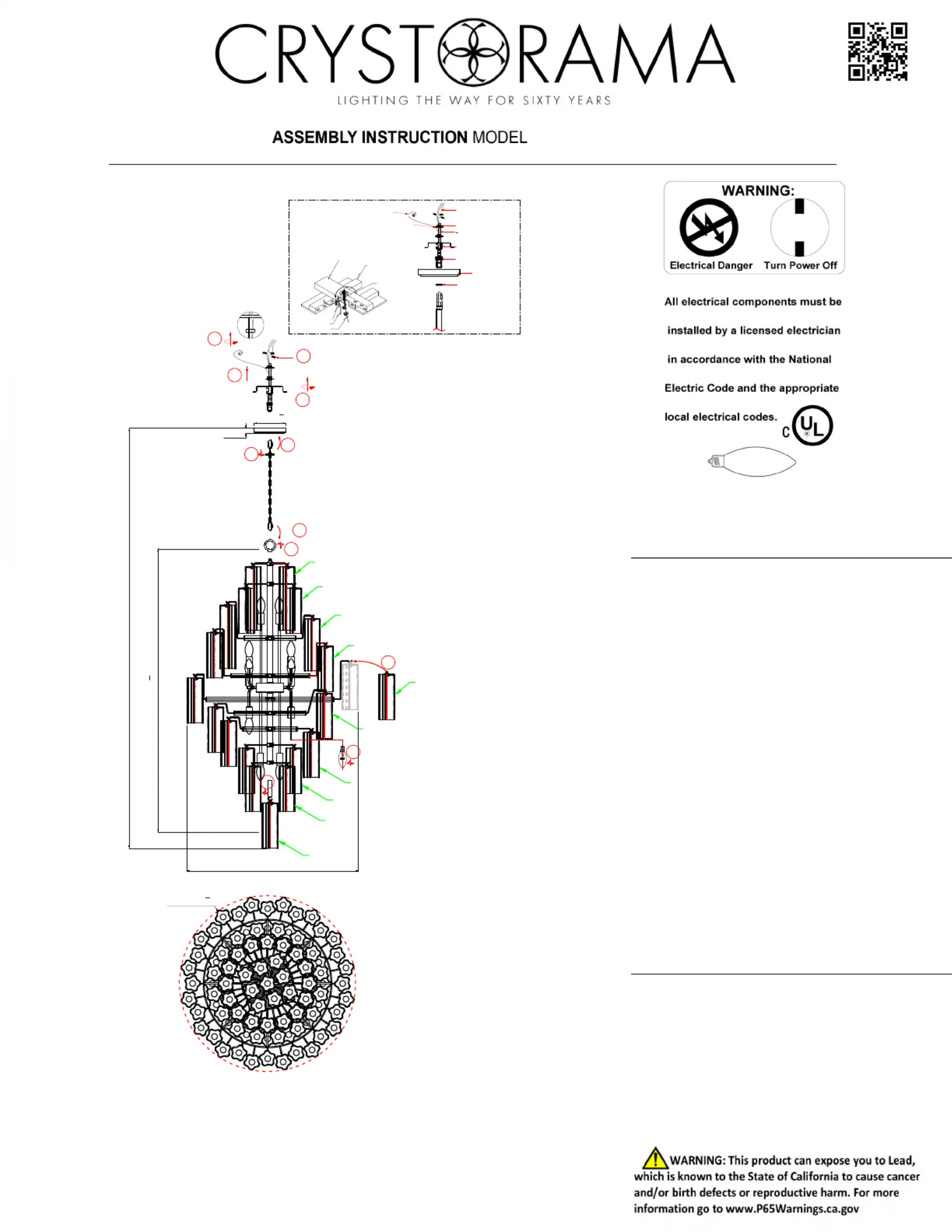

1. Decide the preferred hanging height and choose the
correct length of chain needed.
Screw the loop onto the fixture.
3. Attach one end of the 1/4 IPS threaded pipe provided onto
the ceiling joist and secure with hex nut.The other end
should protrude through the outlet box as shown.
4. Assemble the screw collar loop,nipple hex nut and hickey
to the 1/4 IPS threaded pipe and adjust overall length to
allow the collar ring to hold the canopy flush to ceiling.
5. Attach one end of the chain to the fixture loop by openin
the quick link. Slide the screw collar ring over the upper
end of the chain and through the canopy.Open the
opposite quick link and lift the fixture to attach the screw
collar loop to the quick link.Secure the link.
6. Feed the fixture wires, ground wires and safety cable
through the chain and screw collar loop, exiting through
the Hickey. Proceed with the wire connections. Wrap the
safety cable around the ceiling joist and secure the cable
with the clamp and set screws provided as shown.
After wires are connected,thread the screw collar loop
onto the nipple. Place the canopy up against the ceiling
and lock by tightening the screw collar loop ring.
7. After safely attaching fixture into junction box .Install the
short stem onto the bottom of the fixture.
8. Install bulbs and proceed to connecting the power.
9. Dress the glass as illustrated.
You will need 20 Candelabra Base Bulb
40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
( This fixture is Dry rated)
Tier#1 (11" 4pcs )
Tier#2 (7 3/4" 4pcs )
Tier#3 (9" 8pcs , 11" 8pcs )
Tier#4 (7 3/4" 16pcs )
Tier#5 (7 3/4" 32pcs )
Central (7 3/4" 1PC )
Ø140 [5
1
2
"]
25 [1"]
Ø775 [Ø30
1
2
"]
Ø775 [30 1/2"]
1248 [491
8"]
Tier#6 (7 3/4" 16pcs )
Tier#7 (7 3/4" 16pcs )
Tier#8 (7 3/4" 4pcs )
Tier#9 (7 3/4" 4pcs )
3
8
2
1
11
10
9
4330 [170.5"]
Assemble glass steps:
Tier#1 - Tier#2 - Tier#3 - Tier#4 - central - Tier#9 - Tier#8 - Tier#7 - Tier#6 - Tier#5
HOUSE SUPPLY WIRES
HEX NUT
WASHER
1
4
IP NIPPLE
SAFETY CABLE
HICKEY
CANOPY
SCREW COLLAR LOOP
COLLAR RING
STRUCTURAL MENBER
Ceiling Joist
Junction box
Supply Wire
Safety Cable
4
5
6
7
Crystorama.com

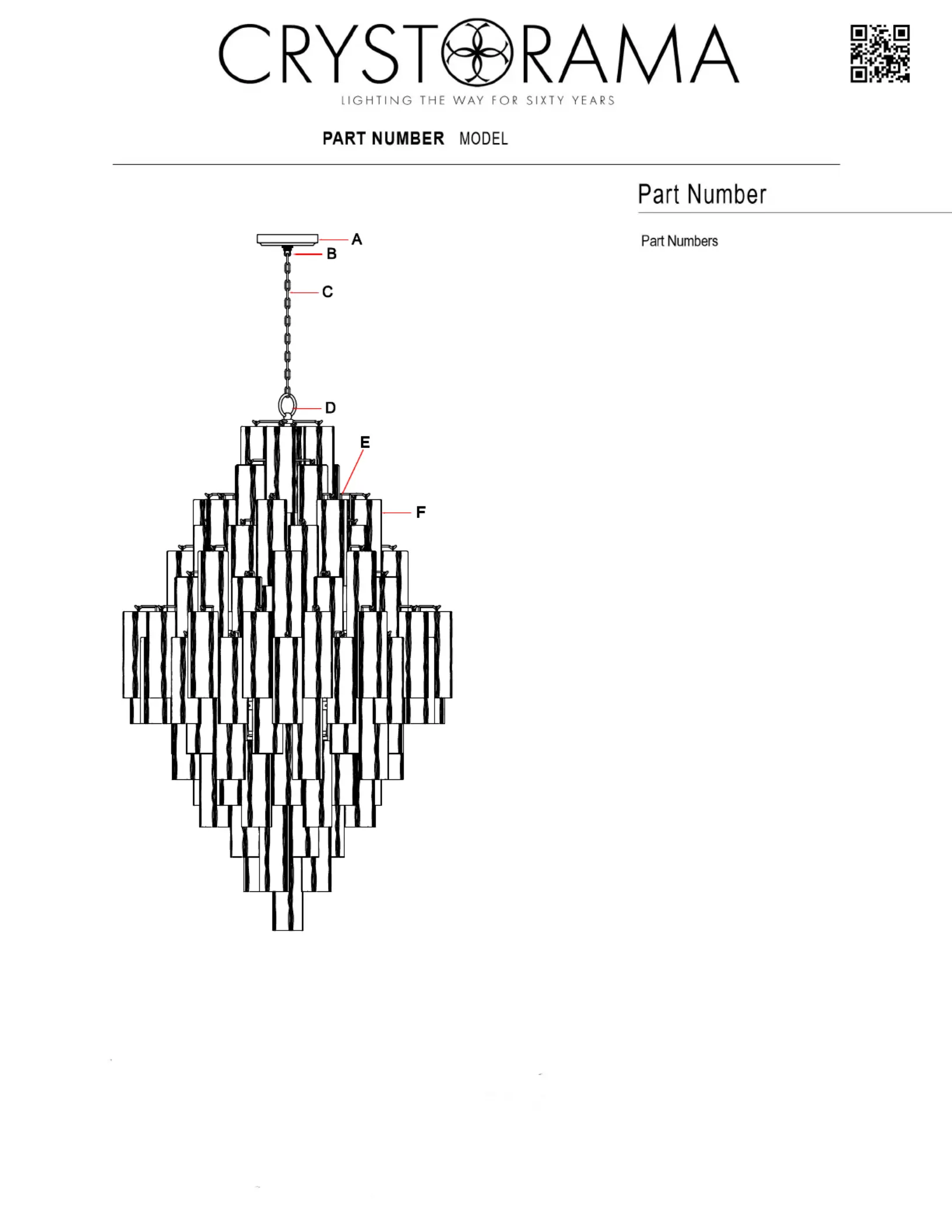

A. (1)-Canopy
ADD-319- -AG CL
D5.5*H1
F.
( )93 -Clear glass D2 3/4 x H7 3/4”
(XBN319 CAN5IN)AG
B.(1)-Collar Loop
C. (1)-Chain D6mm*120”
(XBN319 CHA6MM)AG
D. (1)-Loop
E. (1)-Frame
(XBN300 CLGLA7.75IN)AG
( )-Clear glass D2 3/4 x H 9”8
(XBN319 CLGLA9IN)AG
( )-Clear glass D2 3/4 x H 11”12
(XBN319 CLGLA11IN)AG
