Premium Thin Profile Floor Stand
with Security Enclosure
PAD-CHKB / PAD-CHKW
INSTRUCTION - MANUAL
888-733-4448
CONTENTS:
A
B
I
M5 Nut
EF
M5x12 (4)
G
M5x12 (4)
H
M5 Allen Key
x2
D
Metal Anchor

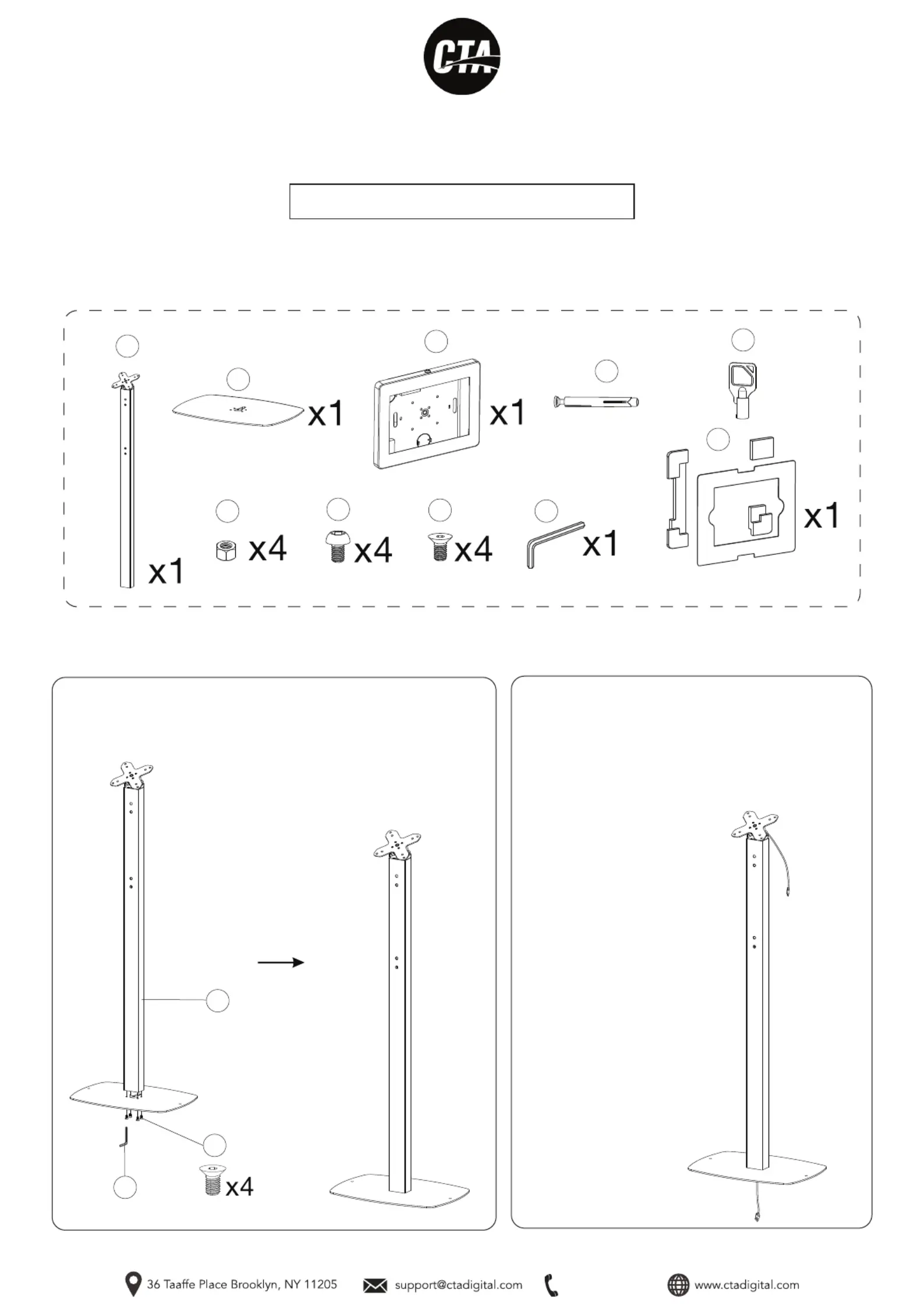

1. INSTALLING BASE:
ALIGN BASE PLATE (B) WITH THE BODY (A) AND
ROTATE IN SCREWS (G) FROM THE BOTTOM USING THE PROVIDED
ALLEN KEY TOOL (H) AND RELATED HARDWARE NEEDED.
2. SETTING UP
CABLE ROUTING
INSTRUCTIONS:
SLIDE IN THE POWER CORDS
AND ANY OTHER CORDS THAT
WOULD NEED TO BE
CONNECTED TO THE TABLET
THROUGH THE BODY AS
SHOWN. THERE WILL BE GAPS
AT THE TOP AND BOTTOM FOR
THEM TO ROUTE OUT TO THE
POWER SOURCE AND TO THE
DEVICE
G
A
H
**Wire and Cord for Illustration
Purposes Only and Not Included
J
Foam Adapter & Sheet Bundle
x2
C
888-733-4448
3. MOUNTING ENCLOSURE TO VESA PLATE
ALIGN THE VESA HOLES ON THE
ENCLOSURE (C) WITH THE VESA MOUNT
ON THE BASE BODY (A). USING THE
SPECIAL ALLEN KEY (H), ROTATE IN
SCREWS (F) FROM THE BACK WHILE
HOLDING THE HEX NUTS (E) FROM THE
FRONT WITH FINGERS. SCREW IN UNTIL
SECURELY TIGHTENED. REPEAT FOR ALL
(4) SCREWS.
F HAE
C
(OPTIONAL) BOLTING FLOOR STAND DOWN
USING A POWERDRILL OR SIMILAR (NOT PROVIDED) THAT IS THE SAME
SIZE AS YOUR METAL ANCHOR - CREATE A CAVITY IN THE FLOOR.
INSERT THE BASE PART OF THE METAL ANCHOR (I), AND SCREW IN THE
NAIL COMPONENT OF THE METAL ANCHOR (I) FROM ABOVE WITH A
SCREWDRIVER (NOT PROVIDED) UNTIL SECURELY TIGHTENED. REPEAT
FOR ALL HOLES.
D
D
**Screwdriver for Illustration
Purposes Only and Not Included
SETTING UP DEVICE & ENCLOSURE
**Tablet shown for illustration
and NOT INCLUDED.
INSERT THE APPROPRIATE FOAM
PIECE (J) THAT IS COMPATIBLE
WITH YOUR TABLET.
INSERT TABLET AS SHOWN. PLUG IN
POWER CABLE TO TABLET AND
CABLE ROUTE THROUGH THE BACK.
PLACE THE APPROPRIATE
PROVIDED TABLET COVER (J) TO
MATCH YOUR TABLET.
CLOSE THE ENCLOSURE
AND LOCK IT WITH THE
INCLUDED SET OF KEYS (I).
J
JD
