Sida 1/8

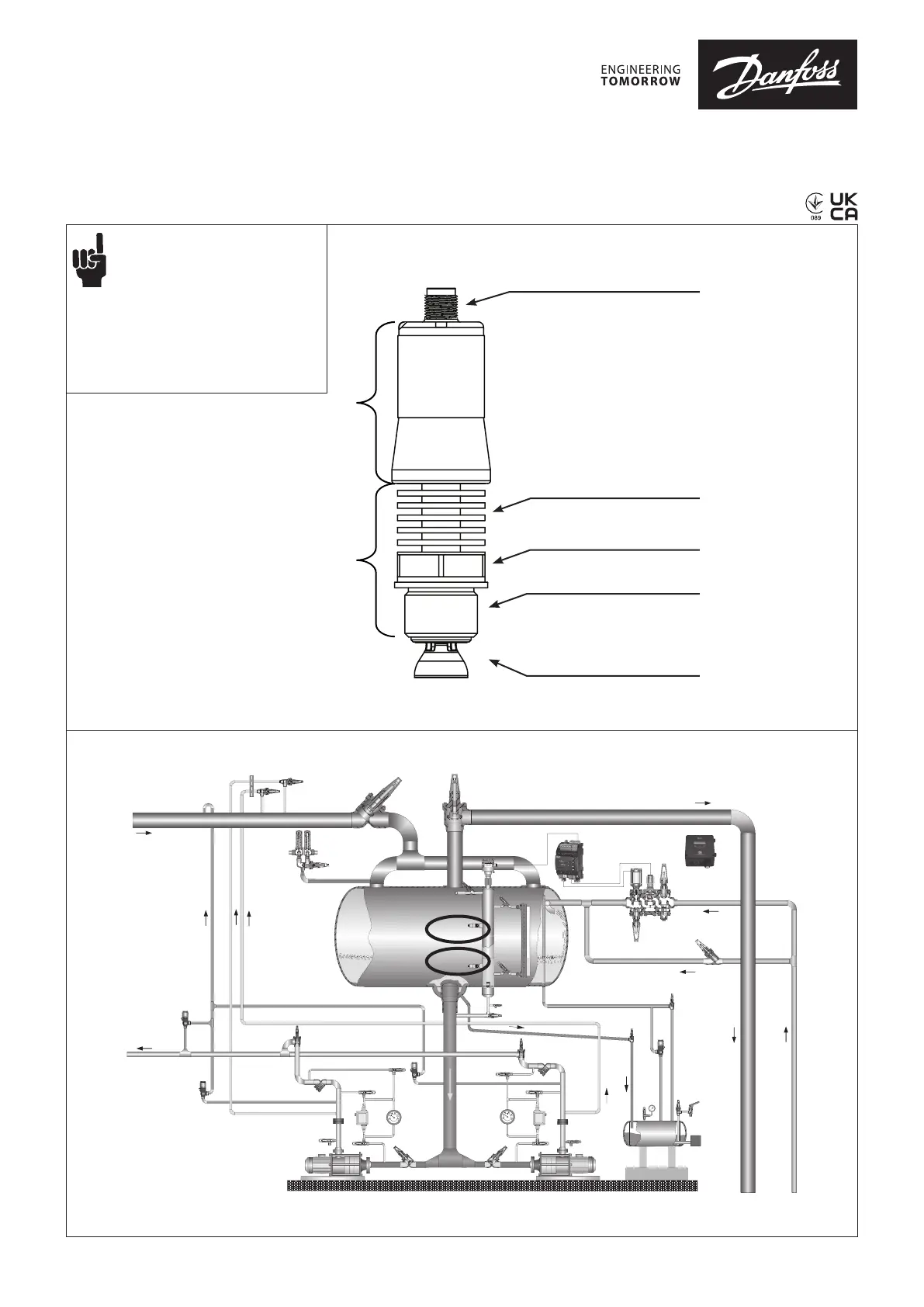

Installation guide/Quick start
Liquid Level Switch
Type LLS 4000 / LLS 4000U
148R9650
148R9650
© Danfoss | Climate solutions | 2024.11 AN317523977313en-000501 | 1
0879
Info for UK customers only:Danfoss Ltd., 22 Wycombe End, HP9 1NB, GB
Імпортер:ТОВ з іі “Данфосс ТОВ” 04080, Київ 80, п/с 168, Україна
M12 male Electrical
connector
Heat sink (insulation allowed, if media temperature
is less than ambient temperature)
Mechanical part Electronic part
Hexagon 32 mm
Liquid sensing part
Process connection
G ¾” or ¾” NPT
SVA
REG
QDV
15
BSV
BSV
BSV
ICF 25-6-5A
EKE
347
AKS 4100
LLG
BSV
GD
SVA
SNV
SNV
SVA
SVA
LLG
SNV
SVA
SFA
+DSV
SVA
LLS 4000
SVA
SVA
SCA-X
RT
260A
RT
260A
SNV
SNV
SVA
SVA
SNV
SNV
SNV
SVA
SCA-X
FIA
FIA
LLS 4000
Fig. 1
Fig. 2
Warning! This is a Class A device.
This device may cause radio
interference in residential areas.
In case of interference, the operator
may be required to take
appropriate measures.
This instrument has to be mounted
on a metallic tank.
The device is intended to be used in
industrial areas.
© Danfoss | Climate solutions | 2024.112 | AN317523977313en-000501

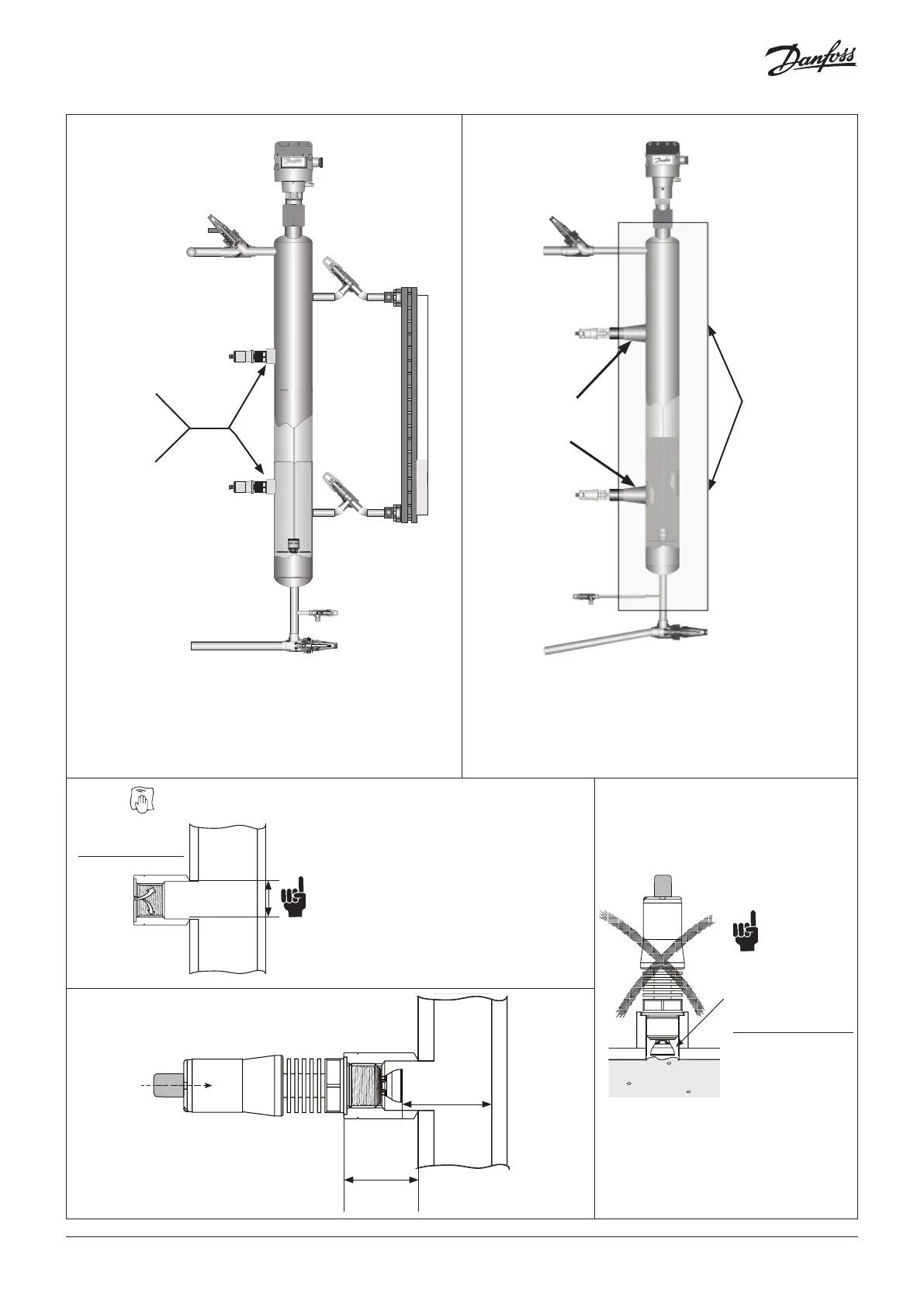

Fig. 3A Fig. 3B
Fig. 5
LLS 4000
Weld connector
G ¾”
LLS 4000U
Weld connector
NPT ¾”
Note:
Horizontal installation
Recommended
To prevent the LLS4000 from being covered by insulation
material (e.g., in low-temperature applications), we recommend
using a concentric reducer (e.g., DN32-DN50) between the
standpipe and the LLS4000 weld nipple, as shown in the sketch.
Note:
Vertical or inclined
installation is not
recommended.
Risk of Gas Pockets
Fig. 4A
Fig. 4B
Concentric
reducer
LLS 4000
Insulation
material
LLS 4000
AKS 4100
SVA
SVA
SNV
Weld connector
Clean for particles
Min. 30mm uniform hole, with no size
reduction
Observe:
Important to ensure the free ow of liquid to
LLS 4000/4000U
When a welding connection is welded
directly to the standpipe/vessel, the specied
dimension must be followed
45 mm
1.8 in max.
25 mm
1 in min.
© Danfoss | Climate solutions | 2024.11 AN317523977313en-000501 | 3

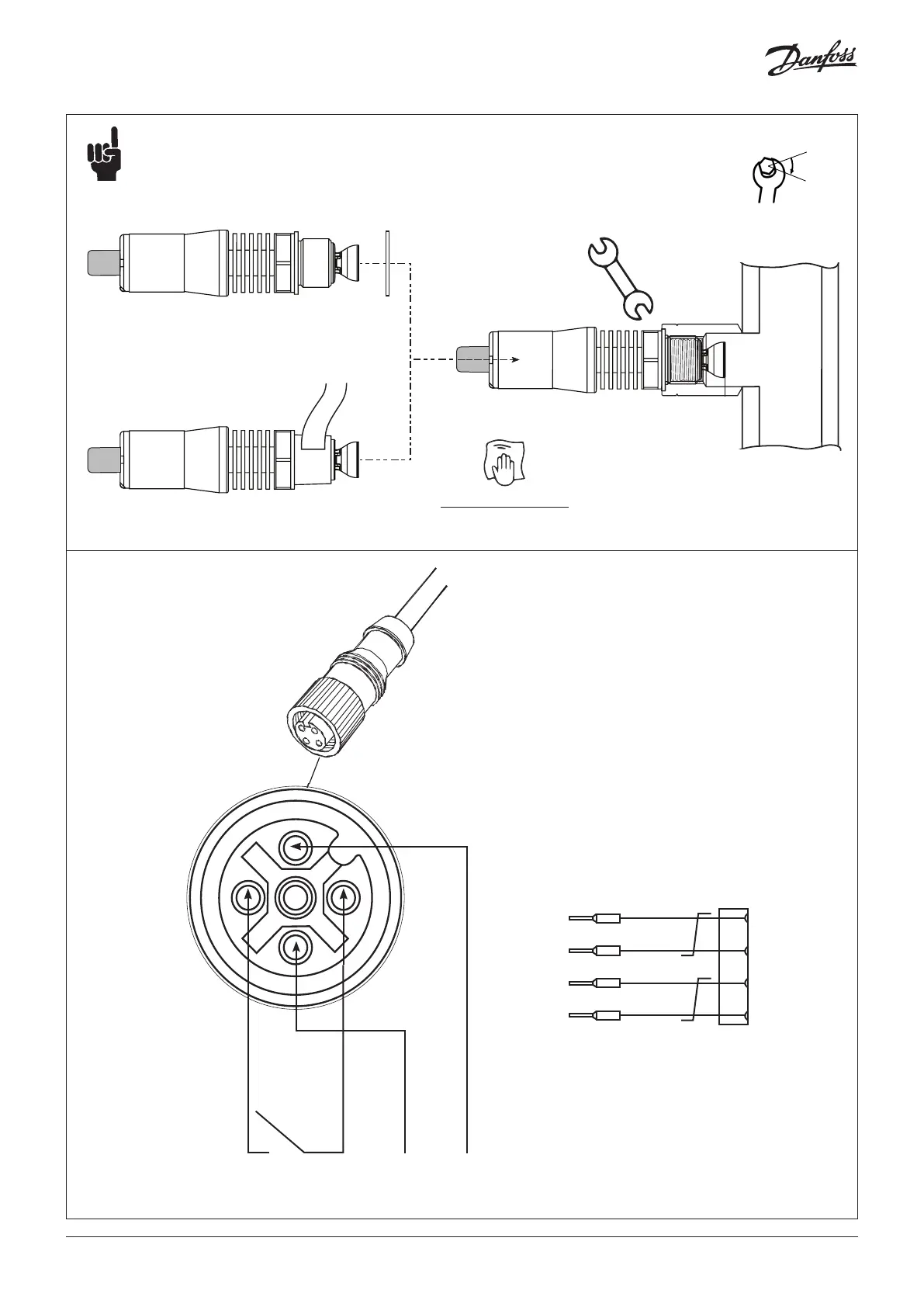

Fig. 6
LLS 4000
Teon (PTFE) tape
Torque (LLS 4000 with G ¾” and alu gasket)
10 Nm/7.4 lb ft pre-tightening + 45 degrees
clockwise rotation
Keep the sensor assembled during both electrical
and mechanical installation. Disassemble electronic
and mechanical parts only if necessary during
service.
32 mm
LLS 4000U
Alu-gasket
Clean joining surfaces
NPT ¾”
G ¾”
45°
Fig. 7
Red
Green
White
Black
1
2
3
4
Color code M12 cable
Danfoss M12 cables
034G2201, straight M12 cable female x 2 meter
034G2200, straight M12 cable female x 8 meter
Cables not included with LLS 4000/4000U
1
2
3
Relay: 30 V DC
200 mA
24 V DC +/- 25%
+ Red
- White
Green
Black
4
Cable with straight M12 female
connector.
Cables with angled connector is
not recommended
