Sida 1/85

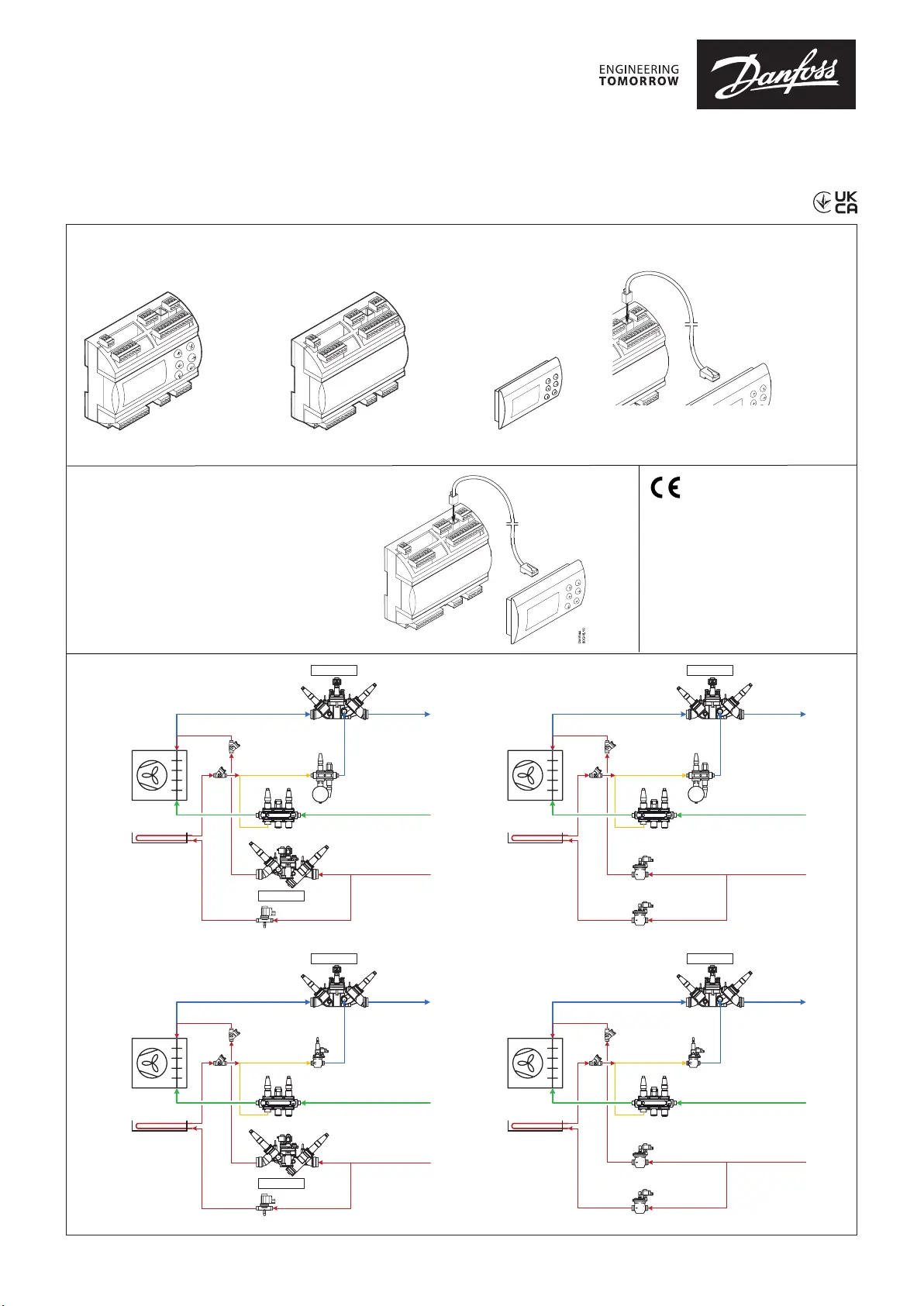

Installation Guide
EKE 400
080R9338
080R9338
© Danfoss | Climate Solutions | 2022.07
AN30561784681801-000401 | 1
Principle
原理
Application example (parts program)
EKE 400 without HMI
Cable
Remote display type MMIGRS2
应用示例（零件程序）
EKE 400（不带显示器）
电缆
远程显示器（类型：MMIGRS2）
IP20
-20 – 60 °C
(0 – 140 °F)
RH max. 90% non condensing
最大 RH 90%（非冷凝）
1,5 m
Identication
代码识别
080G5003 = 230 V AC 20 VA
080G5004 = 24 V AC / DC 17 VA
080G5005 = 230 V AC 20 VA
080G5006 = 24 V AC / DC 17 VA
Cable between EKE 400
and HMI
EKE 400 与 HMI 连接电缆
1.5 m: 080G0075
3.0 m: 080G0076
Remote HMI, type
MMIGRS2: 080G0294
EKE 400 without HMI
EKE 400（不带显示器）
EKE 400 with HMI
EKE 400（带显示器）
Remote HMI
远程显示器
Evaporator
Drip tray
Liquid feed
line
Defrost
drain line
Wet return
line
Drip tray
line
Hot gas
defrost line
Soft-opening
Soft-opening
CHV
CHV
EVRST
ICSH
ICLX
ICF
ICFE
ICFSICFR
ICFF
ICFC
ICFW
ICFD
ICF
ICFS
ICFE
ICFS
Evaporator
Drip tray
Liquid feed
line
Defrost
drain line
Wet return
line
Drip tray
line
Hot gas
defrost line
Soft-opening
CHV
CHV
ICS
ICLX
EVM
ICF
ICFE
ICFSICFR
ICFF
ICFC
ICFW
ICF
ICFS
ICFS
ICFE
ICFD
ICS
EVM
Evaporator
Drip tray
Liquid feed
line
Defrost
drain line
Wet return
line
Drip tray
line
Hot gas
defrost line
Soft-opening
Soft-opening
CHV
CHV
EVRST
ICSH
ICLX
EVM
CVP
ICS
ICF
ICFE
ICFSICFR
ICFF
ICFC
ICFW
Evaporator
Drip tray
Liquid feed
line
Defrost
drain line
Wet return
line
Drip tray
line
Hot gas
defrost line
Soft-opening
CHV
CHV
ICS
ICLX
EVM
ICF
ICFE
ICFSICFR
ICFF
ICFC
ICFW
EVM
CVP
ICS
ICS
EVM
089
0879
Info for UK customers only : Danfoss Ltd., 22 Wycombe End, HP9 1NB, GB
Імпортер:ТОВ з іі “Данфосс ТОВ” 04080, Київ 80, п/с 168, Україна
ENGLISH
Electric noise
Signal cables for sensors, DI inputs, data communication
and display must be kept separate from high voltage
(230 V) electric cables:
- Use separate cable trays
- Keep a distance between high voltage and signal cables
of at least 10 cm
Cables for DI input.
Cables longer than 10 meter (33 ft) is not recommended.
At cables longer than 10 meter (33 ft), it is recommended
to use auxiliary relays, placed within 10 meter (33 ft) cable
distance. Typical auxiliary relays then are placed in the
same panel, as EKE 400.
Warning
The supply voltage of AI may not
share the signal with other controllers.
Valve congu-
ration no.
Evaporator Line Valve selection in Wizard Parameter number DO1 DO2 DO3 DO4 DO5 DO6
1
Liquid feed line Solenoid (ICFE) R2A or R2B or R2C X
Hotgas defrost line Solenoid 2-step (ICSH) D2A X X
Defrost drain line Solenoid (upstream ICFD) D1B and D4A X
Wet return line Solenoid 2-step (ICLX) D3A X
Fan - F01 X
2
Liquid feed line Solenoid (ICFE) R2A or R2B or R2C X
Hotgas defrost line Solenoid (ICS) D2A X
Defrost drain line Solenoid (upstream ICFD) D1B and D4A X
Wet return line Solenoid 2-step (ICLX) D3A X
Fan - F01 X
3
Liquid feed line Solenoid (ICFE) R2A or R2B or R2C X
Hotgas defrost line Solenoid 2-step (ICSH) D2A X X
Defrost drain line Solenoid for quick drain - pressurecontrol) D1B and D4A X
Wet return line Solenoid 2-step (ICLX) D3A X
Fan - F01 X
4
Liquid feed line Solenoid (ICFE) R2A or R2B or R2C X
Hotgas defrost line Solenoid (ICS) D2A X
Defrost drain line Solenoid for quick drain - pressurecontrol) D1B and D4A X
Wet return line Solenoid 2-step (ICLX) D3A X
Fan - F01 X

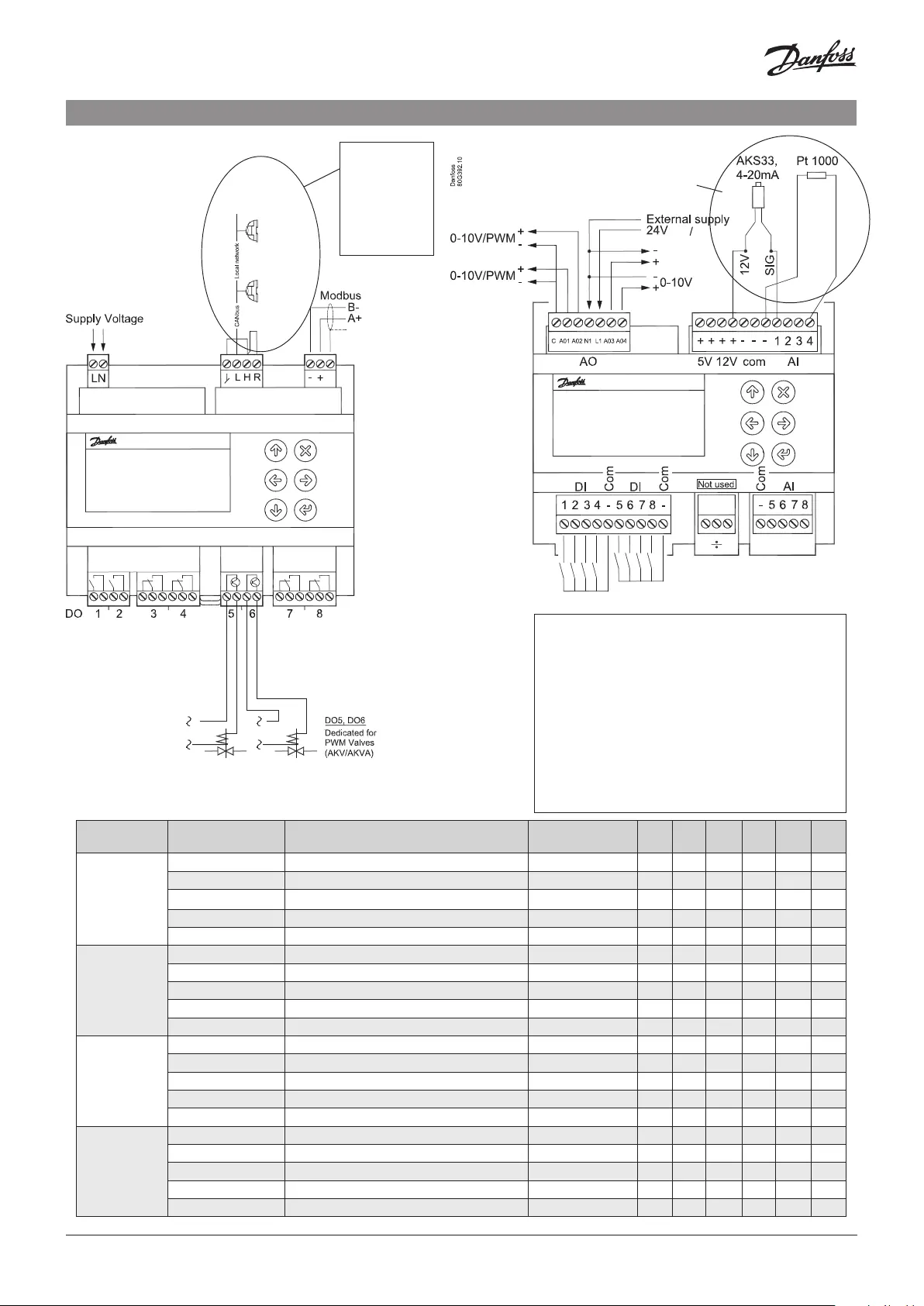

Connection, upper level
Examples
1 AKS 33 pressure transmitter
1 Pt 1000 temp. sensor
AC DC
Connection, lower level
EKE 400
EKE 400
Network between
more EKE 400
H-R connection has
to be made on the
rst and the last local
EKE 400.
Connection as close
as possible to the
connector
Observe
AC only
2 | AN30561784681801-000401
© Danfoss | Climate Solutions | 2022.07
Supply Voltage.
Supply voltage depending on model:
85 – 265 V AC, 50/60 Hz. Maximum power consumption: 20 V A
20 – 60 V DC and 24 V AC ± 15% 50/60 Hz , Maximum power
consumption: 10 W, 17 V A.
Modbus
It is important that the installation of the data communication
cable be done correctly. Cf. separate literature No. RC8AC.
Remember termination at the bus termination.
DO - Digital outputs, 8 pcs. DO1 - DO8
Function dened via the HMI in the parameter list
DO1, DO2
- Normally Open contact,
10 A 250 V AC for resistive loads
3.5 A 230 V AC for inductive loads
DO3, DO4,DO7, DO8:
- Changeover Contact,
6 A 250 V AC for resistive loads
4 A 250 V AC for inductive loads
DO5,DO6:
- Solid state relays,
Imax. = 0.5A
Imin. = 50 mA.
Leakage<1.5 mA
Not short-circuit protected
OBSERVE: AC only
AO - Analogue output, 4 pcs. AO1,AO2,AO3,AO4
Function dened via the HMI in the parameter list.
AO1, AO2:
0 / 10 V DC 10 mA max for each output
AO3, AO4:
Optoinsulated. 0 / 10 V DC 10 mA max for each output
External power supply 24 V AC / 24 V DC
OBSERVE:
Connect 24 V on N and L (separate supply). Avoid earth fault
current. Use double-insulated transformer. The secondary side
must not be earthed.
Obtain 0 – 10 volts from terminals N and AO3, respectively
N and AO4.
PAY ATTENTION TO THE POLARITY of N.
AI - Analogue inputs, 4 pcs. AI1 - AI4
Function dened via the HMI in the parameter list
Pressure transmitters
• Ratiometric: 10 – 90% of supply, AKS 32R
1 – 5 V, AKS 32
0 – 20 mA / 4 – 20 mA, AKS 33 (supply = 12 V)
Temperature sensor
• Pt 1000 ohm, AKS 11 or AKS 21.
• NTC 86K ohm @ 25 °C, from digital scroll.
DI - Digital inputs, 8 pcs. DI1 - DI8
The connection may be a shut-down or interruption function.
Select what is to be activated during conguration.
AI - Analogue inputs, 4 pcs. AI5 - AI8
Function dened via the HMI in the parameter list
Pressure transmitters
• Ratiometric: 10 – 90% of supply, AKS 32R
1 – 5 V, AKS 32
Temperature sensor
• Pt 1000 ohm, AKS 11 or AKS 21.
• NTC 86K ohm @ 25 °C, from digital scroll.

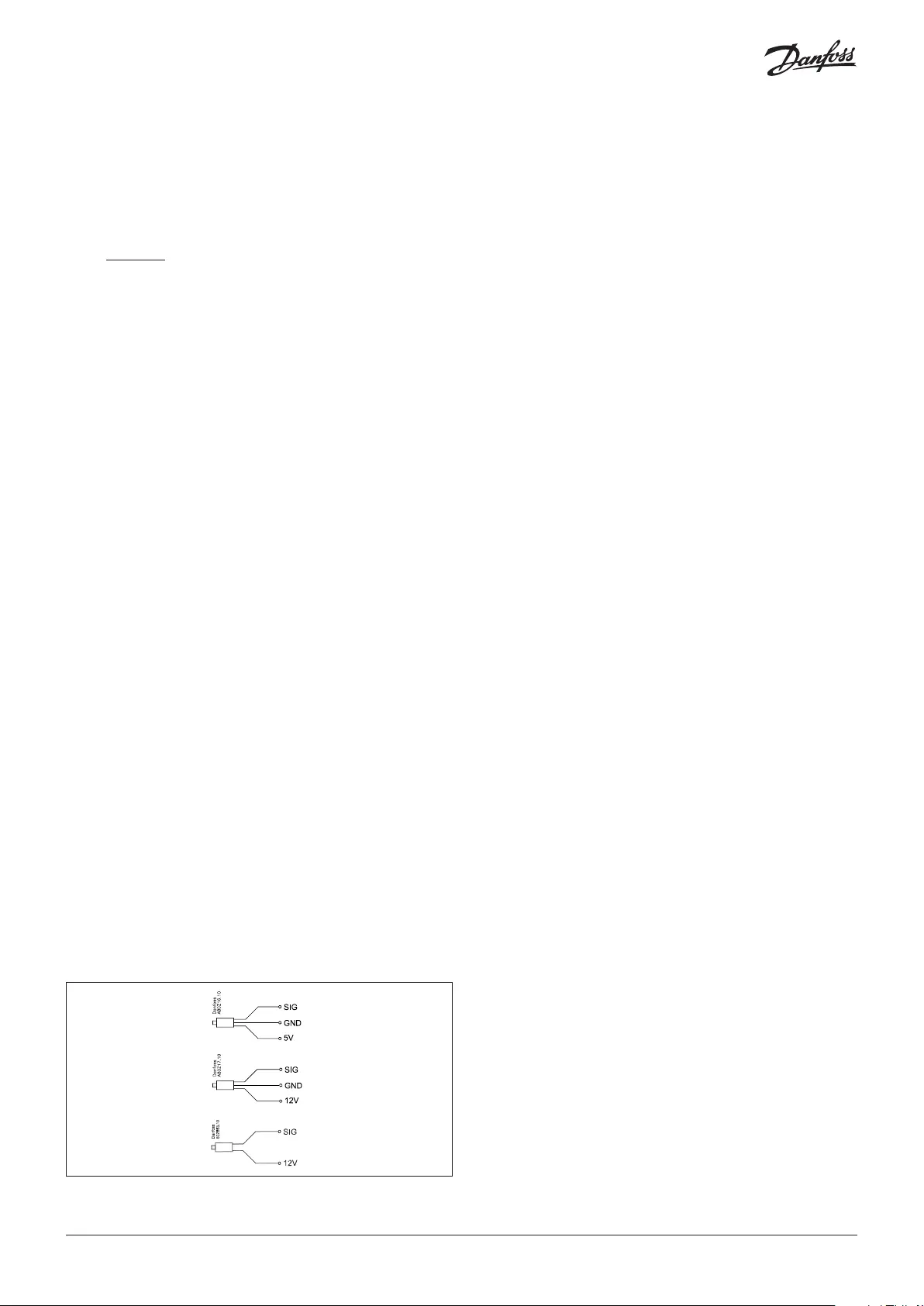

AKS 32
AKS 33
AKS 32R
10 – 90% ratiometric
1 – 5 V
0 – 20mA
4 – 20mA
© Danfoss | Climate Solutions | 2022.07
AN30561784681801-000401 | 3
