OWNER’S M ANUAL

The Microtubes 500 v2 is a 500W ampliﬁer equipped

with an all analog preampliﬁer, Class D Power Module

and a digital impulse response cabinet emulator for DI

outputs or headphones.

Probably the ﬁrst thing you will notice from the

Microtubes 500 is its unusual control layout: On the

right side you’ll ﬁnd the clean section which is the

foundation of your sound.

It features a Master volume and active 6 band EQ.

Along with the mandatory Low and Treble controls you

will ﬁnd 250Hz, 500Hz, 1.5KHz, 3KHz sliders. Character

is all in the midrange, by having 4 dedicated Mid

controls allow you to cover the whole mid range

(250Hz to 3kHz) you have total control and ﬂexibility

over the ampliﬁer’s character.

On the left side, by the Input jack you will ﬁnd the

Microtubes® Engine which acts as an extra channel

that can bring your crisp clean sound to the next level

by helping you cut through any mix while adding

anything from subtle tube break up, harmonics and

natural compression to obliterating distortion.

DESCRIPTION

The Microtubes Engine can be engaged from the front

panel or via our own digitally controlled Intelligent

Footswitch (jack on rear panel). Besides engaging the

Microtubes circuitry you can hold the actuator to Mute

the ampliﬁer.

The Intelligent Footswitch is housed in an elegant,

laser engraved unibody chassis and requires a

standard ¼” mono cable (not included) for it’s full

operation.

This deceivingly simple feature allows for maximum

power adaptability: It doesn’t matter the cabinet

conﬁguration or power requirements, the Microtubes

500 will deliver accordingly.

FEATURES

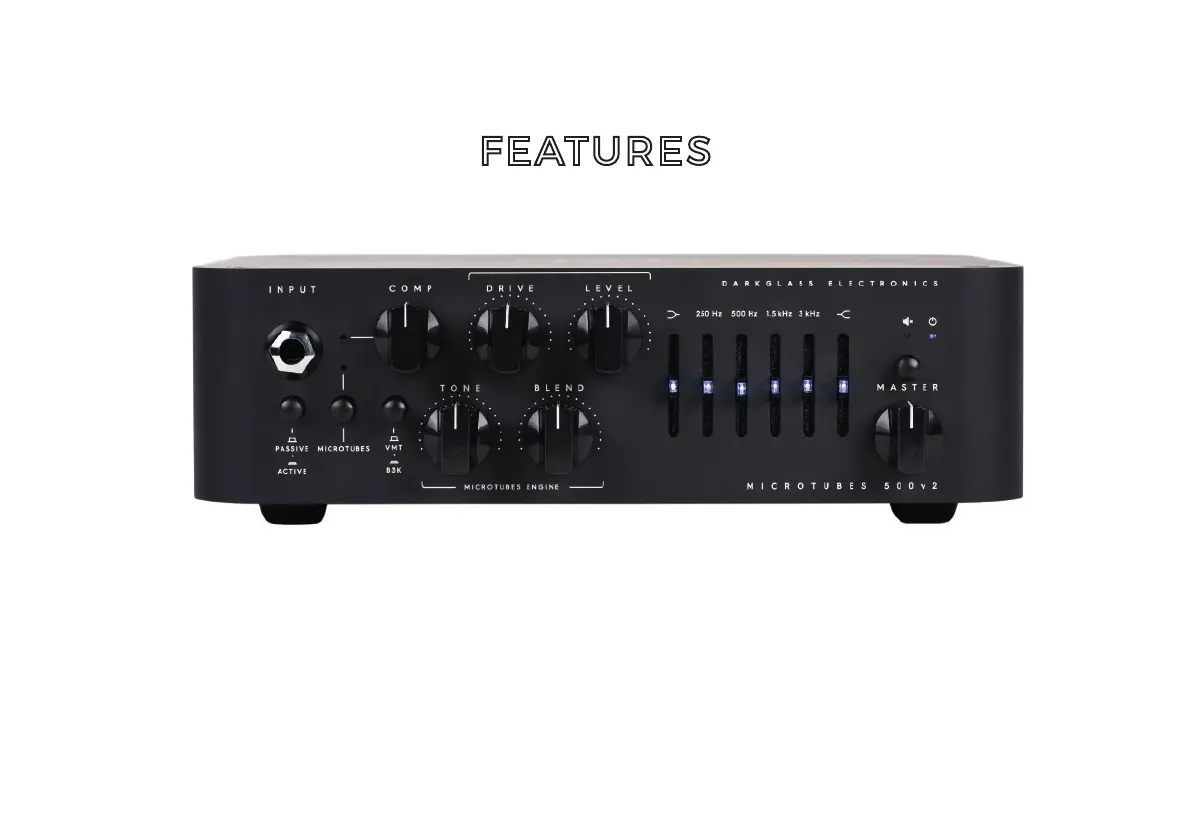

FRONT PANEL

INPUT : Use this jack to connect your instrument via a

standard ¼” mono cable.

PASSIVE/ACTIVE : Use this push-button switch to change

from passive to active mode. If your bass is active it can

have a hotter signal making the amp to distort early (feel

free to use if such additional distortion is desired).

MICROTUBES: Use this push button to turn on or off the

Microtubes Engine to add natural compression, organic

harmonic enhancement, and saturation ranging from

mild overdrive to high gain bass rage.

The Microtubes Engine operates before the 6 band EQ

section (you can therefore use the 6 Band Active EQ for

additional tone shaping in addition to the Tone knob

described below).
