ENG-1

Wild Camera

DENVER WCT-3004 MK3

Instruction Manual

WWW.DENVER-ELECTRONICS.COM

ENG

ENG-2

Table of Contents

1.Instructions ....................................................................................................... 3

1.1 General Description ................................................................................ 3

1.2 Camera Body Interface ........................................................................... 3

1.3 Camera components and features 3 ..........................................................

1.4 Remote Control 4 ......................................................................................

1.4.1 Navigating ................................................................................... 5

1.5 Shooting Information Display .................................................................. 5

1.6 Supported Format ................................................................................... 6

2. Cautions ........................................................................................................ 6

3. Easy Operation .............................................................................................. 7

3.1 Power Supply ......................................................................................... 7

3.2 Insert the SD-card 7 ..................................................................................

3.3 Power on and Enter into the ON Mode ................................................... 7

3.4 Enter into the TEST Mode ...................................................................... 8

3.4.1 Custom Settings 8 ...........................................................................

3.4.2 View Images or Videos ................................................................ 8

3.5 Power Off ................................................................................................ 8

4. Advanced Operations .................................................................................... 9

4.1 Settings Menu ......................................................................................... 9

4.1.1 System Setting ........................................................................... 10

4.1.2 Photo Setting ............................................................................. 10

4.1.3 Video Setting .............................................................................. 11

4.1.4 Default ....................................................................................... 11

4.1.5 General Settings ........................................................................ 11

4.1.6 Set Camera Mode ...................................................................... 11

4.1.7 Format SD-Card ......................................................................... 11

4.1.8 Set Photo Size ........................................................................... 12

4.1.9 Set Video Size ...........................................................................12

4.1.10 Set Date and Time ..................................................................... 12

4.1.11 Set Photo series .........................................................................12

4.1.12 Set Video Length ....................................................................... 13

4.1.13 Set Video Sound ........................................................................ 13

4.1.14 Set Password protection ....... Fejl! Bogmærke er ikke deneret.

4.2 Playback .............................................................................................. 13

4.2.1 Viewing Photo or Video .............................................................. 13

4.2.2 Delete Photo or Video ................................................................ 13

4.3 Fil Numbering e ................................................................................... 14

4.4 Firmware Upgrade .............................................................................. 14

ENG-3

1. Instructions

1.1 General Description

This digital trail camera is a surveillance camera working automatically. It can be

triggered at once by any movement of human (or animals) in a certain region of

interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion

sensor, and then automatically captures high quality pictures (up to 12M pixels) or

records FHD video clips (WVGA or QVGA).

At sunrise the unit begins to take color photos and video until there is insufcient

light (dusk) when it begins to take infrared (monochrome) photos and video.

It is easy to use, there is a 2.0 inch colorful LCD display on camera. It is resistant

against water and snow for outside uses.

1.2 Camera Body Interface

The camera has the following I/O interfaces: USB connector, SD-card slot, TV

output.

Take a few moments to familiarize yourself following the camera controls and

displays. It is helpful to bookmark this section and refer to it as you read through

the rest of the manual.

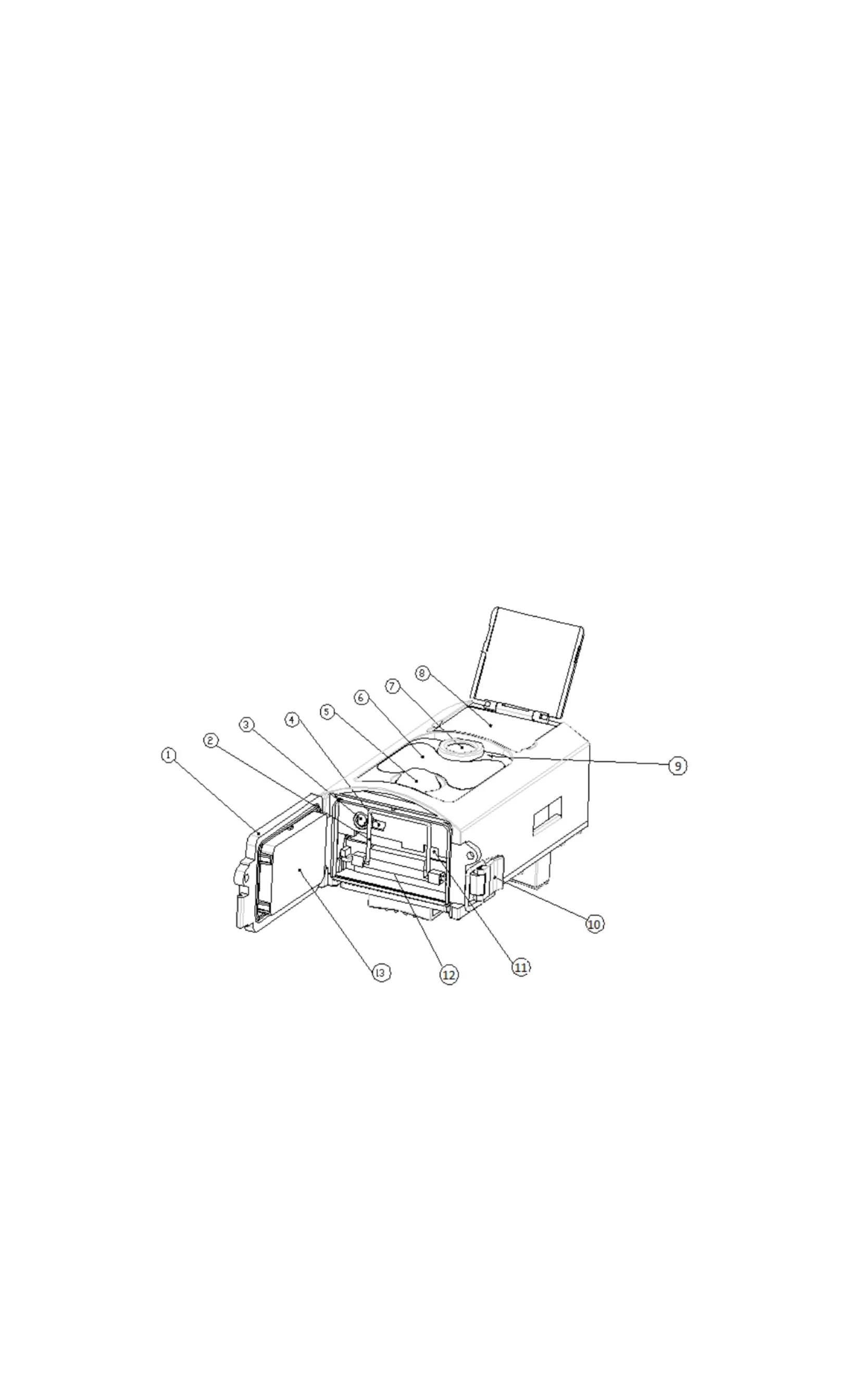

1.3 Camera components and features

1) Bottom Cover

2) -Card Slot SD

3) TV Out connector

4) USB Connector

5) PIR

6) Infrared Flash

7) Lens

8) 2 inch color LCD Display

9) Sound recorder

10) Lock

11) Power switch

12) Battery Depot

13) Portable remote control

Produktspecifikationer

Varumärke:	Denver
Kategori:	övervakningskamera
Modell:	WCT-3004MK3
Vikt:	291 g
Bredd:	80 mm
Djup:	55 mm
Höjd:	145 mm
Färg:	Ja
Skärm diagonal:	2 "
Wi-Fi:	Nej
Videoformat som stöds:	AVI
Videolägen som stöds:	480p, 720p, 1080p
Maximal upplösning:	1920 x 1080 pixlar
Antal kameror:	1
Inbyggd hårddisk:	Nej
Certifiering:	CE
Full HD:	Ja
Bildsensortyp:	CMOS
Videoupplösningar:	640 x 480,1280 x 720,1920 x 1080 pixlar
Grafikupplösningar som stöds:	640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Fjärrstyrd:	Ja
Väderbeständig:	Ja
Fjärrkontroll ingår:	Ja
Typ av minneskort:	MMC, SD
Produktens färg:	Khaki
bruksanvisning:	Ja
Monteringssats:	Ja
Skärmtyp:	LCD
Förpackningstyp:	Låda
Produkter per ytterförpackning:	2 styck
Inbyggd kortläsare:	Ja
Slutartid:	1.1 s
LED typ:	IR
Formfaktor:	Låda
mörkerseende avstånd:	25 m
Strömförsörjning via Ethernet (PoE) stöd:	Nej
Internationellt skydd (IP) kod:	IP54
Kabel inkluderad:	USB
Placeringar som kan användas:	Utomhus
Anslutningsteknologi:	Kabel
Dag / nattläge:	Ja
Monteringssätt:	Golv
Minimibelysning:	- lx
Mörkerseende:	Ja
Totalt megapixel:	3 MP
Bildfrekvens:	30 fps
Nätverksansluten (Ethernet):	Nej
USB-port:	Ja
Synfältsvinkel (FOV):	120 °
Antal belysning lysdioder:	48
Högsta minneskortskapacitet:	32 GB
Infrarött (IR) gränsfilter:	Ja
Minneskort ingår:	Nej
