Sida 1/2

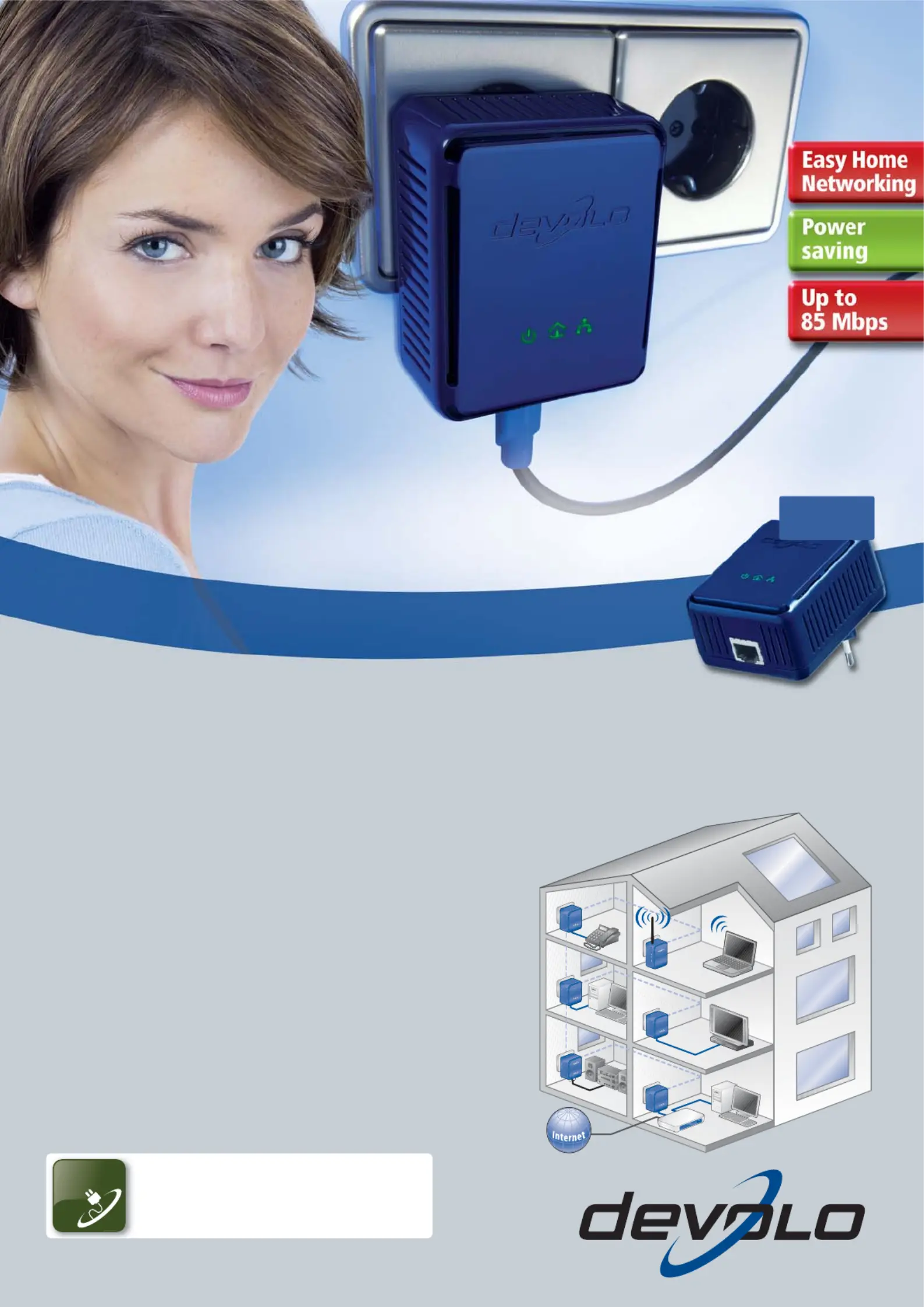

•HomePlug adapter for data communication

over the household power supply grid

•High transfer rates of up to 85 Mbps.

•No configuration is necessary – plug it in and

enjoy!

•Perfectly informed with the new, clearly

arranged 3 LED status display.

•Reduced energy consumption thanks to the

patented power save mode

The new generation of high-speed HomePlug adapters

dLAN

Highspeed II connects your computers and expands your Internet

connection into every room of the house over the electrical wiring.

dLAN

Highspeed

Ethernet II

NEW!

PowerSave

30% less

Energy consumption

reduced by 30%

Set-Top-Box

& TV

dLAN

IP Phone

MODEM

ROUTER

dLAN

HiFi-System

Notebook

dLAN

Highspeed

Ethernet II

devolo AG Deutschland

Sonnenweg 11, 52070 Aachen

Tel. : +49 (0)241-18279-79

Fax : +49 (0)241-18279-99

E-Mail: info@devolo.de

Web: www.devolo.com

Highspeed Ethernet II: Out of the box. Into the wall outlet. Network.

dLAN Highspeed Ethernet II dLAN Highspeed II Starter Kit dLAN Highspeed II Network Kit

The new generation of high-speed HomePlug

adapters connects your computers and brings the

Internet into every room of the house over the

electrical wiring. Now with patented power save

mode and new, clearly arranged 3-LED design.

Unlike wireless networks (WLAN), thick walls and

long distances make no difference to HomePlug.

the HomePlug technology uses the household elec-

trical wiring as the network cable – offering a

range of up to 200 m (656"). Fast and secure sur-

fing on the Internet with high transfer rates of up

to 85 Mbps and DESpro encryption.

www.devolo-green-it.com

PowerSave

30% less

Highly

Recyclable

Active Waste

Management

RoHS

Compliant

Product-Highlights

•

Perfectly informed with the new, clearly arranged 3-LED

status display.

•

Reduced energy consumption thanks to the patented

power save mode: energy consumption is reduced by 30%

in standby mode.

•

Long range of 200 m (656’) in buildings – dLAN works in

every room, anywhere in the building.

•

High transfer rates of up to 85 Mbps thanks to the

HomePlug technology.

•

Setting up your home network is easy with additional net-

work-compatible devices such as network printers or NAS

hard drives and the dLAN adapters by devolo.

•

No configuration is necessary – plug the adapter into the

power outlet, connect it to your computer via the network

cable and you are ready to go!

•

High interception protection thanks to DESpro encryption.

•

For pros: Configuration software for PC (Windows XP /

Windows Vista), Mac and Linux is included.

•

Full compatibility with devolo adapters of the first

HomePlug generation (14 or 85 Mbps).

•

3-year warranty!

System requirements

•

Optimally suited for Windows

XP32bit/Vista32bit/64bit,

Linux

and Mac OS

•

Available network port, on a PC, modem/router or other

Home Entertainment devices (RJ45)

•

Additional dLAN

adapter (HomePlug 1.0) for

networking over the household electrical grid

Security features

•

DESpro encryption protects the dLAN

network against

intruders for maximum security without extensive configu-

ration work.

PC (Ethernet) PC (Ethernet)

Modem/Router

Games consoles

Modem/Router

IP Phone

Laptop

TV Set-Top-Box&

Simple network data transfer

(PC to PC)

Internet extension as well

as online gaming with

games consoles

Voice-over-IP, video extension

and transfer to any location in

the house

Application scenarios:

dLAN products – overview

Network data transfer

Internet extension

Game console extension

Voice-over-IP

Video streaming

HD Video streaming

Additional power socket

Audio streaming

Wireless extension

dLAN

200 AVeasy

dLAN

200 AVplus

dLAN

200 AV Wireless G

200 Mbps

•

••

compatiblecompatible

dLAN

Highspeed Ethernet II

dLAN

Wireless extender

dLAN

basic / dLAN

duo

dLAN

Audio extender

14 Mbps 85 Mbps

•

•••••

• •

• • • ••

•

Produktspecifikationer

Varumärke:	Devolo
Kategori:	Nätverkskort/adapter
Modell:	dLAN Highspeed Ethernet II
Vikt:	125 g
Certifiering:	EN 60950-1:2006\nEN 55022:2006\nEN 50412-2-1
Maximal räckvidd:	200 m
Kompatibla operativsystem:	Windows XP, Vista, Linux, Mac OS X
Värdgränssnitt:	RJ-45
Maximal dataöverföringshastighet:	85 Mbit/s
Andra nätverksprotokoll som stöds:	CSMA/CD
Produktens färg:	Blå
Mac-operativsystem som stöds:	Ja
Strömförbrukning (vanlig):	4.5 W
Produktstorlek (BxDxH):	66 x 41 x 82 mm
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-25 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Kryptering/säkerhet:	DES
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Ja
Plug & Play-kompatibel:	Ja
Strömförbrukning:	60 mA
Länk-/aktivitets-LED:	Ja
