Important Safety Advice

WARNING: This appliance must not be used

in a bathroom.

WARNING: Do not use this heater in the

immediate surroundings of a bath, a shower or

a swimming pool.

WARNING: This heater must not be located

immediately below a xed socket outlet.

The heater carries a warning symbol to

alert the user to the risk of re that exists

if the heater is accidentally covered.

WARNING: In order to avoid a hazard due to

inadvertent resetting of the thermal cut-out,

this appliance must not be supplied through an

external switching device, such as a timer, or

connected to a circuit that is regularly switched

on and off by the utility.

This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental capabilities

or lack of experience or knowledge if they have

been given supervision or instruction concerning

the use of the appliance in a safe way and

understand the hazards involved. Children shall

not play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

Children of less than 3 years should be kept

away unless continuously supervised. Children

aged from 3 years and less than 8 years shall

only switch on/off the appliance provided that

it has been placed or installed in its intended

normal operating position and they have been

given supervision or instruction concerning

the use of the appliance in a safe way and

understand the hazards involved. Children aged

from 3 years and less than 8 years shall not plug

in, regulate and clean the appliance or perform

user maintenance.

CAUTION: Some parts of this product can

become very hot and cause burns. Particular

attention has to be given where children and

vulnerable people are present.

If the mains lead is damaged, it must be replaced

by the manufacturer or its service agent or a

similarly qualied person in order to avoid a

hazard.

Electrical connection

WARNING – THIS APPLIANCE MUST BE EARTHED

The use of an extension lead or multi-plug adaptor is not advised when

connecting this product to the mains. Connection through these devices

could lead to a risk of overloading, overheating and even re at the extension

lead or adaptor due to inadequate connection quality.

This heater must be used on an ~ supply only and the voltage marked on

the heater must correspond to the supply voltage. This heater is tted with

a rewireable plug incorporating a 13 amp fuse. In the event of replacing

the fuse in the plug supplied, a 13 amp fuse approved by ASTA to BS 1362

must be used. If any other type of plug is used, a 15 amp fuse must be

tted in the plug, the adaptor, or at the distribution board.

IMPORTANT : If the plug is not suitable for your socket, the 13 amp plug

should be removed. Before wiring the appropriate plug, please note that

the wires in this mains lead are coloured in accordance with the following

code : GREEN AND YELLOW: EARTH

BLUE : NEUTRAL

BROWN : LIVE

Connect the GREEN AND YELLOW wire to the terminal marked ‘E’ or

by the earth symbol , or coloured GREEN or GREEN AND YELLOW.

Connect the BROWN wire to the terminal marked ‘L’ or coloured RED.

Connect the BLUE wire to the terminal marked ‘N’ or coloured BLACK.

Using the heater

WARNING: DO NOT USE THE HEATER UNTIL THE FEET ARE

FITTED CORRECTLY.

The product can be used as an installed or portable unit. Once the desired

application has been decided upon and the requirements below have been

met the product is ready to be used. Simply plug in and switch on at the

wall socket.

Please note – the element has been coated with a protective lm which

will burn off during the rst few minutes of use and may cause a small

amount of fuming. This is quite normal – the fumes are non-toxic and will

quickly disappear.

We recommend that you open a window to ventilate the room when using

the heater for the rst time.

Positioning the heater

Always ensure that the heater is stood on a rm, level base near to, but

not directly beneath, a suitable mains supply socket.

Ensure that curtains and furniture are not positioned close to the chosen

position, as this would create a potential re hazard.

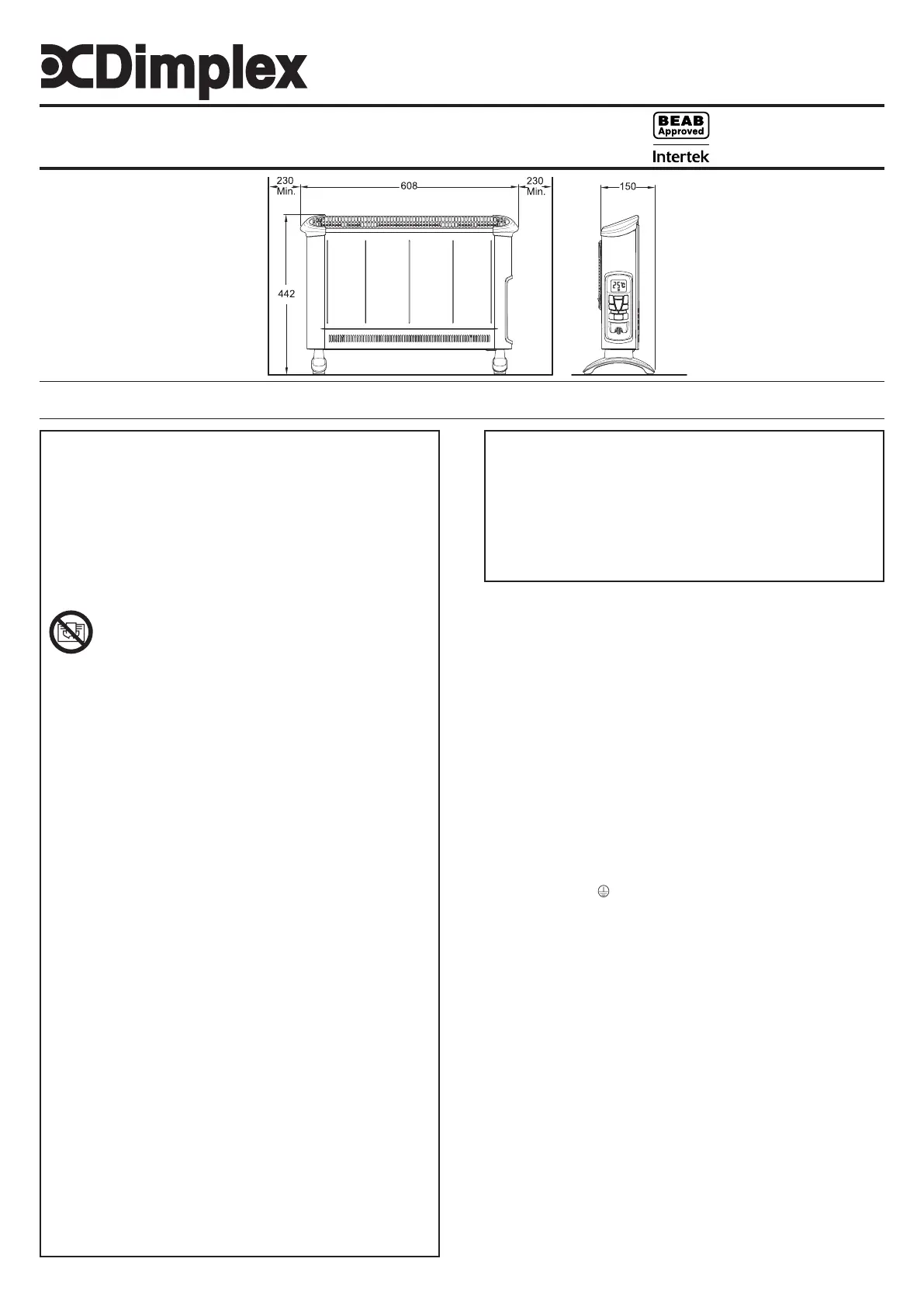

Dimensions

(Millimetres)

Installation and Operating Instructions

Dimplex Convector Heater

Models : 402BT

08/53597/0 Issue 1

IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

As with all portable heating appliances - This product is only suitable for well insulated spaces or occasional use

Fig. 1

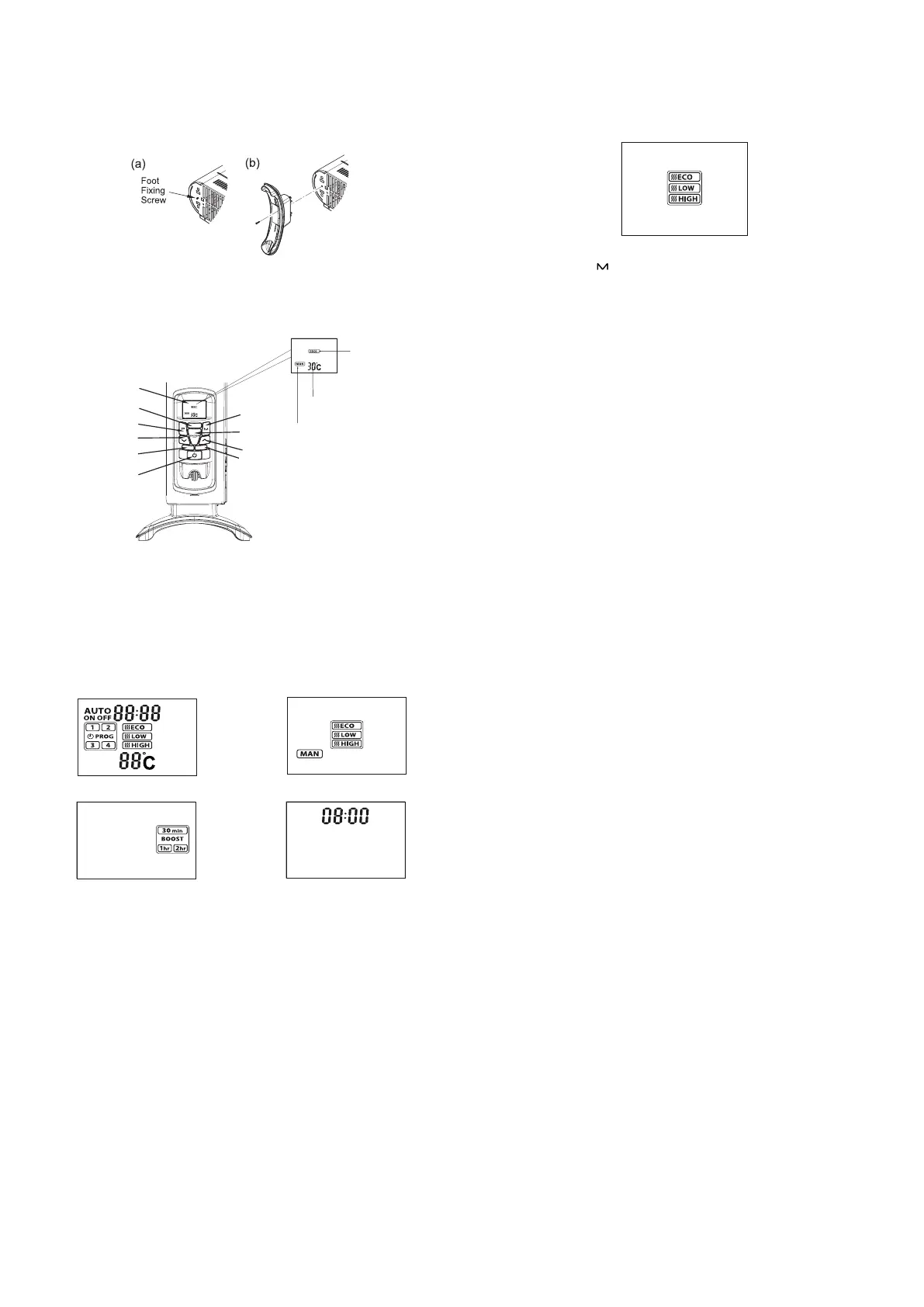

Assembling the foot

WARNING: THE HEATER SHOULD NEVER BE USED WITHOUT THE

FEET SECURELY FITTED.

Lay the heater on its back. Locate and remove the foot xing screw - see

Fig. 2(a). Clip the foot in place and secure using the foot xing screw.

Controls

LCD Display

Heat Neon

Mains Neon

Bluetooth Neon

Standby

Down

Programme

Mode/Pair

Desired

Temperature

Selected

Mode

Selected Heat

Seng

Enter

NOTE: When using the appliance or setting appliance controls always

ensure that the heater is stood on a rm level base. Do not tilt the

appliance at any time.

Operational modes

The electronic control has four control modes: AUTO, MANUAL, BOOST

and STANDBY mode.

Auto Mode

Standby ModeBoost Mode

Manual Mode

In both MANUAL and AUTO mode there are three heat settings options:

‘Intelligent’ Eco Mode - This is the initial default setting, the convector will

automatically start up in this setting once power is applied. The convector

will automatically regulate the room temperature accordingly. In this mode

the convector operates at full power, however the output of the convector is

automatically reduced and regulated as the room temperature approaches

the desired level. This mode optimises energy use by calculating the most

efcient and effective way to achieve the desired temperature setting. The

desired room temperature can be adjusted at any time during operation by

pressing the appropriate key.

Fig. 3

Fig. 4

Low Heat - In this option, the appliance will operate at a low heat setting,

the appliance will automatically cycle at this setting to maintain the room

temperature setting.

High Heat - In this option, the appliance will operate at a high heat setting,

the appliance will automatically cycle at this setting to maintain the room

temperature setting.

Press the Mode key,‘ ’, to toggle through the modes and the ENTER key

to conrm the mode selection. Note: when selecting the mode if the ENTER

key is not pressed, after 5 seconds the heater will activate the mode shown

on the LCD display.

Fig. 5

Fig. 2

Produktspecifikationer

Varumärke:	Dimplex
Kategori:	element
Modell:	402BT
Inbyggd display:	Ja
Timer:	Ja
Vikt:	3600 g
Bredd:	608 mm
Djup:	200 mm
Höjd:	442 mm
Förpackningens bredd:	700 mm
Avfrostningsfunktion:	Ja
Lämplig för:	inomhus
Modell:	Elektrisk konvektionsvärmare
Fjärrstyrd:	Ja
Placeringsalternativ:	Golv
Produktens färg:	Vit
Låddjup:	120 mm
Vikt inkl. förpackning:	4000 g
Värmeeffekt:	2000 W
Timerns varaktighet (max):	24 h
