Important Safety Advice
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience or knowledge if they have been given
supervision or instruction concerning the use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
Children of less than 3 years should be kept away
unless continuously supervised. Children aged
from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has
been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning the use of
the appliance in a safe way and understand the
hazards involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.
CAUTION: Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
WARNING: In order to avoid overheating, do not
cover the heater.
WARNING: This heater is not equipped with a
device to control the room temperature. Do not
use this heater in small rooms when they are
occupied by persons not capable of leaving the
room on their own, unless constant supervision
is provided.
An all-pole isolating switch with a minimum
separation of 3mm in each pole must be tted
adjacent to the heater to facilitate local isolation.
DO NOT locate above or below a xed socket
outlet.
WARNING: This heater has been designed for
horizontal oor mounting with the supplied guard
tted over the product. Any other installation type
is not recommended.
470
207
115

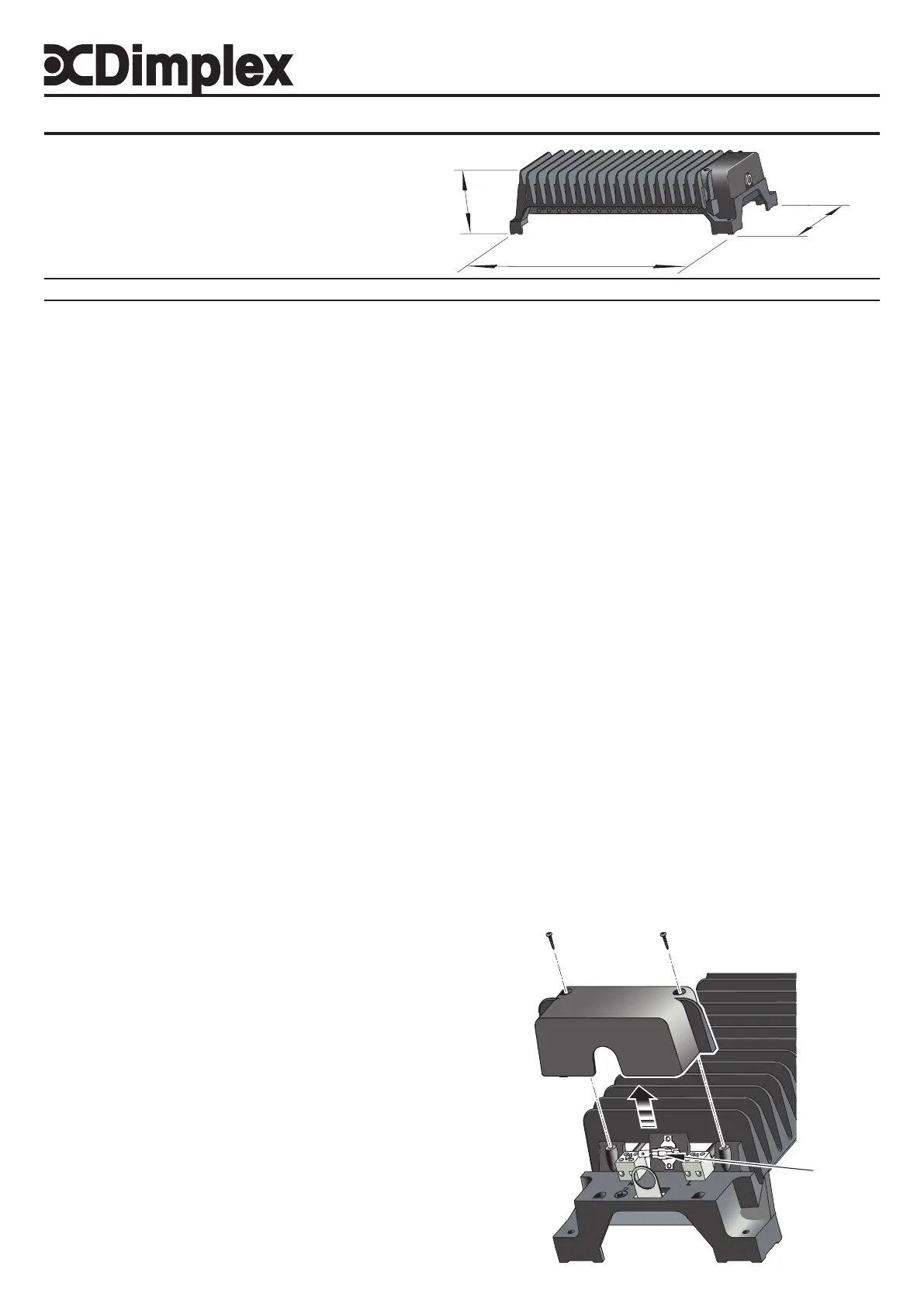

Dimensions
(millimetres)
Air Warmer: Model No. HAW1000N
Installation and Operating Instructions
Fig. 1
08/50511/0 Issue 5
Watts Electrical Supply Weight (kg)
1000W 230-240V ~1PN 14
The heater including the supporting legs can get very hot;
therefore do not mount directly on any combustible material.
Suitable re resistant material is required between the
heater and any combustible base or support.
WARNING: Before obtaining access to the terminals all
supply circuits must be disconnected.
The heater should be installed to allow a reasonable air
ow around the heater.
A prominent notice should be provided where the heater is
sited ‘Keep Clear and Unobstructed’.
Avoid exposure to water.
The heaters are not suitable for general domestic use.
The heater is suitable for a drying room provided that the
heater has suitable ventilation.
A mains lead which can operate at + 110°C must be used.
General
This carton contains:
• 1 HAW1000N heater
• 1 Foldable guard
Electrical connection
WARNING: THIS APPLIANCE MUST BE EARTHED.
Verify that the electrical supply cable is sufcient for the rated loading.
Check that the incoming supply conforms to the rated supply.
The heater power circuit must be protected by a suitably rated over
current device.
The incoming cables must be connected to the factory tted heater
terminals provided. Do not alter any factory tted wiring.
The Terminal Cover Casting can be removed to access the terminals, by
removing the 2 screws xing the cover - see Fig. 2.
WARNING: Ensure the power cable path does not come into contact with
the heater element.
The heater is supplied with an earth stud, located inside the terminal box,
which must be connected to earth.
After connection check the continuity of earth connections.
x
Fig. 2
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Installation
The heater should not be connected until the instruction leaet
has been read fully.
The installation should be carried out by a suitably qualied
electrician/engineer in accordance with applicable standards.
Remove all items from the packaging. The heater should be xed
to the oor using the xing points provided - see Fig. 3. Ensure
the heater is securely fastened.
Remove the terminal cover and connect the mains cable, while
making note of the path the connecting cable should take through
the guard.
Reattach the terminal cover to the heater and fasten the cable
gland.
Mount the guard over the heater. Ensure the guard is mounted
centrally relative to the heater as shown in Fig. 4.
625
407
199
255
608
579
Thermal Safety Cut-out
The thermal cut-out will operate and the power supply to the
heating element will be interrupted if ventilation of the heater is
impaired.
Before resetting the thermal cut-out, the cause of the impaired
ventilation should be established and eliminated.
Procedure for resetting cut-out
1. Disconnect power supply.
2. Remove the guard.
3. Remove the terminal cover to access the thermal cut-out - see
Fig. 2.
4. Press the reset tab located in the centre of the cut-out (cut-out
clicks when reset) - see ‘x’ in .Fig. 2
5. Re-t the terminal cover and reconnect power supply.
6. Re-t the guard.
If the cut-out continues to operate intermittently, the heater should
be switched off and a service agent contacted.
449
179

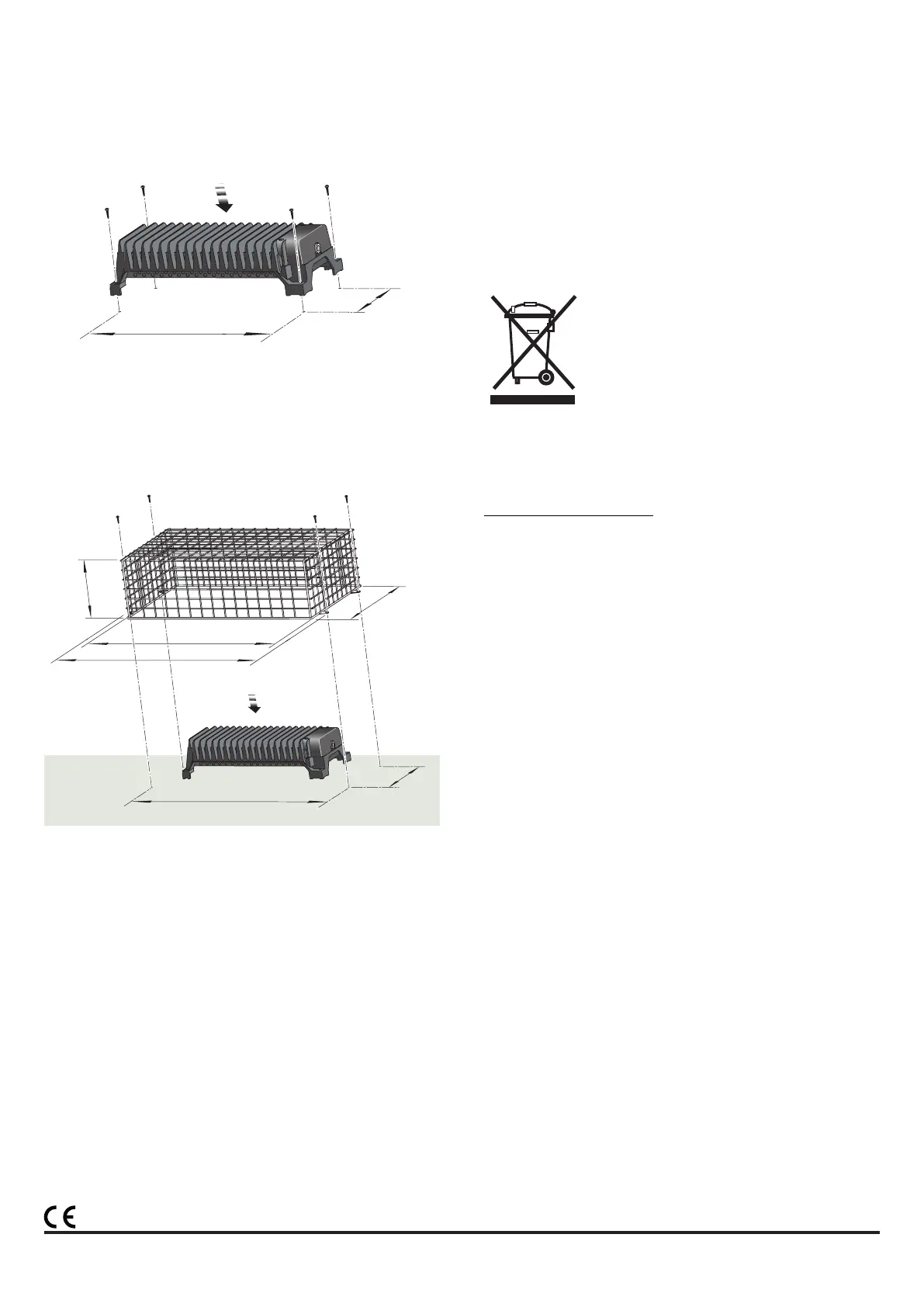

Fig. 3
Fig. 4
Cleaning and User Maintenance
WARNING: DISCONNECT SUPPLY before carrying out
maintenance.
The heater should be subject to a regular maintenance schedule
with the following actions as a minimum:
· Check that the heater surfaces are clean and free from any
deposits. The heater can be cleaned by wiping with a damp
cloth. Neither abrasive cleaning powders nor furniture polish
should be used.
· The internal wiring shall be clean and dry, with no apparent
deterioration of the wiring insulation.
· All connections shall be tight, without signs of overheating.
Recycling
For electrical products sold within the European
Community. At the end of the electrical products
useful life it should not be disposed of with
household waste.
Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling
advice in your country.
After Sales Service
Your product is guaranteed for one year from the date of purchase.
After sales information or assistance with this product can be
found on our website:
www.dimplex.co.uk/support.
Your rights under this guarantee are additional to your statutory
rights, which in turn are not affected by this guarantee.
Please do not return a faulty product to us as this may result in loss
or damage and delay in providing you with a satisfactory service.
If after following these steps your product still does not operate
you should return it to your point of purchase.
Please retain your receipt as proof of purchase.
[c] GDC Group Ltd.
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of GDC Group Ltd.
The product complies with the European Safety Standards EN60335:2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014:1,
EN55014:2, EN61000:3-2 and EN61000:3-3 which cover the essential requirements of EMC Directive 2014/30/EU and the LVD Directive 2014/35/EU.
