Sida 1/2

230/240V AC

RF Controller Unit: Controller &

Receiver

Installation and Operating Instructions

RFTS234P01 Issue 0

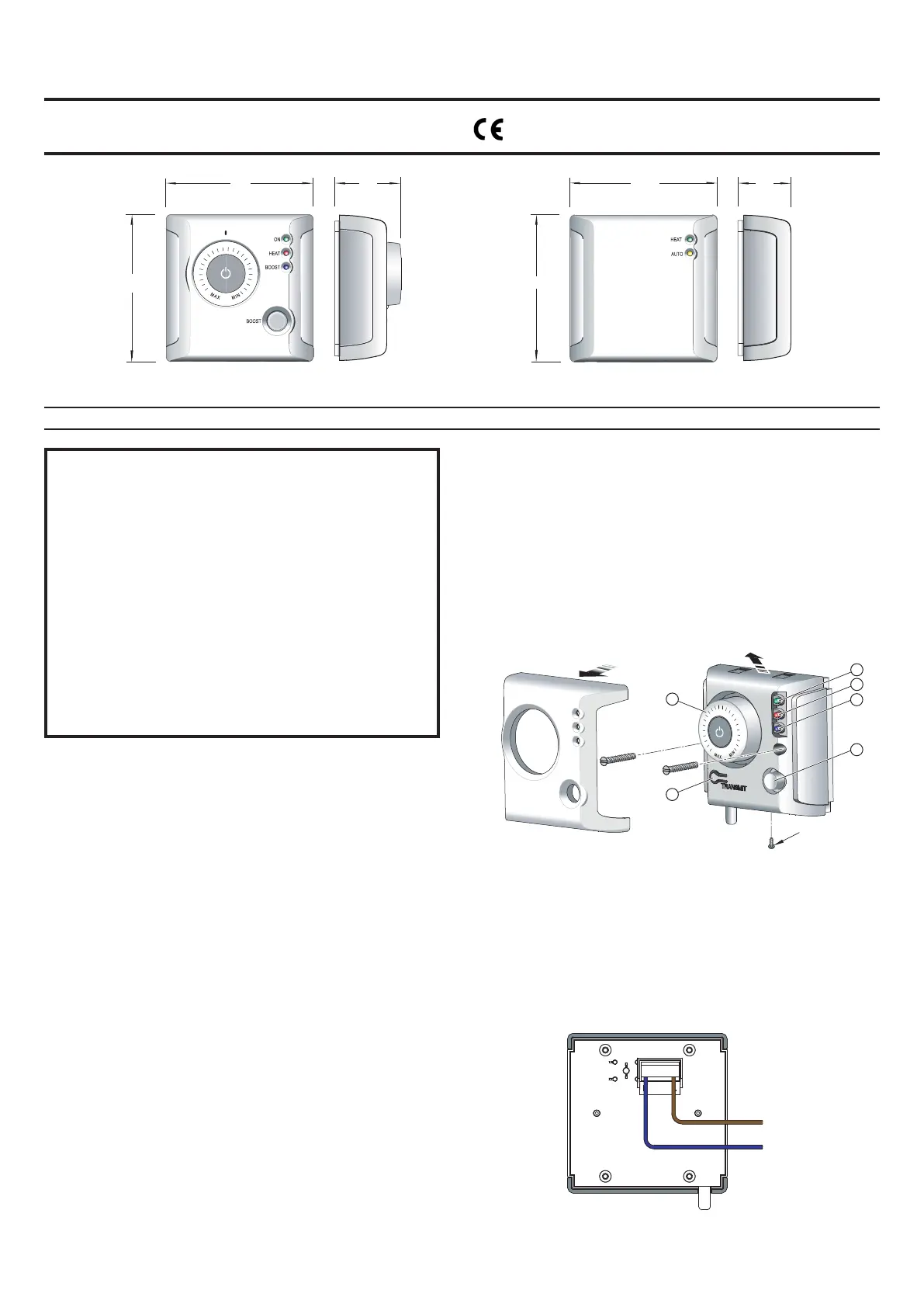

Fig. 1

IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

Important Safety Advice

When using electrical appliances, basic precautions should

always be followed to reduce the risk of fire, electrical

shock, and injury to persons, including the following:

This product is splash proof to IP24 standard and may be

used in bathrooms in Zones 2 & 3 only, however not in the

immediate vicinity of baths, showers, water connections,

wash basins or swimming pools.

This unit must only be used on an A.C Mains supply of 230/

240V with products up to a maximum of 2kW.

Ensure that supply cables to the product are of adequate

current carrying capacity.

This product is used to control separate heating appliances.

Please note the safety guidelines of the controlled product

must be adhered to at all times.

General

The RF Controller Unit is an electronic device which provides wireless

room temperature control for use with heating appliances. The Unit can

be used to control multiple heating appliances. Note: Each appliance

requires a Receiver Unit.

The Unit can be used in conjunction with heating appliances with a

maximum heating capacity of 2kW. The Controller Unit cannot be used

with a Quartz Halogen heater without a suitable in-line contactor.

The RF Controller Unit consists of a Controller and a Receiver. Both the

Controller and Receiver are wall mounted. The Controller provides

wireless room temperature control. Control of the product is achieved

via an RF signal from the Controller to Receiver which is wired direct to

the heating appliance. This eases installation. To quickly heat a cold room

the Controller incorporates a ‘Boost’ function which overrides the

thermostatic control for a set period of time.

Installation

Before undertaking installation work, ensure the electricity supply is

disconnected from any relevant fixed wiring.

· All wiring should be carried out by a qualified electrician in accordance

with the current IEE wiring regulations.

· Both the Controller and Receiver units are designed to be fitted to a

standard single BS backing box with a depth of at least 25mm. The

backing box (not supplied) should already be recessed into the wall.

· Ensure the top and bottom lugs (if fitted) of metal backing boxes are

removed prior to installation.

· The location of the Controller is important. The Controller is fitted with

a room temperature sensing device and therefore will not function

correctly if positioned too close to a heat source or draught area.

Please ensure the Controller is not located above or within 500mm of

a heat source or draught.

Controller

a) Remove screw ‘x’ from the underside of the Controller unit - see

Fig. 2.

b) The front facia is held in place by clips at the top. It must be

removed by lifting the top of the facia upwards and then outwards

- see Fig. 2.

c) Connect the fixed wiring of the premises from the back box to the

clearly marked terminals on the Controller - see Fig. 3.

d) Secure the Controller to the backing box using the screws provided

(located on rear moulding) - see Fig. 2.

Note: The Controller front facia should not be refitted until the unit has

been programmed - see ‘Unit Set-Up’.

Controller - see Fig. 2

1. Standby button/thermostat control knob

2. ‘ON’ Indicator

3. ‘HEAT’ Indicator

4. ‘BOOST’ Indicator

5. ‘BOOST’ button

6. ‘TRANSMIT’ button

Controller Wiring - see Fig. 3

Fig. 3

Fig. 2

Controller Receiver
