Contact Details
Pleasenotethat some contact ofthe details on
thisPDFdocumentmaynotbe current.
Pleaseuse the following detailsifyouneedto
contactus:
Telephone:0844 879 3588
Email:customer.services@gdcgroup.co.uk
The widecustomer alsosupportsection websiteofour features a
rangeof ofinformationwhichmaybe use availabletoyouandis
24 ahours day.Itincludes:
• Operating and installation instructions
• Easy ‘How to use’ guides for storage heaters
• Service and repairs
• Wheretobuyourproducts
• Literature downloads
• Heating requirement calculator
‐Visit www.dimplex.co.uk/support
A division of GDC Group Ltd
Millbrook House Grange Drive Hedge End Southampton SO30 2DF
www.dimplex.co.uk
Re
g
istered No: 1313016 En
g
land
VAT GB 287 1315 50004
EEE Producer Registration Number –
WEE/GE0057TS
Paper from sustainable sources
70mm 40.5mm
117mm
Installation and
Operating Instructions
Card Switch
Model No. KX03003
GENERAL DESCRIPTION
The KX03003 can be used in conjunction with the
Dimplex PLX, SPX, EVS, EVX, RPX and Calidou
panel heaters. The unit is designed to be flush
mounted to a single BS backing box using the
adaptor plate provided. The unit comprises 2 x 20
Amp (250VAC) rated single pole changeover
mechanisms, together with a neon that is
designed to provide an easily visible backlit card
pocket.
OPERATING INSTRUCTIONS
Dependant on the heater used and wiring, the
KX03003 can operate in either On/Off switching
mode, or in Pilot Wire mode when used with a
suitable heater.
Important Safety Advice
•Do not use this appliance in the
immediate surroundings of a bath, a
shower or swimming pool.
•Do not use where excessive dust or
moisture is present.
•This unit must only be used on an
A.C. Mains supply of 230/240V.
•For use in normal pollution situations
only.
Note 1:
When the card is removed a neon will light to aid
the user, whether used in On/Off or Pilot Wire
installations.
Note 2:
This unit contains a second 20 Amp rated
mechanism to allow another device to be switched
(e.g. lighting).
INSTALLATION
Before undertaking installation work, ensure the
electricity supply is disconnected from any fixed
wiring.
•All wiring should be carried out by a qualified
Electrician in accordance with the current IEE
Wiring Regulations.
•This unit is designed for fitting to a standard
single BS backing box with a depth of 25mm.
•Please ensure the top and bottom lugs are
removed, if fitted, from metal wall boxes prior to
fitting.
•Ensure that there is adequate space for wiring.
•Please see the following diagrams for your
chosen connection type (On/Off, Pilot Wire).

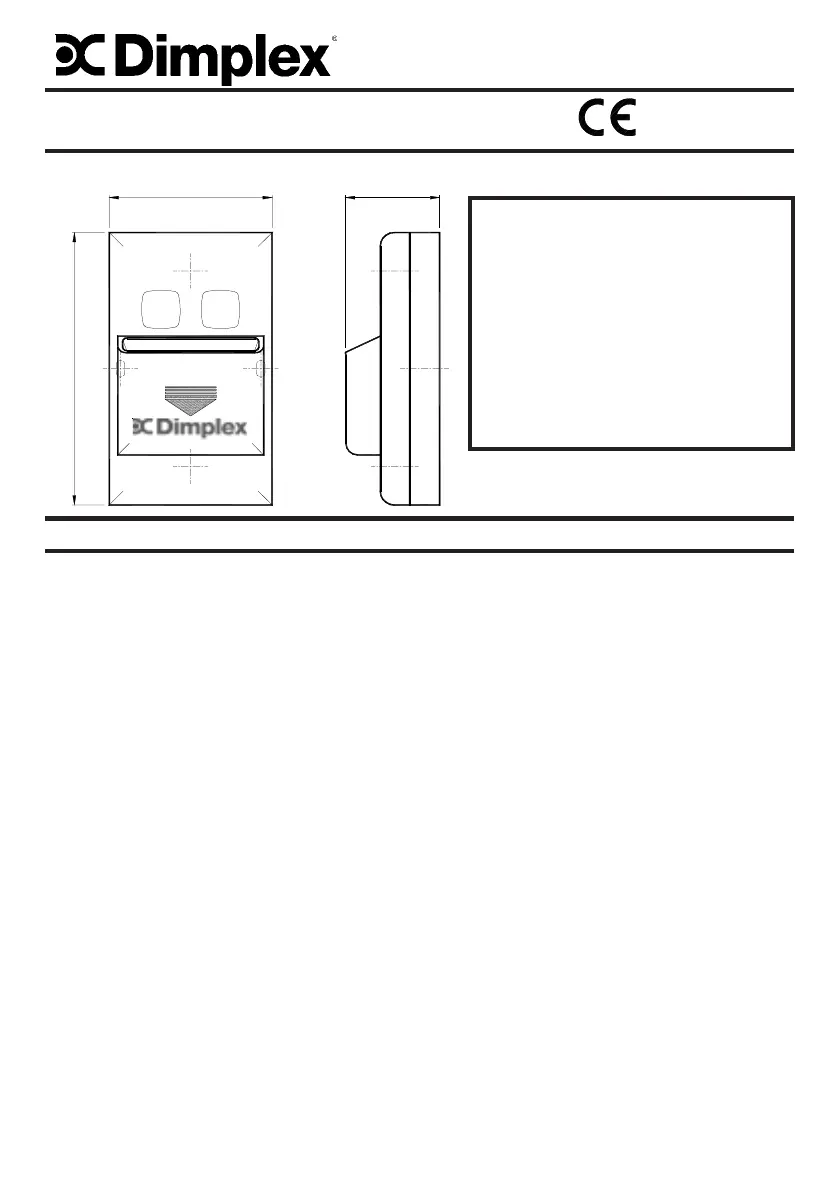

DIMENSIONS (millimetres)
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
ON/OFF SWITCHING
Using a room entry card provided by a hotel,
place the card (standard credit card size) into the
pouch to switch the heater On. Removing the
card isolates the power and turns the heater Off.
PILOT WIRE SWITCHING
Using a room entry card provided by a hotel, place
the card (standard credit card size) into the pouch
to switch the heater to its comfort temperature
setting. Removing the card switches the heater to
its background temperature setting when the
room is unoccupied.
CONTINUED OVERLEAF
08/18965/0 - Issue 0
Glen Dimplex UK Ltd.
Millbrook House, Grange Drive
Hedge End, Southampton
Hampshire SO30 2DF
CONNECTIONS AND WIRING DIAGRAM
GENERAL CLEANING
The outside of the unit should be wiped over with
a soft damp cloth only. Do not use detergents or
abrasives.
AFTER SALES SERVICE
Your Dimplex product is guaranteed for one year
from the date of purchase. We undertake to
exchange this product free of charge within this
period if found to be defective and only when
used as per instructions. Should you require after
sales service, please contact the Dimplex
customer help desk listed below. Please do not
initially return a faulty product, as this may result
in loss or damage which can cause delay in
providing service. Let us know your difficulty
quoting the model number and we will then take
the appropriate action.
Tel: Customer Services 0870 727 0101
Fax: Customer Services 0870 727 0102
Email: customer.services@glendimplex.com
Website: www.dimplex.co.uk
WIRE TO LIVE FEED
1 = WIRE TO NEUTRAL
BACK VIEW
2 1C
L
OOP
1
L
OO
P
1C2
NEON INDICATOR UNIT
ON/OFF SWITCHING
USING 2-WAY INTERNAL SWITCH UNIT
2 = LIVE TO NEON
C = LIVE INPUT
LOOP = NEUTRAL
1 = LIVE OUTPUT
C = LIVE INPUT
2 = PILOT WIRE & LIVE TO NEON
LOOP = NEUTRAL
1 = NOT CONNECTED
LOO
P
LOO
P
1C
1C
2
21
NEON
2-WAY
INTERNAL
SWITCHES
PILOT SWITCHING
USING 2-WAY INTERNAL SWITCH UNIT
C = COMMON TERMINAL
1 = NORMALLY OPEN TERMINAL
2 = NORMALLY CLOSED TERMINAL
LOOP = NOT CONNECTED
TERMINAL CONNECTIONS
