Sida 1/22

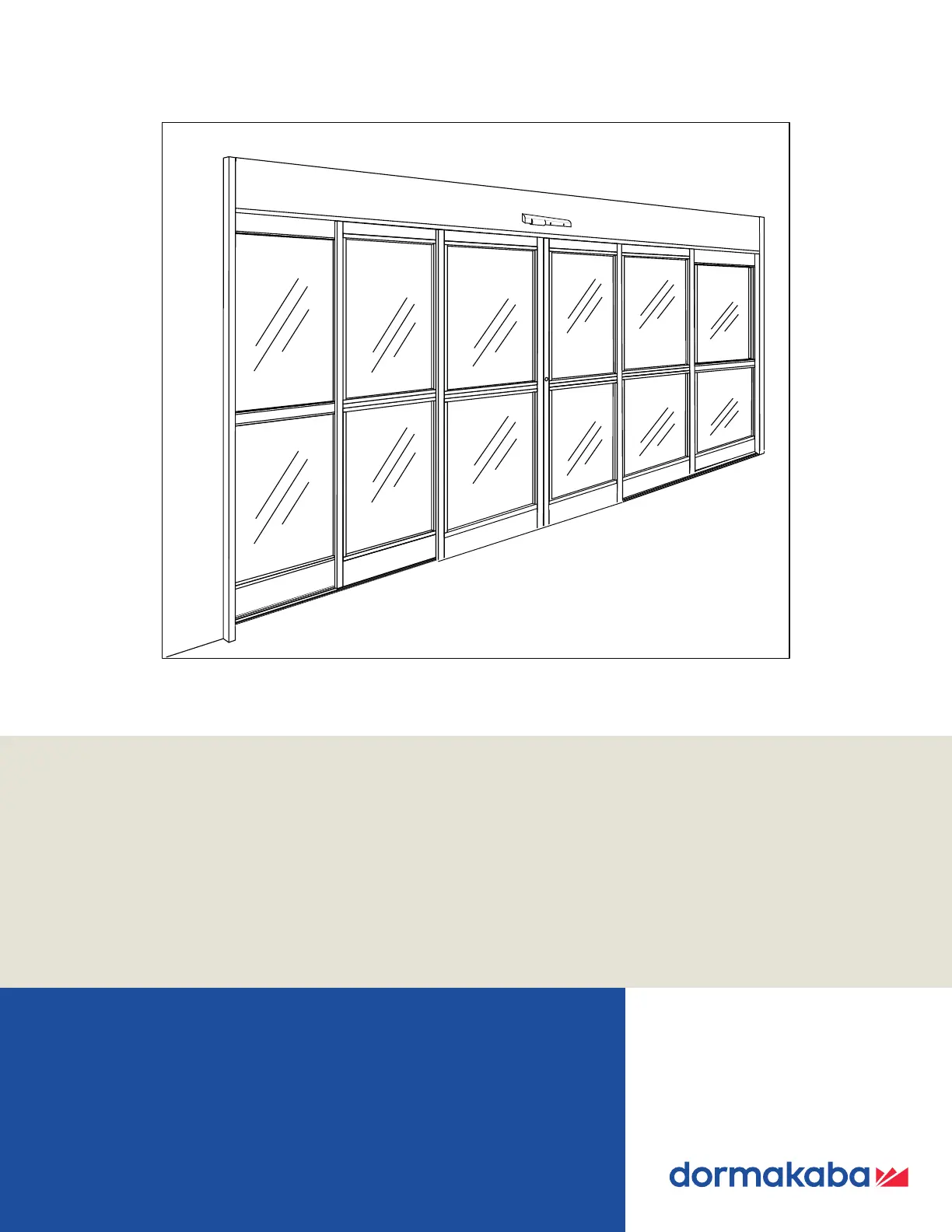

ESA-T Telescopic
Full breakout automatic sliding door
with ESA II controller
Installation Manual
DL2875-010 – 05-2022
| | EN

2 ESA-T 05-2022DL2875-010
ESA-T Telescopic Full Breakout Automatic Sliding Door
Tools Required:
Suggested Fasteners Required - (Not supplied)
Screwdrivers
Small Straight (Flat Blade) - for Terminal Block wiring
#2 Phillips (Crosspoint) - for various #8, #10, and #14 screws
Wrenches / Sockets
7/16" - for #1/4-20 Hex Head bolts attaching header to jambs
1/2" (13mm) - for #5/16 Hex Head bolts attaching end stops and operator parts
15/16" wrench - for carrier and anti-rise roller adjustment
Allen Wrenches
3mm - for “SX” & “SO” roller catch adjustment
1/8” - for “SO” arm stop & “SX” bottom pivot
5/32” - for “SO” top pivot
5mm (3/16”) - for “SO” arm pivot screw
7/32" - for “SX” breakout adjustment
5/16" - for carrier and anti-rise roller adjustment
Electric Drill with the following drill bits -
9/64"(or #28) - for installing sensors & “SO” bottom roller stop
5/32" (or #22) - for installing #10 sheet metal screws into adjacent storefront
13/64" (or #7) - for installing #14 sheet metal screws into adjacent storefront
1/4" - for clearance holes in jambs
82 degree Countersink
Impact Drill with the following masonry bits -
1/4" - for #10 screw anchors
5/16" - for #14 screw anchors
Level - suggested 4' minimum
Step Ladder - 4' or 6'
Tape Measure
Caulking and Application Gun
Electrical Wire Strippers /Cutters - for sensor wiring
Grease [to hold “SX” bottom guide block on shaft]
BEA Universal Remote Control - for adjusting sensors
Jamb Attachment Screws -
#14 X 2-1/2" PHSMS (Pocket Jambs)
#14 X 3" FHSMS (Tube Jambs)
Optional Anchors for masonry
Threshold Attachment Screws
#10 X 1-1/2" FHSMS
Optional Anchors for masonry
Header Attachment Screws
#14 X 1-1/2" HHSMS
#14 Flat Washer
Construction Shims - for squaring door frame in opening

3ESA-T 05-2022DL2875-010
ESA-T Telescopic Full Breakout Automatic Sliding Door
Components - Overview
Sliding Panel SX1, SX2 Floor Guide
Motion Detector
Program-Panel
4 Sidelight 8 Floor Rail 12 Bearing Pivot
1 Operator Unit 5 9
2 End Tube (Jamb) Extrusions 6 10 Bearing Pivot
3 Track 7 11 Latch Device
9
2
4
10
11
1
3
1
6
8
2
12
4
7
8
9
55
55
