Subject to change without notice

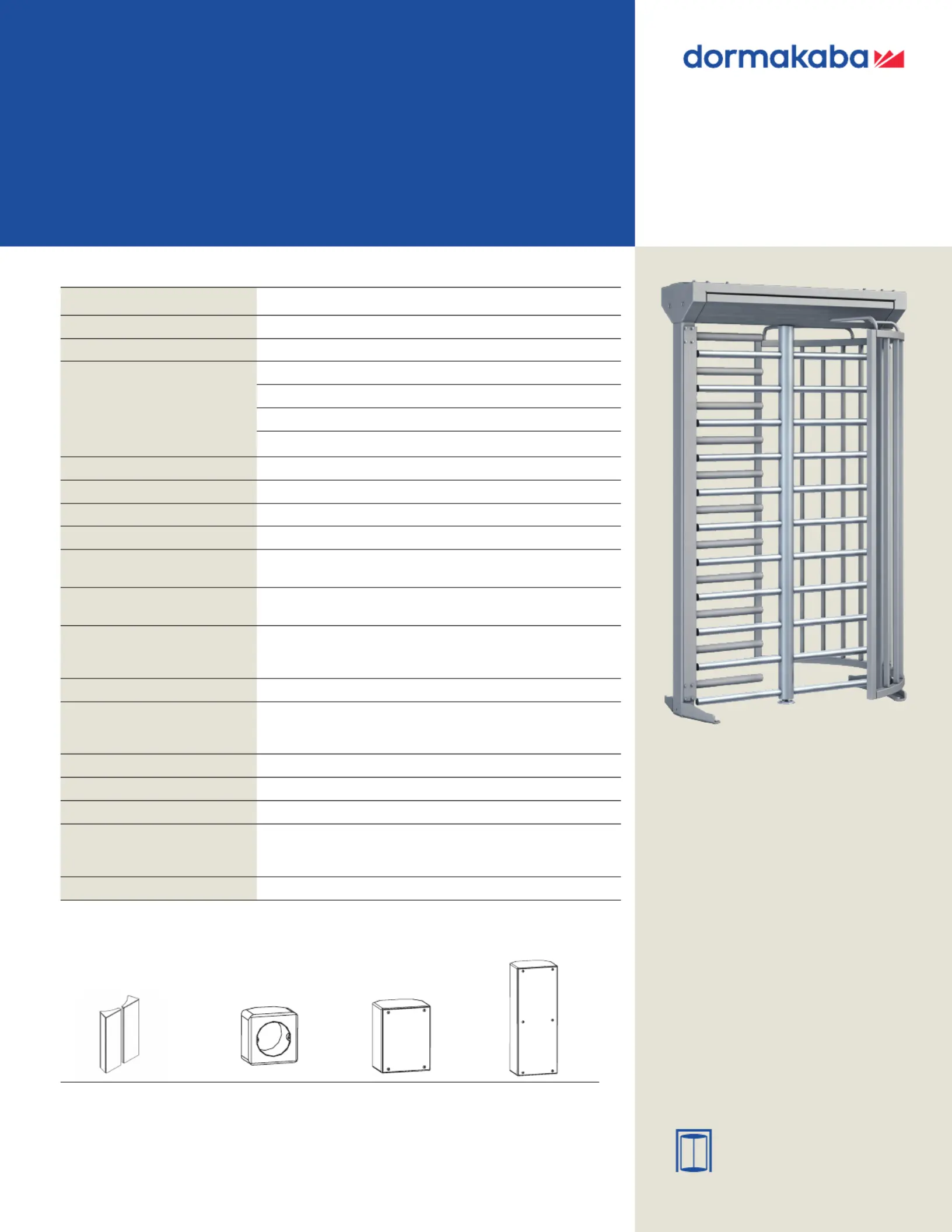

FTS-E01
Full height turnstile with
smallest footprint
Entrance systems
Standard unitsFTS-E01
Construction column diameter44-1/2" (1130 mm)
Portal width53-15/16" (1370 mm)
Total height89-3/8" (2270 mm)
with optional canopy D194-1/16" (2390 mm)
with optional canopy D295-1/4" (2420 mm)
with optional canopy D395-1/4" (2420 mm)
Passage height81-1/8" (2060 mm)
Passage width22-1/16" (560 mm)
Portal and housingSteel
Lockable maintenance openingAluminum
Rotating unit with tubular
column, Ø3-1/2" (Ø89 mm)
180° each with 11 straight crossbars Ø1-9/16" (Ø40 mm) made
of glossy AISI 304 stainless steel with black plastic cover caps.
Barrier elementWith 11 straight horizontal crossbars Ø1-5/8" (Ø42 mm),
made of steel.
FinishRotating unit made of glossy stainless steel, hot-dip
galvanized steel elements, aluminum elements in RAL 9006
(white aluminum).
Rotor2-blade rotor
FunctionPower assist—Power-assisted motion; servo-positioning drive/
electronically controlled in both directions (behavior in event of
power failure can be selected for each direction: free or blocked).
Electrical equipmentControl system integrated in the unit.
Power supply100 – 240 VAC, 50/60 Hz, 253 VA.
Standby power consumption20 VA.
InstallationFinish floor
Sub-floor
Sleeve foundation
Protection classesHousing IP33, components conducting supply voltage IP43.
Housing with lockable front
panel made of silver
anodized aluminum,
plastic-coated according to
RAL or glossy stainless steel
Plastic in color of
unit or in RAL 9006
W: 3-11/16" (94 mm)
H: 3-11/16" (94 mm)
D: 2-9/16" (65 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 7-1/16" (180 mm)
D: 4-5/16" (110 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 14-3/8" (365 mm)
D: 4-5/16" (110 mm)
Optional components
Housing
Console 1
Console 2
Console 3
