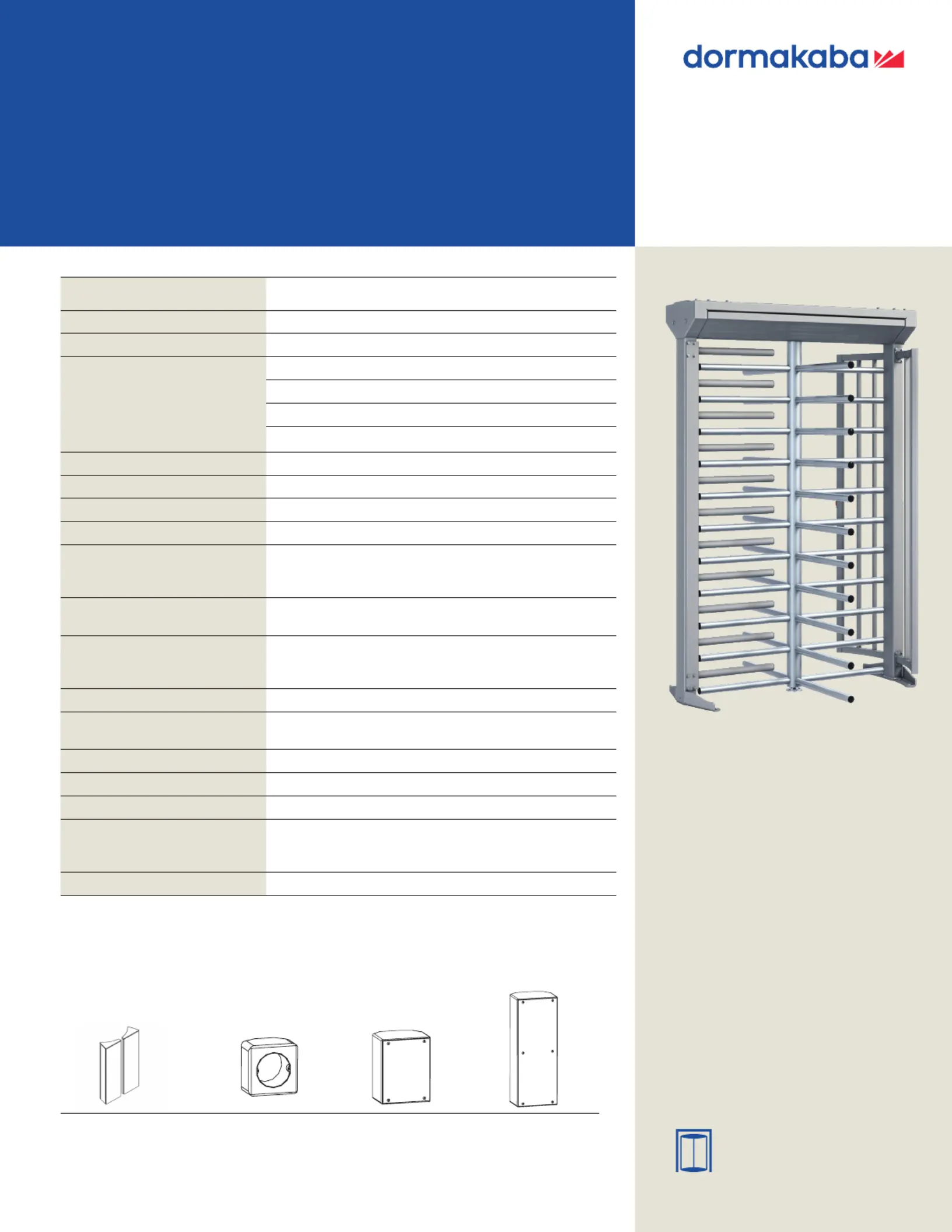

FTS-E03
Full height turnstile
featuring 4-blade rotor
Entrance systems
Standard units FTS-E03
Construction column diameter 51-13/16" (1300 mm)
Portal width 60-5/8" (1540 mm)
Total height 89-3/8" (2270 mm)
with optional canopy D1 94-1/16" (2390 mm)
with optional canopy D2 95-1/4" (2420 mm)
with optional canopy D3 95-1/4" (2420 mm)
Passage height 81-1/8" (2060 mm)
Passage width 21-5/8" (550 mm)
Portal and housing Steel
Lockable maintenance opening Aluminum
Rotating unit with tubular
column, Ø3-1/2" (Ø89 mm)
90° each with 11 straight crossbars Ø1-9/16" (Ø40 mm),
made of glossy. AISI 304 stainless steel with black plastic
cover caps.
Barrier element With 11 straight horizontal crossbars Ø1-5/8" (Ø42 mm),
made of steel.
Finish Rotating unit made of glossy stainless steel, hot-dip
galvanized steel elements, aluminum elements in RAL 9006
(white aluminum).
Rotor 4-blade rotor
Function (see Mechanical (Manual)Function note)
Power assist
Electrical equipment Control system integrated in the unit.
Power supply 100 – 240 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA.
Installation Finish floor
Sub-floor
Sleeve foundation
Protection classes Housing IP33, components conducting supply voltage IP43.
Function
• Manual—Mechanical operation, free in
one direction/opposite direction blocked.
• Power assist—Power-assisted motion;
servo-positioning drive/electronically
controlled in both directions (behavior
in event of power failure can be selected
for each direction: free or blocked).
Housing with lockable front
panel made of silver
anodized aluminum,
plastic-coated according to
RAL or glossy stainless steel
Plastic in color of
unit or in RAL 9006
W: 3-11/16" (94 mm)
H: 3-11/16" (94 mm)
D: 2-9/16" (65 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 7-1/16" (180 mm)
D: 4-5/16" (110 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 14-3/8" (365 mm)
D: 4-5/16" (110 mm)
Optional components
Housing
Console 1
Console 2
Console 3
5-5/16" (150)
measure = X
5-5/16" (150)
foundation =
31-1/2" (800)
31-1/2" (800)
31-1/2" (800)
foundation = 104-3/4" (2660)
foundation = 104-3/4" (2660)
foundation = 104-3/4" (2660)
Option:
Barrier element cur d ve rake
60-5/8" (1540)
13-3/4"
(350)
15-3/4"
(400)
7-1/16" (180)
8-11/16" (220)
57-1/2"
(1460)
23-5/8"
(600)
23-5/8"
(600)
21-5/8"
(550)
OUTSIDE
INSIDE
8-1/4"
(210)
4-5/16" (110)
passage height = 81-1/8" (2060)
89-3/8" (2270)
1- 16" 9/ (40)
foundation =
33-7/16" (850)
roof depth
35- 16"9/
(904)
15-3/4"
(400)
58-3/16" (1478)
25-7/16"
(646)
Ø51-3/16"
(Ø1300)
FFL
SFL
dormakaba
FTS-E03 full height turnstile
EO 8.18
FTS-E03

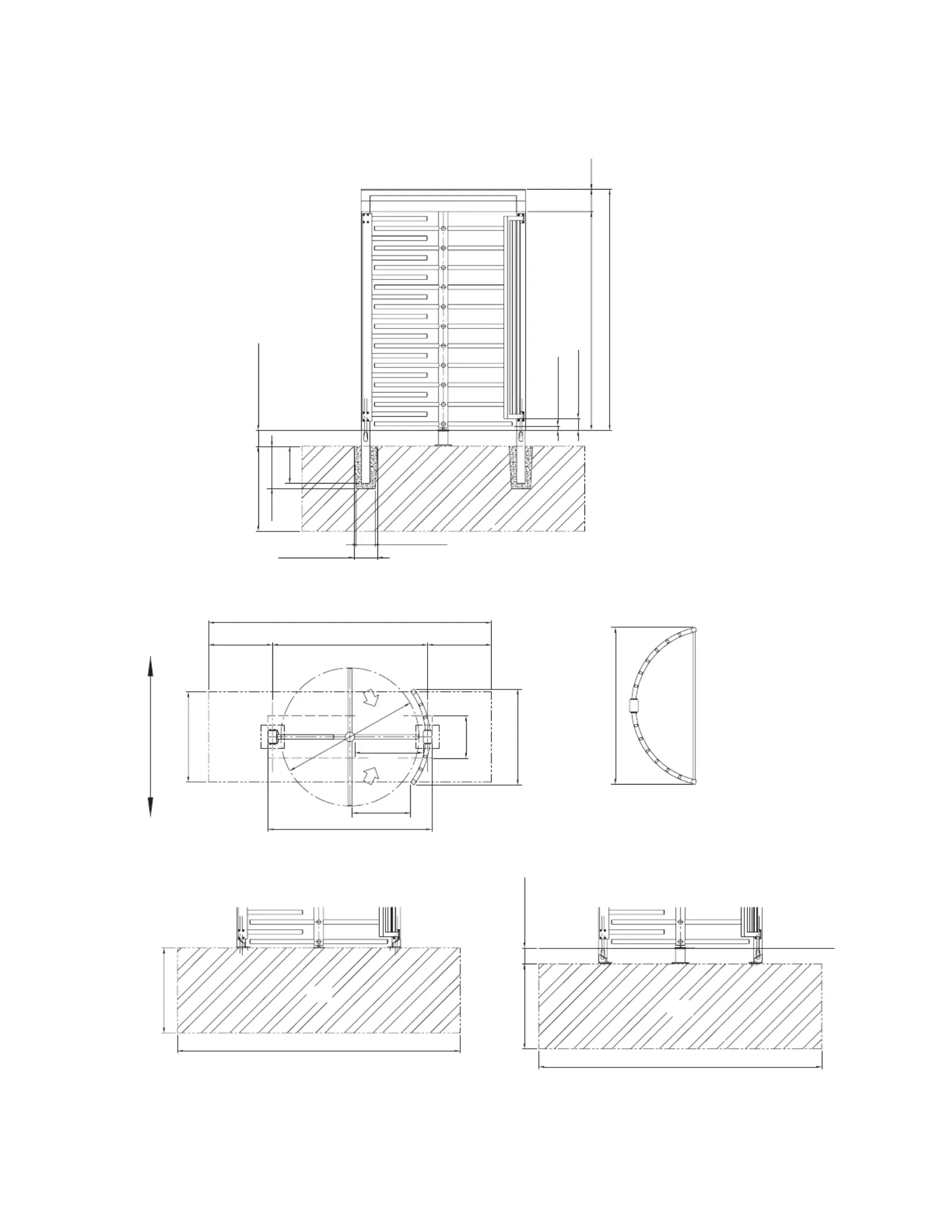

Installation drawings
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
Note
Dimensions shown as inches
followed by millimeters; for
example, 1" (25).
