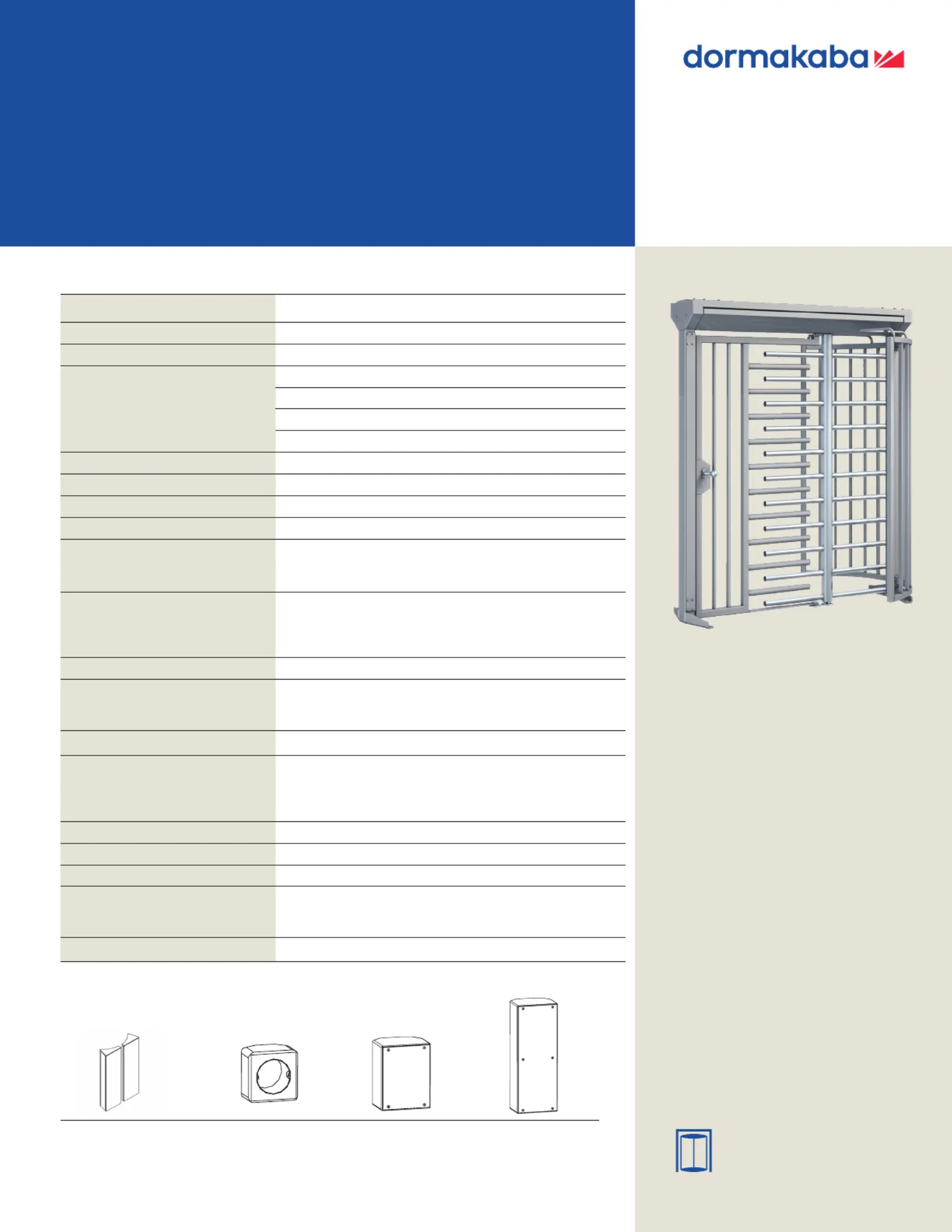

Standard units FTS-M03
Construction column diameter 44-1/2" (1130 mm)
Portal width 76-3/8" (1940 mm)
Total height 89-3/8" (2270 mm)
with optional canopy D1 94-1/16" (2390 mm)
with optional canopy D2 95-1/4" (2420 mm)
with optional canopy D3 95-1/4" (2420 mm)
Passage height 81-1/8" (2060 mm)
Passage width 22-1/16" (560 mm)
Portal and housing Steel
Lockable maintenance opening Aluminum
Rotating unit with tubular
column, Ø3-1/2" (Ø89 mm)
180° each with 11 straight crossbars Ø1-9/16" (Ø40 mm),
made of glossy AISI 304 stainless steel with black plastic
cover caps.
Barrier element Integrated swing door with 10 straight horizontal steel
crossbars Ø1-5/8" (Ø42 mm), and continuous frame with
steel columns. Equipped with knob on both sides and latch
bolt lock (prepared for on-site profile cylinder).
Additional feature Integrated door that can be opened when required.
Finish Rotating unit made of glossy stainless steel, hot-dip
galvanized steel elements, aluminum elements in RAL 9006
(White Aluminum).
Rotor 2-blade rotor
Function (see Mechanical (Manual)Function note)
Power assist
The rotating unit turns automatically 90° in passage direction
when the door is opened.
Electrical equipment Control system integrated in the unit.
Power supply 100 – 240 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA.
Installation Finish floor
Sub-floor
Sleeve foundation
Protection classes Housing IP33, components conducting supply voltage IP43.
Function
• Manual—Mechanical operation, free in
one direction/opposite direction blocked.
• Power assist—Power-assisted motion;
servo-positioning drive/electronically
controlled in both directions (behavior
in event of power failure can be selected
for each direction: free or blocked).
FTS-M03
Full height turnstile with integrated
swing door for ADA compliance
Housing with lockable front
panel made of silver
anodized aluminum,
plastic-coated according to
RAL or glossy stainless steel
Plastic in color of
unit or in RAL 9006
W: 3-11/16" (94 mm)
H: 3-11/16" (94 mm)
D: 2-9/16" (65 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 7-1/16" (180 mm)
D: 4-5/16" (110 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 14-3/8" (365 mm)
D: 4-5/16" (110 mm)
Optional components
Housing
Console 1
Console 2
Console 3
