Sida 1/5
IDKR-1 4/2011
For 1340KR/F1340KR
Dorma key removable mullion
Installation Instructions
1135-89 95011818
www.dorma-usa.com 1-800-523-8483
For 1340KR/F1340KR

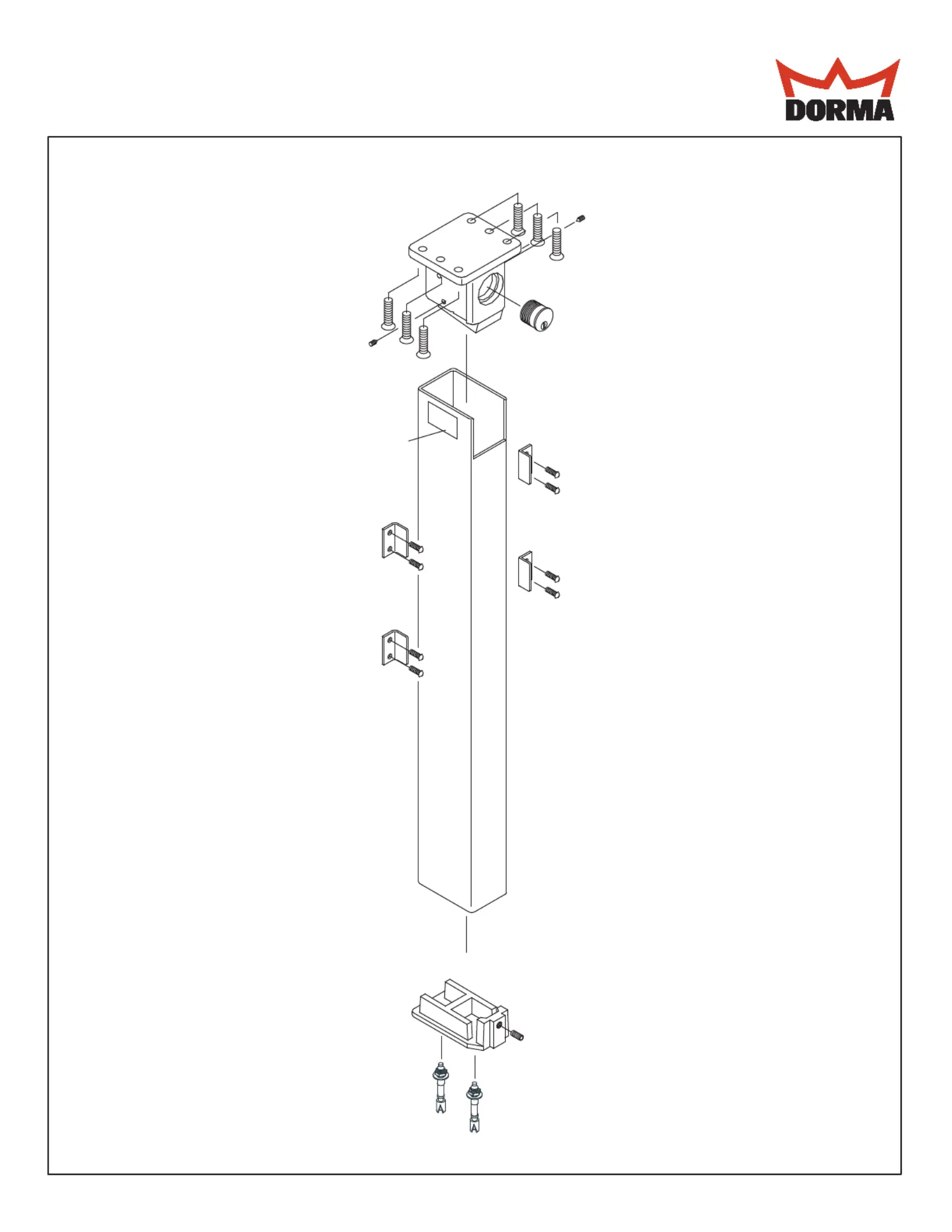

Exploded parts view
2
(SUPPLIED)
MORTISE CYLINDER
ALLEN HEAD SET SCREWS (2)
(Labeled Model Only)
FIRE LABEL
ALLEN HEAD SET SCREW (1)
3/8 - 16 x 1/2" (12 mm)
BOTTOM FITTING (1)
12-24 x 3/4" (19 mm) PRHMS (8)
STABILIZERS (4)
KR MULLION (1)
5/16-18 x 1 - 1/2" (38 mm) PFHMS (6)
8-32 x 3/8" (10 mm)
TOP FITTING (1)
3/8-16 x 3" (76 mm)
STUD ANCHOR ASSEMBLIES (2)
3

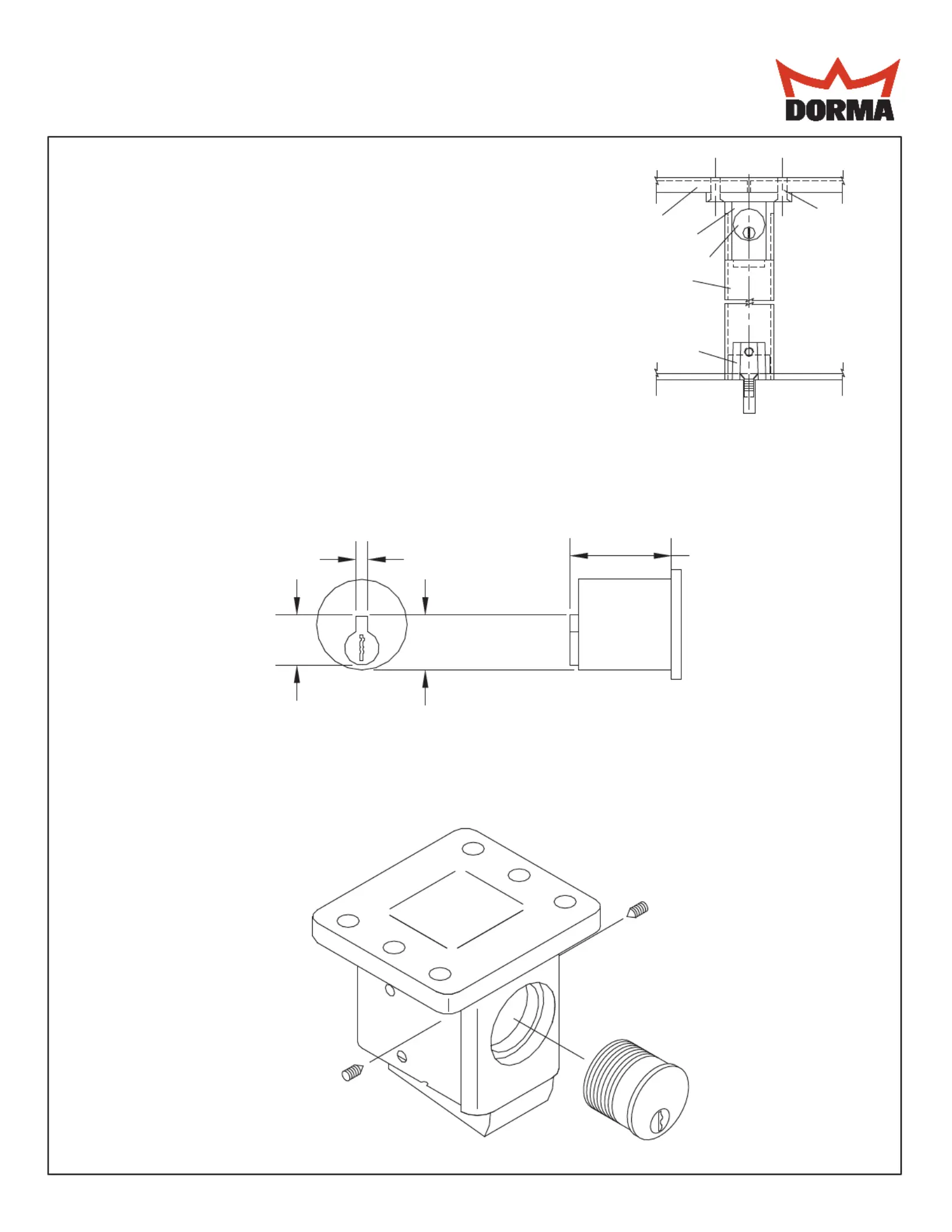

Soffit
C
L
Top fitting
Mortise cylinder
Mullion
Floor
Bottom fitting
3. DORMA Mortise cylinder supplied with top fitting assembly. If using other then
manufactures supplied cylinder, refer to cylinder and cam specifications below.
4. Install mortise cylinder into fitting as shown, cam at bottom pointing up. Tighten
cylinder mounting set screws (2) securely & evenly. (Do not overtighten, as to
crush housing.) Both should be flush with sides of the fitting.
Insert key and rotate 90 degrees to right. The latch should retract fully.
"F" Drill x
5/16-18 tap
.570 .875
Read the entire instruction sheet prior to installation.
1. Determine and mark the center of the width of the door
opening at the soffit and at the sill. See illustration at right.
2. Place top fitting on soffit of frame. Align the centering notch
in fitting with the mark you made on soffit. Close doors and butt
the notched side of fitting to doors. Mark and drill (4 or 6) holes with
"F" drill bit, tap holes for 5/16-18 screws. (Note: A shim may be
required for front two (2) holes between fitting and stop.)
INSTALLATION
.180
1 1/8" Standard
May use other
length cylinders
with appropriate
spacer (s).
