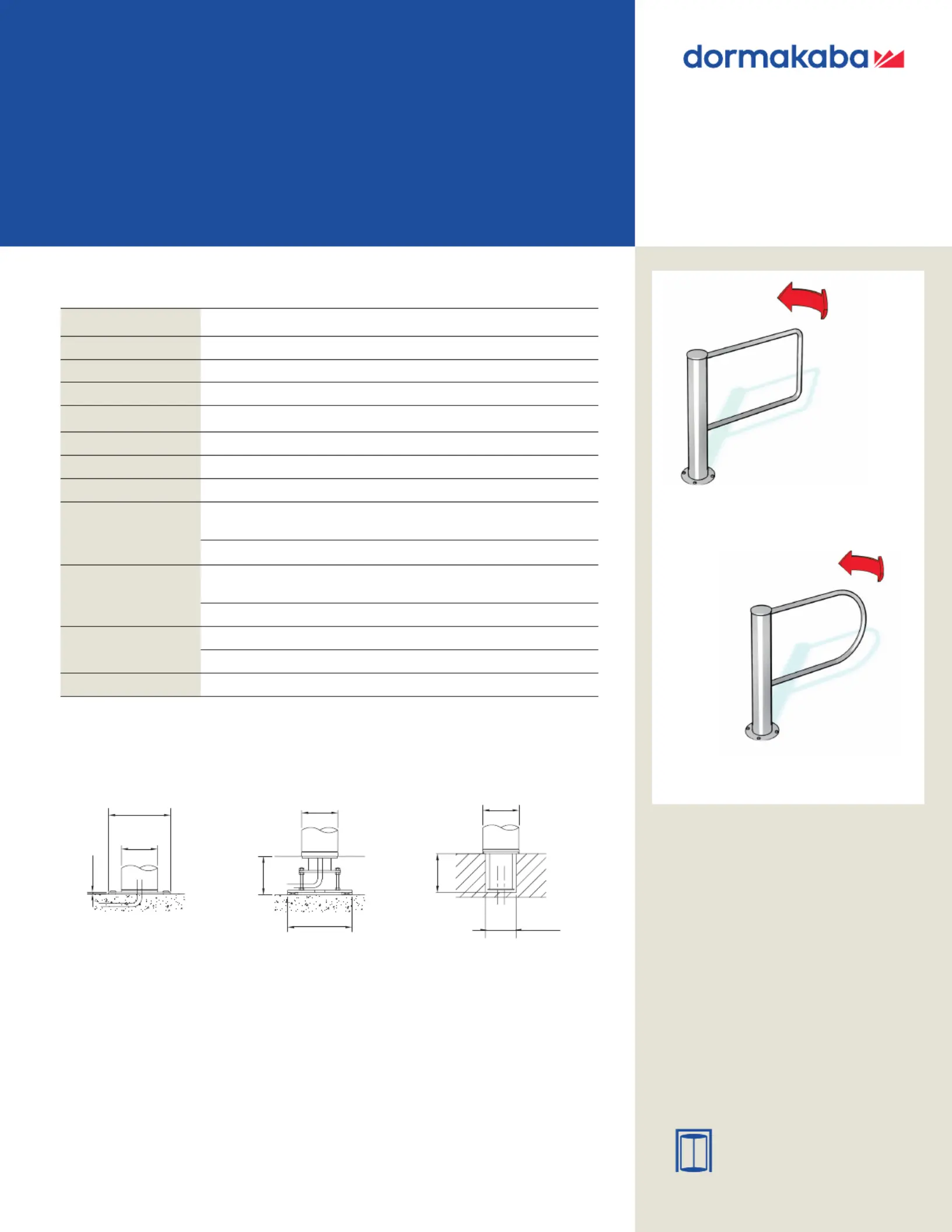

HSD-E01/E02

Half-height swing doors

Entrance systems

Standard unitsHSD-E01/E02

Construction

Tubular columnMade of AISI 304 stainless steel, Ø 5-1/2”(Ø 140)

Barrier elementU-shaped, Ø 1-9/16” (Ø 40) made of AISI 304 tubular stainless steel.

Leaf radius35-7/16" (900)

Leaf upper edge35-7/16” (900)

Locking systemDrive and toothed holding brake installed in tubular column.

FinishStainless steel satin finish.

FunctionType 2: Power-assisted motion, servo-positioning drive/electrically

controlled in 2 directions.

90° opening in entrance and exit directions.

Electrical equipmentControl unit and power supply unit in an external switch cabinet

H = 11-1/8" (283) / W = 6-5/8” (168) / D = 4-1/2” (115).

Power supply 100–240 VAC 50/60 Hz.

InstallationDowelled on finished floor level, FFL.

Suitable for outdoor installation.

Protection classesHousing IP43, components conducting supply voltage IP54.

Subject to change without notice

Installation alternatives

Entrance systems

Dowelled on finished

floor (standard)

With mounting plate

on subfloor level

Cast-in in finished

floor level

Ø 5-1/2"

Ø 140

Ø 9-7/16"

Ø 240

5/16"

(8)

Ø 5-1/2"

Ø 140

9-13/16"

(250)

X

"Ø 5-1/2

Ø 140

Ø 4-3/4"

Ø 120

5-15/16"

(150)

Note

Dimensions shown as inches

followed by millimeters; for

example, 1" (25).

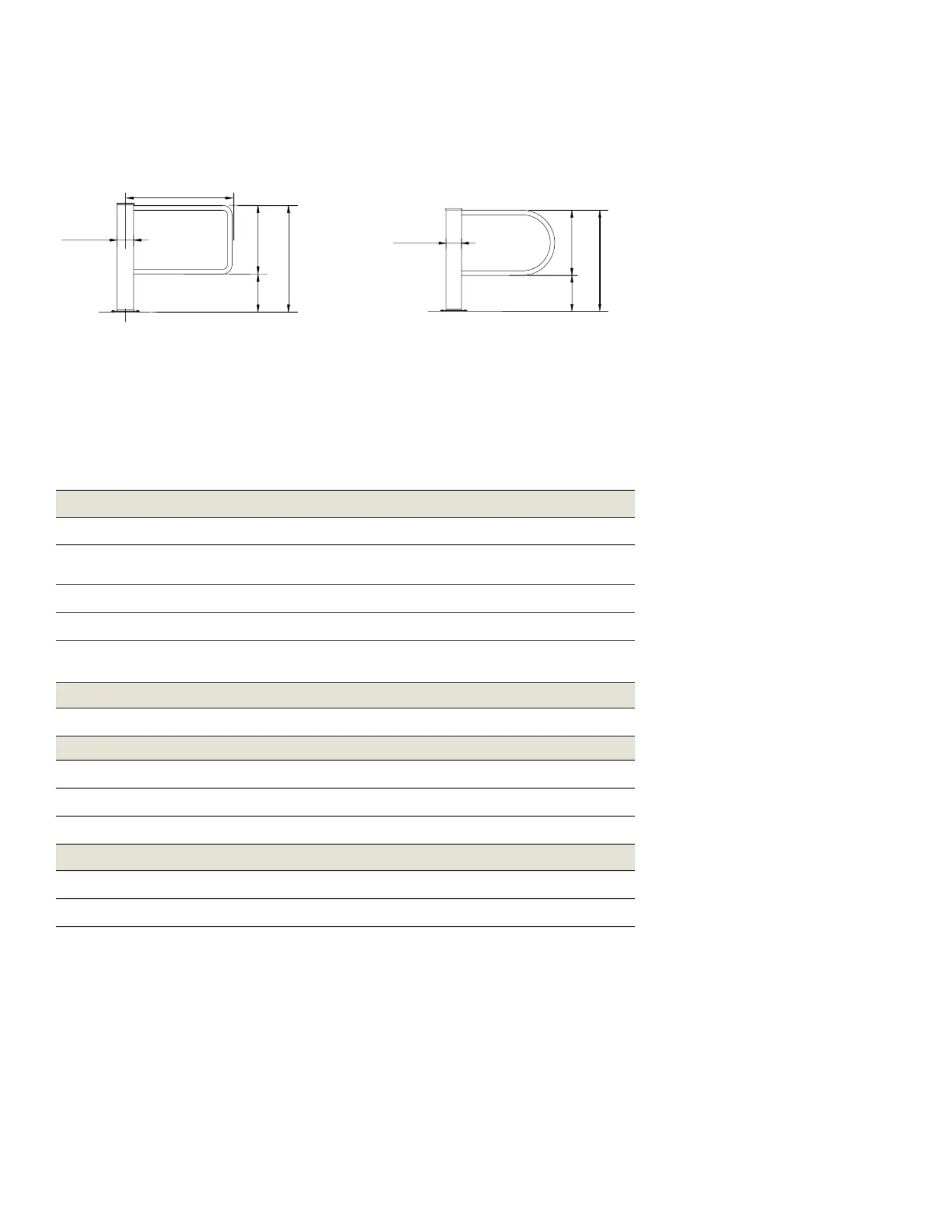

HSD-E01

HSD-E02
