INSTALLATION
RCI 3525PRX
ELECTROMECHANICAL SERVER RACK HANDLE
WITH PROXIMITY READER
© 2020 dormakaba Canada Inc
www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.comIS3525PRX
PCN2013
R09-20GR-1
Specifications
Package Contents
•3525PRX Electromechanical Server Rack Handle with
Proximity Reader
•M3x25 Mounting Screws (qty 4)
•M3x14 Mounting Screw
•Rotation Limiter Standard
•Rotation Limiter - Extended (for thicker panels)
•Cam Bolt
•Top Mounting Bracket
•Bottom Mounting Bracket
•Installation Instructions
• Keys (qty 3)
Actuator Module
Supply
Voltage
12VDC to 24VDC (NOTE: Status LED will blink red if
the supply voltage is out of range.)
Standby
Current
50mA maximum at 12VDC"
Operating
Current
200mA maximum at 12VDC (with no external
mechanical load applied to handle)
Stall Current1A maximum at 12VDC (limited to 2 seconds)
Operating
Transit Time
1 second maximum ( Power must be present NOTE:
during transit times. If power is removed while the lock
slide is in transit, it will complete it’s cycle when power
is restored.)
Electronic
Unlock Time
3 seconds minimum
Open
Collector
Outputs
Rated for supply voltage, maximum load
Alarm
Outputs
100mA/ output maximum

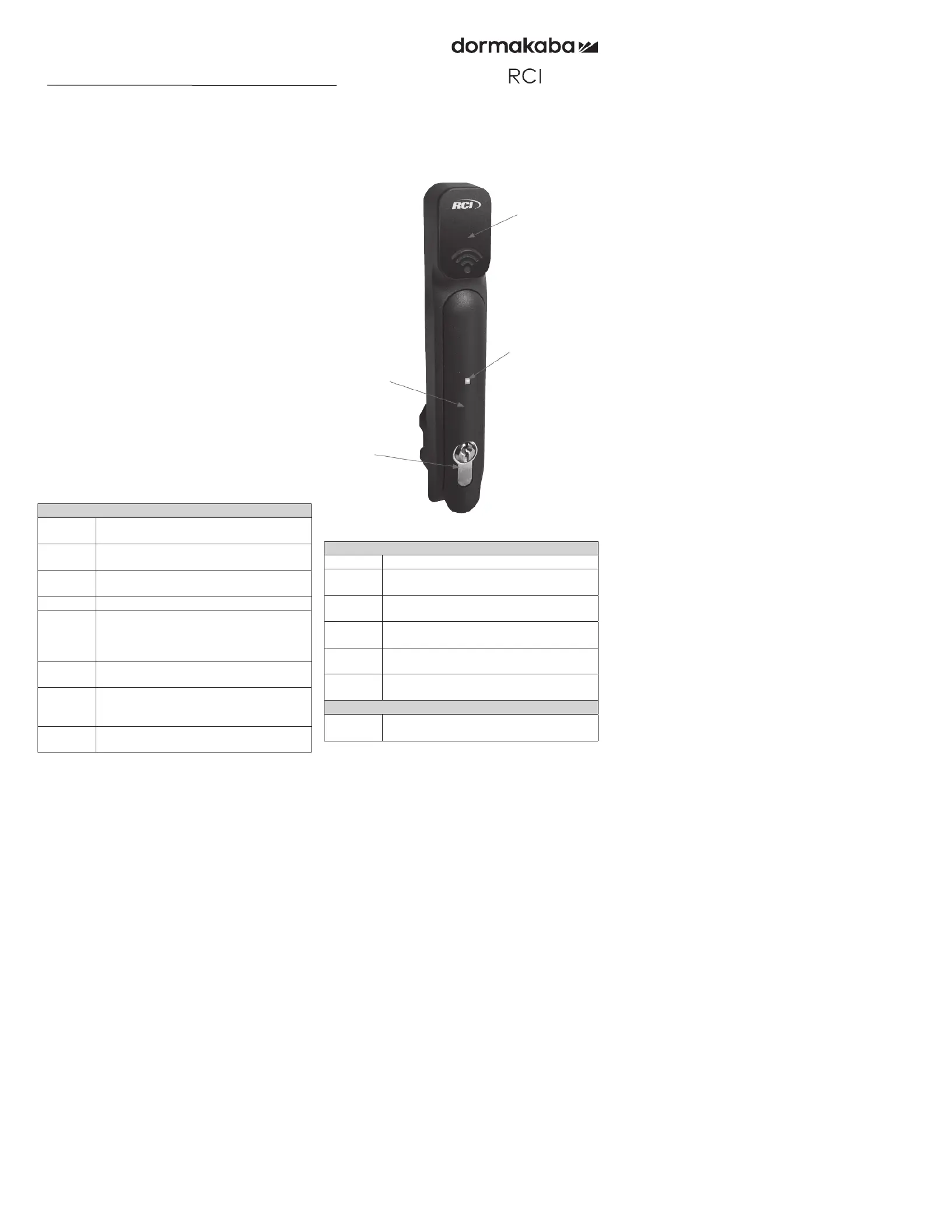

Fig. 1
Data Rack Handle
Proximity Reader
Tri-Color Status LED
Key Cylinder
Proximity Reader Module
Voltage12VDC to 24VDC
Operating
Current
20mA maximum
Transmit
Frequency
125kHz
DATA Signal
Voltage
5VDC
DATA Pulse
Interval Time
40µs
DATA Signal
Delay
2ms
3525PRX
Overall
Dimensions
8-1/4" H x 1-12" W x 1" D*
210 x 37 x 25mm* (* depth from cabinet face)
