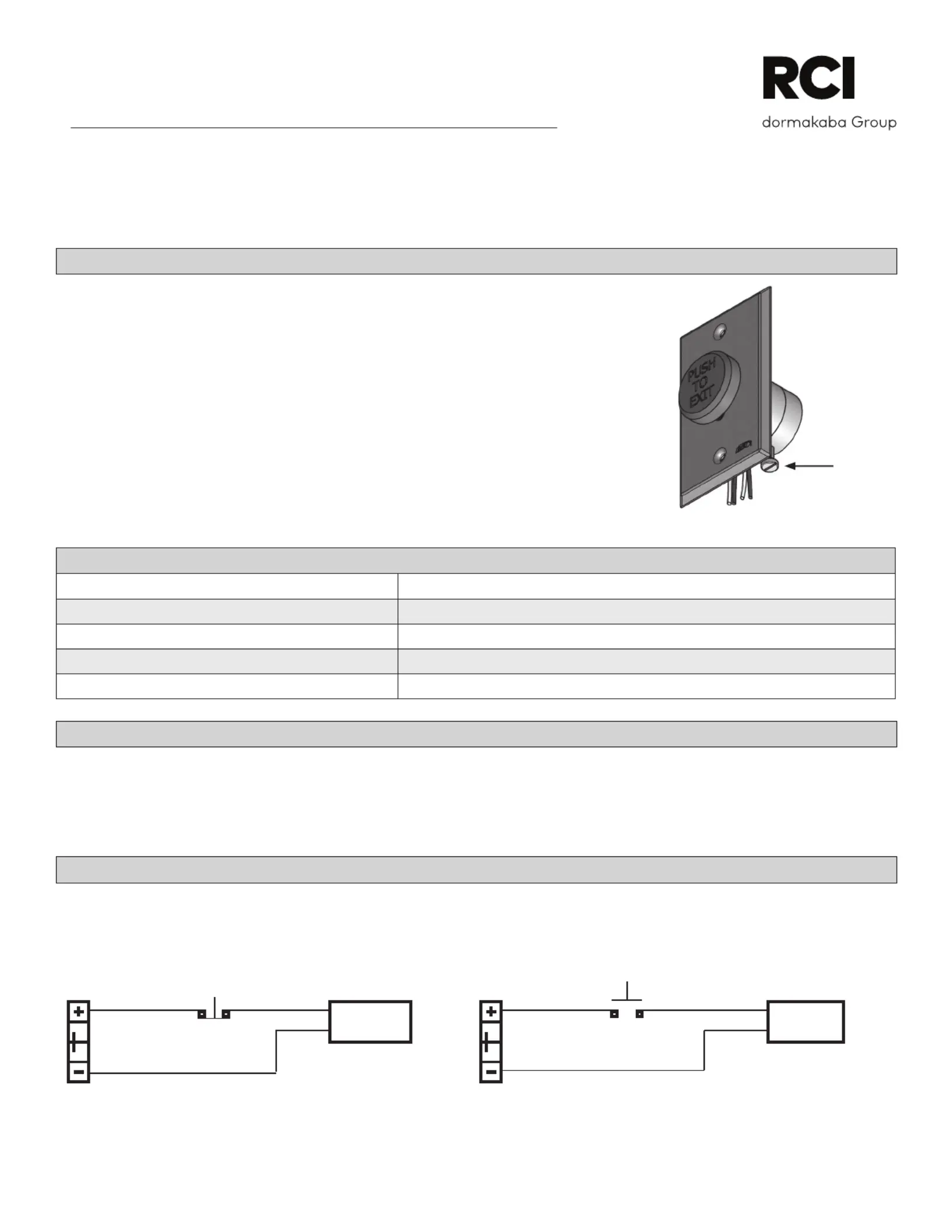

INSTALLATION
991/991N
PUSH BUTTON WITH PNEUMATIC TIME DELAY
© 2022 dormakaba Canada Inc
www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.comIS991
PCN2112
R01-22GR
SWITCH INFORMATION
Time Adjustment Procedure:
Use ngers to turn the brass adjustment screw.
Turn clockwise to increase the delay
Turn counter clockwise to decrease delay.
Like all pneumatic switches, time delays are approximate and can be affected by
environmental variables. If in doubt, leave a longer delay to allow sufcient egress time.
The adjustment screw may be facing up or down.
SPECIFICATIONS
TIME RANGE1 sec to 45 sec +/- 15 %Standard and Narrow
REPEAT ACCURACY+/- 5 % @ 72° F (22° C)
SWITCH RATING5 Amp @ 125 VAC
TEMPERATURE RANGE-17° F to +120° F (-27° C to +49° C)
TIMER LIFE1 Million operations
HARDWARE INSTALLATION
The 991 mounts in a single-gang electrical box with two screws. Slotted screws require a standard screw driver. Carefully line up these
screws with tabs in the electrical box and tighten.
The 991 narrow pushbutton includes a 1/4" ller plate for use in installations as required.
TYPICAL SYSTEM CONTROL WIRING DIAGRAMS
ELECTROMAGNETIC LOCK, NORMALLY CLOSED CIRCUITELECTRIC STRIKE, NORMALLY OPEN CIRCUIT
SWITCH
LOCK
SWITCH
STRIKE
N()N()O WHITEO WHITENC ()REDNC ()RED
Time
Adjustment Screw
(Fail Safe)(Fail Secure)
Produktspecifikationer
| Varumärke: | Dormakaba |
| Kategori: | Växla |
| Modell: | RCI 991 |
