Stock No: 30624

110 V 4 - WAY

SPLITTER BOX

Read this manual in full before using this product and retain it for

future use. Always use the latest version of the manual.

Please visit drapertools.com/manuals for the latest version.

1. Intended Use

This 4-way splitter box is designed to extend the power supply

from one unit via four 16A CEE sockets. Suitable for electric

power tools and lighting products on worksite.

Any other application beyond the conditions established for use

will be considered misuse. Draper Tools accepts no responsibility

for improper use of this product.

2. Specication

Stock No. 30624

Part No. 110VSA

Input voltage: 110V AC

Input frequency: 50Hz

Input amperage: 16A

Output voltage: 4 x 110V AC

Output amperage: 16A

Insulation class: Class I

Max. ambient temperature: 20°C

No. of output sockets: 4 X 16A

Power cord length: 2M

IP rating: IP44

Net weight: 2.3kg

3. Health and Safety Information

Important: Read all the Health and Safety instructions before

attempting to operate, maintain or repair this product. Failure to

follow these instructions may result in injury or damage to the

user or the product.

• Maintain the junction box in good condition. ALWAYS check

the junction box, sockets and power cord for signs of damage

or wear before EVERY use. Any repairs must be carried out by

a fully qualied electrician.

WARNING!

DO NOT use the product if it is

damaged in any way.

• DO NOT use this product in environments where ammable

or explosive substances are present.

• ALWAYS ensure that this product is compatible with the

intended power supply; it is intended ONLY for connection

using an industrial CEE plug and socket outlet rated at

110V/16A.

• This is a Class I appliance: there MUST be an earth

connection in the power supply.

• ALWAYS ensure that this product is compatible with the

tool to be connected; it is ONLY intended to supply

110V AC power.

• Extension cords may be used with the 110V outputs but must

NOT exceed 50m in length.

• The supply cord is not replaceable. If the cord is damaged the

junction box will need to be disposed of.

• DO NOT pull or carry the product by the power cord or use

the cord to remove the plug from a socket.

• Keep this product out of reach of children.

• DO NOT expose this product to liquids, wet environments

or frost.

• NEVER exceed the maximum rated load of the product.

• ALWAYS operate, transport and store this product in an

upright position.

Original Instructions

Version 2 – June 2025

6. Disposal

At the end of its working life, dispose of the product responsibly

and in line with local regulations. Recycle where possible.

• DO NOT dispose of this product with domestic waste; most

local authorities provide appropriate recycling facilities.

• DO NOT incinerate this product.as this may release toxic or

corrosive substances.

7. Warranty

Should the tool develop a fault, return the complete tool to your

nearest distributor or contact Draper Tools directly. Proof of

purchase must be provided.

If, upon inspection, it is found that the fault occurring is due to

defective materials or workmanship, repairs will be carried out

free of charge. This warranty covers parts and labour for

12months. However, if the tools are hired out, the warranty

period is 90 days from the date of purchase.

This warranty does not apply to any consumable parts, batteries

or normal wear and tear, nor does it cover any damage caused

by misuse, careless or unsafe handling, alterations, accidents,

or repairs attempted or made by any personnel other than the

authorised Draper Tools repair agent.

Visit drapertools.com/warranty for full details.

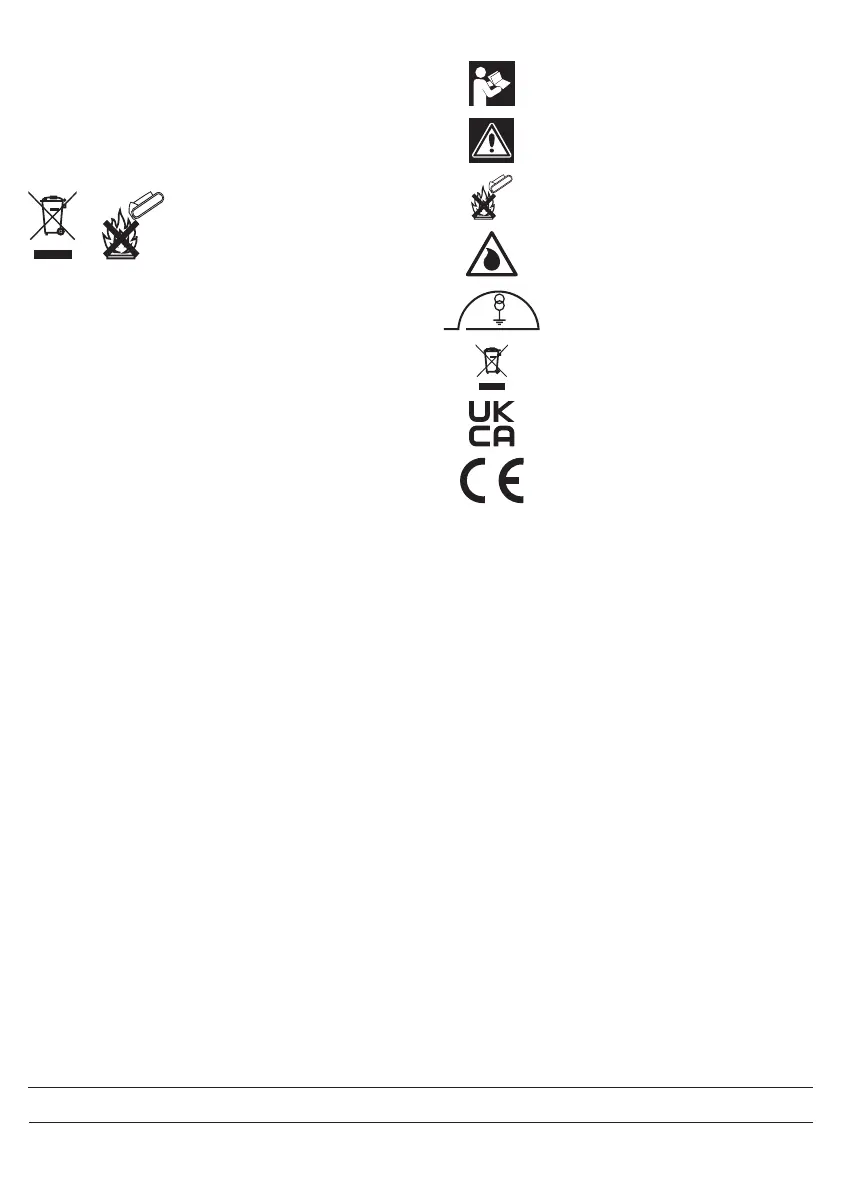

8. Explanation of Symbols

Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com Email: sales@drapertools.com

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire,

SO53 1YF, UK

Delta International, Delta International BV, Oude Graaf 8, 6002 NL,

Weert, Netherlands.

Read the instruction manual

WARNING!

Do not incinerate or throw onto re

Do not expose to heat or open ames

Two-winding transformer with

functional earthing

WEEE – Waste Electrical & Electronic Equipment

Do not dispose of this product with domestic waste
