User Manual
Version v1.0

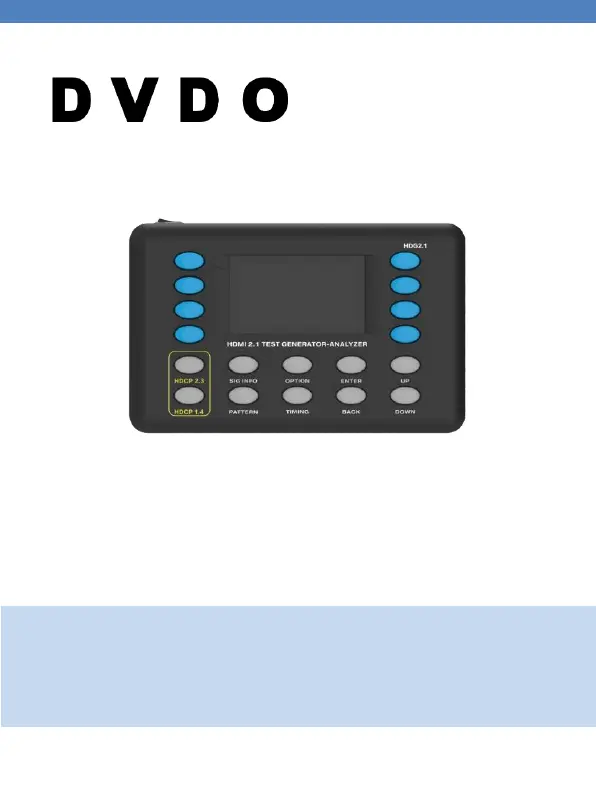

DVDO-8KSGA-1
8K HDMI Signal Generator & Analyzer
T you for purchasing DVDO-8KSGA-1 hank
For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lighting strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.
Table of Contents
1. Introduction ............................................................................... 1
2. Features ..................................................................................... 1
3. Package Contents .................................................................... 2
4. Specifications .................................................................................... 2
5. Operation Controls and Functions ........................................... 3
5.1 Top PaneI ............................................................................. 3
5.2 Rear Panel .......................................................................... 4
6. Menu lnstructions ...................................................................... 5
6.1 Sig Info Menu ...................................................................... 5
6.2 Option Menu ......................................................................13
7. Pattern and Timing .................................................................. 16
7.1 Pattern. ............................................................................... 16
7.2 Timing Format .................................................................... 17
8. Connection Diagram .............................................................. 21
1 / 21
1. Introduction
This test signal generator is a specialized analyzer for the AV
integration eld, designed to confirm that the HDMI system device
conforms to the HDMI 2.1 and HDCP 2.3 specications. It can
generate analyze HDMI signal for HDMI systems and any to make it
easy for system integration, project installation and debugging, cable
manufacturing, even for engineering and test in laboratory.
2. Features
☆ Support resolution up to 8K@50/60Hz 4:2:0 10 and-bit 40Gbps
video bandwidth, as specied in HDMI 2.1
☆ Up to video resolutions 64 and 33 patterns
☆ Color space: RGB/YCbCr444/YCbCr422/YCbCr420
☆ Color depth: 8/10/12-bit
☆ Built- in HDR test function in HDMI 2.1
☆ HDMI audio source can be from the internal audio or external
S/PDIF input audio
☆ The internal audio signal supports LPCM 2CH format, 48kHz
sample rate and 16bits width
☆ Support HDCP 2.3/1.4 encryption verication pass fail indicationor
☆ With EDID Read/Write functionality
☆ Support analyzing Timing/Format/Info frame/HDCP HDMIof
input signal
☆ Support CEC control
☆ Control via front buttonspanel
☆ Portable design, built- lithium battery in of 2910mAh
