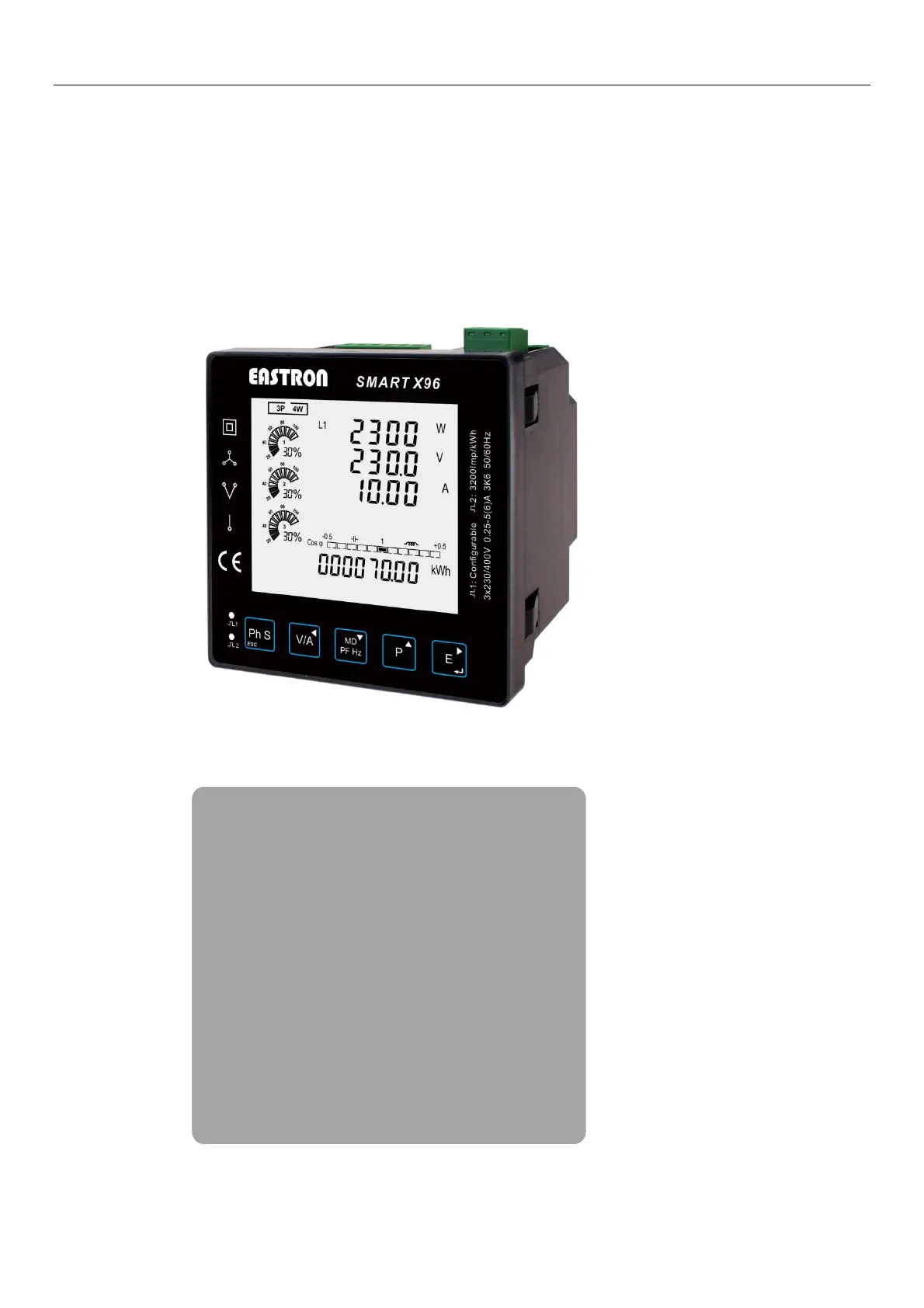

EASTRON SMART X96-5A-MT User Manual V1.5
SMART X96-5A-MT
Smart Energy Analyzer for Single and Three Phase Electrical Systems
● Measures kWh, kVarh, kW, kVar, kVA, P,
F, PF, Hz, dmd, V, A, etc.
● Bi-directional Measurement IMP & EXP
● Energy Information of Each Phase
● Two Pulse Outputs
● RS485 Modbus RTU
● Total Harmonic Distortion of Voltage and Current
● 2nd~63rd Individual Harmonic Distortion
● Backlit LCD Display for Full Viewing Angles
● Class B , Class C
● Bar Graph for Power Indication
● Dimension 96x96mm
● 5A CT connection
● Multi-tariff
EASTRON SMART X96-5A-MT User Manual V1.5
Introduction
The multifunction energy analyzer SMART X96 series is a top new-generation intelligent panel meter, used not only in the
electricity transmission and power distribution system, but also in the power consumption measurement and analysis in
high voltage intelligent power grid.
This document provides operating, maintenance and installation instructions for the Eastron SMART X96 series. The unit
measures and displays the characteristics of single phase two wire, three phase three wire and three phase four wire supplies,
including voltage, frequency, current, power and active and reactive energy, imported or exported, Harmonic, Power factor,
Max. Demand etc. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset
periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current inputs for the supply required
to power the product. The requisite current input(s) are obtained via current transformers The SMART X96 can be configured
to work with a wide range of CTs, giving the unit a wide range of operation. Built-in interfaces provide pulse and RS485
Modbus RTU outputs. Configuration is password protected.
1. Unit Characteristics
1. 1 The Unit can measure and display:
● Line voltage and THD% (total harmonic distortion) of all phases
● 2~63rd voltage IHD% (Individual Harmonic distortion) of all phases
● Line Frequency
● Phase Sequence
● Currents, Current demands and current THD% of all phases
● 2~63rd current IHD% of all phases
● Active power, reactive power, apparent power, maximum power demand and power factor
● Active energy imported and exported
● Reactive energy imported and exported
● Energy of each phase
● Multi Tariff active energy
1.2 The unit has password-protected set-up screens for:
● Communication setting: Modbus address, Baud rate, Parity, Stop bit
● CT setting: CT 1 ( Primary) , CT2 ( Secondary), CT rate
● PT setting: PT1 (Primary), PT2 (Secondary) , PT rate
● Pulse setting: Pulse output 1, Pulse rate, Pulse time
● Demand setting: Demand interval time, demand method
● Time setting: Backlit time, display scroll time, system RTC, Tariff time
● System configuration: System type, System connect, Change password, Auto display scroll
● Reset
1.3 CT and PT
CT1 (primary current)：5~9999A
CT2 (secondary current): 1A or 5A
PT1 (primary voltage): 100V ~ 500,000V
PT2 (secondary voltage): 100 to 480 V AC (L-L)
