Sida 1/63

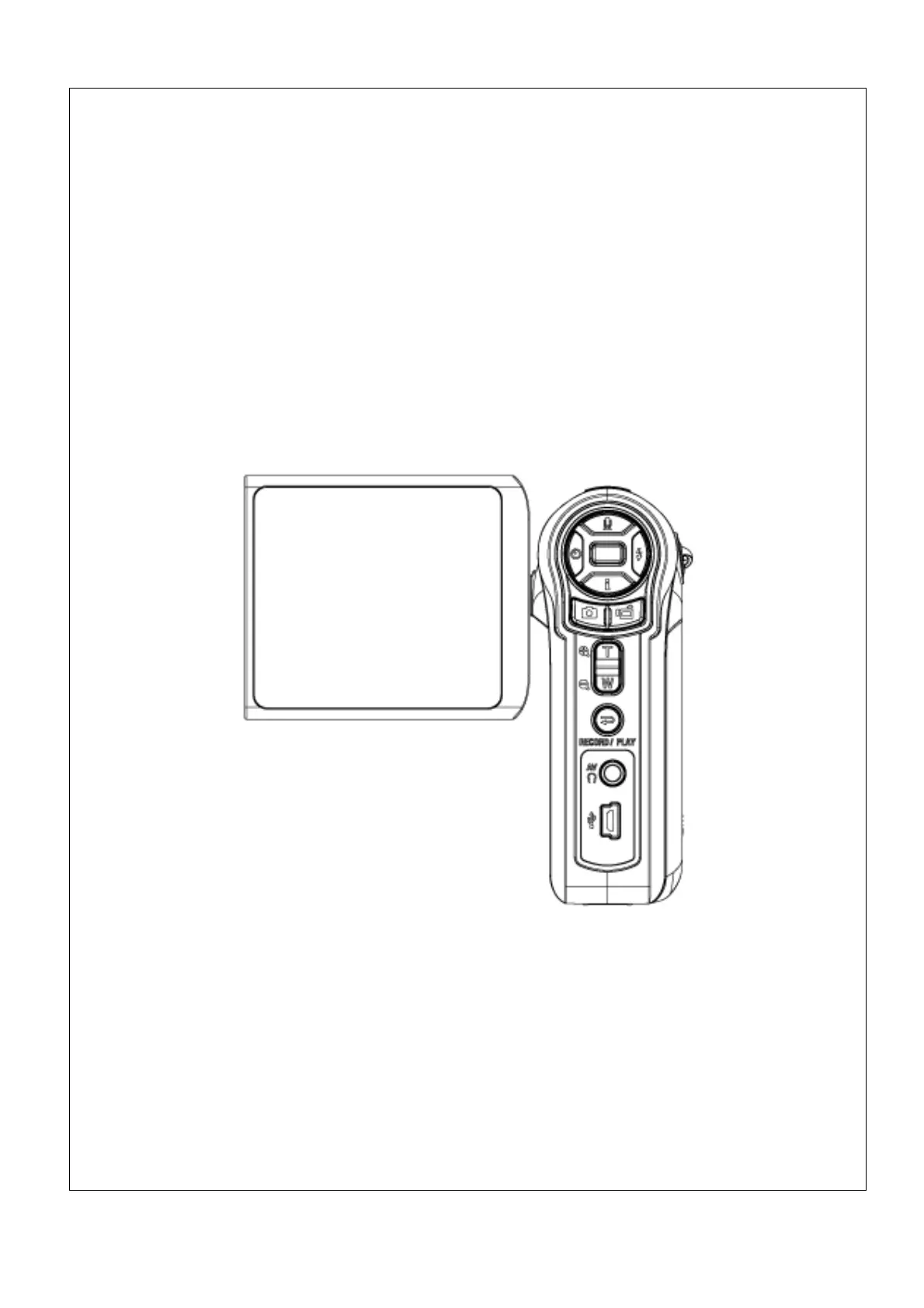

Digital Video Camera
User Manual
1
Content
Section 1 Getting to Know Your Camera.............................. 2
Section 2 Getting Up and Running ....................................... 5
Section 3 Record Mode.......................................................... 7
Section 4 Playback Mode .................................................... 34
Section 5 Listening to MP3 Music ...................................... 47
Section 6 Reading eBook .................................................... 49
Section 7 Viewing MPEG4 Movie on PC............................. 51
Section 8 Viewing Pictures and Movies on a TV ............... 52
Section 9 Video File Converter............................................ 53
Section 10 Burning the Recorded Clip into DVD............... 57
Section 11 Transferring Data to a Computer...................... 59
Section 12 Specifications and System Requirements ...... 61
2
Section 1
Getting to Know Your Camera
Overview
The camera with 5 Mega Pixel sensor can take DVD-Quality MPEG-4 movies. By way of using
MPEG-4 technology, more videos can be taken within certain amount of memory. High quality
images with up to 11 mega-pixels can also be delivered smoothly. With a color LCD monitor,
users can compose images and examine them easily.
Exposure and color balance can either be adjusted automatically or allowed to be changed
manually. An 8x digital zoom increases user control over the movies and pictures you take.
The camera is also ideally suited for using as a PC camera hooked up to your home computer
via high speed USB 2.0 port
Biuld-in 64 MB memory allows you to take pictures and movies without memory card. The
memory card slot allows users to increase the storage capacity up to 2GB.
Note
Partial memory of the built-in 64MB memory is used
for Firmware code
Standard Accessories
Unpack the package and make sure all standard accessories listed are included:
z Camera
z USB Cable
z Power Adaptor
z AV Cable
z Lithium-ion Rechargeable Battery
z Quick Guide
z CD-ROM ( Driver, Arcsoft Software and User Manual)
z Remote Control (Optional)
z Earphone
z Strap
z Pouch
3
Front View
KeyPad illustration
Tele-Wide Button
Direction Buttons
RECORD/PLAY Button
Picture Shutter Button
TV Out Port
Movie Shutter Button
Enter Button
Mini USB 2.0 port
LCD Panel
Power Button
Flash
Self-Timer LED
Lens
SD card slot
4
Side View
Battery Cover
Speaker
Macro Switch
Microphone
Strap Hole
5
Section 2
Getting Up and Running
Loading the Battery
Before using the camera, end users must load
NP60 rechargeable Li-ion Battery.
1. Follow the arrow direction and slide to eject the
battery cover.
2. Insert the batteries according to the correct
polarity marks ( + or -)
3. Close the battery cover firmly.
Inserting and Removing an SD Card（Optional）
The camera comes with internal memory which allows you to store pictures, movies, voice
recordings and music. You can expand the memory capacity by using an optional SD or MMC
memory card up to 2GB. To insert a memory card, refer to the figure as below:
1. Insert the memory card into the right position.
2. To remove an installed SD card, press the card inwards to
release it.
3. When the card pops out, gently remove it from its slot.
Note
When a memory card is fitted, movies and pictures are
saved on card rather than on the built-in memory.
Protecting Data on an SD Card
SD card is read-only by locking the SD card. No pictures, movies and voice can be recorded
when the SD card is locked. Make sure the lock is on writeable position before recording any
media.
Eject
Writeable position Write-Protected
Position
Writeable position
Writeable position
Writeable position
Writeable positionWriteable position Write-Protected
Write-Protected
Write-Protected
Write-ProtectedWrite-Protected
Position
Position
Position
PositionPosition
6
Turning the Camera On and Getting Started
To turn on the camera:
(1) Flip out the LCD panel; the camera will turn on automatically.
(2) Or press Power Button for one second to turn on it.
Ö To take a movie, press the Movie Shutter Button ( ).
Ö To take a picture, press the Picture Shutter Button ( ).
Ö To record the voice, press the Upper Button of Direction Buttons and press the Movie
Shutter Button ( ) to start voice recording.
Ö To view stored movies, pictures, listen to stored MP3 and voice recordings, or read eBook,
press RECORD/PLAY Button once to switch to Playback Mode. Press a second time to
return to Record Mode.
Turning the Camera Off
To turn off the Camera, you can either press the Power Button for one second, or you can
place the LCD panel back to its original position.
7
Section 3
Record Mode
Button Function
Right Button : Flash AUTO/OFF
Left Button :Self-Timer ON/OFF
Up Button : Voice Recording Mode
Down Button: LCD Information ON/OFF
Enter Button : Menu ON
Power Button: Press down for one second to turn
on or turn off the camera.
RECORD/PLAY Button functions:
1. Switch between Record /Playback Mode.
2. Return to the previous page.
Tele-Wide Button: Digital Zoom in and out.
Movie Shutter Button:
1. Start to take movie, or record voice.
2. To stop recording, press it again.
Picture Shutter Button: Start to take picture
Macro switch: Switch between Macro Mode,
Portrait Mode, and Normal Mode.
8
LCD Monitor Information
The indicator shows below may display on LCD when movies and pictures are recorded：
(1) Record Mode
Movie Record Mode
Picture Record Mode
Voice Record Mode
Motion Stabilization
Two in One Mode
Photo Frame
Multi-Snap Mode
Backlight Mode
(2) Resolution
Movie : High / Standard/ Low
Picture: High / Standard/ Low
(3) Number of images or recording time of movie that can still be taken at current
resolution.
(4) SD card inserted
(5) Macro Position Focusing
(6) White Balance
(7) Battery indicator： full power / medium power / low power /
power empty
(8) Auto Flash
Flash Off
9
(9) Self-timer enabled
(10) 8X digital zoom
(11) Date/Time : YYYY/MM/DD HH: MM
(12) Motion Detection
MPEG4 Movie Recording
Press Movie Shutter button ( ) to start recording. When a movie is recording, a time
indicator will display on LCD monitor. To stop recording, press Movie Shutter Button ( )
again. Press RECORD/PLAY Button to view the recorded movie.
Three resolution settings are available:
Quality
High Quality
Standard Quality
Low Quality
Picture Recording
Press the Picture Shutter Button ( ) to take a picture.
Press RECORD/PLAY Button to view the picture.
Three resolution settings are available:
Image Quality
High Quality
Standard Quality
Low Quality
10
Voice Recording
1. Press Upper Button ( ) of Direction Buttons to switch
to Voice Record Mode.
2. Press Movie Shutter Button ( ) to record voice.
3. Press Movie Shutter Button ( ) again to stop.
4. Press RECORD/PLAY Button to view the recorded
voice.
Taking Close up Pictures
The camera has two close-up picture modes to allow you to take pictures at close range. The
Macro Mode ( ) should be used for object located at about 20 cm, while the Portrait Mode
( ) should be used for object located from 70 cm to 140 cm.
To take close-up pictures:
1. Rotate the lens ring to switch to Macro ( ) or Portrait ( ) positions. In Macro Mode,
the macro icon ( ) will appear on the LCD monitor.
2. Press Picture Shutter Button ( ) to take the picture.
Note
Remember to turn the macro switch back to
Normal ( ) when you are not taking
close-up pictures.
Using Digital Zoom
The digital zoom magnifies images, when recording movies or taking pictures.
1. To zoom in/out, press the Tele/Wide Button.
2. The digital zoom can be set from 1x to 8x and the magnification ratio is shown on the
LCD monitor.
11
Options for Record Mode
Movie Mode Picture Mode Voice Pen Effect Set
z Resolution
z Exposure
z Sharpness
z White Balance
z Stabilization
z Motion Detect
z Exit
z Resolution
z Exposure
z Two in One
z Photo Frame
z Flash
z Self-timer
z Sharpness
z White Balance
z Multi-snap
z Backlight
z Date printing
z Exit
z Enter
z Exit
z Normal
z B/W
z Classic
z Negative
z Exit
z Sound
z Start-up Screen
z Time Setting
z Format Memory
z TV System
z Language
z Default Setting
z Exit
Operations for Record Mode
Operation Screen
1. Press Enter Button when in Movie/Picture Record
Mode.
2. Use Right/Left Buttons to move between main menu
options, which are Movie Mode, Camera Mode,
Voice Mode, Effect, and Set. Submenu will pop out
while move to each main option.
3. Press Enter Button to validate sub option you select.
4. Select Exit option to exit submenu.
Enter Button
12
Default Setting and Validation
The following table indicates the camera’s default setting as well as its validation.
1. Always: The setting always keeps valid.
2. One Time: The setting is only valid either once or till camera power off.
Validation Default Factory Setting
Resolution Always High for Movie
Standard for Picture
Exposure One Time 0EV
Sharpness One Time Level 5
White Balance One Time Auto
Motion Stabilization Always Off
Motion Detect One Time Off
Two in One One Time Off
Photo Frame One Time Off
Flash Always Off
Self-Timer One Time Off
Multi-Snap One Time Off
Backlight Mode One Time Off
Date Printing Always Off
Effect One Time Normal
Sound Always On
Format Card One Time Off
TV System Always Depends on shipping area
Language Always Depends on shipping area
Volume Always Level 6
13
Movie Mode submenu Setting
Record main menu includes camera setting and other advanced setting. You can use
Right/Left Buttons to move between options and press Enter Button to validate the setting.
Movie Resolution
To change Movie Resolution:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Resolution then press Enter Button to switch to Resolution
submenu.
4. Use Up/Down Buttons to move between three settings.
5. Press Enter Button to validate the setting and exit.
Display Screen Video Resolution Option
Enter Button
14
Exposure
The camera adjusts image exposure automatically. In certain circumstances you may wish to
adjust the exposure compensation setting.
To change Exposure setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to move to Exposure Option. Press the Enter Button and then
Exposure Submenu will pop out on the screen.
4. Use Up/Down Buttons to choose preferred EV value. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
Display Screen Exposure Option
Enter Button
15
Sharpness
You can soften and sharpen images to achieve different effects.
To change Sharpness setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Sharpness then press Enter Button to switch to Sharpness
submenu.
4. Use Up/Down Buttons to move between nine levels. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
Display Screen Change Sharpness Setting
Enter Button
16
White Balance
The camera adjusts the color balance of images automatically. Three manual white balance
settings are available:
1. Auto (Default): The camera automatically adjusts white balance.
2. Daylight: Under outdoors
3. Fluorescent: Under fluorescent light condition.
4. Tungsten: Under tungsten light condition.
To change White Balance Setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select White Balance, then press Enter Button to switch to White
Balance submenu.
4. Use Up/Down Buttons to move between four settings. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
Display Screen W/B Option
Enter Button
17
Motion Stabilization
To enable Motion Stabilization:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Motion Stabilization then press Enter Button to switch to
Motion Stabilization submenu.
4. Use Up/Down Buttons to choose ON or OFF.
5. Press Enter Button to validate the setting and exit.
Motion Stabiization Motion Stabilization Option
Note
1. The captured screen will be smaller when
motion stabilization is enabled.
2. Digital Zoom is disabled when motion
stabilization is activated.
Enter Button
18
Motion Detection
To enable Motion Detection:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on
the screen.
3. Use Up/Down Buttons to select Motion Detect then press Enter Buttons to switch to
Motion Detect submenu.
4. Use Up/Down Buttons to choose ON or OFF.
5. Press Enter Button to validate the setting and exit.
6. Camera will start to record video once if there is a movement for 3 consecutive seconds.
Stop recording if there is no movement for 3 seconds.
Motion Detect Motion Detect Option
Enter Button
20
Exposure
The camera adjusts image exposure automatically. In certain circumstances you may wish to
adjust the exposure compensation setting.
To change Exposure setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Camera Mode. Submenu of Camera Mode will pop out on
the screen
3. Use Up/Down Buttons to move to Exposure Option. Press the Enter Button and then
Exposure Submenu will pop out on the screen.
4. Use Up/Down Buttons to choose preferred EV value. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
Display Screen Exposure Option
Enter Button
21
Two in One ( Picture Record Mode Only)
With camera set to Two in One mode, you can combine two snapshots into one picture. To
enable Two in One:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Camera Mode. Submenu of Camera Mode will pop out on
the screen.
3. Use Up/Down Buttons to select Two in One then press Enter Button to switch to Two in One
submenu.
4. Use Up/Down Buttons to choose ON or OFF.
5. Press Enter Button to validate the setting and exit.
Display Screen Two in One Option
1. Press Picture Shutter Button to
take first picture.
2. Press Picture Shutter Button to
take second picture.
3. Press the RECORD/PLAY
Button to view the Two in One
picture.
Enter Button
22
Photo Frame (Picture Record Mode Only)
Your camera features popular electronic photo frame. You can take your picture with preferred
electronic photo frame. To enable Photo Frame:
1. When in Camera Mode, use Up/Down Buttons to select Photo Frame option, then press
Enter Button to switch to Photo Frame submenu.
2. Use Up/Down Buttons to locate preferred photo frame. Then select Set option and press
Enter Button to validate the setting and exit.
Display Screen Photo Frame Option
Enter Button
23
Flash (Picture Record Mode Only)
This camera has two flash settings. To change flash setting by either hot key (Right Button) or
Option Setting.
Auto-flash( )：
：
：
：：the flash fires automatically according to light conditions. Use this mode for
general photography.
Flash Off( )：the flash will not fire under any circumstances. Use this mode when taking
images in a place where flash photography is prohibited, or when the subject is distant
(beyond the range of the flash).
To change Flash setting:
1. When in Camera Mode, use Up/Down Buttons to select Flash Option, then press Enter
Button to switch to Flash submenu.
2. Use Up/Down Buttons to move between 2 settings.
3. Press Enter Button to validate the setting and exit.
Note
z The flash will be disabled automatically
when battery power is low ( )
Display Screen Flash Options
Enter Button
24
Self-timer (Picture Record Mode Only)
The self-timer allows you to take pictures with a ten-second time delay. To activate Self-timer
by either hot key (Left Button) or Option Setting. The self-timer LED on the front of the camera
beneath the flash light will also blink. The speed of blinking will increase just before the picture
is taken.
To enable Self-timer:
1. When in Camera Mode, use Up/Down Buttons to select Self-timer, then press Enter Button
to switch to Self-timer submenu.
2. Use Up/Down Buttons to choose On or Off.
3. Press Enter Button to validate the setting and exit.
Display Screen Self-timer Options
Sharpness
You can soften and sharpen images to achieve different effects.
To change Sharpness setting:
1. When in Camera Mode, use Up/Down Buttons to select Sharpness Option, then press
Enter Button to switch to Sharpness submenu.
2. Use Up/Down Buttons to select Sharpness then press Enter Button to switch to Sharpness
submenu.
3. Use Up/Down Buttons to move between nine levels. The change can be previewed
immediately.
4. Press Enter Button to validate the setting and exit.
Display Screen Change Sharpness Setting
Enter Button
Enter Button
25
White Balance
The camera adjusts the color balance of images automatically. Three manual white balance
settings are available:
1. Auto (Default): The camera automatically adjusts white balance.
2. Daylight: Under outdoors
3. Fluorescent: Under fluorescent light condition.
4. Tungsten: Under tungsten light condition.
To change White Balance Setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Camera Mode. Submenu of Camera Mode will pop out on
the screen.
3. Use Up/Down Buttons to select White Balance, then press Enter Button to switch to White
Balance submenu.
4. Use Up/Down Buttons to move between four settings. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
Display Screen W/B Option
Enter Button
26
Multi-Snap (Picture Record Mode Only)
With the camera set to Multi-Snap Mode, you can take five continuous pictures.
To enable Multi-Snap:
1. When in Camera Mode, use Up/Down Buttons to select Multi-Snap, then press Enter Button
to switch to Multi-Snap submenu.
2. Use Up/Down Buttons to choose On or Off.
3. Press Enter Button to validate the setting and exit.
Display Screen Multi-Snap Option
Backlight (Picture Record Mode Only)
With the camera set to backlight Mode, you can take shots when bright light is behind the
subject.
To enable Backlight:
1. When in Camera Mode, use Up/Down Buttons to select Backlight, then press Enter Buttons
to switch to Backlight submenu.
2. Use Up/Down Buttons to choose On or Off.
3. Press Enter Button to validate the setting and exit.
Display Screen Backlight Option
Enter Button
Enter Button
27
Date Printing
To enable Date Printing:
1. When in Camera Mode, use Up/Down Buttons to select Date Printing, then press Enter
Buttons to switch to Date Printing submenu.
2. Use Up/Down Buttons to choose On or Off.
3. Press Enter Button to validate the setting and exit.
Display Screen Date Printing Option
Note
Date would be shown on the printed picture
once date printing is enabled.
Enter Button
28
Voice Mode
To enable voice recording:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to move to Voice Option. Then Voice Submenu will pop out on the
screen.
3. Use Up/Down Button to move between Enter and Exit Option.
4. Choose Enter option to enable voice recording and press Enter Button to validate the setting
and exit.
Display Screen Voice Mode Option
Enter Button
29
Effect Setting
There are four modes which are Normal, Black/White, Classic and Negative.
To change Effect setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to move to Effect Option. Then Effect Submenu will pop out on the
screen.
3. Use Up/Down Buttons to move between four settings. The change can be previewed
immediately.
4. Press Enter Button to validate the setting and exit.
Display Screen
31
z Start-up Screen
Customize the Start-Up Screen with your favorite pictures. Press Right/Left Buttons to select
the picture you want and press Enter Button to validate the setting and exit.
Submenu Display Screen Start-Up Screen
Start-Up Screen
)
If you do not want to customize the start up screen, press Left/Right Buttons and select No
Start-Up Screen.
No Start-Up Screen
z Time Setting
z Move between Date, Time, Set and Exit by using Left/Right Buttons.
z Adjust date and time by using Up/Down Buttons, then select Set to validate each change.
z Select Exit to leave Time Setting without any change.
Submenu Display Screen Time Setting
Time Setting
32
z Format Card
Submenu Display Screen Format Card Options
Format Card
Yes：Format the SD Card / built-in memory
No (Default)：Do not format SD Card / built in memory
Note
z All the data will be erased if the SD card is
formatted. Make sure all the data are
duplicated to PC before formatting SD
card.
33
TV System
Ensure that the appropriate TV standard of your area is selected – either NTSC or PAL.
Wrong TV system setting may cause image flicker.
NTSC standard: USA, Canada, Japan, South Korea and Taiwan etc.
PAL standard: UK, Europe, China, Australia, Singapore and Hong Kong etc.
Submenu Display Screen TV System Option
TV System
z Selecting Interface Language
Submenu Display Screen
Language
z Default Setting
To restore the default factory setting, select this option.
Submenu Display Screen Default Setting Options
Default Setting
34
Section 4
Playback Mode
Press RECORD/PLAY Button to switch from Record Mode to Playback Mode.
The Playback Mode is for viewing and managing movies and pictures as well as listening to
voice and music, or read eBook on the built-in memory or on an optional memory card.
Operation Display Screen
Press RECORD/PLAY Button to switch from Record
Mode to Playback Mode Main Menu.
z There are five options in the Playback Mode, movie,
picture, voice, music, and eBook.
z Direction Buttons can be used to select the specific
option.
Press Enter Button to view movies/pictures, listen to
voice/music, or read eBook.
Note
When any recorded movie, picture, voice,
music, or eBook is stored in the camera, a folder
will be shown on the respective playback mode.
35
Button Functions
The Direction Buttons have the following functions in Movie and Picture Playback Modes.
Right Button : Go to the next movie/ picture.
Left Button : Go to the previous movie/ picture.
Up Button : Invalid
Down Button : Information ON/OFF
Enter Button : Enter to movie, picture, voice,
music or e-Book option menu.
RECORD/PLAY Button functions:
1. Switch between Record and Playback modes.
2. Return to the previous page.
Tele-Wide Button: Digital Zoom in and out.
Movie Shutter Button：
：
：
：：
Start playing the recorded movie or voice
36
LCD Monitor Information
Indicators on the LCD screen while in Playback Mode：
(1) Mode Indicator
Movie Playback Mode
Picture Playback Mode
Voice Playback Mode
Music Playback Mode
eBook Playback Mode
(2) Resolution Indicator
High Resolution
Standard Resolution
Low Resolution
(3) Indicate the selected movie/picture is locked.
Indicate the single movie/voice/MP3 is being repeated.
Indicate all of the movies/voices/MP3 are being repeated.
Indicate the slide show is playing.
(4) Current Number/ Total number of movie, picture, voice, or MP3.
(5) Magnification Indicator.
37
Movie Playback
Operation Display Screen
1. Use Direction Buttons to select the Movie option.
2. Press Enter Button to go to Movie Playback Mode.
3. Use Right/Left Buttons to go to the next or last movie.
4. Press Movie Shutter Button to play and press it again to
pause.
5. While playing movie, press Right/Left Buttons to fast
forward/backward, then release the button to stop.
6. Use Up/Down Buttons to adjust volume.
7. Press Enter Button to go to the movie option menu.
8. Use Direction Buttons to select six options, Delete,
Thumbnail, Lock, Repeat One, Repeat All, or Exit.
38
Delete Movies
Operation Display Screen
1. Use Direction Buttons to select the Delete option ( ).
2. Press Enter Button to go to the Delete menu.
3. Use Right/Left Buttons to select the movie.
4. Use Up Button to delete all movies and Down Button to
delete single movie.
5. Before a movie is deleted, a confirmation screen will
appear; choosing “Yes” will execute the operation and
“No” to cancel the operation.
6. Press Enter Button to exit.
Note
If a memory card is fitted, you can delete only
those movies stored on the card.
Note
Movies on a written-protected memory card
cannot be deleted.
Note
The delete function will only erase unlocked
movies. Locked movies must be unlocked
before being deleted.
39
Thumbnail Function
Operation Display Screen
1. Use Direction Buttons to select the Thumbnail option
().
2. Press Enter Button to view nine thumbnail movies.
3. To play a movie, use Direction Buttons to select the
movie and press Enter Button to view.
Lock Movies
Single or all movies can be locked. This function can prevent the movies from being deleted
accidentally.
Operation Display Screen
1. Use Direction Buttons to select the Lock option ( ).
2. Press Enter Button to go to the Lock menu.
3. Use Right/Left Buttons to select the movie.
4. Use Up Button to lock/unlock all movies and Down Button to
lock/unlock single movie.
5. Before a movie is locked/unlocked, a confirmation screen
will appear; choosing “Yes” will execute the operation, “No”
will cancel the operation.
6. Press Enter Button to exit.
40
Repeat Movies
This function automatically repeats playing single movie or all movies in order.
Operation Display Screen
1. Use Direction Buttons to select the Repeat One option ( )
or Repeat All option ( ).
2. Press Enter Button to start repeating.
41
Picture Playback
Operation Display Screen
1. Use Direction Buttons to select the Picture option.
2. Press Enter Button to go to Picture Playback Mode.
3. Use Right/Left Buttons to go to the next or last picture.
4. While the picture is selected, use Tele/Wide Buttons to
magnify.
5. Use Direction Buttons to navigate the magnified picture.
6. Press Enter Button to go to the picture option menu.
7. Use Direction Buttons to select five options, Delete,
Thumbnail, Lock, Slideshow, or Exit.
42
Delete Picture
Operation Display Screen
1. Use Direction Buttons to select the Delete option ( ).
2. Press Enter Button to go to the Delete menu.
3. Use Right/Left Buttons to select the picture.
4. Use Up Button to delete all pictures and Down Button to
delete single picture.
5. Before a picture is deleted, a confirmation screen will
appear; choosing “Yes” will execute the operation, “No”
will cancel the operation.
6. Press Enter Button to exit.
Note
If a memory card is fitted, you can delete only
those pictures stored on the card.
Note
Pictures on a written-protected memory card
cannot be deleted.
Note
The delete function will only erase unlocked
pictures. Locked pictures must be unlocked
before being deleted.
43
Thumbnail Function
Operation Display Screen
1. Use Direction Buttons to select the Thumbnail option ( ).
2. While selecting Thumbnail option, press Enter Button to
view nine thumbnail pictures.
3. To view a picture, use Direction Buttons to select the picture.
4. Press Enter Button to view the selected picture.
Lock Pictures
Single or all pictures can be locked. This function can prevent the pictures from being deleted
accidentally.
Operation Display Screen
1. Use Direction Buttons to select the Lock option ( ).
2. Press Enter Button to go to the Lock menu.
3. Use Right/Left Buttons to select the picture.
4. Use Up Button to lock/unlock all pictures and Down
Button to lock/unlock single picture.
5. Before a picture is locked/unlocked, a confirmation
screen will appear; choosing “Yes” will execute the
operation, “No” will cancel the operation.
6. Press Enter Button to exit.
44
Make Slide Show
This function automatically repeats all pictures in order.
Operation Display Screen
1. Use Direction Buttons to select the Slide option ( ).
2. Press Enter Button to start the slide show; Press it again
to stop.
45
Voice Playback
Direction Buttons Function
In Voice Playback Mode, the Direction Buttons have the following functions:
Right/ Left Buttons：
：
：
：：Select the last or next voice.
Up/Down Buttons：
：
：
：：
A
djust the voice playback
volume.
Enter Button：
：
：
：：Switch to voice option menu.
Operation Display Screen
1. Use Direction Buttons to select the Voice option.
2. Press Enter Button to go to Voice Playback Mode.
3. Use Right/Left Buttons to go to the next or last
voice recording.
4. Press Movie Shutter Button to start playing back
the selected voice. Press it again to stop.
5. Use Up/Down Buttons to adjust the volume.
6. Press Enter Button to go to the voice playback
option menu.
7. Use Up Button to select Delete option and Down
Button to select Repeat option.
46
8. Press Up Button once to repeat single voice; Press
twice to repeat all voice recording.
9. Press it again to disable the repeat function.
10. The repeat icons will be different while selecting
Repeat One option and Repeat All option.
11. To delete a voice, use Right/Left Buttons to select
the voice.
12. Use Up Button to delete all voice recordings and
Down Button to delete single voice recording.
13. Before a voice is deleted, a confirmation screen
will appear; choosing “Yes” will execute the
operation, “No” will cancel the operation.
14. Press Enter Button to exit.

Produktspecifikationer

Varumärke: Easypix
Kategori: Videokamera
Modell: DV 5011

Behöver du hjälp?

Om du behöver hjälp med Easypix DV 5011 ställ en fråga nedan och andra användare kommer att svara dig


Videokamera Easypix Manualer

Easypix

Easypix Challenge HD Bruksanvisning

30 Mars 2025
Easypix

Easypix Panox MX200 Bruksanvisning

30 Mars 2025
Easypix

Easypix DVC 529 Focus Bruksanvisning

30 Mars 2025
Easypix

Easypix GoXtreme Victory Bruksanvisning

30 Mars 2025
Easypix

Easypix DV 5008 Bruksanvisning

23 December 2024
Easypix

Easypix Aquapix WDV5630 Bruksanvisning

11 September 2024
Easypix

Easypix GoXtreme Adventure Bruksanvisning

23 Augusti 2024
Easypix

Easypix GoXtreme Nano Bruksanvisning

23 Augusti 2024
Easypix

Easypix GoXtreme Discovery Bruksanvisning

19 Augusti 2024
Easypix

Easypix GoXtreme Full Dome 360° Bruksanvisning

19 Augusti 2024

Videokamera Manualer

Nyaste Videokamera Manualer

Spypoint

Spypoint FORCE-48 Bruksanvisning

28 Mars 2025
PCE Instruments

PCE Instruments PCE-VE 270HRS Bruksanvisning

28 Mars 2025
PCE Instruments

PCE Instruments PCE-VE 270SV Bruksanvisning

28 Mars 2025
PCE Instruments

PCE Instruments PCE-VE 355N Bruksanvisning

28 Mars 2025
PCE Instruments

PCE Instruments PCE-DHM 2 Bruksanvisning

14 Mars 2025
Mio

Mio MiSentry 12T Bruksanvisning

13 Mars 2025
Mio

Mio MiVue M820WD Bruksanvisning

13 Mars 2025
Mio

Mio MiVue 955WD Bruksanvisning

13 Mars 2025
Navitel

Navitel MSR300 GPS Bruksanvisning

28 Februari 2025
Samsung

Samsung HMX-E10OP Bruksanvisning

24 Februari 2025
