Cybertron On Board Computer User’s Guide
Intr
Intr
Intr
IntrIntroduc
oduc
oduc
oducoducon
on
on
on on
The Cybertron On-Board Computer (cOBC) is a high-performance processing unit built around a
Cortex-M7 processor, clocked at 300 MHz, and oering a variety of standardized interfaces.
This user guide provides detailed informaon about the cOBC Development Kit and its features. The

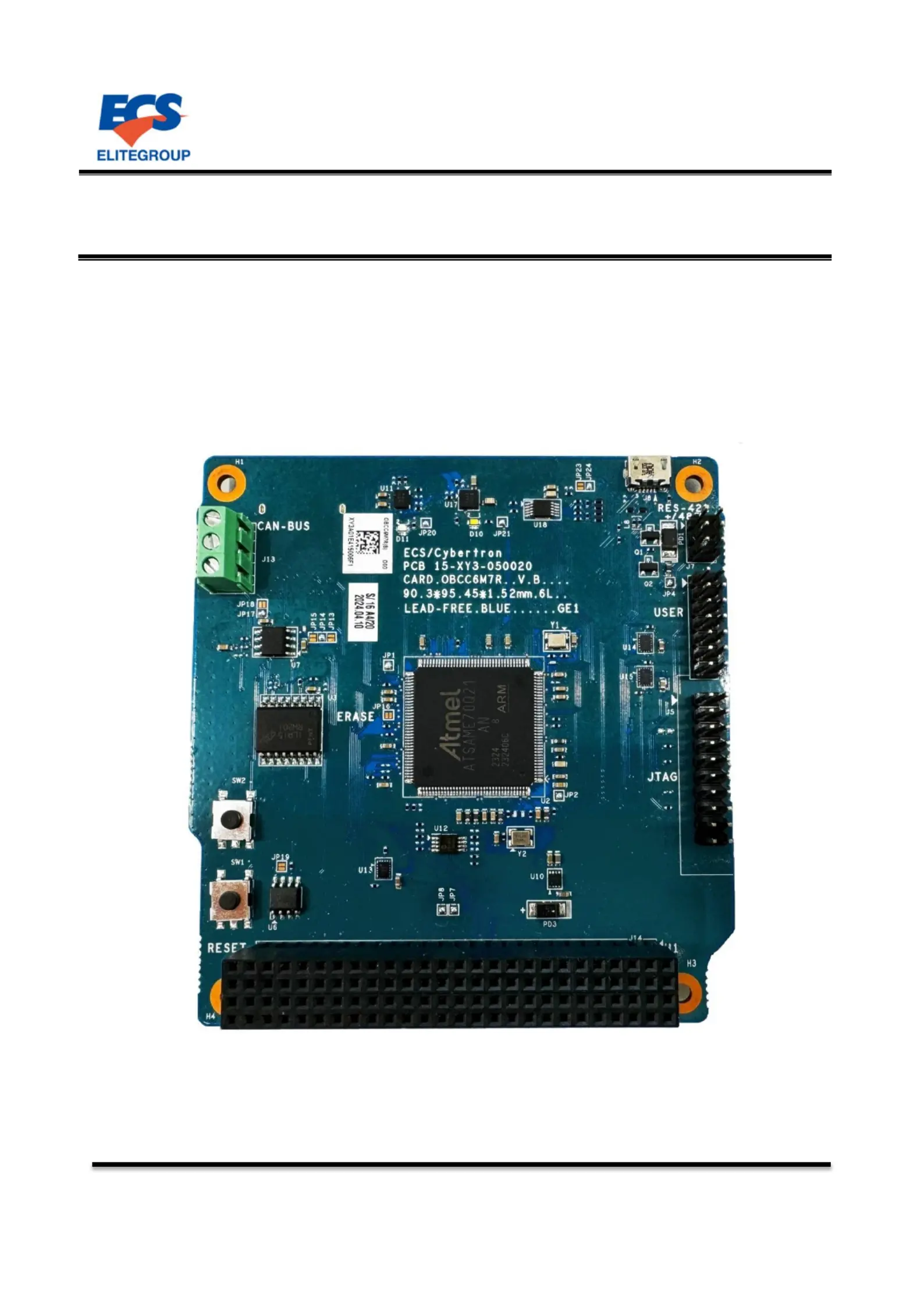

gure below illustrates the cOBC Development Kit.
© 2024 Elitegroup Computer Systems
OBCC6M7R-page2
FE
FE
FE
FEFEAT
AT
AT
ATATURE
URE
URE
UREURES
S
S
SS
The following are key features the cOBC Development kit. of
• 300 MHz, power ecient Cortex- processor M7
• Single- and double-precision Floang Point Unit (FPU) HW
• FreeRTOS operang system for simple and lightweight cooperave multasking
• On-board telemetry:
eFuse( MAX706RESA): Monitor voltage,current
temperature sensor(MCP9804):
6-Axis sensor (BMX323): Integrated Two Sensors:
16-bit Gyroscope
16-bit Accelerometer
3-Axis sensor (MMC5983MA): Geomagnec Sensors:
• External -board watchdog, eFuse and isolator for reliability on
• One Mechanical Reset Button
• One Mechanical User Push Button
• Two User LEDs
• 12.0 MHz Oscillator
• 32.768 kHz Oscillator
• 2- Embedded Flash Memory MB
• 384- Embedded Mul-port SRAM KB
• 256- QSPI NOR Flash (MT25QL256ABA8ESF) MB
• One Mechanical User Push Button
• 1 GB high reliability cards for fail safe data storage (up SD to request) 32 GB on
IN
IN
IN
ININTE
TE
TE
TETERFA
RFA
RFA
RFARFACE
CE
CE
CECES
S
S
SS
• I
2
C master slave mode or
• SPI master mode (up to 5 slaves)
• 2x UART (RS485 / RS422)
• General Purpose Input / Output pins (GPIO)
• Analog features include dual 2Msps 12-bit ADCs with analog front end oering oset and
gain error correcon, and 2Msps 12-bit DAC.
• Two 4-channel 16-bit PWMs with complementary output
• JTAG for programming and debugging
• Dedicated debug LEDs and UART
• USB power supply
© 2024 Elitegroup Computer Systems
OBCC6M7R-page3
Kit
Kit
Kit
Kit Kit O
O
O
OOve
ve
ve
veverv
rv
rv
rvrview
iew
iew
iewiew
The cOBC -bit Development Kit provides a modular development system for Microchip’s line of 32
Cortex® microcontrollers.
To get started with the SAM E70 peripherals and learn how to integrate the device into your design,
visit the Advanced Soware Framework (ASF) for SAM Devices, or visit the MPLAB Harmony™ web
page.
6
5
1
4
3
11
10
2
7
8
9
