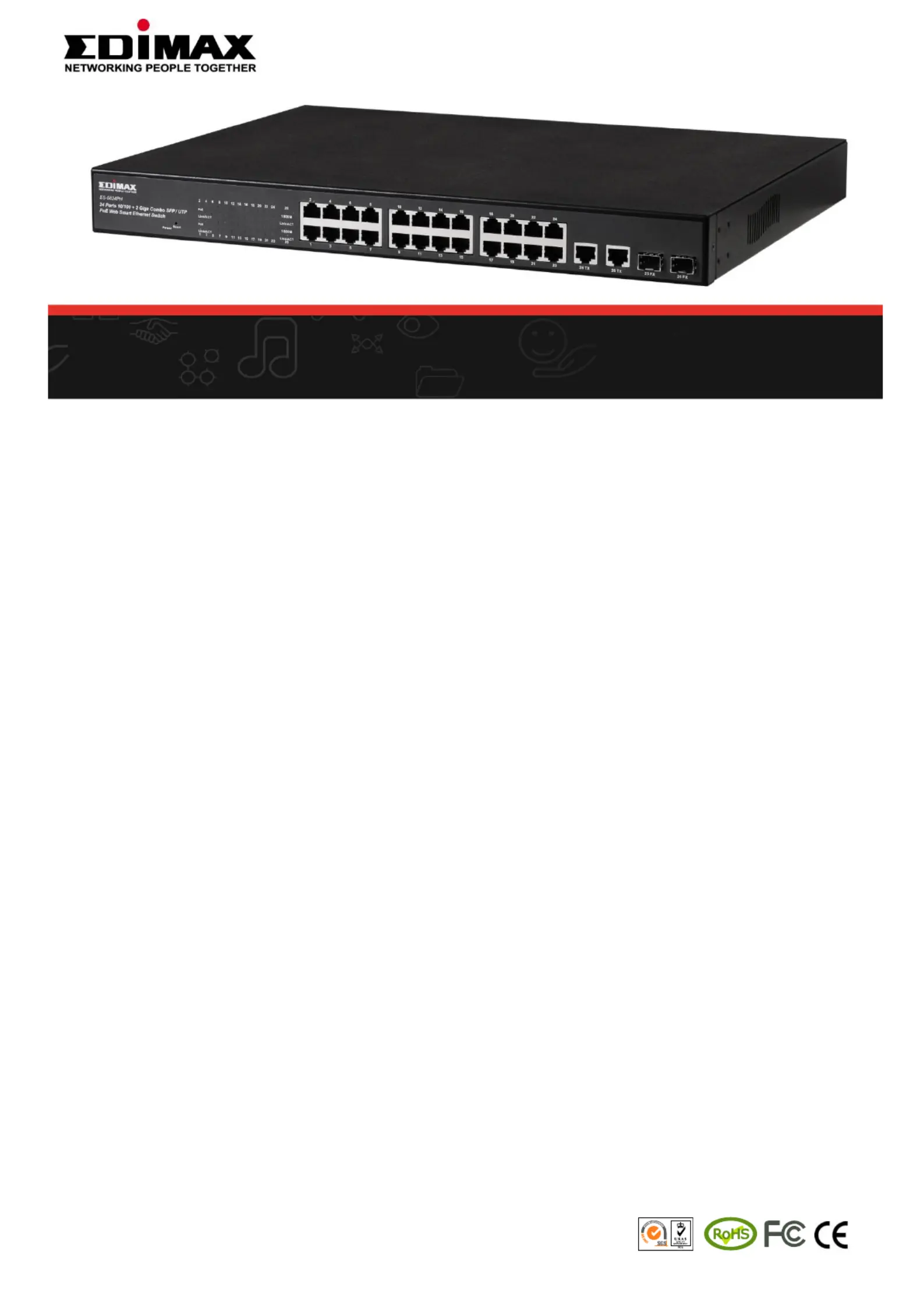

Edimax's ES-5824PH switch is a superb choice for boosng your medium to large network's performance and

eciency. The 24-port 10M/100M with 24-port PSE/PoE rack-mount PoE Web Smart Fast Ethernet Switch is

designed to seriously strengthen the network connecon of your network environment. The 19" switch

(including rack-mount brackets) will t neatly into your exisng rack environment.

Complies with IEEE 802.3af Power over Ethernet (PoE) ports

Edimax's ES-5824PH features 24 IEEE 802.3af Power over Ethernet ( ) ports that supply up to 15.4 was of PoE

electricity per port. It can convert standard 90~260V/AC power into low-voltage DC that runs over exisng LAN

cables to supply power to IEEE 802.3af compliant network accessories. The Edimax ES-5824PH features PoE

device detecon to verify whether individual, connected devices are IEEE 802.3af compliant or not, so only

data will be sent via the LAN cable if the device is not a PoE or PE device. Various products such as Access PoE

Points, IP cameras or IP phones are easily connected to the switch, making it the perfect soluon when power

outlets are dicult to install or exisng power outlets are too far from devices.

No Special Networking Cable Required

Reduce your installaon me and cost by using a standard Cat-5 Ethernet cable to link between the Edimax ES-

5824PH switch and powered devices (PE). The Ethernet cable will then transmit both data and power, so you

won't need all those extra power cables to your powered devices (PE).

Supports Smart Features

Edimax's ES-5824PH Web smart features put you in control of your network and oers extra protecon on the

network edge. It can be managed through a Web Browser and smart features include everything from simple

QoS/CoS applicaons and basic monitoring tools to improve network eciency, to a remote access password-

protected conguraon interface for the IT manager's mobility and IGMP snooping to reduce broadcast trac

from streaming and other bandwidth intensive IP applicaons. The ES-5824PH also supports bandwidth control

and port based VLAN, so an administrator can set up VLANs to segregate trac, QoS to priorize mission-

crical data and link aggregaon to create fat trac pipelines.

Supports Auto-MDI/MDI-X

Each port of the Edimax ES-5824PH automacally detects the type of cable connecng to it, so there's no need

to choose crossover or parallel cables when you connect it to another switch or computer.

Supports Auto-Negoaon

Each port of the Edimax ES-5824PH automacally disnguishes whether connected network devices are

running at 10Mbps, 100Mbps and Half or Full-Duplex mode, and then adjusts the speed and mode accordingly.

Supports Non-Blocking wire speed

The Edimax ES-5824PH switch allows you to run a high speed network smoothly by receiving and forwarding

trac seamlessly with its non-blocking wire-speed. Each port of the ES-5824PH can run at up to 200Mbps in

full-duplex mode, and they can do so simultaneously, providing full wire speed to all devices connected.

Supports Store and Forward Architecture

With a store and forward architecture, the Edimax ES-5824PH maximizes your network's performance while

minimizing the propagaon of bad network packets.

www.edimax.com

condions and environmental factors. Product specications and design are subject to change without noce.

24 Ports 10M/100M Rack-mount PoE Web Smart

(Half Power) Fast Ethernet Switch

ES-5824PH

Specicaon

Standards

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.ab 1000BaseT

IEEE 802.3z 1000BaseSX/LX

IEEE 802.3x Full-duplex and Flow Control

IEEE 802.1Q VLAN

IEEE 802.1p QoS / Class of Service, Priority Protocols

IEEE802.3 Nway Auto-negoaon

IEEE802.3af Power over Ethernet

Features

Number of Ports:

- with RJ-45 Connectors: 24 port with 24 PoE (Half power) port 10/100BaseTX

- 10/100/1000BaseT with RJ-45 Connectors: 2 / Combo SFP Open Slots: 2

MAC Address: 4K

Buer Memory: 343KB

Transmission Method: Store and Forward

Smart Features

Port Security Filter:

- TCP / UDP port based

- MAC Address based

- IP Address based

VLAN Seng:

- Tag Based: 32

- Port Based: 26

- VLAN ID ( Up to 4094 K )

QoS:

- Priority ( Port Based / TOS / Diserv / DSCP/IPv4 /IPv6 )

- Class of Service Conguraon

- TCP / Based

Management:

- Password-protected Access

- On / O Sengs,

- Web-Based Management

- Graphic User Interface

- Bandwidth Control

- Broadcast Storm Control

- Port Mirroring

- Port Conguraon

- Programmable aging mer

- IGMP Snooping

- Trunk ( up to 4 Ports per Group, 2 Groups per Device )

- Provide DHCP Client

- Quality of Service: up to 2 queues

Filtering/Forwarding Rates

1000Mbps port 1,488,000pps –

100Mbps port - 148,800pps

10Mbps port - 14,880pps

Transmission Media

10BaseT Cat. 3, 4, 5 UTP/STP

100BaseTX Cat. 5 UTP/STP

1000BaseT Cat. 5E UTP/STP

LED Indicators

Per Port: Link/Act,

PoE : Act / Status

Per Unit: Power

Power Input

90~260V/AC, 50~60Hz

Power Output

48V /DC Per Port Output

Power Consumpon

195 Was

Dimensions

440

332

42(L x W x H)

Operang Temperature

0 to 55

℃

Storage Temperature

-20 to 90

℃

Humidity

10 to 90% RH (non-condensing)

Cercaons

FCC Class A, CE

www.edimax.com

ES-5824PH

24 Ports 10M/100M Rack-mount PoE Web Smart

(Half Power) Fast Ethernet Switch

condions and environmental factors. Product specicaons and design are subject to change without noce.
