XLC-BGK Bottom Grid Kit

The X-Line Compact Bottom Grid Kit consists of the same rigging attachment parts as those integrated into the top of an

XLC Loudspeaker. When used at the bottom of an XLC Loudspeaker Array along with an additional XLC-Grid (sold

separately), the XLC-BGK allows for a column of X-Line Compact Loudspeakers to have a secondary rigging or

anchoring point while being safely pulled back to desired angles.

When using the Bottom Grid Kit never exceed the rigging rating of the XLC loudspeaker systems used

with it. These ratings account for stresses resulting from the load angles encountered in curved arrays.

These ratings are the limiting factors. Consult the XLC Rigging manual, and/or the rigging label on the

XLC loudspeaker systems for the ratings when used in curved arrays.

X-Line Compact

XLC-BGK Bottom Grid Kit

User Instructions

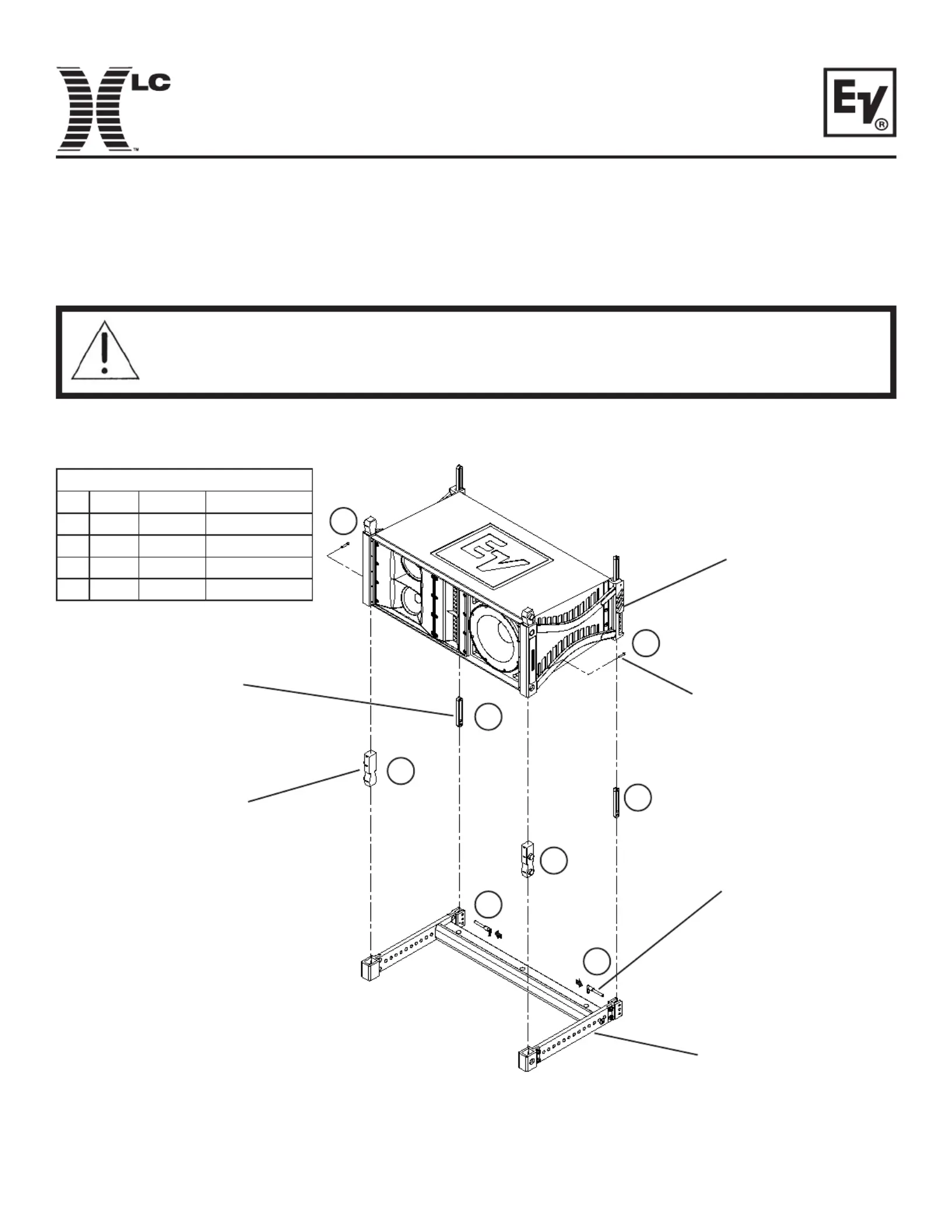

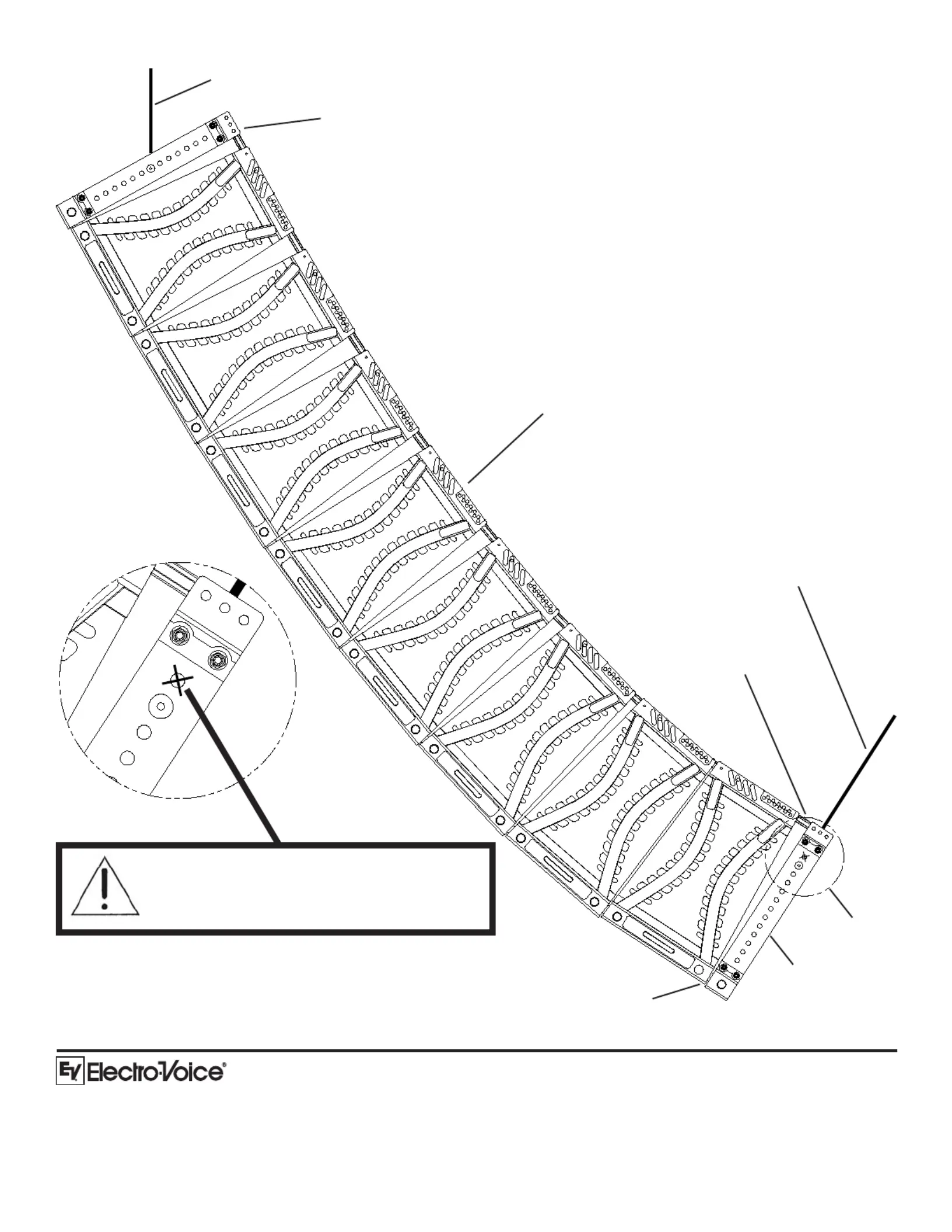

Figure 1: Attaching Bottom Grid

Kit to Loudspeaker at Bottom of

Array, along with a Secondary

Grid

XLC Loudspeaker at

Bottom of Array

(Loudspeaker Sold

Separately)

Shoulder Bolt for Locking

Button Bar into Bottom

Loudspeaker

(2 Included in Kit)

Rear XLC Swing Arm

(2 Included in Kit)

Front XLC Button Bar

(2 Included in Kit)

Quick-Release Pin

(2 Included in Kit)

XLC Grid

Installed Under Bottom

Enclosure

(Grid Sold Separately)

tsiLstraP)100-820203(KGB-CLX

metIytitnauQrebmuNtraPnoitpircseD

12000-671065yssabuSraBnottuB

22000-476005mrAgniwSr

aeR

32000-443065niPesaeleR-kciuQ

42000-140185tloBredluohS

1

1

2

3

3

4

2

4
