Sida 1/4

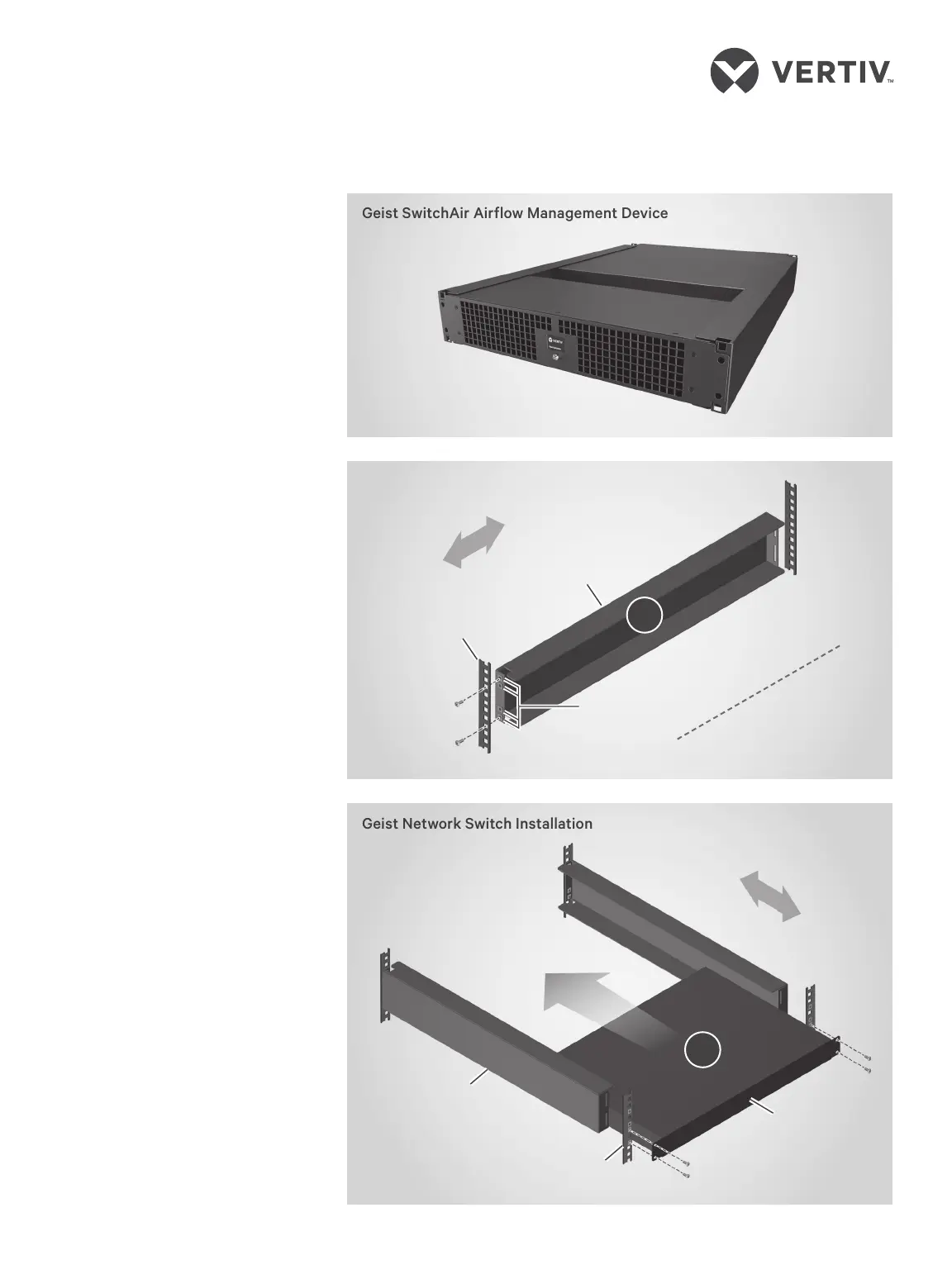

GEIST™ SWITCHAIR

AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

VM1180/590-2244-501A 1

Models:

SA2-004

Switch Type:

Front (Port) Air Intake - Rear

Exhaust 1U Switches

CAUTION: Ensure the required

airflow for safe operation of

equipment is not compromised

when installing the Geist SwitchAir

device.

WARNING: Take precaution to

avoid interference with the switch’s

input power cords when installing

behind a live switch.

1. Installing the airflow

channel

Using customer-provided

hardware, insert the cage nuts

into the four holes on the front

of the channel.

Select a 2U space in the rack.

With the channel facing the

centerline of the rack, hold the

channel on the inside of the left

rack upright. Fasten in place

using screws only in the top and

bottom holes of the 2U space.

Repeat the procedure to install

the airflow channel on the

opposite side.

2. Installing the switch

Slide the network switch into

the bottom 1U at the rear of the

rack’s 2U space. Using

customer-provided cage nuts

and screws, mount the switch

to the rear rack uprights.

Geist Network Switch Installation

Geist SwitchAir Airflow Management Device

Geist SwitchAir Rack Rail Installation

Left front

rack upright

Top and bottom

screws of 2U space

CENTERLINE

OF RACK

Cage nuts x4

RACK

FRONT

RACK

REAR

Left rear

rack upright

Network

switch

RACK

FRONT

RACK

REAR

Side airflow

channel

Side airflow

channel

GEIST™ SWITCHAIR AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

2 VM1180/590-2244-501A

RACK

FRONT

RACK

REAR

3. Installing the air trunk

Insert the air trunk between the

channels on top of the network

switch. Slide the stabilizing tabs

into the opening on each

channel. Using customer-

provided hardware, attach the

air trunk to the rack.

4. Installing the wipers

Orient each SwitchAir wiper

with the tab facing away from

the centerline of the device.

Attach each wiper using the

provided screws.

Wiper

Wiper tab

Geist SwitchAir Wiper Installation

CENTERLINE

OF DEVICE

Geist SwitchAir Air Trunk Installation

Stabilizing

tab

Side airflow

channel

Network switch

Air trunk

Side airflow

channel

GEIST™ SWITCHAIR AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

VM1180/590-2244-501A 3

RACK

FRONT

RACK

REAR

Geist SwitchAir Unit Installation

Geist SwitchAir Airflow

SwitchAir

5. Installing the SwitchAir

device into the rack

NOTE: Connect to power

before attaching the SwitchAir

device to the rack. (The

SwitchAir has a standard C14

power inlet. Due to the variety

of possible power source outlet

types, an appropriate power

cord type must be determined

and supplied by the customer.)

Insert the SwitchAir device into

the open rack space at the

same 2U height as the network

switch and air trunk.

As the SwitchAir device is

inserted into the space, each

wiper tab acts as a guide to

deflect the wiper past the

switch and air trunk’s corner

and along their sides.

Once the SwitchAir device is

fully seated, install the

mounting screws to fasten the

device to the front rack

uprights.

Airflow

Air trunk

Left front

rack upright

Side airflow

channel

Produktspecifikationer

Varumärke:	Emerson
Kategori:	Inte kategoriserad
Modell:	SA2-004
Vikt:	6800 g
Bredd:	432 mm
Djup:	178 mm
Höjd:	87 mm
Ramtyp:	Öppen stomme
Certifiering:	CE, FCC Part 15 Class A Conformance, UL & c-UL Listed 60950
Maximalt luftflöde:	94 cfm
Rackmontering:	Ja
Rackkapacitet:	2U
Produktens färg:	Svart
bruksanvisning:	Ja
Hållbarhetscertifiering:	RoHS
AC-inspänning:	90 - 264 V
Kabel inkluderad:	AC
Växelström Frekvens:	50 - 60 hz
Ingående ström:	0.5 A
Kylning typ:	Aktiv
