GEIST™ SWITCHAIR

AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

VM1181/590-2245-501A 1

RACK

FRONT

RACK

REAR

Models:

SA2-006

Switch Type:

Side Intake - Side or Rear Exhaust

for Core Switches

CAUTION: Ensure the required

airflow for safe operation of

equipment is not compromised

when installing the Geist SwitchAir

device.

WARNING: Take precaution to

avoid interference with the switch’s

input power cords when installing

behind a live switch.

1. Installing the support

channel

Insert the six customer-provided

cage nuts into the four holes on

the front of the support channel

and two holes into the rear

channel extension tab.

Insert the extension tab into the

rear of the support channel.

With the channel facing the

centerline of the rack, hold the

support channel on the inside of

the left rack uprights in the 2U

space just above the network

switch.

Using customer-

provided screws, a

ttach the

channel to the front rack

upright

only in the top and

bottom holes of the 2U space.

Adjust the extension tab to the

proper length and attach the

extension tab onto the rear

upright with two screws.

2. Installing the air channel

Insert the four customer-

provided cage nuts into the four

holes on the front of the air

channel.

In the 2U space opposite the

support channel, hold the air

channel on the inside of the

right rack upright. Orient the air

channel to face the centerline of

the rack with its open leg facing

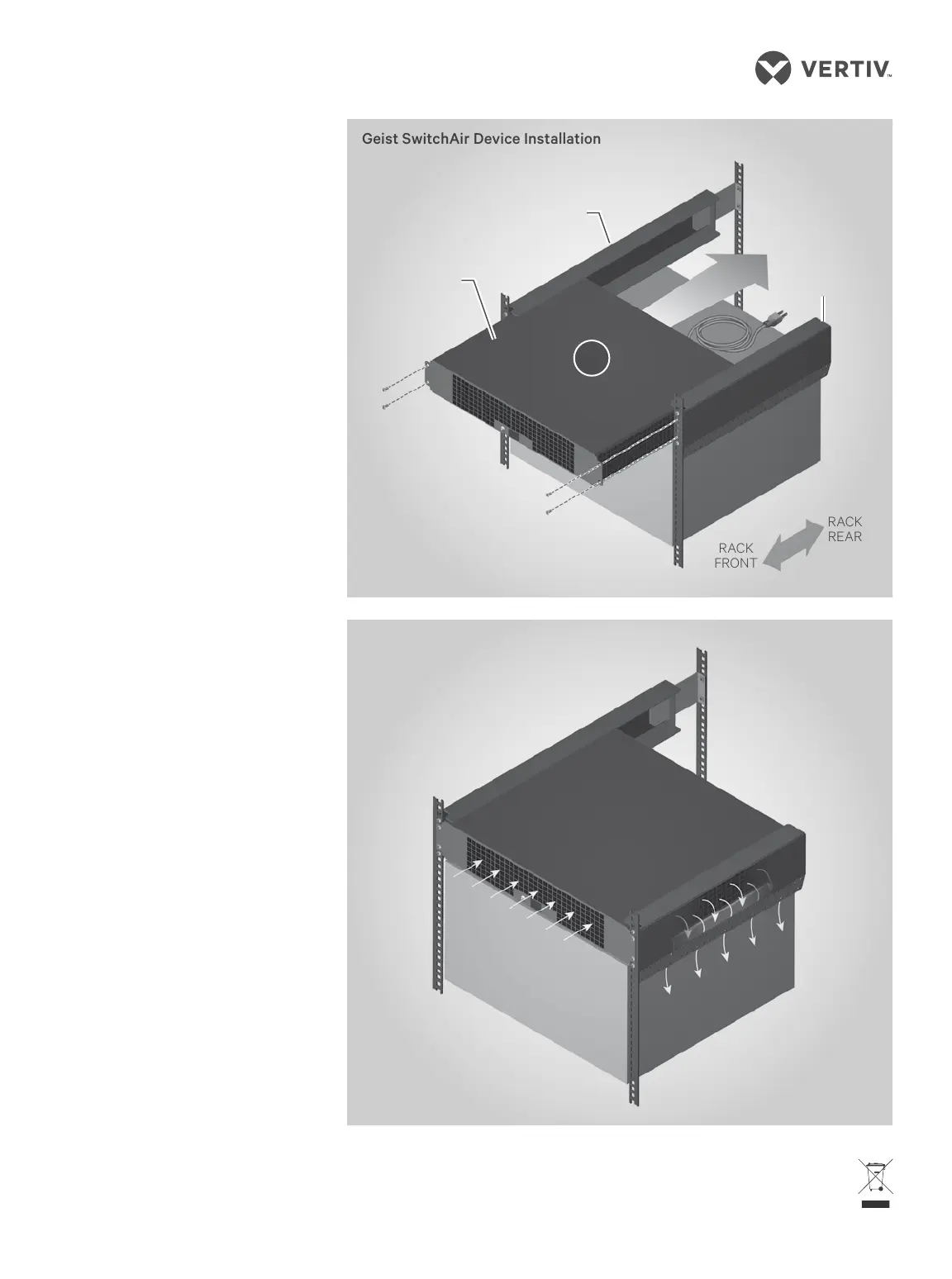

Geist SwitchAir Airflow Management Device

Support and Air Channels Installation

CENTERLINE

OF RACK

Extension tab

Support channel

Left rack

upright

Right rack

upright

Network switch

Air channel

Cage

nuts

Cage

nuts

Cage

nuts

Produktspecifikationer

Varumärke:	Emerson
Kategori:	Inte kategoriserad
Modell:	SA2-006
Vikt:	12250 g
Bredd:	432 mm
Djup:	457 mm
Höjd:	87 mm
Ramtyp:	Öppen stomme
Certifiering:	CE, FCC Part 15 Class A Conformance, UL & c-UL Listed 60950
Maximalt luftflöde:	188 cfm
Rackmontering:	Ja
Rackkapacitet:	2U
Produktens färg:	Svart
Hållbarhetscertifiering:	RoHS
AC-inspänning:	90 - 264 V
Växelström Frekvens:	50 - 60 hz
Ingående ström:	0.65 A
Kylning typ:	Aktiv
