BLACK
HIGH PASS VCF
THANK YOU FOR PURCHASING
ERICA SYNTHS BLACK SERIES MODULE!
Erica Black Series include high-end, unique functionality and superior quality
modules. Only the best, highest quality components are used, all inputs and
outputs are protected against undesired overvoltage. When designing Black
Series, put design and usability superior. Big knobs are assigned to functions that
make dierence in sound. Erica Black series consist of range of modules that are
needed to put together entire synth. Enjoy!
The Erica Synths Black High Pass VCF is designed for analogue purists, how take
sound design seriously. It’s highly stable, 24dB/oct resonant high pass VCF with
voltage control over cuto (two CV inputs, one is with an attenuverter) and
resonance. Bonus features are built in post-filter overdrive circuit with user
adjustable drive amount and the Black Filter Coupler connector. When used in
combination with the Black Low Pass VCF and the Black Filter Coupler, you get a
Holy Trinity of VCFs for an ultimate analogue modular system.
FEATURES:
Voltage control over cuto and resonance
Gain loss compensation on high resonance
Cuto CV attenuverter
Built in adjustable overdrive circuit

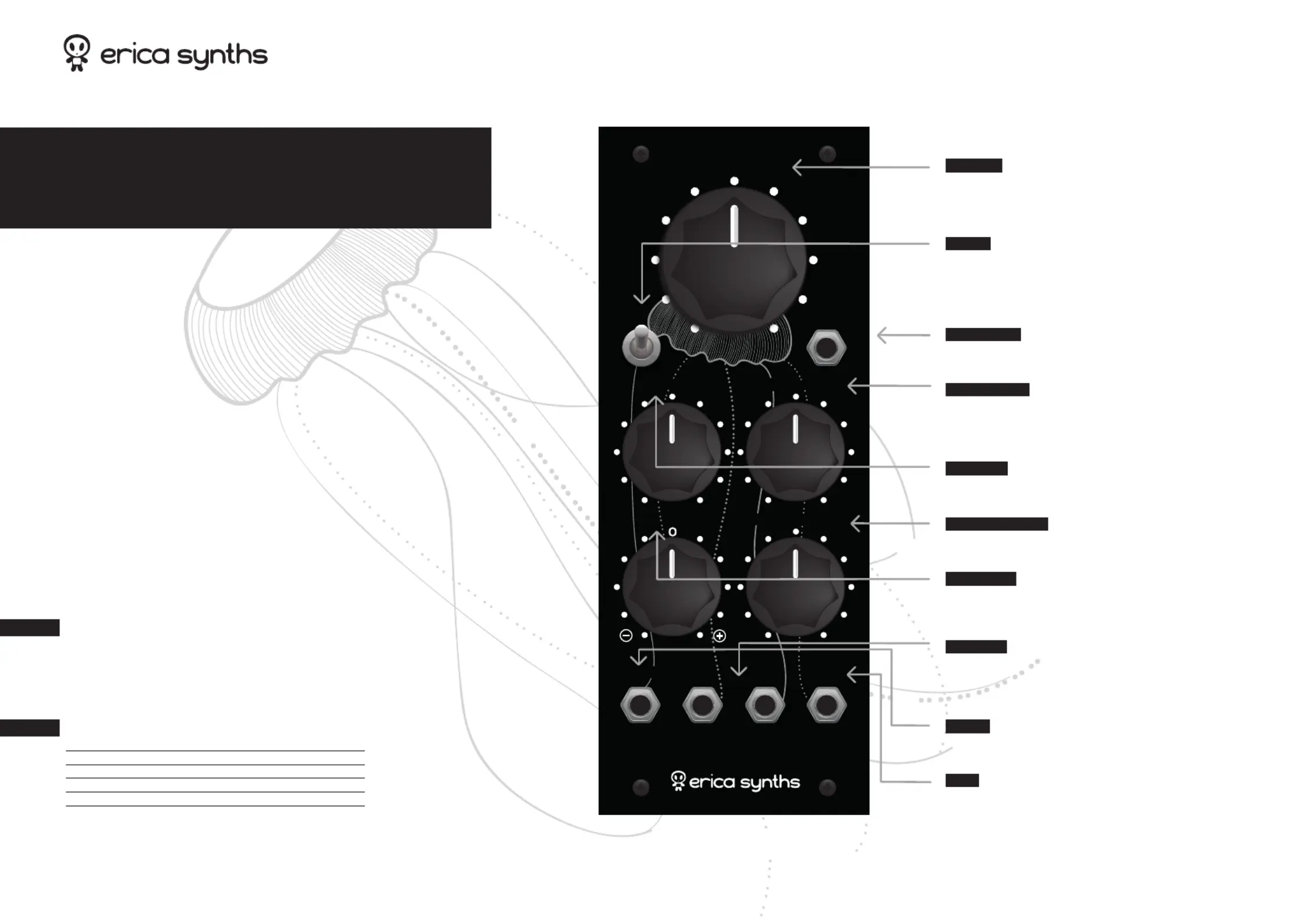

CUTOFF
This is the main control of the module – manual cuto
frequency adjustment. The incoming CV is added to the
cuto knob position
RESONANCE
Adjust the resonance level manually. On settings over
1PM the filter will start to self-oscillate . The incoming CV
is added to the resonance knob position
CV1 LEVEL
This is cuto CV attenuverter. Adjust the CV level to your
taste!
RESO CV LEVEL
Adjust the resonance CV level to your taste
CV1; CV2
These are the cuto CV inputs. The CV1 level is
adjustable by CV1 LEVEL attenuverter knob, CV2 is
applied to the cuto without attenuation
INPUT
Patch your audio signals here.
OUT
This is the audio output of the module
IN LEVEL
Adjust the audio signal level
DRIVE
For extreme results, flip the DRIVE switch ON! This will
apply post-filter drive. You can preset drive level to your
taste by adjusting a trimpot close to the switch on the
back side of the module
RESO CV IN
This is the resonance CV input.
SPECS:
Audio level 10Vptp
CV level -10V - +10V
Filter slope 24dB/oct
Power consumption +25mA; -29mA
Module width 10HP
Module depth 35mm
CUTOFF
IN LEVEL
CV1 LEVEL
RESONANCE
RESO CV LEVEL
INPUT CV1 CV2 OUT
BLACK HIGH PASS VCF
RESO CV IN
ON
OFF
DRIVE
