Thank you for purchasing Erica Synths Pico Series module!

With Pico Series we challenged ourselves – can we make ANY

superior functionality synth module 3HP wide and affordable?

Yes, we can.

When we decided to expand the Pico series, we realized, we need

more analogue designs. Therefore we give you

Erica synths Pico VCO2 – powerful, full analogue VCO with

great tracking over 8 octaves just in 3HP! Combine two of those,

add some PWM and have a sound of real analogue beast!

Manual TUNE and PWM controls

+-1 octave switch

1V/oct input with good tracking across 8 octaves

PWM CV input

Pulse and triangle waveform outputs

Input protection against overvoltage

Protection against reverse PSU connection

Output signal amplitude -5V - +5V

PWM CV input (full span) -5V - +5V

Power consumption +21mA, -19mA

Module width 3HP

Module depth 35mm

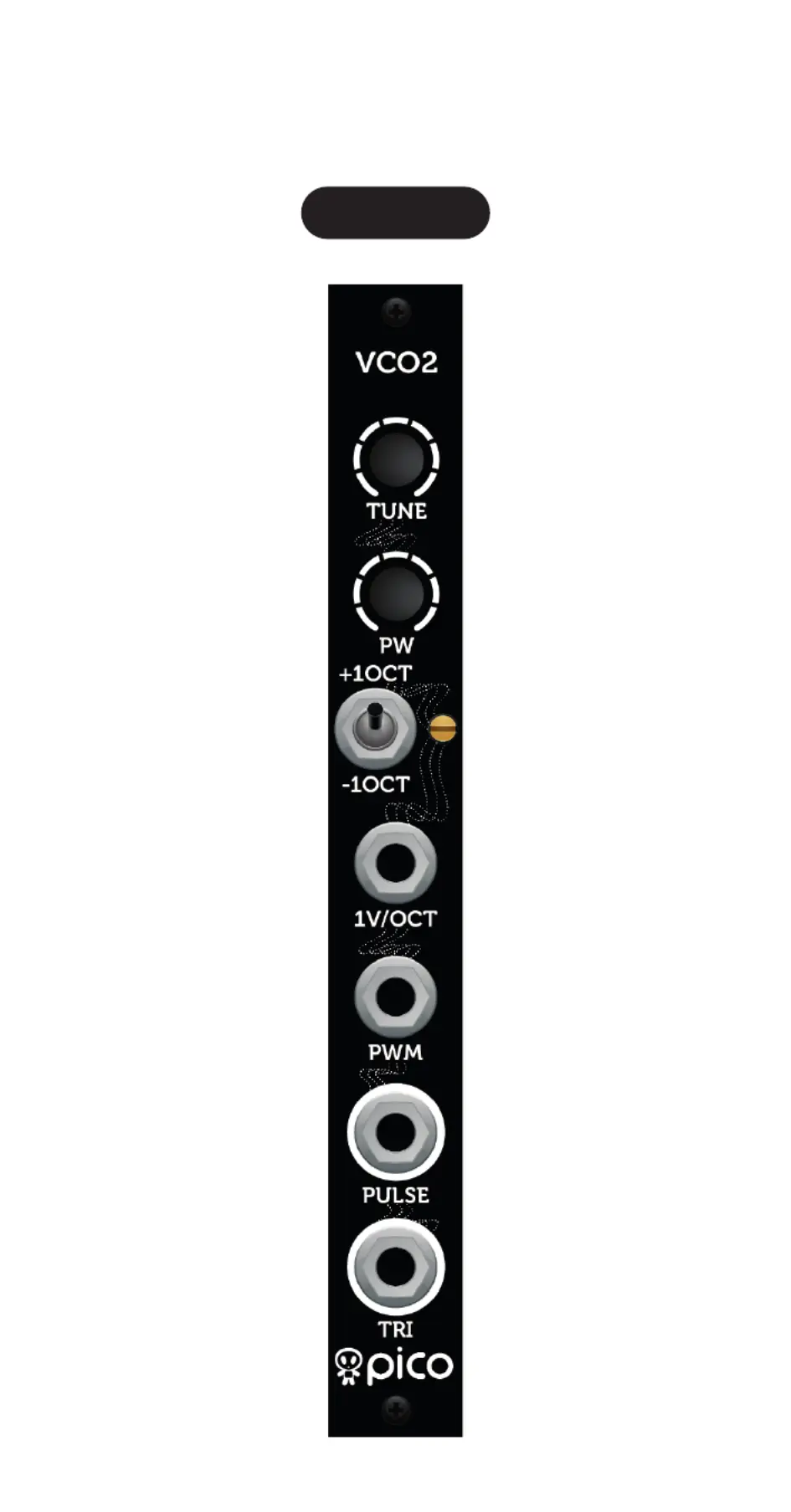

VCO2

PICO

VCO2

Patch the sequencer or any

FM source here

Adjust the tune of the VCO manually!

1V/oct CV is added to the setting

of this knob

Adjust Pulse Width manually!

PWM CV is added to the setting

of this knob

This is Pulse wave output

Three position switch allow you

to transpose the pitch of the VCO

one octave up or down

This is PWM CV input. Experiment

with different modulation sources

to get drones, rhythmic patterns

and fat analogue sound

This is gentle sounding

Triangle wave output

Water is lethal for most of the electric devices, unless they are made

waterproof. This Erica Synths module is NOT intended for use in a humid or

wet environment. No liquids or other conducting substances must get

into the module. Should this happen, the module should be disconnected

from mains power immediately, dried, examined and cleaned by

a qualified technician.

Do not expose the module to temperatures above +50° C or below -20° C. If

you have transported module in extreme low temperatures, leave it in

room temperature for an hour before plugging it in

Transport the instrument carefully, never let it drop or fall over.

Warranty does not apply to modules with visual damages.

The module has to be shipped in the original packaging only. Any module

shipped to us for return, exchange and/or warranty repair has to be in

its original packaging. All other deliveries will be rejected and

returned to you. Make sure you keep the original packaging and

technical documentation.

This device complies to the EU guidelines and is manufactured ROHS

conforming without use of led, mercury, cadmium and chrome.

Nevertheless, this device is special waste and disposal in household

waste is not recommended.

Safety Instructions

You will find Erica Synths terms of warranty at www.ericasynths.lv.

Items for return, exchange and/or warranty repair have to be sent to:

Erica Synths

Andrejostas Str. 43

Riga

Latvia

LV-1045

User manual by Girts Ozolins@Erica Synths

Design by Ineta Briede@Black8

Copying, distribution or any commercial use in any way is prohibited and needs the written

permission by Erica Synths. Specifications are subject to change without notice.

In case of any questions, feel free to contact us through www.ericasynths.lv or via e-mail

info@ericasynths.lv

Please follow the instructions for use of the Erica Synths module

below, ‘cause only this will guarantee proper operation of the module

and ensure warranty from Erica Synths.
