Detailed operating instructions

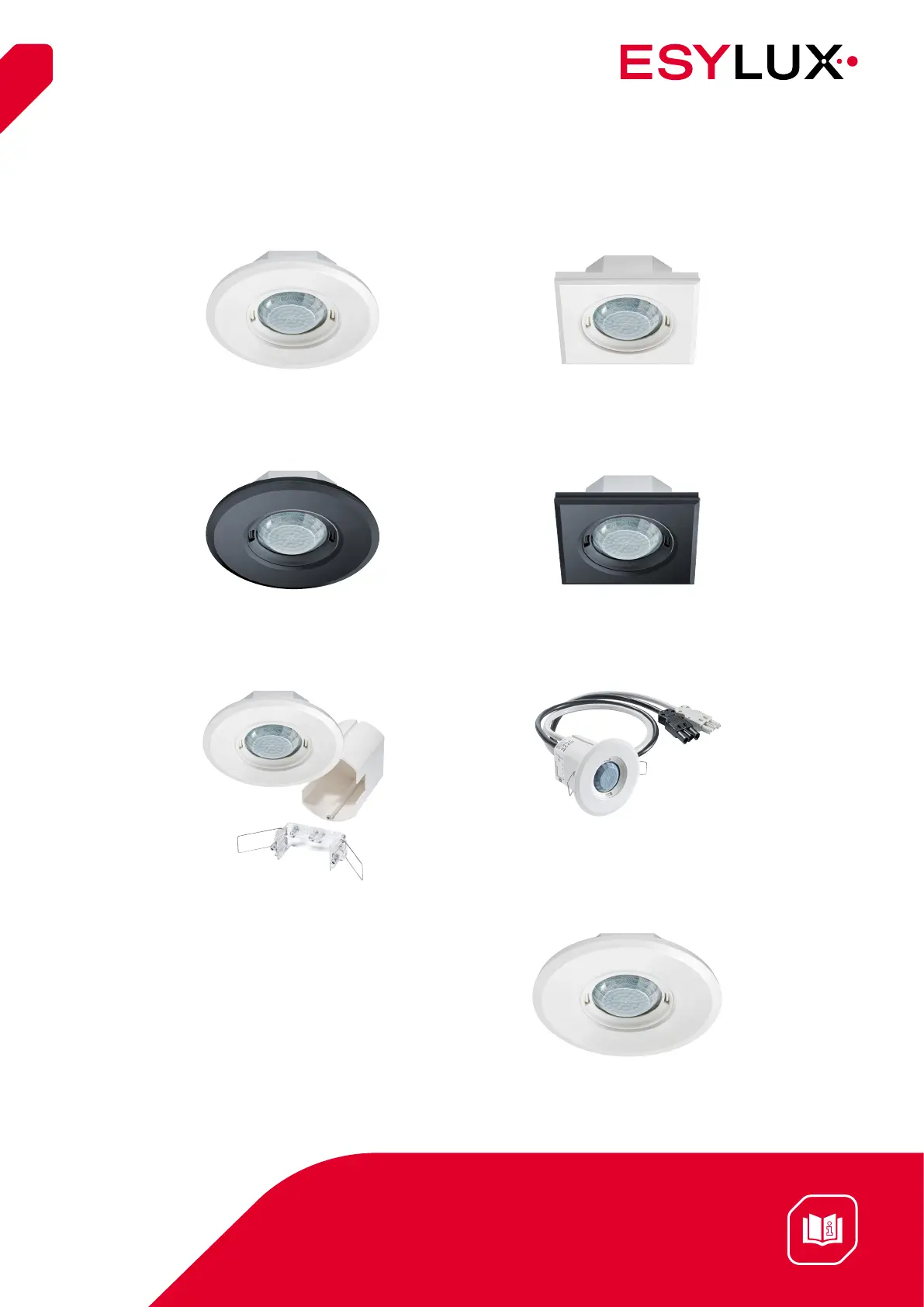

MD-FLAT 360i/8 RW

EP10427886

MD-FLAT 360i/8 SW

EP10427893

MD-FLAT 360i/8 RB

EP10428074

MD-FLAT 360i/8 SB

EP10428081

MD-FLAT-E 360i/8 RW

EP10428548

MD-FLAT-E 360i/8 RW GST

EP10427862

MD-FLAT-L 360i/8 RW

EP10428609

OPERATING INSTRUCTIONS

2 / 18

MD-FLAT 360i/8 RW MD-FLAT 360i/8 SB MD-FLAT-L 360i/8 RW

MD-FLAT 360i/8 SW MD-FLAT-E 360i/8 RW

MD-FLAT 360i/8 RB MD-FLAT-E 360i/8 RW GST

Table of contents

1 Description 3

2 Safety instructions 3

3 Operation / functionality 4

3.1 Conditions in which the lighting is switched on 4

3.2 Conditions in which the lighting is switched off 4

3.3 Switching delay – not in pulse mode 4

4 Installation / connection 5

4.1 Masking the field of detection 7

5 Activation 7

5.1 Overview of factory settings 7

6 Settings 8

6.1 Control via external “S” button 8

6.2 Configuring parameters via remote control 8

6.3 Mobil-PDi/MDi 8

6.4 Mobil-PDi/MDi temporary settings 9

6.5 Programming the Mobil-PDi/MDi 10

6.6 Mobil-PDi/MDi-universal 12

6.7 Mobil-PDi/MDi-universal temporary settings 12

6.8 Programming the Mobil-PDi/MDi-universal 13

7 Technical data 16

8 Troubleshooting 16

8.1 Maintenance 17

8.2 Cleaning 17

9 ESYLUX Manufacturer’s guarantee 18

OPERATING INSTRUCTIONS

3 / 18

MD-FLAT 360i/8 RW MD-FLAT 360i/8 SB MD-FLAT-L 360i/8 RW

MD-FLAT 360i/8 SW MD-FLAT-E 360i/8 RW

MD-FLAT 360i/8 RB MD-FLAT-E 360i/8 RW GST

1 Description

The ESYLUX ceiling-mounted motion detector is a passive infrared presence detector

that responds to moving heat sources, such as people walking.

The motion detector is designed for areas with low levels of natural light, such as

hallways, cellars, staircases, changing rooms, toilets, garages etc.

Parameters can be configured using the ESYLUX Mobil-PDi/MDi and Mobil-PDi/MDi-

universal remote controls as well as via the manual setting elements.

Note: Use this product only as intended (as described in the user instructions).

The device must not be changed, modified or painted – doing so will void any warranty

claims. You must check the device for damage immediately after unpacking it.

If there is any damage, you should not install the device under any circumstances.

If you suspect that safe operation of the device cannot be guaranteed, you should turn

the device off immediately and make sure that it cannot be operated unintentionally.

2 Safety instructions

• Work on the 230-V power system must be carried out by authorised personnel only,

with due regard to the applicable installation regulations/standards

• Switch off the power supply before installing the system

• On the input side, the device is to be protected against short circuits with a 10-A circuit

breaker

• Protection type IP 20 for interior use
