Sida 1/2
6.
8.
NEBM-L10G14-EH-...-Q...-LE12
Motor cable
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com

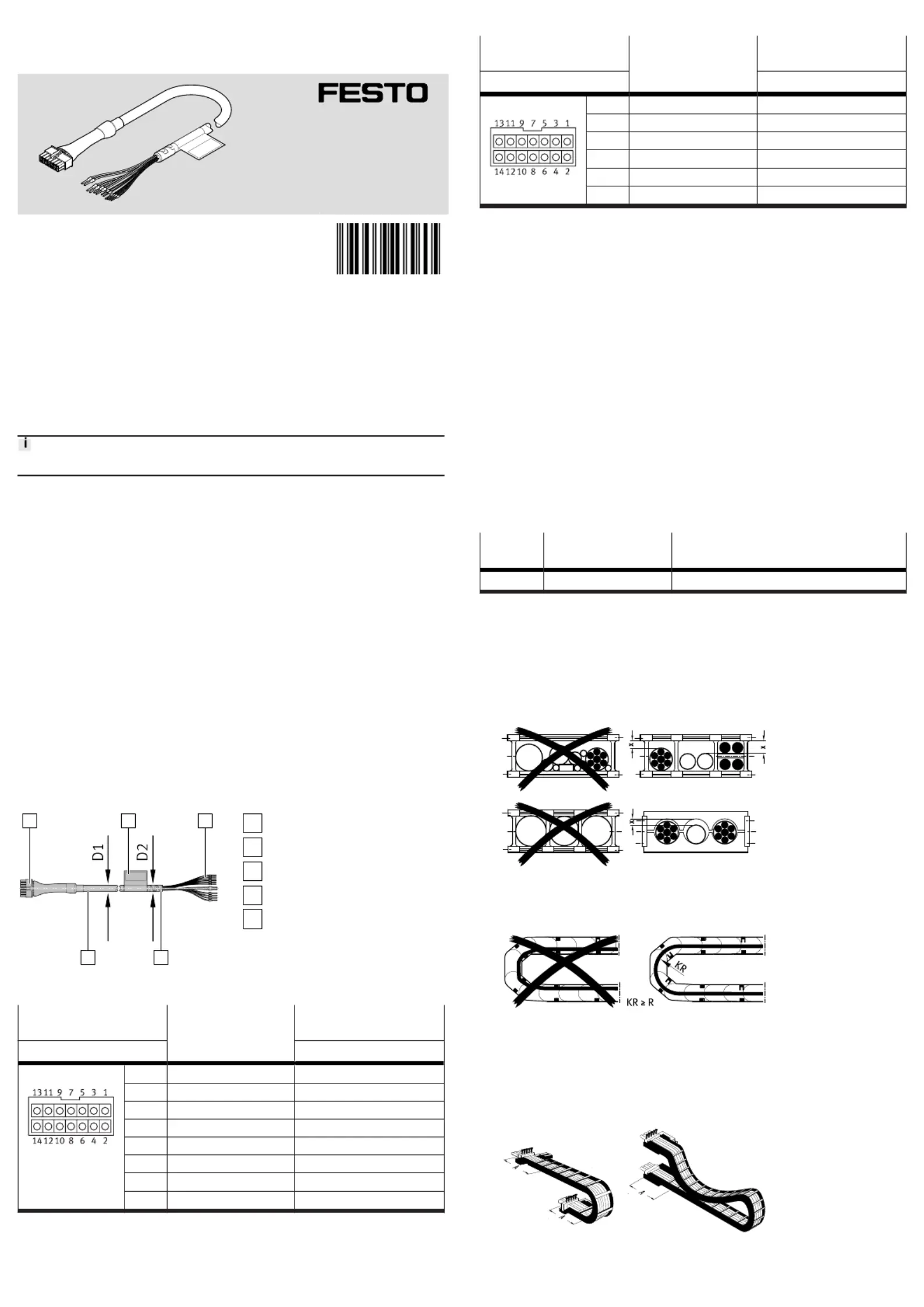

Assembly instructions
8156480
2024-03
[8156482]
8156480
Original instructions
© 2024 all rights reserved to Festo SE & Co. KG
1
Applicable documents
All available documents for the product
è
www.festo.com/sp.
2 Safety
2.1
Safety instructions
– Before working on the product: Switch off the power supply, ensure that it is off
and secure it against being switched on again.
2.2 Intended use
The motor cable connects the stepper motor EMMB-ST with the servo drive
CMMT-ST.
2.3
Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel are trained in
electrical engineering.
3 Additional information
– Contact the regional Festo contact if you have technical problems
è
www.festo.com.
–
Accessories
è
www.festo.com/catalogue.
4 Structure
4.1
Product design
1 2
34
5
Fig. 1:
Product design
1
Hybrid socket L10
2
Wire end (12x)
3
Shielded connection
4
Cable
5
Contact assignment identification
4.2
Contact assignment for motor and brake
Electrical connection1
Field device side
Signal Electrical connection2
Controller side X6
[1]Hybrid socket [2]Wire ends
1)
1 Phase A RD
2 Phase A/ BN
3 BR+ GNWH
4 BR- BUWH
5 Shielding –
6 Not assigned –
13 Phase B BK
14 Phase B/ WH
1)
Colour code in accordance with IEC 60757:2021-06
Tab. 1: Contact assignment for motor and brake
4.3 Encoder contact assignment
Electrical connection1
Field device side
Signal Electrical connection2
Controller side X2
[1]Hybrid socket [2]Wire ends
1)
7 SLO+ VT
8 SLO- YE
9 MA+ GY
10 MA- PK
11 +5V RD
12 GND(0V) BU
1) Colour code in accordance with IEC 60757:2021-06
Tab. 2: Encoder contact assignment
5
Mounting
5.1
Mounting electrical connection1
1. Align the hybrid socket[1].
2.
Plug the hybrid socket[1] into the connection and click it into place.
5.2
Strain relief for electrical connection 1
• Fix the cable sheath in the section before the hybrid socket.
Ä
No strain on the hybrid socket.
5.3
Mounting electrical connection2
1.
Attach the shield connection[3] to the servo drive with the shield clamp
èServo drive operating instructions CMMT-ST.
2.
Connect the wire ends[2] in accordance with the contact assignment. Note
the contact assignment identification[5].
5.4
Strain relief for electrical connection 2
•
Fix the cable sheath in the area in front of the wire ends.
Ä
No strain on the wires.
5.5
Wiring
Character-
istics
Cable characteristics Wiring
-E Suitability for energy chains In energy chain or flexible
Tab. 3:
Wiring
5.6
Mounting in energy chain
1.
Lay out the energy chain lengthways.
2.
Place the cables in the energy chain without twisting them.
3.
Separate cables from each other using separators/drilled holes.
4.
Do not bind cables in bundles.
5.
Maintain spaceX. X>10%of the cable diameterD.
With the energy chain hanging vertically: increase the spaceX.
Align the energy chain in the working position:
–
Make sure that the radius is greater than the bending radiusR of the
cables.
– The cables can move freely in the bending radius KR of the energy chain.
Ä
The cable movement is not forced by the energy chain.
7. Mount the energy chain ècorresponding instruction manual.
Fasten the cables:
– for short energy chains with a length <1m at both ends of the energy
chain
– for long sliding energy chains with a length >1m at the driver end only
9. Do not move cables all the way to the fastening point.
Ä
The mounting spaceA between the fastening point and bending move-
ment is maintained.
