User’s Guide and Operator Instructions
CBS-2231 & CBS-2232 Next Generation Brewing System
FETCO Next Generation-NG® Commercial Beverage Equipment
CBS-2231 CBS-2232
(Dispensers not included) (Plastic brew baskets are standard, brewers avalible with optional stainless steel brew baskets)
CONTACT INFORMATION
FETCO® FOOD EQUIPMENT TECHNOLOGIES COMPANY
600 ROSE ROAD
LAKE ZURICH • IL • 60047-0429 • USA
Product made in USA
INTERNET: www.fetco.com
PATENTS:https://www.fetco.com/pl,pages,patents,74.html
©2020-2023 FOOD EQUIPMENT TECHNOLOGIES COMPANY
PHONE: (800) 338-2699 (US & CANADA)
(847) 719-3000 (All Countries and International)
FAX:(847) 719-3001
EMAIL:sales@fetco.com
orders@fetco.com (to order parts and equipment)
techsupport@fetco.com (all service queries)
P215 REV000 February 2023
COFFEE BREWER CBS-2230NG Series
TABLE OF CONTENTS
Rough-In Drawings ...................................................... 2
Electrical and Output Specifications ............................ 3
Programming Menu ..................................................... 5
Brew Recipes ............................................................... 5
Inputs ........................................................................... 7
Service ......................................................................... 7
Hot Water Portions ....................................................... 8
Calibration .................................................................... 9
Outputs ....................................................................... 10
Counters ..................................................................... 11
Brewer Setup .............................................................. 12
Installation Guide........................................................ 14
Operator Training ....................................................... 15
Parts diagrams ........................................................... 18
fetco.com
2 P215 REV000 February 2023

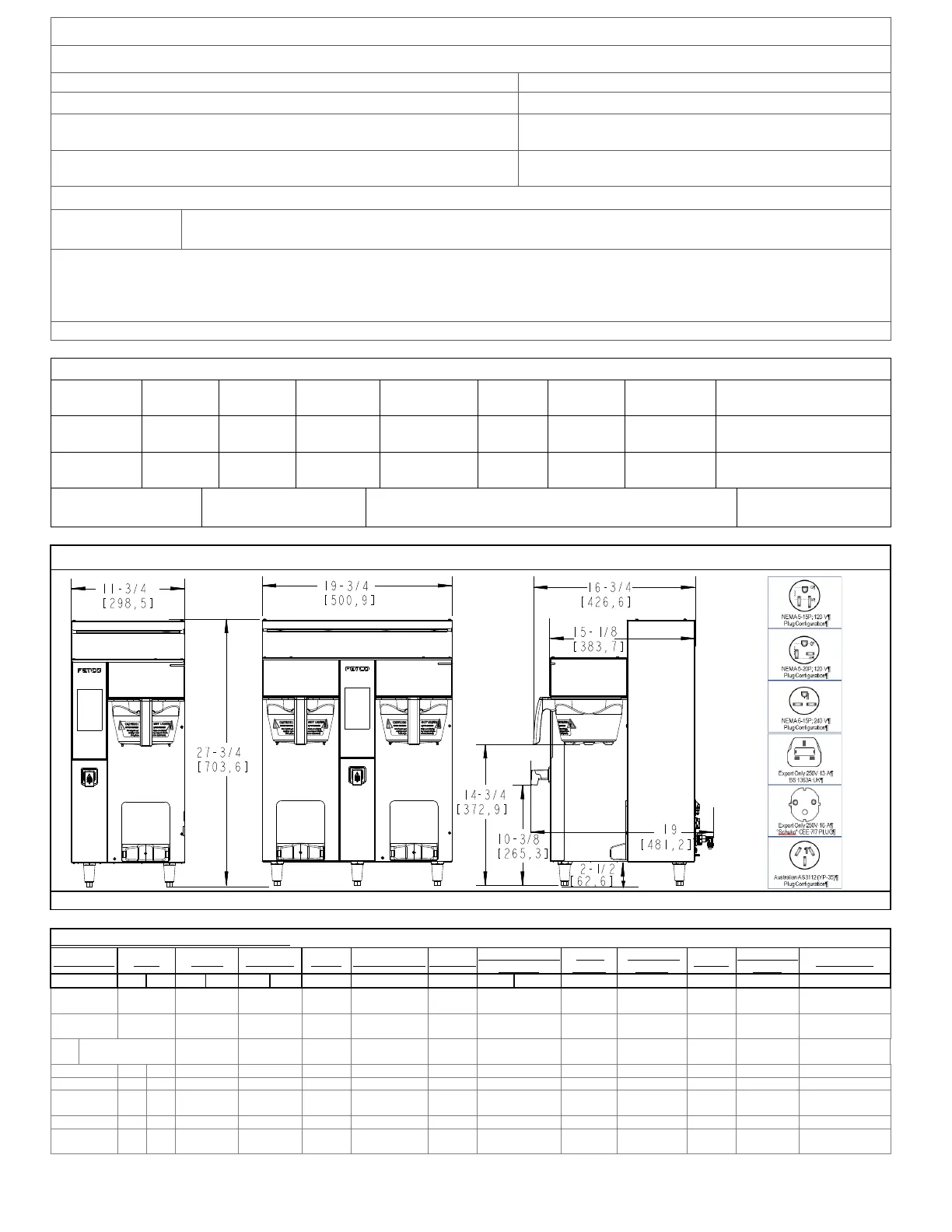

Specifications and Requirements
FETCO CBS-2230 Brewers have unique construction only available for these models.
Water Requirements:
Coffee Filter Size:
CBS-2230 20-75 psig, (138-517kPa) 1½ gpm/(5.7 lpm)
13” X 5 or FETCO# F002”
Optimal water hardness between 125-250 TDS (6-13 grain)
Important! Please use a water filter for all beverage equipment
Temperature, as set by factory:
200°F (93°C) inside water tank (at sea level)
Water inlet fitting: 3/8 inch male flare.
Brewer supplied with inlet valve adaptor for BSP to SAE
Electrical: See electrical configuration chart Pg 3.
Brew Volume: Full Batch
3.8 L/1.0 gal brew
Brew Capacity
(approximate)
CBS-2231 4-8 brews per hour
CBS-2232 5-16 brews per hour
Output is controlled by heater power and water temperature
Total Brew Cycle: Factory setting: 6 minutes consisting of 4 min. brew time and 2.0 min. drip delay
Individual menu brew-process parameters are user controllable for:
Basic user controls for brew volume, brew time, units of measure, recipe name
Advanced user controls for pulse count, prewet percent and prewet delay, drip delay, programmable energy saving
See pages 4-5 for how to adjust controls for temperature, brew volume, units - and all other settings
Weights and Capacities
Model Height Width Depth
Water tank
capacity
Empty
Weight
Filled
Weight
Shipping
Weight
Shipping Dimensions
CBS-2231
Brewer
27 3/4 in
700 mm
11 3/4 in
300 mm
20 3/8 in
520 mm
3.3 gallon
12.4 L
29 lbs
13.2 kg
55 lbs
25.0 kg
41 lbs
18.6 kg
30” x 17” x 22”
76.2 x 43.2 x 55.9 cm
CBS-2232
Brewer
27 3/4 in
700 mm
19 ¾ in
500 mm
20 3/8 in
520 mm
6.0 gallon
22.4 L
47 lbs
21.3 kg
92 lbs
41.7 kg
55 lbs
25.0 kg
30” x 23” x 25”
76.2 x 58.4 x 63.5 cm
Calibrated for
3.8 L/1.0 gal brew
Brew Basket 13” X 5” Coffee Filter 13” X 5 or FETCO# F002”
1” legs standard
2.5” legs optional
Rough-In Drawings
CBS-2231 Front CBS-2232 Front CBS-2231 1 & CBS-2232 Side Power cord plug
EXAMPLE: SKU E2231US-1X117-PM001 SKU NUMBER IDENTIFICATION KEY
Product Line
Level Family Region ID Phase Voltage Range
# Heaters
Individual Heater
Wattage
Brew
Basket
Hot Water
Faucet
Bypass
Brew Basket
Locks
Power Cord
E
2
2
3
1
U
S
1
A
1
1
5
P
M
0
0
1
E=extractor
US =United
States
1 A = 100-120 1 1.5 P=plastic M=manual 1=Yes 1=Yes 0=Terminal Block
12=PLUS
Series
31=
single side
IN =
International
2 B = 200-240 2 1.7 M=metal A=automatic 0=No 0=No 1= NEMA 5-15P
22=Next
Generation
32=
dual side
CE = IEC 3 C = 380-415 3 2.3
C=metal
with clips
N=None
2=NEMA 5-20P
NM = NOM
U = 1 or 3
D = 440-480
6
3.0
3=NEMA 6-15P
4.0
4=NEMA 6-30P
X=120 or 240
Dual Voltage
5.0
5=CEE 7/7
Schuko
6=UK1-13P
7= AUSTRALIAN
AS3112 (YP-35)
3 P215 REV000 February 2023
Electrical and Output Specifications
Customer options
BREW BASKET TYPE
(P, M )
HOT WATER FAUCET
(M, A OR N)
BYPASS
(1 OR 0)
Brew Basket Lock
(1 OR 0)
* is factory standard feature
Add all the following numbers
after all SKU numbers
*P=Plastic
M=Gourmet Metal
*M=Standard manual
A=Automatic electronic
N=No hot water faucet
*1=With
0=None
*1=With
0=None
CBS-2231Next Gen Single 3.0-4.0 Liter Coffee Brewers Field configurable Domestic
Electrical and Output Specifications Brewer has factory installed cord and plug & terminal block 50Hz or 60Hz
SKU
Voltage
Heater
Configuration
Wires KW
Electrical
Connection
Phase Amp Draw
Brew-Volume
per hour
E2231US-1X117-PA011
120
1 X 1.7 kW
2+G
1.7
NEMA 15-5P
1
14.7
3.9 gal/14.8 L
Domestic-Dual Voltage
208-240
2 X 1.7 kW
2+G
2.6-3.4
Terminal Block
1
12.8-14.7
5.8 gal/22 L
Electrical Specifications, Domestic Single brewer
-single voltage 120 volt cord and plug single phase 50Hz or 60Hz
CBS-2231Next Gen Single 3.0-4.0 Liter Coffee Brewers Domestic models
Electrical and Output Specifications All brewers have factory installed cord and plug 50Hz or 60Hz
SKU
Voltage
Heater
Configuration
Wires KW
Electrical
Connection
Phase Amp Draw
Brew-Volume
per hour
E2231US-1A115-PA011
120
1 X 1.5 kW
2+G
1.5
NEMA 15-5P
1
13.0
4.0 gal/15.1 L
E2231US-1A123-PA012
120
1 X 2.3 kW
2+G
2.3
NEMA 5-20P
1
19.7
5.8 gal/22 L
CBS-2231Next Gen Single 3.0-4.0 Liter Coffee Brewers Field configurable NOM (Mexico) In Spanish
Electrical and Output Specifications Brewer has factory installed cord and plug & terminal block 50Hz or 60Hz
SKU
Voltage
Heater
Configuration
Wires KW
Electrical
Connection
Phase Amp Draw
Brew-Volume
per hour
E2231NM-1X123-PA012
120
1 X 2.3 kW
2+G
2.3
NEMA 5-20P
1
19.7
6.1 gal/23.2 L
Dual Voltage
208-240
2 X 2.3 kW
2+G
4.6
Terminal Block
1
17.1-19.7
7.6 gal/30 L
NM in SKU suffix (above) denotes equipment with NOM certification, Spanish labeling for Mexico and Spanish language user guide
CBS-2231Next Gen Single 3.0-4.0 Liter Coffee Brewers International models
Electrical and Output Specifications All brewers have terminal block electrical utility connection 50Hz or 60Hz
SKU
Voltage
Heater
Configuration
Wires KW
Electrical
Connection
Phase Amp Draw
Brew-Volume
per hour
E2231NM-1A123-PA012
120
1 X 2.3 kW
2+G
2.3
NEMA 5-20P
1
19.7
5.8 gal/22 L
E2231NM-1A123-PA012
208-240
1 X 3.0 kW 2+G 2.3-3.0
NEMA 6-15P 1 11.3-13.0
7.9 gal/30.0 L
NM in SKU suffix
(above) denotes equipment with NOM certification, Spanish labeling for Mexico and Spanish language user guide
E2231IN-1B123-PA010
200-240
1 X 2.3 kW
2+G
1.6-2.3
Terminal Block
1
8.5-10.1
5.8 gal/22 L
E2231IN-1B130-PA010
200-240
1 X 3.0 kW 2+G 2.1-3.0
Terminal Block
1 10.9-13.0
7.7 gal/29.1 L
CBS-2231Next Ge n 3.0-4. 0 Lit er C off ee Br ewer s C E m o dels
Elect ric al an d O utp ut Spe cifi cat ion s Sch uko cor d an d pl ug 50Hz
SKU Voltag e Heater Configuration Wir es KW Elec tric al C onn ecti on Phas e Amp Dr aw Brew-V olum e per ho ur
E223 1CE-1B123-PA0 15
230
1 X 2.3 kW
L/N/ PE
2.1
CEE 7/7 Shuko
1
9.7
5.8 g al/ 22 L
E223 1CE-1B130-PA0 15 230 1 X 3.0 kW L/N/PE 2.8 CEE 7/7Shuk o 1 12.5 7.7 g al/ 29. 1 L
CBS-2232Next Gen Dual 3.0-4.0 Liter Coffee Brewers Domestic models
Electrical and Output Specifications All brewers have terminal block electrical utility connection 50Hz or 60Hz
SKU Voltage
Heater
Configuration
Wires KW
Electrical
Connection
Phase Amp Draw
Brew-Volume
per hour
E2232US-1B223-PA010
208-240
2 X 2.3 kW
2+G
3.5-4.6
Terminal Block
1
17.1-19.7
11.0 gal/42.0 L
E2232US-1B223-MA110
208-240
2 X 2.3 kW
2+G
3.5-4.6
Terminal Block
1
17.1-19.7
11.0 gal/42.0 L
E2232US-1B230-PA010
208-240
2 X 3.0 kW
2+G
4.5-6.0
Terminal Block
1
22.2-25.5
14.3 gal/54 L
E2232US-1B230-PA110
208-240
2 X 3.0 kW
2+G
4.5-6.0
Terminal Block
1
22.2-25.5
14.3 gal/54 L
E2232US-1B230-MA110
208-240
2 X 3.0 kW
2+G
4.5-6.0
Terminal Block
1
22.2-25.5
14.3 gal/54 L
CBS-2232Next Gen Dual 3.0-4.0 Liter Coffee Brewers International models
Electrical and Output Specifications All brewers have terminal block electrical utility connection 50Hz or 60Hz
SKU Voltage
Heater
Configuration
Wires KW
Electrical
Connection
Phase Amp Draw
Brew-Volume
per hour
E2232IN-1B223-PA010
200-240
2 X 2.3 kW
2+G
3.2-4.6
Terminal Block
1
16.5-19.7
12.2 gal/46.3L
E2232IN-1B230-PA010
200-240
2 X 3.0 kW
2+G
4.2-6.0
Terminal Block
1
21.3-25.5
15.8 gal/60 L
E2232IN-1B230-MA110
200-240
2 X 3.0 kW
2+G
4.2-6.0
Terminal Block
1
21.3-25.5
15.8 gal/60 L
E2232NM-1B230-PA010
208-240
2 X 3.0 kW
2+G
4.5-6.0
Terminal Block
1
22.2-25.5
15.8 gal/60 L
NM in SKU suffix (above) denotes equipment with NOM certification, Spanish labeling for Mexico and Spanish language user guide
CBS-1232PLU S Du al 3. 0-4.0 Lite r Cof fe e B rewe rs C E m od els
Elect rical an d Outp ut Spe cific ation s Al l br ewers h ave t erm in al bl oc k el ectri cal uti lity co nnec ti on 50Hz
SKU
Voltag e
Heater Configuration
Wir es
KW
Elec tric al C onn ecti on
Phas e
Amp Dr aw
Brew-V olum e per ho ur
E223 2CE-1B223-PA0 10
230
2 X 2.3 kW
L/N/ PE
4.2
Term inal Bl ock
1
18.9
11.0 gal/42.0 L
E223 2CE-1B230-PA0 10
230
2 X 3.0 kW
L/N/ PE
5.5
Term inal Bl ock
1
25.5
14.9 gal/56 L
E223 2CE-2B223-PA0 10
230/ 400
2 X 2.3 kW
2L/N/PE
4.2
Term inal Bl ock
2
9.7
11.0 gal/42.0 L
E223 2CE-2B230-PA0 10
230/ 400
2 X 3.0 kW
2L/N/PE
5.5
Term inal Bl ock
2
12.5
14.9 gal/56 L
Produktspecifikationer
| Varumärke: | Fetco |
| Kategori: | kaffebryggare |
| Modell: | CBS-2231 |
Behöver du hjälp?
Om du behöver hjälp med Fetco CBS-2231 ställ en fråga nedan och andra användare kommer att svara dig
kaffebryggare Fetco Manualer
27 September 2025
24 Augusti 2025
23 Augusti 2025
23 Augusti 2025
9 Augusti 2025
14 Juni 2025
12 September 2024
12 September 2024
12 September 2024
12 September 2024
kaffebryggare Manualer
- Varo
- C3
- CRUX
- Philips
- BCC
- Pelgrim
- Webber
- Hamilton Beach
- Lakeland
- Frieling
- Muse
- Electrolux
- Sielaff
- Marquant
- Petra Electric
Nyaste kaffebryggare Manualer
27 September 2025
26 September 2025
26 September 2025
26 September 2025
26 September 2025
26 September 2025
25 September 2025
25 September 2025
25 September 2025
25 September 2025
