TABLE OF CONTENTS

Specifications and Requirements ................................... 2

A PROGRAM ................................................................. 6

B GENERAL ................................................................... 7

C SERVICE INPUTS ...................................................... 8

D SERVICE OUTPUTS .................................................. 8

E CALIBRATION ............................................................ 9

F SERVICE MENU ....................................................... 11

G COUNTERS ............................................................. 13

Operator Training ......................................................... 15

Inlet & Dilution Valve Notes ......................................... 17

Wiring Diagram ............................................................ 19

Parts Diagrams ............................................................ 22

Small Spray Head Assembly ....................................... 28

Hot Water Faucet Relocation Instructions ................... 30

User’s Guide and Operator Instructions

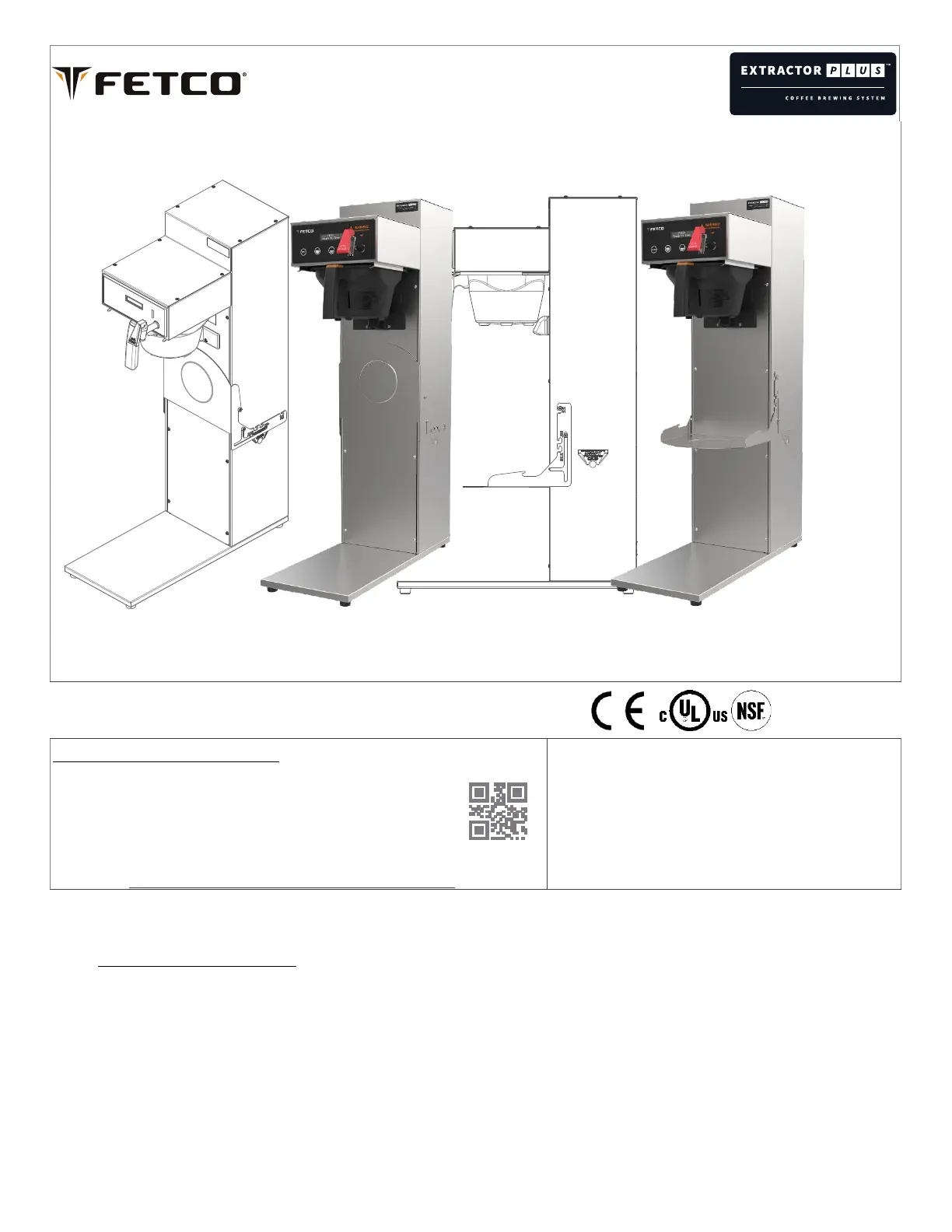

MBS-1221 Multi Beverage Combination Brewer for Coffee, Iced Tea, Hot Tea

FETCO Commercial Beverage Equipment

FETCO MBS 1221-with brew shelf and MBS122S (not shown)

CONTACT INFORMATION

FETCO® FOOD EQUIPMENT TECHNOLOGIES COMPANY

600 ROSE ROAD

LAKE ZURICH • IL • 60047-0429 • USA

INTERNET: www.fetco.com

PATENTS:https://www.fetco.com/pl,pages,patents,74.html

PHONE: (800) 338-2699 (US & CANADA)

(847) 719-3000 (All Countries)

FAX: (847) 719-3001

EMAIL:sales@fetco.com

orders@fetco.com (to order parts and equipment)

techsupport@fetco.com (all service queries)

P202 August 2024

Multi Beverage Brewer: MBS-1221

fetco.com

Go to fetco.com for the latest versions of all information Page 2 User Guide & Operator instructions MBS-1221 P202Re0August 2024

Specifications and Requirements

Water Requirements:

Electrical: Supplied with 120V cord & plug

Water inlet fitting Dual Water Inlet Connector Assembly is

included (page 16) terminates to a 1/4 inch male flare

User adjustable to 220-240 volt terminal block

Pressure: 20-75 psig, (138-517kPa) 1½gpm/(5.7lpm)

For Iced tea: brewer is factory calibrated to a non-fluctuating

stable water supply pressure at 45 psi.

Tank Temperature, as set by factory:

200°F (93°C) inside water tank (at sea level)

Iced Tea Batch Temperature-user adjustable

200°F-207°F-/ 93°-98°C

Water supply: (Optimal) 100-150TDS

All beverage equipment must use filtered water

Brew Volume-Coffee: Full Batch 2.20 liters

User adjustable to up to 0.85 gallon/3.25 liters per brew

Iced Tea Dilution Ratio: 1:4 factory set brew to water

Factory setting adds 2.4 gallons of cold water to 0.6

gallon brew for a 1:4 ratio Iced tea

(2.3liter brew/9.1 liter dilution)

Dilution volume is user adjustable from 0-4Gal;0-15.2L

Brew Volume-Iced Tea: Full Batch 11.40 liters/3 gallons

User adjustable to up to 4.9 gallon/18.7 liters per brew

Brew batch and dilution ratio user adjustable

Total Brew Cycle—Factory default setting (Batch 1): 5 minutes=[3:30 minute brew time + 1:30 minute drip delay]

Iced Tea-(Batch 3) 4:30 minutes=[3:00 minute brew time + 1:30 minute drip delay] Batch 2 may be set for either

Brew-Process parameters are user controllable for: Brew Volume, Brew Time, Prewet Percent and Delay,

Drip Delay, Tea Batch Temperature, Dilution Volume and Dilution Timing (with brew or after brewing)

Electrical Specifications for domestic-dual voltage Standard height with brew shelf

SKU

Model description

Electrical

Connection

Brew Basket

Heater

Configuration

Voltage KW

Amp

Draw

Brew Volume/Hour

M1221US-1A117-

PM001

NEMA 15-5P

Plastic tea “A”

Plastic coffee “B”

1 X 1.7 kW 120 1.7 14.7 4.4 gal/16.5 liters

M1221US-1A117-M

M001

NEMA 15-5P

Plastic tea “A”

Metal coffee “C”

1 X 1.7 kW 120 1.7 14.7 4.4 gal/16.5 liters

M1221US-1X117-PM001

Domestic-Dual Voltage

NEMA 15-5P

Terminal Block

Plastic tea “A”

Plastic coffee “B”

1 X 1.7 kW

1 X 3.0 kW

100-120

200-240

1.3-1.8

2.2-3.1

12.3-14.7

10.9-13.0

4.4 gal/16.5 liters

6-7 gal/22-21 liters

M1221US-1X117-KM001

Domestic-Dual Voltage

NEMA 15-5P

Terminal Block

Plastic tea “A”

Plastic coffee “B”

1 X 1.7 kW

1 X 3.0 kW

100-120

200-240

1.3-1.8

2.2-3.1

12.3-14.7

10.9-13.0

4.4 gal/16.5 liters

6-7 gal/22-21 liters

M1221US-1X117-MM001

Domestic-Dual Voltage

NEMA 15-5P

Terminal Block

Plastic tea “A”

Metal coffee “C”

1 X 1.7 kW

1 X 3.0 kW

100-120

200-240

1.3-1.8

2.2-3.1

12.3-14.7

10.9-13.0

4.4 gal/16.5 liters

6-7 gal/22-21 liters

Electrical Specifications for domestic-dual voltage Short version - no brew shelf

SKU

Model description

Electrical

Connection

Brew Basket

Heater

Configuration

Voltage KW

Amp

Draw

Brew Volume/Hour

M122SUS-1X117-PM001

Domestic-Dual Voltage

NEMA 15-5P

Terminal Block

Plastic tea “D”

Metal coffee “F”

1 X 1.7 kW

1 X 3.0 kW

100-120

200-240

1.3-1.8

2.2-3.1

12.3-14.7

10.9-13.0

4.4 gal/16.5 liters

6-7 gal/22-21 liters

Factory supplied with 120 volt NEMA 5-15 cord and plug. Dual voltage brewers may be field converted to 200-240 volts-see pages 13 and 19

International

SKU

Electrical

Connection

Brew Basket

Heater

Configuration

Voltage KW

Amp

Draw

Brew Volume/Hour

M1221IN-1B130-PM005 CEE 7/7

Plastic tea “A”

Plastic coffee “B”

1 X 3.0 kW 200-240 2.1-3.0

10.9-13.0 4.4 gal/16.5 liters

M1221CE-1B130-PM005

CEE 7/7

Plastic tea “A”

Plastic coffee “B”

1 X 1.7 kW 230 2.8 12.5 4.4 gal/16.5 liters

M1221CE-1B130-PM006

UK1-13P

Plastic tea “A”

Plastic coffee “B”

1 X 1.7 kW 230 2.8 12.5 4.4 gal/16.5 liters

M1221NM-1X117-PM001

DUAL VOLTAGE

NEMA 15-5P

Terminal Block

Plastic tea “A”

Plastic coffee “B”

1 X 1.7 kW

1 X 3.0 kW

100-120

200-240

1.3-1.8

2.2-3.1

12.3-14.7

10.9-13.0

4.4 gal/16.5 liters

6-7 gal/22-21 liters

M1221KS-1B130-PM006

UK1-13P

Plastic tea “A”

Plastic coffee “B”

1 X 1.7 kW 230 2.8 12.5 4.4 gal/16.5 liters

M1221BR-1B130-PN008

Type N

Plastic tea “A”

Plastic coffee “B”

1 X 1.7 kW 230 2.8 12.5 4.4 gal/16.5 liters

NOTES:

Advanced electronics enable this equipment to operate with a 50-60 Hz frequency range without affecting the circuit or requiring user adjustments.

NM in SKU suffix (above) denotes equipment with NOM certification, Spanish labeling for Mexico and Spanish language user guide

The "KS" in the SKU suffix indicates GCC equipment with CB Scheme certification, labeling for KSA, and Arabic language user guide.

The "BR" in the SKU suffix indicates Brazil equipment with CB Scheme certification, Type N plug, labeling and Portuguese for Brazil language user guide.

-The “CE” in the suffix (above) indicates equipment with a current CB scheme supporting CE marking. This equipment is not cUL/UL certified
