PN 1567797 March 2000 Rev.2, 2/12

Fluke-700ILF

In-Line Filter

Instruction Sheet

Introduction

The Fluke 700ILF In-line Filter is specifically designed to

trap fine particles from atmospheric air, compressed air, and

instrument air. It is used with the Fluke 713, 717, or 718

Pressure Calibrators. It can also be used to absorb small

quantities of liquid oil and water in droplet form. The filter

has the following specifications:

• Inlet fitting: 1/8 in. brass female NPT

• Outlet fitting: 1/8 in. brass male NPT

• Length: 2.125 in.

• Flange diameter: 1.875 in.

• Housing diameter: 1.560 in.

• Max pressure: 100 psi

• ° Max temperature: 200 F

• Max flow: 10 SCFM

• Burst pressure: 375 psi

• Filtration: 1 micron

Contents

• Model 700ILF In-line Filter

• Instruction Sheet

How to Contact Fluke

To contact Fluke, call one of the following numbers:

USA: 1-888-99-FLUKE (1-888-993-5853)

Canada: 1-800-36 FLUKE (1-800-363-5853)

Europe: +31 402-678-200

Japan: +81-3-3434-0181

Singapore: +65-6799-5655

Anywhere in the world: +1-425-356-5500

Visit us on the World Wide Web at: www.fluke.com

Installation and Replacement

This filter is designed with a directional flow. It must be

installed using the female fitting as filter inlet to ensure

proper filtration. Do not install using the male fitting as filter

inlet.

Unit should be replaced immediately if it is accidentally

saturated with bulk liquid contaminants, or when you detect

a noticeable drop in airflow.

To ensure a proper seal, apply multiple layers of compatible

Teflon tape to the male threads of both the filter and the

input male connector at the filter input.

Note

The Fluke-700ILF is not designed to lower the

effluent dew point of air or gas, or to remove

contaminants in vapor form, such as solvents,

water vapor, trace hydrocarbon vapors, or

chemical compounds

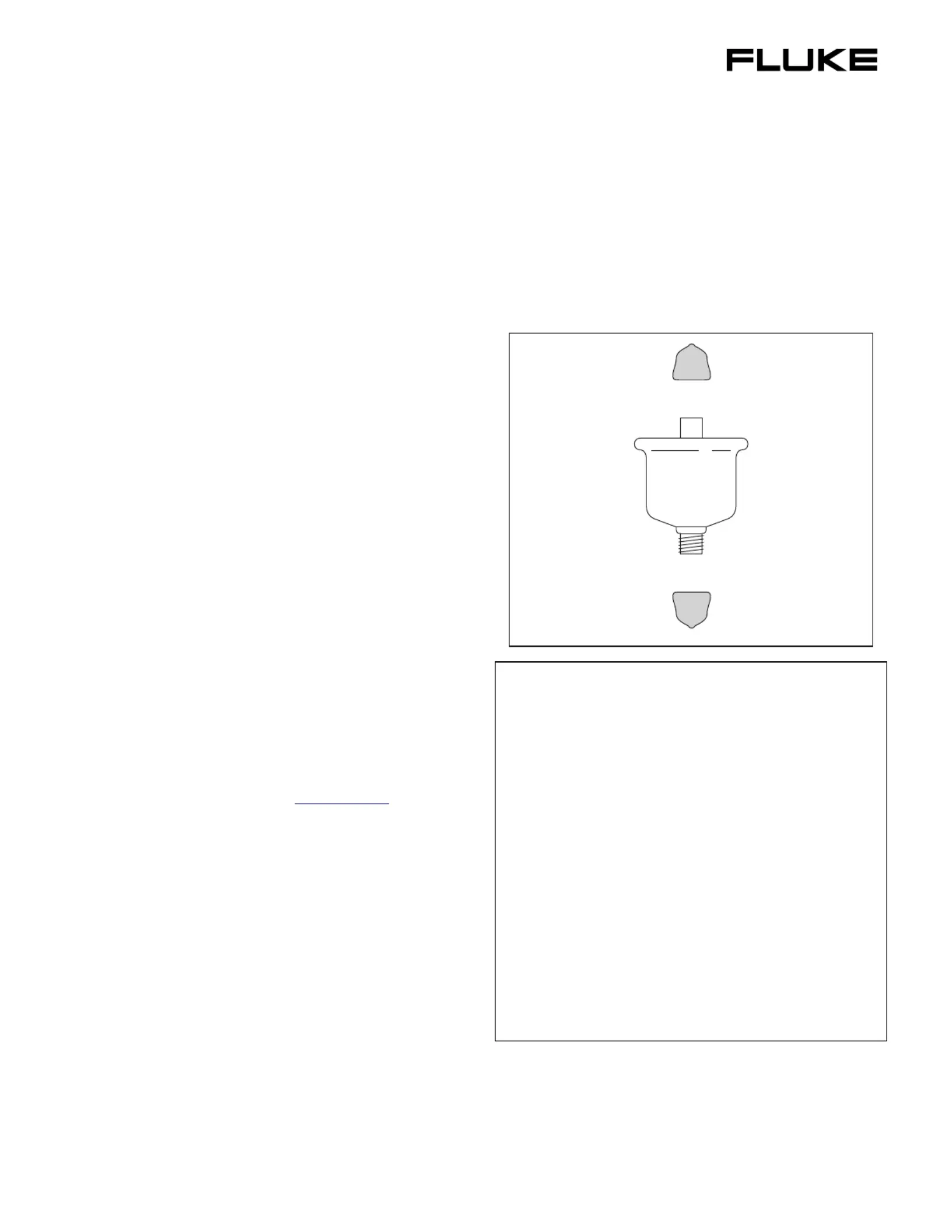

Inlet

Outlet to Fluke-718

700ilf.eps

Limited Warranty and Limitation of Liability

This Fluke product will be free from defects in material and

workmanship for one year from the date of purchase. This warranty

does not cover fuses, disposable batteries, or damage from

accident, neglect, misuse, alteration, contamination, or abnormal

conditions of operation or handling. Resellers are not authorized to

extend any other warranty on Fluke’s behalf. To obtain service

during the warranty period, contact your nearest Fluke authorized

service center to obtain return authorization information, then send

the product to that Service Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER

WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR

PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT

LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR

CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM

ANY CAUSE OR THEORY. Since some states or countries do not

allow the exclusion or limitation of an implied warranty or of

incidental or consequential damages, this limitation of liability may

not apply to you.

Fluke Corporation Fluke Europe B.V.

P.O. Box 9090 P.O. Box 1186

Everett, WA 98206-9090 5602 BD Eindhoven

U.S.A. The Netherlands
