Sida 1/8

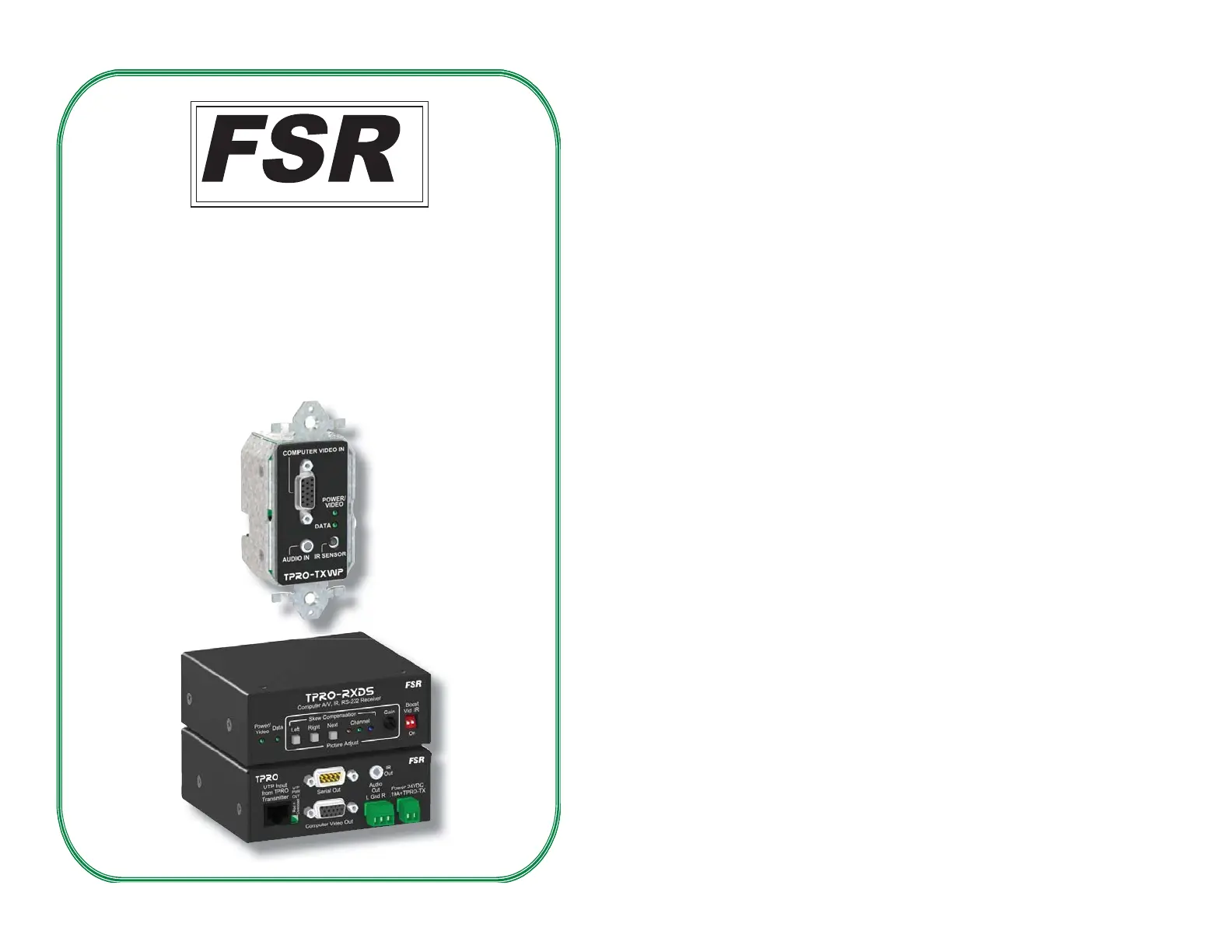

TwisterPro
AUDIO / VIDEO / DATA / IR TWISTED PAIR
(COVERS ALL TPRO TRANSMITTER AND RECEIVER MODELS)
INSTALLATION AND OPERATING GUIDE
LIT1284
43942
2
PROPRIETARY INFORMATION
All information in this manual is proprietary to and the
property of FSR inc. This publication is protected by the Federal
Copyright Law, with all rights reserved. No part of this document
may be reproduced, transcribed, or transmitted, in any form or by
any means, without prior explicit written permission from FSR
Inc.
Operators Safety Summary
The general safety information in this summary is for operating
personnel.
Read Instructions Read and understand all safety and operating
instructions before using this equipment. Keep the instructions
handy.
Do Not Remove Covers or Panels There are no user-serviceable
parts within the unit. Removal of the top cover will expose
dangerous voltages. To avoid personal injury, do not remove the
top cover. Do not operate the unit without the cover installed.
Power Source This product is intended to operate from the
specifi ed wall plug-in transformer. Do not use any other power
source.
Use the Proper Power Cord Use only the power cord and
connector specifi ed for your product. Use only a power cord that is
in good condition. Refer cord and connector changes to qualifi ed
service personnel.
Do Not Operate in Explosive Atmospheres To avoid explosion,
do not operate this product in an explosive atmosphere.
3
INTRODUCTION
The TwisterPro™ UTP Transmitter / Receiver System allows video, ste-
reo audio, RS-232 data and IR signal transmission over ordinary low cost
CAT-5, 5e and 6 cable. This system offers the highest level of signal
integrity. These high quality devices ensure reliable, error free transmis-
sion that is immune to interference from electrical noise. Cable runs of
up to 1000 feet are within the capabilities of the system.
There are wall plate style transmitters (1 gang and 2 gang) and receiv-
ers (2 gang) offered in three colors; black, white, and ivory. Matching
Decora™ trim rings are included for stand alone use or the units can be
populated along with FSR’s IPS component and plates for a complete
interface solution. There are also “brick” style housing versions that can
be used on any surface, or rack mounted using the accessory rack kits if
preferred. (See TwisterPro™ accessories and ordering info).
TPRO receivers with skew compensation adjustments are optional and
help adjust for mis-convergence of the red, green and blue video signals
that can occur as a result of inherent delay caused by differences in cable
twist lengths.
The system can be powered at either the transmitter or receiver end by
the optional power supply(s). If a TPRO- HUB is used, the hub with it’s
included power supply, will power the other components in the system.
This 1 in 8 out hub allows full expandability for demanding applications.
Multiple hus can be cascaded to achieve a maximum of 512 outputs.
FEATURES
RGB Video Transmission
• HD-15 female connectors for video input and output
• CAT-5 connections are via RJ-45 Connectors (EIA/TIA-568B)
• Video resolutions up to 1920 x 1080 (1080p)
• Cable skew compensation adjustments on -S model receiver
• Adjustable gain control on front panel
4
RS-232 Data Transmission
• DB-9 female connectors (3 pin Phoenix on brick models) for the
inputs and male for outputs
(optional for TPRO-TX wallplate
models)
• UTP connections are via RJ-45 Connectors (EIA/TIA-568B)
• Compatible with RS-232 standards
• UL and CSA approved external power source (wall plug-in)
• Simplex RS-232 up to 19.2k baud
• LED indication of RS232 data activity
IR Control Data Transmission
• Compatible with most IR devices
• Custom carrier frequencies are available per customer request
• Extends IR control up to 1000 feet
• Normal and high output emitter power level settings
• High output power level settings up to 60mW allows for multiple
emitter connections.Emitters sold seperately
• Transmitters feature an integrated IR sensor in addition to hard-
wired input option
• LED indication of IR data activity
General
• Units can be powered at either end or through optional hub
• Over-current sensing with LED indication
• Video, RS-232 and IR LED indicators
• Optional 1 in 8 out TPRO-HUB with power supply avail
able
APPLICATIONS
• Boardrooms • Houses of Worship• Control Rooms
• Classrooms• Staging and Rental •Libraries
ACCESSORIES
• RK-1 Rack mounting kit
• RK-2 Rack mounting shelf
