PUBLISHED BY FUSION ELECTRONICS LIMITED

U SE R / I N STALLATIO N MANUAL

MS-OS420

4” 2 WAY MAR I N E

BOX SPEAKE R S

INSTALLATION TIPS

TROUBLESHOOTI NG

Any speaker will perform to its best capabilities, when correctly placed in

the listening area. FUSION Engineers recognise that unlike a home or motor

vehicles installation, there are an extremely wide range of marine environments

where speakers may be placed. FUSION Marine Speakers are optimised to

perform in the widest possible range of mounting locations, but a little thought

and care with placement will always be rewarded with better sound.

• High frequencies are directional. Placing the speakers low down in

the boar will lose some of this information.

• Speakers should be placed to simulate “sound stage”, by being

placed where you are able to hear both speakers in a stereo situation.

Before you contact your FUSION dealer or service centre, FUSION requires that

you do some simple trouble shooting to help diagnose the problem.

Problem Solution

No sound Check all connections from the

source unit ampliﬁ er to the speaker

terminals are connected correctly

System lacks in bass Check the connections from the

source unit/ampliﬁ er to the speaker.

Ensure the positive wire from the

source is connected to the positive

of the speaker.

System lacks in

high frequencies

Check polarity

Check the bass / treble control

settings on the source unit

Distorted sound Check all wiring

Check that it is not the surrounding

panels of the craft rattling.

Check connections from the source

to the speaker.

YOU CAN HELP PROTECT THE ENVIRONMENT

Please remember to respect the local regulations:

Hand in the non-working electrical equipment to an appropriate waste disposal centre.

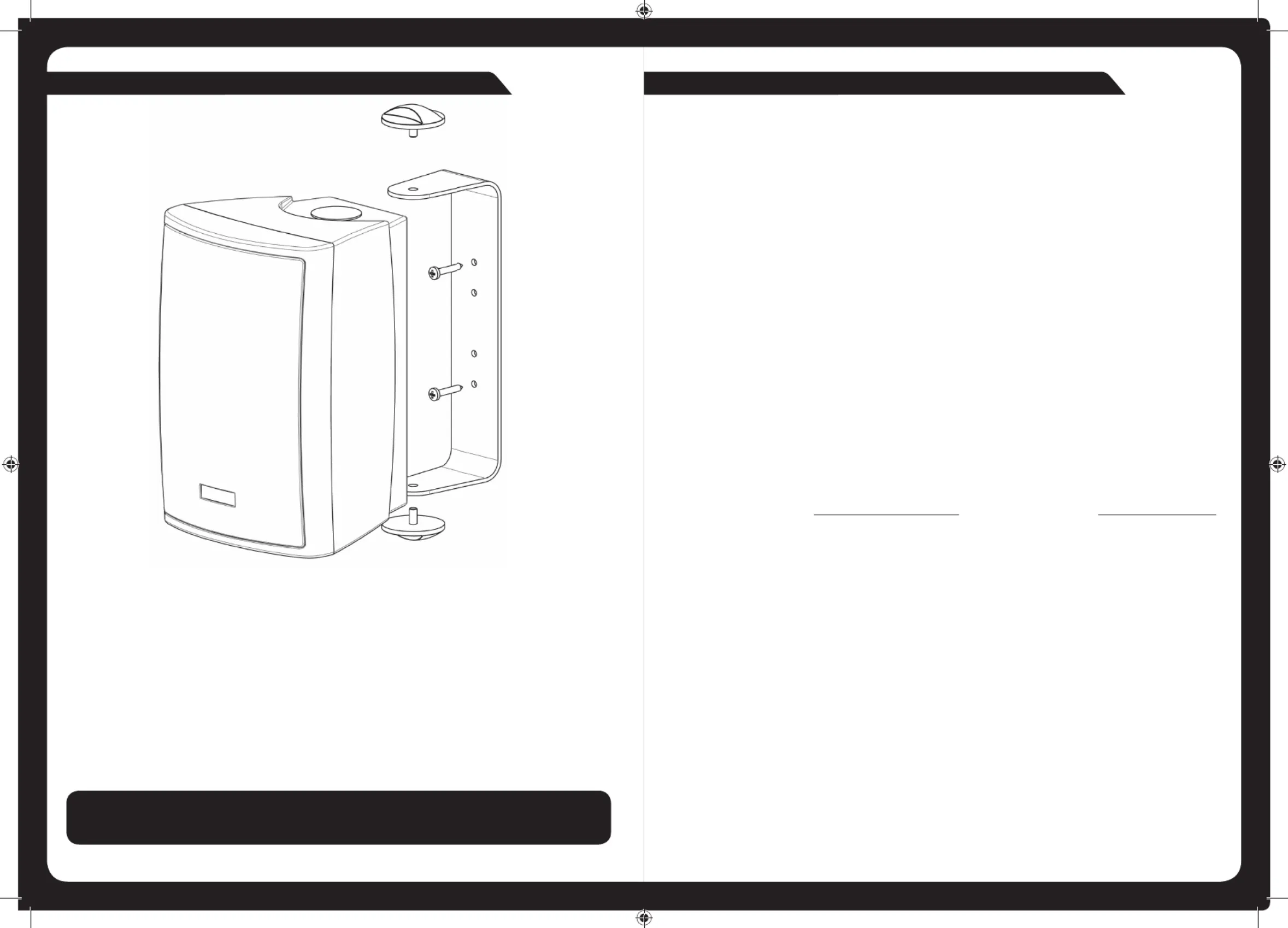

INSTALLATION GUIDE

1. Check mounting position for adequate space (See caution).

2. Place the mounting bracket in position, then mark and drill

the mounting holes.

3. Place the mounting bracket and insert screws.

4. Connect the wires from the source unit to the box speaker ensuring the

correct polarity is observed.

5. Attach the box speaker to the bracket using the mounting knobs supplied.

6. Adjust the angle of the speaker to the preferred position before tightening

the mounting knobs.

CAUTION: For speaker mounting restrictions, please refer to manufacturers

recommendations for related navigation equipment.

• CONTENTS .....................................................................................................pg 3

• CONTENTS OF BOX ........................................................................................pg 4

• PRODUCT SPECIFICATIONS ..........................................................................pg 4

• LINE DRAWINGS & DIMENSIONS ....................................................................pg 5

• INSTALLATION GUIDE ...................................................................................pg 6

• INSTALLATION TIPS ......................................................................................pg 7

• TROUBLESHOOTING ......................................................................................pg 7

CONTENTS

For your own peace of mind, register your product purchase online at

www.fusionelectronics.com

We’ll keep you up to date with any news related to your product, any software

upgrades or new accessories to help you get the most from your product.

RECORD YOU R PRODUCT DETAILS HERE:

MODEL NUMBER DATE OF PURCHASE

AFFIX RECEIPT HERE

Produktspecifikationer

Varumärke:	Fusion
Kategori:	högtalare
Modell:	MS-OS420
Rekommenderad användning:	Universal
Impedans:	4 Ω
Ljudutgångskanaler:	2.0 kanaler
Högtalarplacering:	Floor, Wall-mountable
Antal förare:	2
Bashögtalare:	Ja
Känslighet:	86 dB
Toppeffekt:	100 W
Produktens färg:	Vit
Uteffekt (RMS):	25 W
diskanthögtalare:	Ja
Frekvensområde:	80 - 20000 hz
Anslutningsteknologi:	Kabel
Woofer diameter:	10 mm
Woofer diameter (imperial):	4 "
Högtalartyp:	2-vägs
Högsta musikuteffekt (PMPO):	100 W
Driver Konmaterial:	Polypropylen
