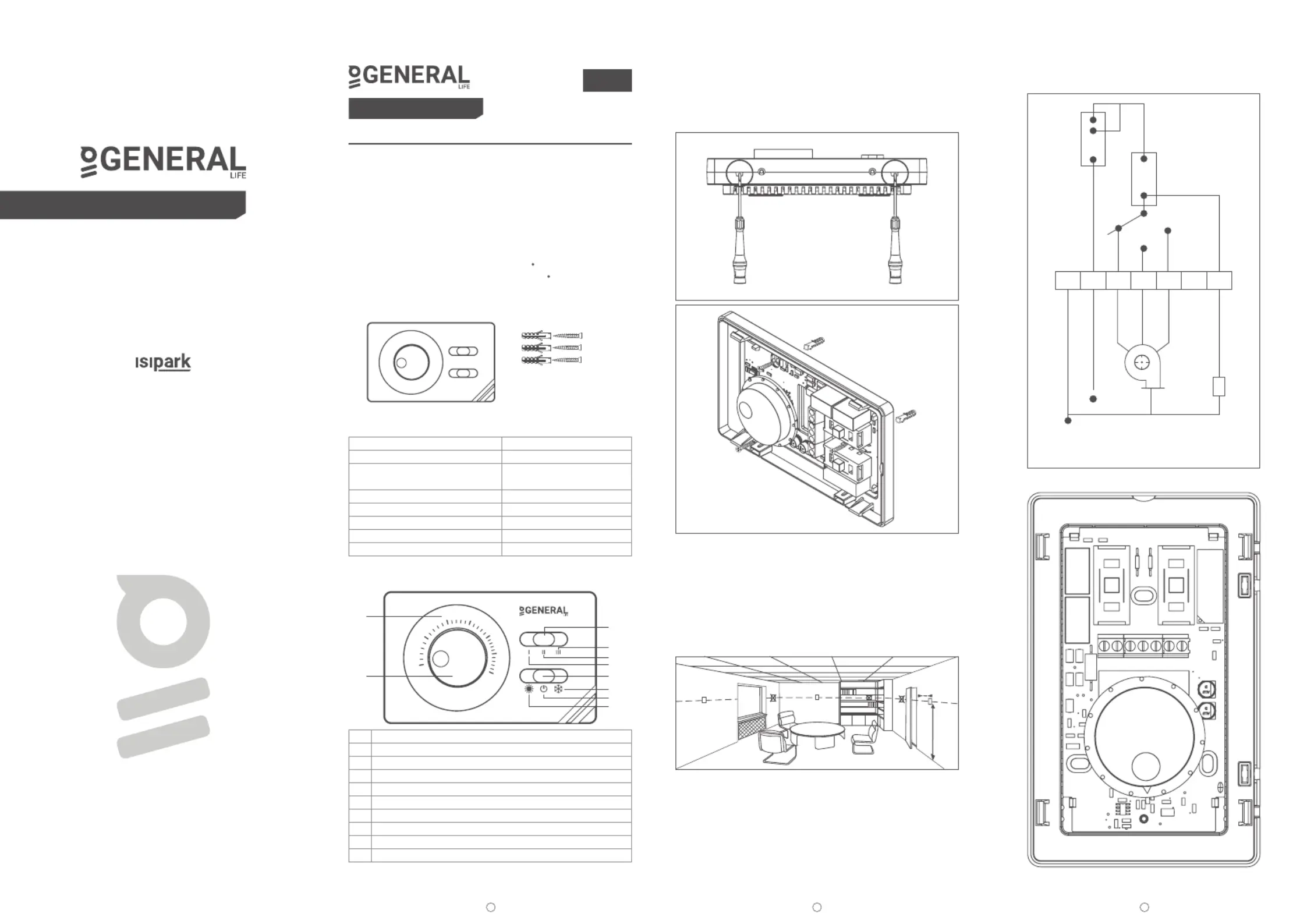

FAN COIL THERMOSTAT PLACEMENT
In order to mount FC100 to the wall, separate the upper case from the
lower case with the help of a screwdriver from the places shown
below.
Fan Coil Thermostat needs to be placed in the room which is used
most frequently. For instance; living room or lounge.Placing the Fan
Coil Thermostat in a spot that have air circulation like entrance of a
room or side of window should be avoided. Also anywhere close to
heating units such as radiator, stove and spots which get direct sun
lights would not be suitable.Fan Coil Thermostat needs to be located
above the floor 150 cm height. Few trials may be made to find the
most convenient spot.
FAN COIL THERMOSTAT WIRING DIAGRAM

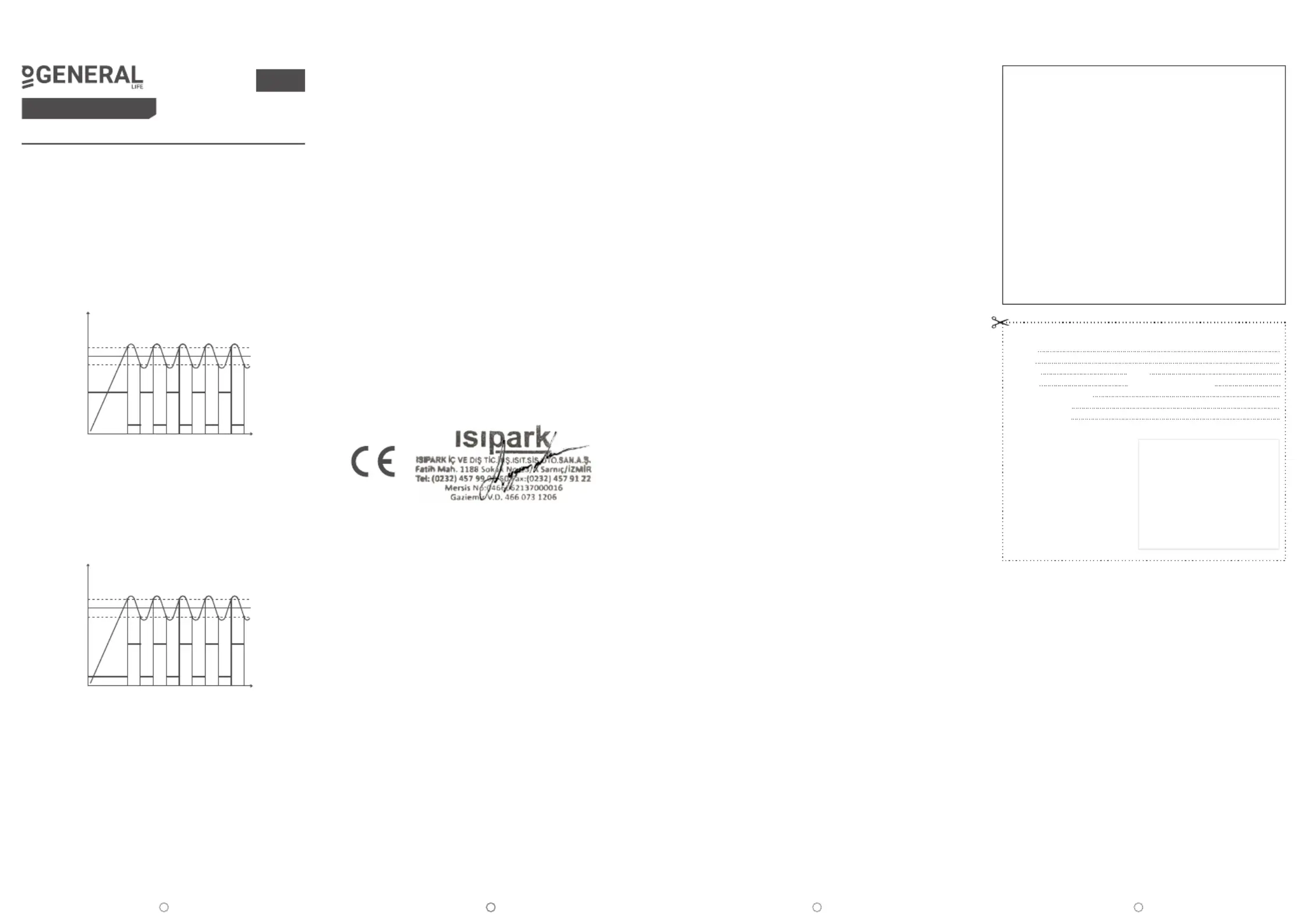

GENERAL SPECIFICATIONS
FC100 is a digital fan coil thermostat. The user can adjust the Fan Coil
Thermostat with the required temperature and fan speed to get more
comfortable and economic heating/cooling.
For 2 pipe fan coil systems User Friendly Interface
Manual heating and cooling option 3 Stage Fan Speed
FC100 AND EQUIPMENTS
TECHNICAL DATA
FAN COIL THERMOSTAT
1
3
90mm / 145mm / 29.8mm
110-220V AC 50/60 Hz
8A (250VAC – Resistive Load)
8A (30 VDC – Resistive Load)
o
0.1C
o
0.5C
oo
(5C) – (35C)
oo
(-10C) – (+50C)
oo
(-20C) – (+60C)
Dimensions
Operating Current
Relay NO Switching Current
Temperature Measurement Accuracy
Operating Sensivity
Operating Temperature Range
Operating Temperature
Storage Temperature
FC100 Fan Coil Thermostat
Dowels and Screws
ENGLISH
FC100 USER MANUAL
generallife.com.tr
DIGITAL FAN COIL THERMOSTAT
150 cm
min.20 cm
2
Fan Speed Adjustment Button
High Fan Speed Symbol
Medium Fan Speed Symbol
Low Fan Speed Symbol
ON/OFF and Mode Select Button
Cooling Mode Symbol
Off Symbol
Heating Mode Symbol
Temperature Dial Line
Temperature Adjustment Knob
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
LOW
MED
HIGH
L
L
L
LL
N
AC 220V
VALVE
FAN
OFF
NO
1
2
3
4
5
6
7
generallife.com.tr
FC100
USER MANUAL
DIGITAL FAN COIL THERMOSTAT
5
10
15
20
25
30
35
9
10
5
3
2
4
8
7
6
1
