Sida 1/48

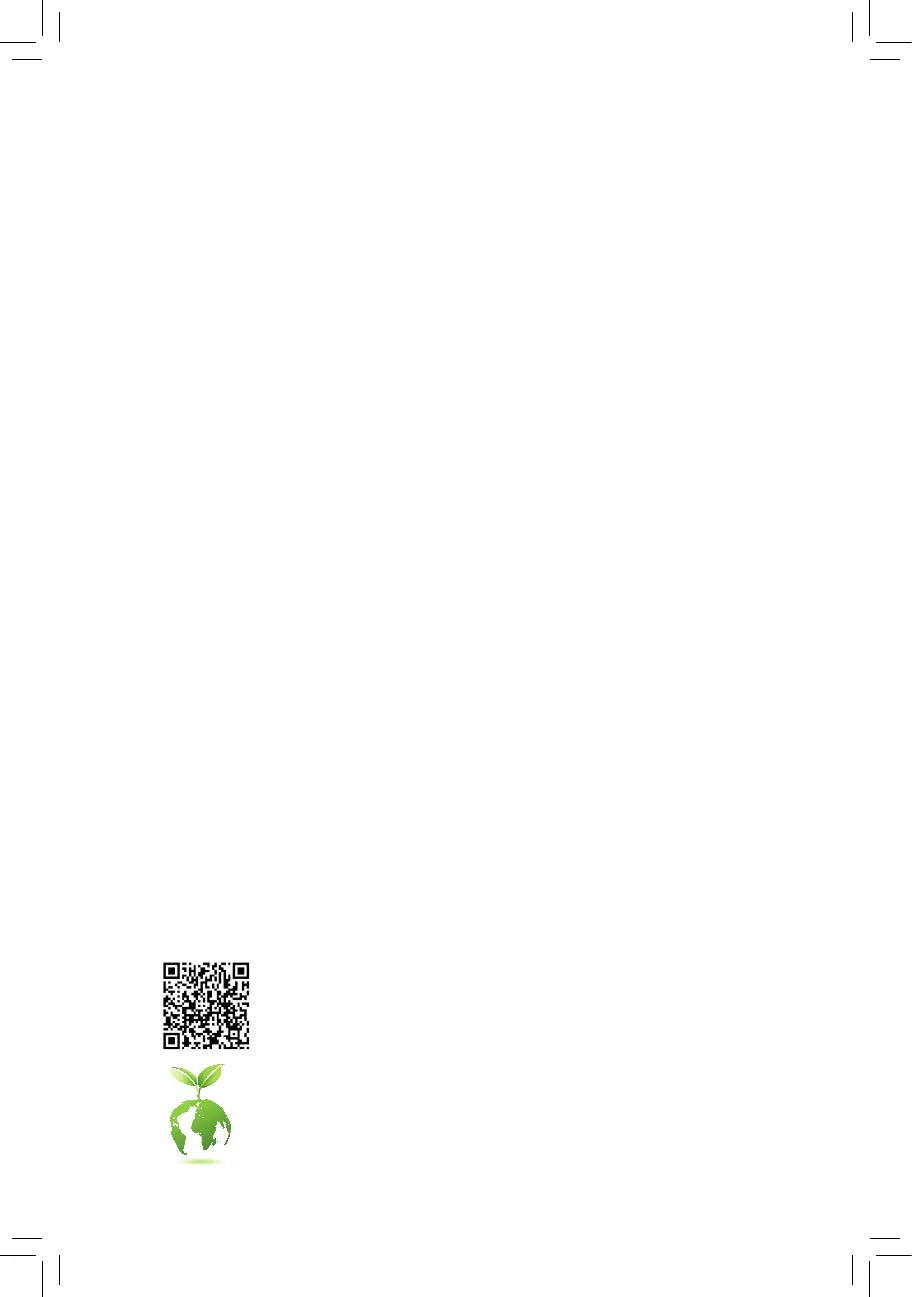

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

B450 I AORUS PRO

WIFI

User's Manual

Rev. 1001

12ME-B45IAPW-1001R

Motherboard

B450 I AORUS PRO WIFI

Jul. 21, 2018

Wireless Module Country Approvals:

Jul. 21, 2018

Motherboard

B450 I AORUS PR O WIFI

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

B450 I AORUS PRO WIFI Motherboard Layout 5 ..............................................................

Chapter 1 Hardware Installation 6 .....................................................................................

1-1 Installation Precautions 6 ....................................................................................

1-2 Product Specications ...................................................................................... 7

1-3 Installing the CPU 10 ..........................................................................................

1-4 Installing the Memory 10 .....................................................................................

1-5 Installing an Expansion Card ......................................................................... 11

1-6 Back Panel Connectors .................................................................................. 11

1-7 Internal Connectors 13 ........................................................................................

Chapter 2 BIOS Setup 21 ..................................................................................................

2-1 Startup Screen 21 ...............................................................................................

2-2 The Main Menu 22 ..............................................................................................

2-3 M.I.T. .............................................................................................................. 23

2-4 System ........................................................................................................... 27

2-5 BIOS ............................................................................................................... 28

2-6 Peripherals ..................................................................................................... 31

2-7 Chipset ........................................................................................................... 33

2-8 Power ............................................................................................................. 35

2-9 Save & Exit 37 .....................................................................................................

Chapter 3 Appendix 38 ......................................................................................................

3-1 Conguring a RAID Set .................................................................................. 38

3-2 Drivers Installation 40 ..........................................................................................

Regulatory Statements 41 ..............................................................................................

Contact Us 48 ................................................................................................................

- 5 -

B450 I AORUS PRO WIFI Motherboard Layout

Socket AM4

R_USB31

USB30_LAN

HDMI 1

R_USB30

HDMI

ATX

AUDIO

M2_WIFI

DDR4_2

DDR4_1

ATX_12V

AMD B450

LED_CPU

M_BIOS

PCIEX16

CODEC

F_PANEL

SPEAKERF_USB1

F_USB30

TPM

CLR_CMOS

F_AUDIO

D_LED

SPDIF_O

SYS_FAN1

CPU_FAN

iTE®

Super I/O

M2P

6080

SATA3

Intel®

GbE LAN (Note 1)

0 2

1 3

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5B450 I AORUS PRO WIFI motherboard

5Motherboard driver disk 5I/O Shield

5User's Manual 5M.2 screw(s)/M.2 standoff(s)

5Two SATA cables 5One antenna

(Note 1) The chip is on the back of the motherboard.

(Note 2) The hole is on the PCH heatsink of the motherboard.

42 (Note 2)

BAT

B450 I AORUS PRO WIFI

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- 3D OSD

- AutoGreen

- Cloud Station

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- RGB Fusion

- Smart Backup

- Smart Keyboard

- Smart TimeLock

- Smart HUD

- Smart Survey

- System Information Viewer

- USB Blocker

- V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton® Internet Security (OEM version)

cFosSpeed

Operating

System Support for Windows 10 64-bit

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 9 -

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Please visit GIGABYTE's website for details on hardware installation.

DualChannelMemoryConguration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory

is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

Channel A: DDR4_2

Channel B: DDR4_1

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the pin one (denoted by a small triangle) of the CPU socket and the CPU.

AM4 Socket

A Small Triangle

Marking Denotes Pin

One of the Socket AM4 CPU

A Small Triangle

Marking Denotes CPU

Pin One

- 10 -
